POSIFLEX RA-301 Bedienungsanleitung

RA-301 (MSR / 2D Imager / Fingerprint)

Package Contents

RA-301 Side Attachment……………………(1)

Back Cover…………………………………..(1)

Fixing Screw (M3-6L W/LIP)……………….(2)

User Manual…………………………………(1)

2D Imager Quick Setup Guide………………(1)

(For attachment with 2D scanner)

RA-311 (MSR / 2D Imager / RFID)

Package Contents

RA-311 Side Attachment……………………(1)

Back Cover…………………………………..(1)

Fixing Screw (M3-6L W/LIP)……………….(2)

User Manual…………………………………(1)

2D Imager Quick Setup Guide………………(1)

(For attachment with 2D scanner)

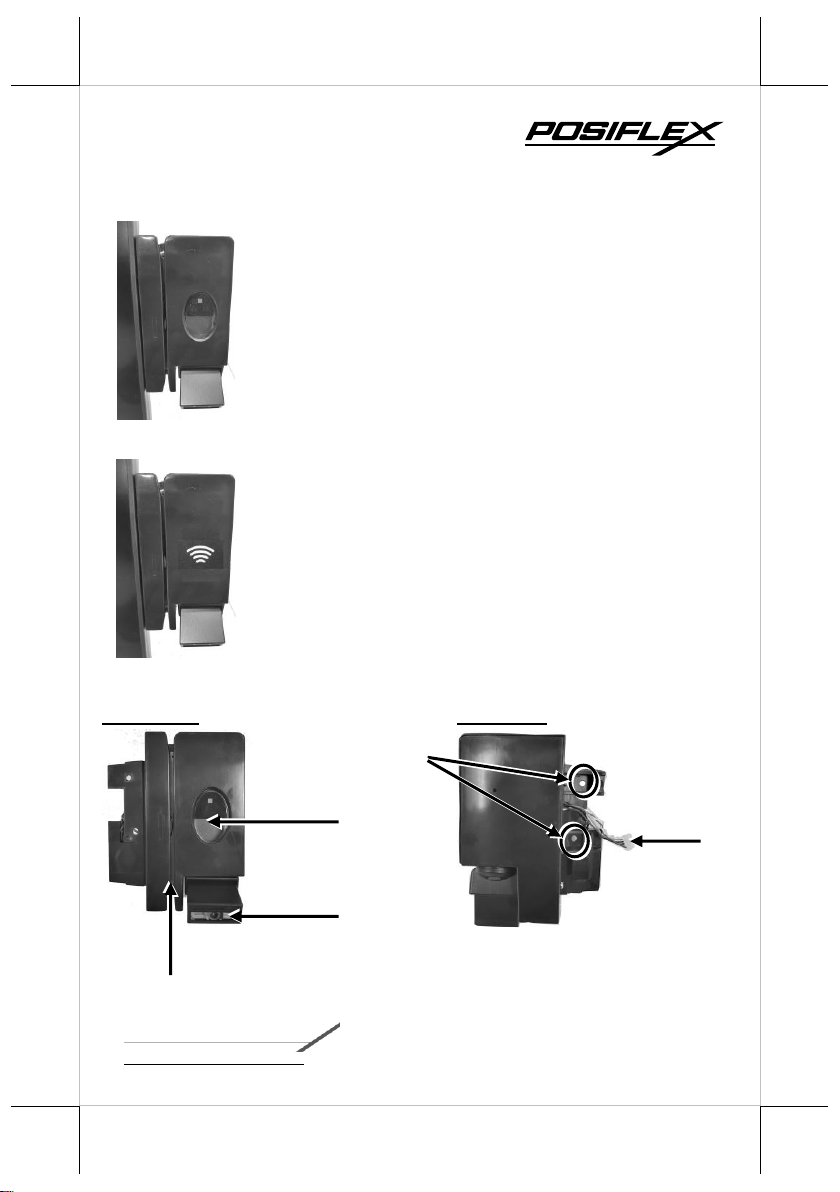

Views of the RA-301

Front View Rear View

RA-301/311

Side Attachment for RT-series Terminals

User Manual

3-track Magnetic Stripe Reader (Optional)

Fingerprint Sensor

with Status LED Indicator

(Optional)

USB I/O Cable

Scan Window

w/ Object Detector (Optional)

Screws Holes

18190901020 Ver. B0

http://www.posiflex.com

SOME IMPORTANT NOTES

FCC NOTES

This system meets industry & government requirements and applicable standards. This

equipment generates, uses, and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions manual, may cause interference to radio

communications. It has been tested and found to comply with limits for a Class A

digital device pursuant to subpart B of Part 15 of FCC Rules, which are designed to

provide reasonable protection against interference when operated in a commercial

environment. Operation of this equipment in a residential area is likely to cause

interference in which case the user at his own expense will be required to take whatever

measures to correct the interference.

This device complies with part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) This device may not cause harmful interference, and (2)

this device must accept any interference received, including interference that may cause

undesired operation.

CE CLASS A WARNING

This equipment is compliant with Class A of CISPR 32. In a residential environment

this equipment may cause radio interference.

AVERTISSEMENT CE CLASSE A

Cet équipement est conforme àla classe A de CISPR 32. Dans un environnement

résidentiel, cet équipement peut provoquer des interférences radio.

WARRANTY LIMITS

Warranty will terminate automatically when the machine is opened by any person other

than the authorized technicians. The user should consult his/her dealer for the problem

happening. Warranty voids if the user does not follow the instructions in application of

this merchandise. The manufacturer is by no means responsible for any damage or

hazard caused by improper application.

LIMITES DE GARANTIE

La garantie prend fin automatiquement lorsque la machine est ouverte par une personne

autre que les techniciens autorisés. L'utilisateur doit consulter son revendeur pour le

problème qui se produit. La garantie s'annule si l'utilisateur ne suit pas les instructions

d'application de cette marchandise. Le fabricant n'est en aucun cas responsable de tout

dommage ou danger causé par une mauvaise application.

警告使用者

這是甲類的資訊產品，在居住的環境中使用時，可能會造成射頻干擾，在這種情

況下，使用者會被要求採取某些適當的對策。

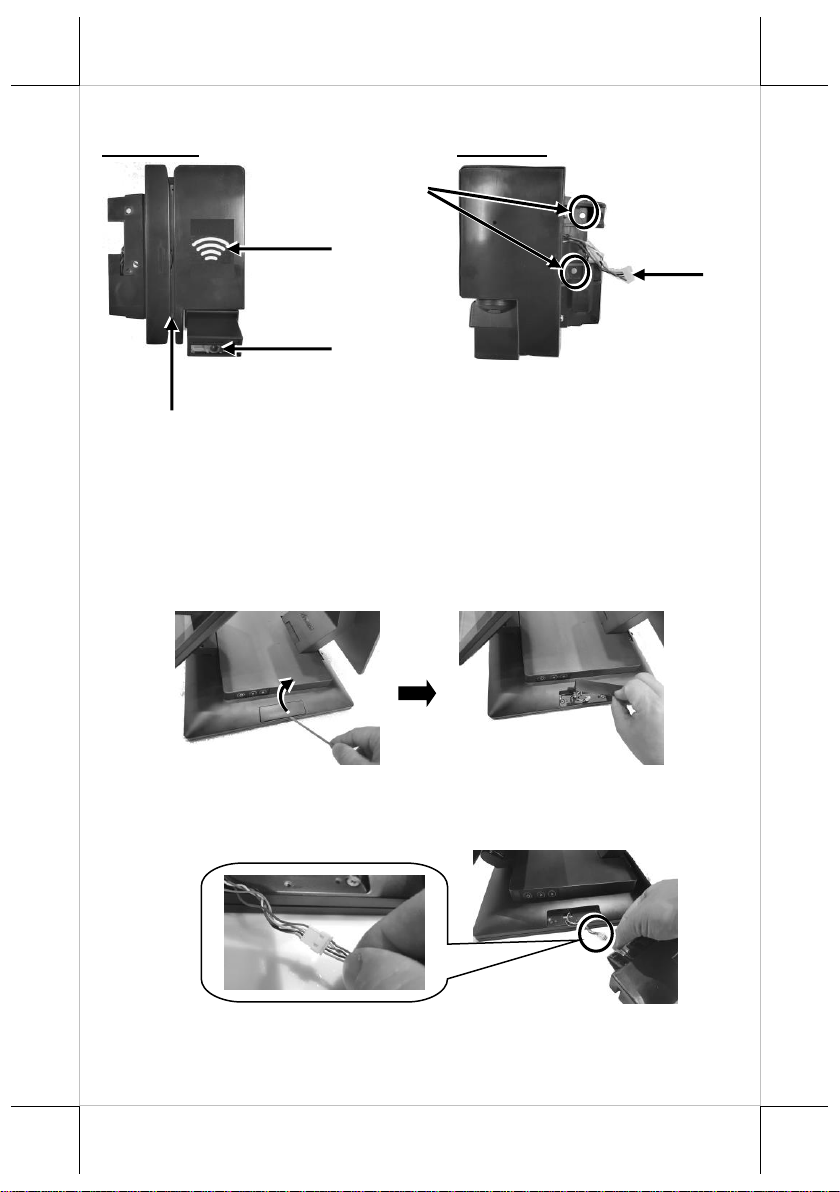

Views of the RA-311

Front View Rear View

Installing RA-301/311 to RT-series Terminals

Please go through the following instructions to finish installation of

RA-301/311. Also, ensure RT-series terminal is properly shut down during

installation.

1. Use slotted screwdriver to remove the cover for attachment bay which is

located on the left side of the rear of your RT-series terminal.

2. Connect the cable of RA-301/311 to the cable connector from mainboard

of your RT-series terminal. Then, tuck excess cables inside the attachment

bay of the terminal

3-track Magnetic Stripe Reader (Optional)

RFID Card Reader

(Optional)

Scan Window w/

Object Detector (Optional)

Screws Holes

USB I/O Cable

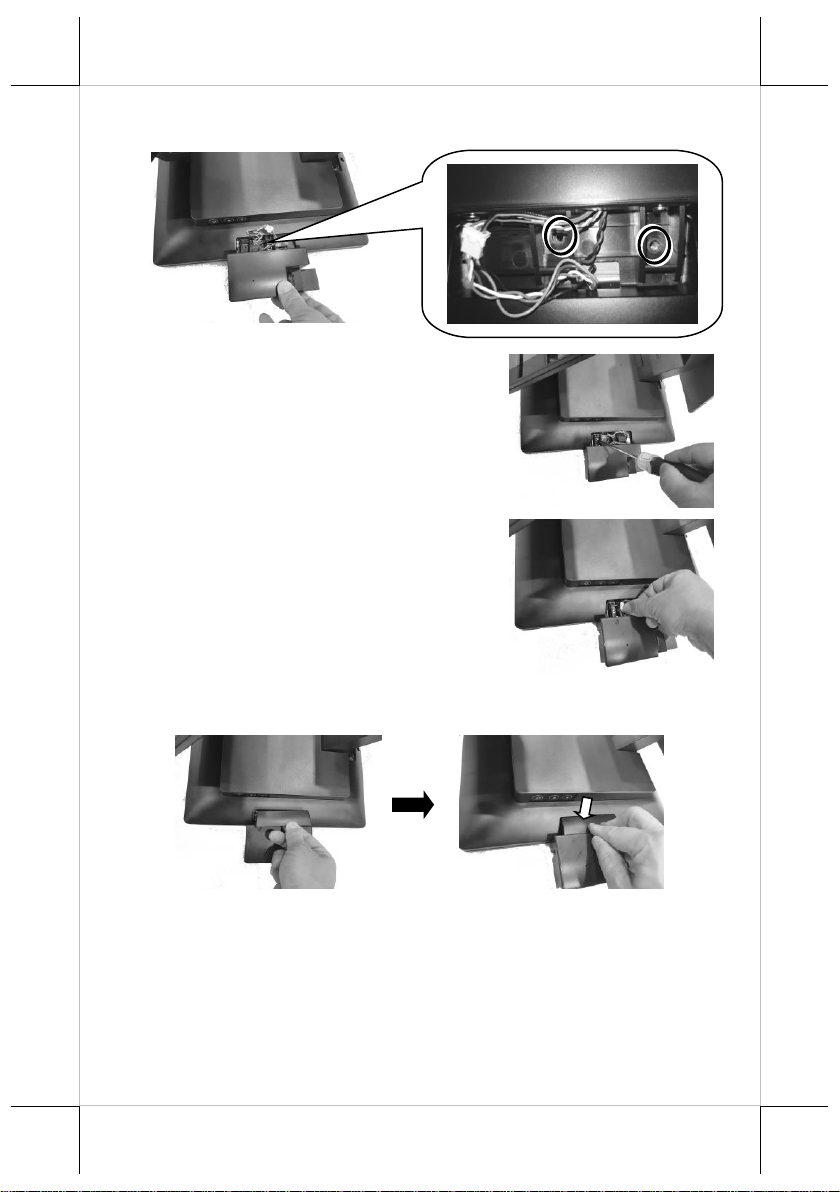

3. Align the screw holes of RA-301/311 with the mounting holes inside the

attachment bay of your RT-series terminal.

4. Secure RA-301/311 with two screws.

5. Push the excess cable to the inside.

6. Push the back cover for RA-301/311 until it is locked into place as shown

in the figure below.

Driver/Utility Installation and Utility Outline

Before installing the drivers of the RA-301/311, after installing the RA-

301/311 attachment, power on your RT-series terminal.

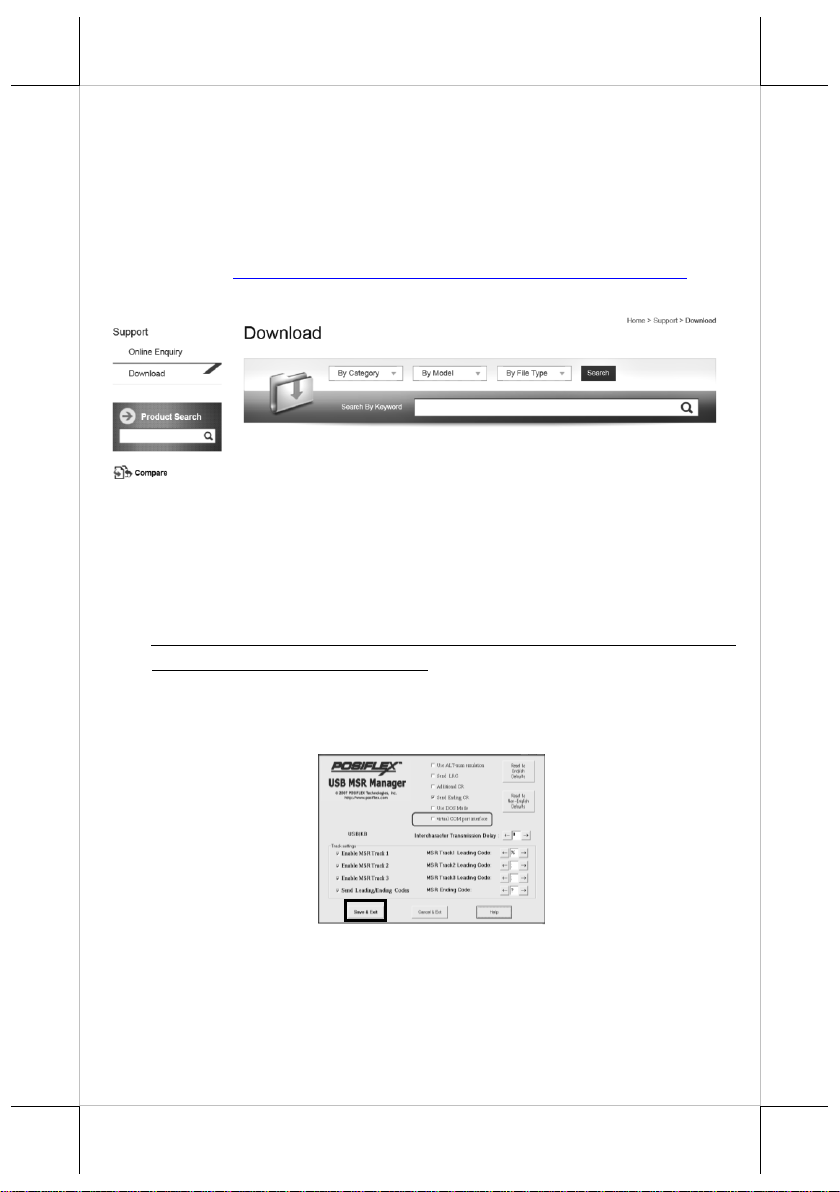

Installing and Starting the Posiflex USB MSR Manager

1. Before installing the USB MSR Manager, please visit Posiflex official

website (http://www.posiflex.com/en-global/Download/download) to

download the utility.

2. After downloading it, follow the step-by-step instructive messages to

complete the manager installation.

3. After completion of the manager installation, restart your terminal.

4. Open the MSR manager.

※If you purchase the attachment having MSR of which the interface is KB

wedge, ignore the following steps.

5. If you purchase the attachment having the MSR of which the interface

is virtual COM, tick off on virtual COM port interface and tap Save

& Exit to exit from the manager.

6. Please visit Posiflex official website (http://www.posiflex.com/en-

global/Download/download) to download the virtual COM driver.

7. After downloading it, follow the step-by-step instructive messages to

complete the driver installation.

8. After completion of the driver installation, restart your terminal.

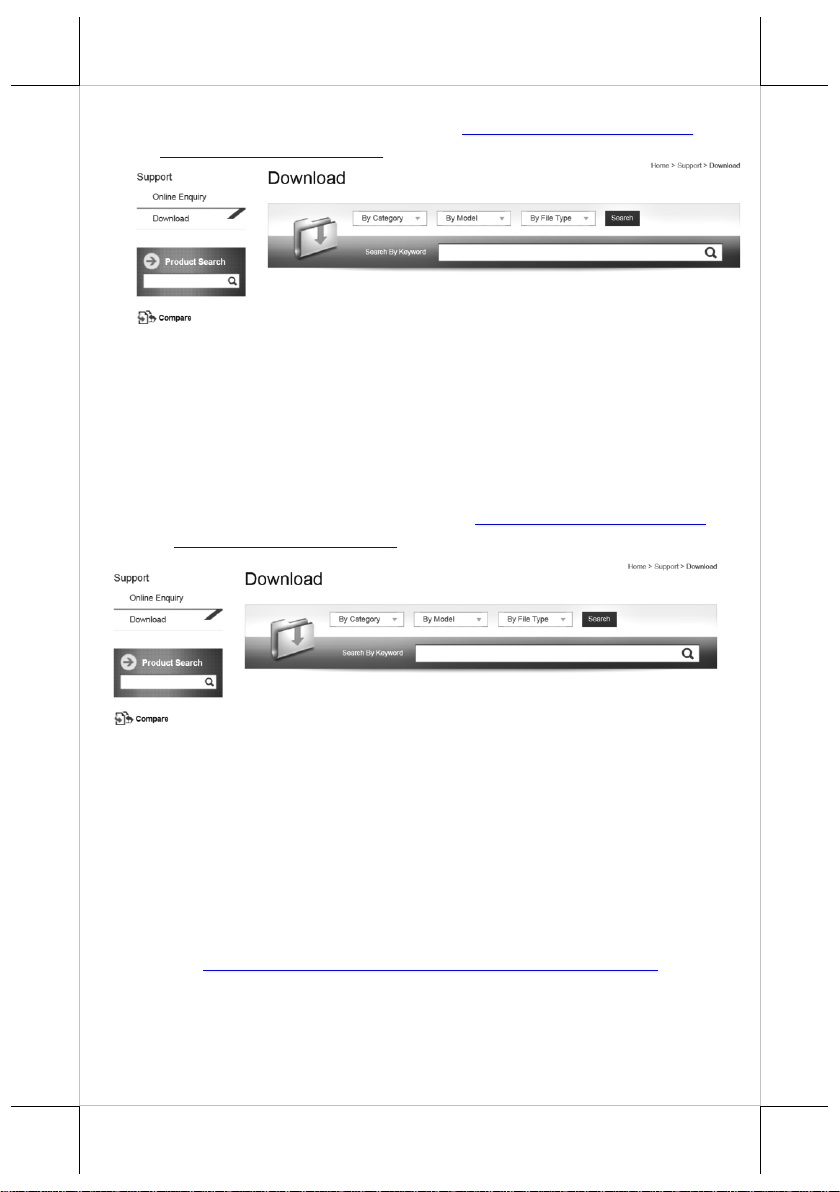

Installing the RFID Setup Tool

1. If you purchase the attachment having the RFID module of which the

interface is Virtual COM, install the RF-3X0 Virtual COM Driver

before installing the RF-3X0 Setup Tools. Please visit Posiflex official

website (http://www.posiflex.com/en-global/Download/download) to

download the virtual COM driver.

※If you purchase the attachment having the RFID module of which the

interface is KB wedge, ignore this step and just go to step 3 for the RF-3X0

Setup Tool installation.

2. Then, follow the step-by-step instructive messages to complete the

virtual COM driver installation.

3. Please visit Posiflex official website (http://www.posiflex.com/en-

global/Download/download) to download the RF-3X0 Setup Tools.

4. Then, follow the step-by-step instructive messages to complete the tool

installation.

5. After completion of the tool installation, restart your terminal.

6. Left click the RFID Setup Tools icon and then the tool appears.

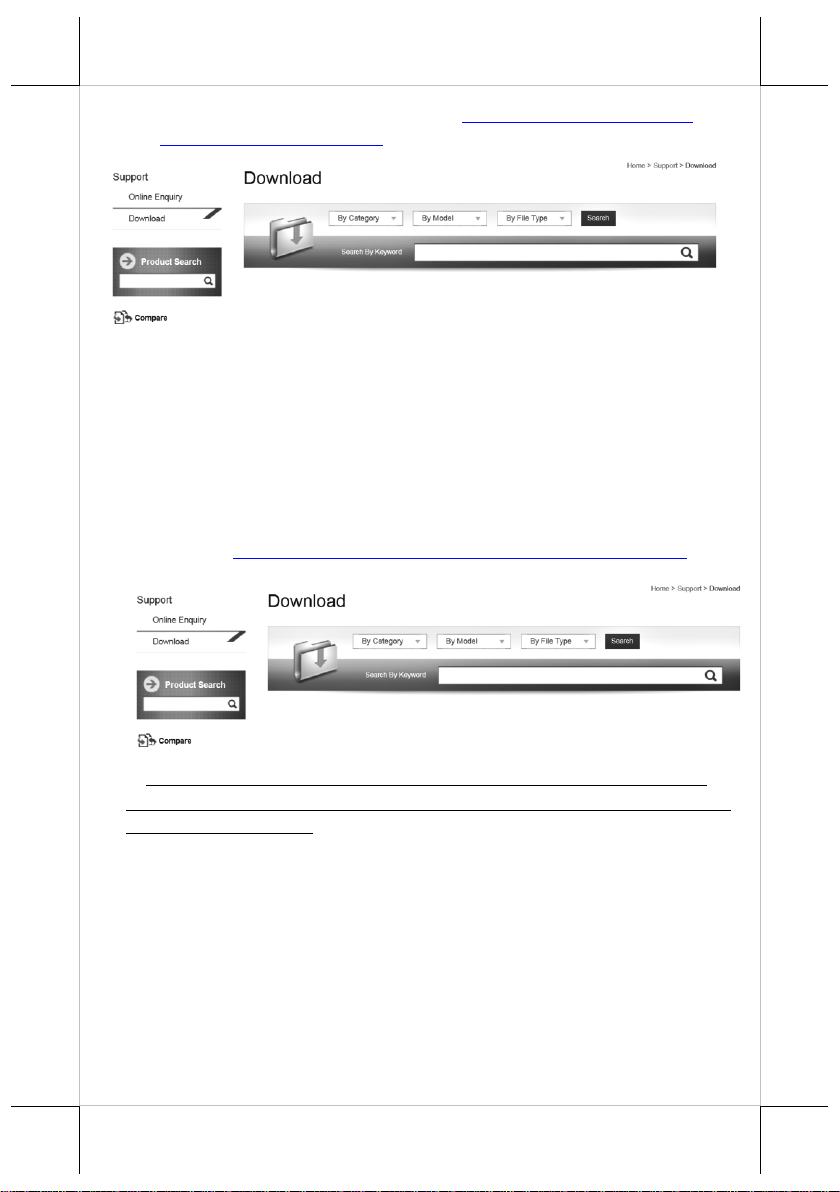

Installing the Fingerprint Driver

1. Please visit Posiflex official website (http://www.posiflex.com/en-

global/Download/download) to download the fingerprint driver.

2. Then, follow the step-by-step instructive messages to complete the

driver installation.

3. After completion of the driver installation, restart your terminal.

Setting up the 2D Imager

To enable you to configure the 2D imager based on personal preferences,

two options are offered to achieve the purpose: the advanced user manual,

which contains a complete set of barcode labels, and the quick setup guide

with most frequently used barcode labels. Please visit Posiflex Global

Website (http://www.posiflex.com/en-global/Download/download) to

download the related documents.

Using the RA-301/311

After installing the drivers and tools, you can start to operate the RA-301/311.

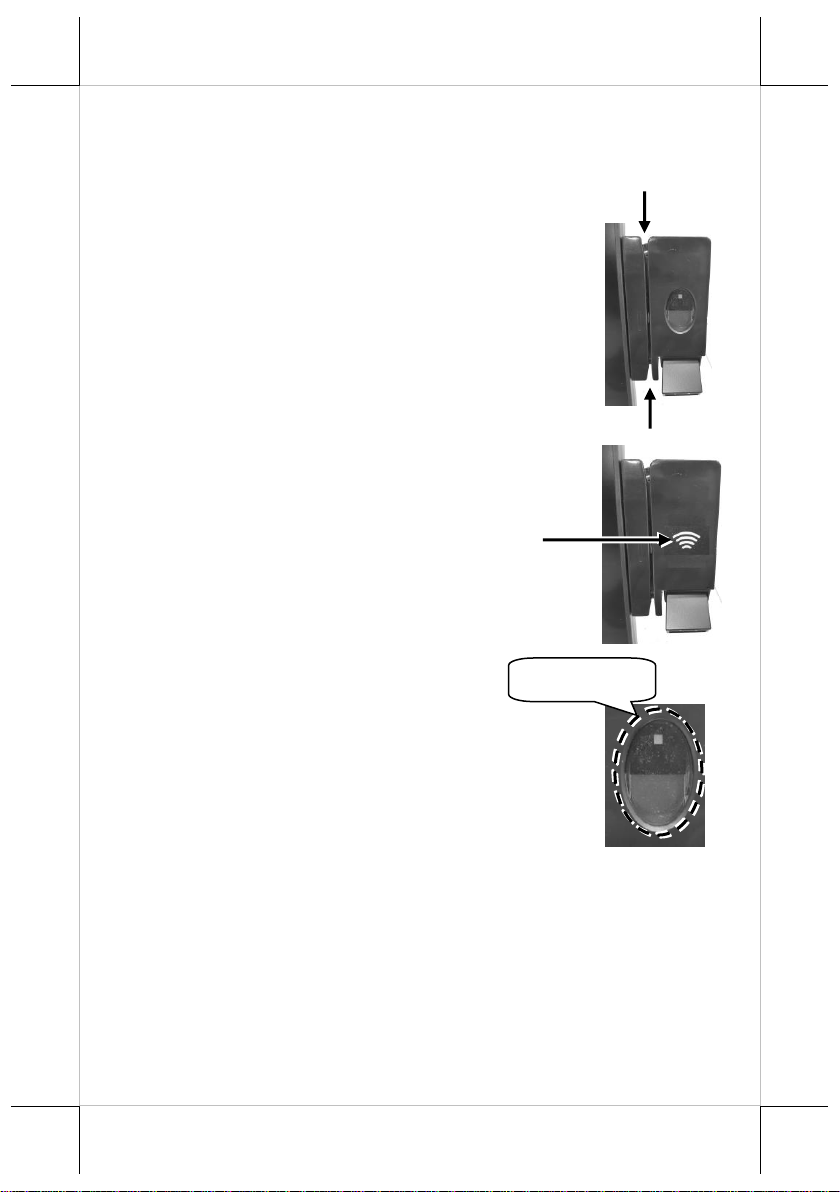

Magnetic Stripe Reader (MSR)

RA-301/311 with magnetic strike reader mainly serves

to read and decode data from magnetic stripe. Please

go through the following tips while swiping your MSR

cards though the reader:

1. Swipe your card with the side of magnetic stripe

facing your terminal screen.

2. Swipe your card along the track of the reader in

the direction shown in the figure.

RFID Card Reader

RFID card reader, an optional item featured in RA-311,

is located on the middle side of RA-311. To retrieve

data through the RFID card reader, tap your Mifare

card against the RFID reader.

Fingerprint Sensor

Keep your thumb close to the fingerprint reading area

to allow the fingerprint sensor to read your thumb

fingerprint.

Checking the LED status:

Standby status: solid blue

Reading Status: solid blue and solid red

(The red LED will be off after around 2 seconds.)

RFID Card Reader

Reading Area

2D Imager

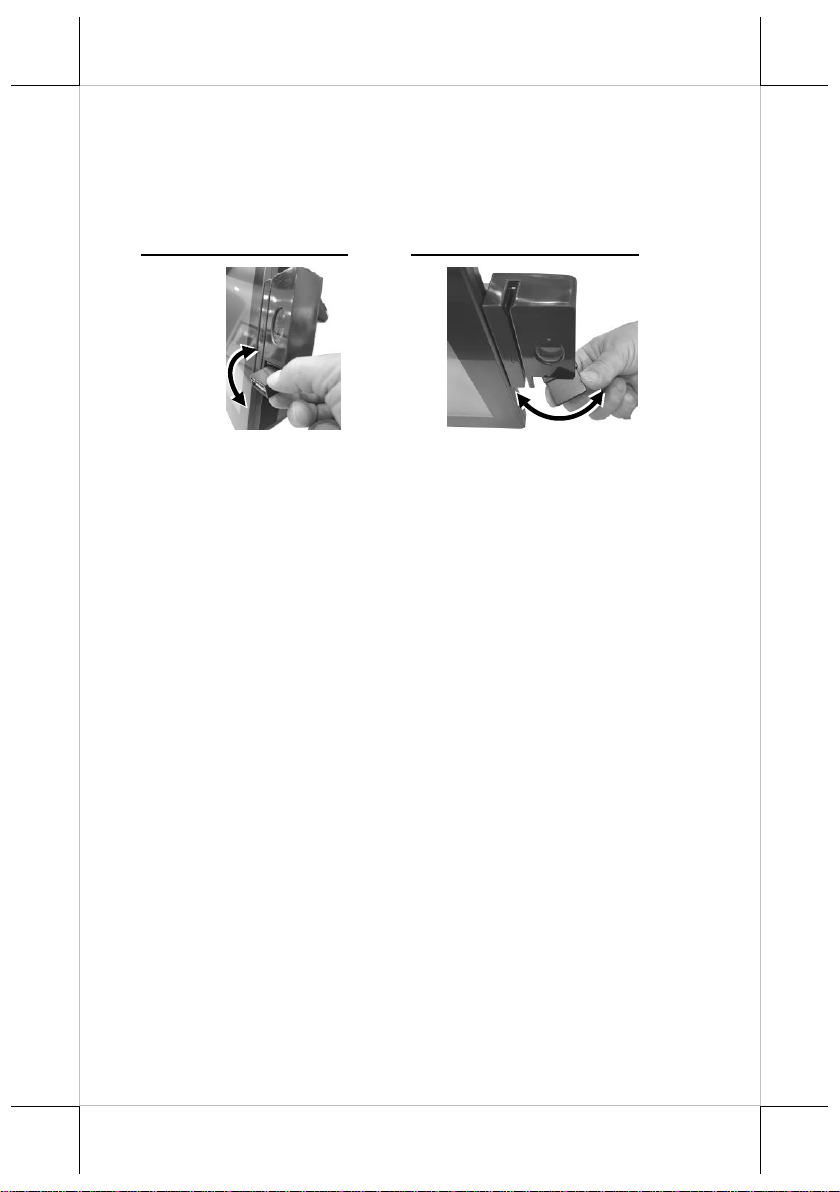

To enhance your experience using 2D imager, the RA-301/311 provide a

wide range of angle adjustment, with a vertical scanning angle of up to 110˚

and horizontal scanning angle of up to 180˚. Please refer to the figures

below to properly adjust the 2D imager for a better scanning angle.

Vertical Angle Adjustment

Horizontal Angle Adjustment

Up to 180 degree

Up to

110 degree

Specifications of 2D Imager

Scan method

CMOS area sensor (black and white)

Number of effective pixel

640 (H) × 480 (V) dot

Image capture speed

100 fps (frame rate)

(The fastest speed of image capture)

Adjusting angle

Horizontal：Approx.180°

Horizontal：Approx.110°

View angle

Diagonal：Approx. 46.4˚

Horizontal：Approx. 38.0˚

Vertical：Approx. 26.4˚

Auxiliary light source

(LED × 1)

Color：Warm White LED

Color Temperature：2600 ~ 3700K

Light source for aiming

(LED × 1)

Color：Green LED

Peak Wave Length：525 nm

Depth of field (mm)

Code 39

45~120mm (Resolution(0.127))

60~240mm (Resolution(0.25))

80~260mm (Resolution(0.33))

Code 128

65~210mm (Resolution(0.25))

UPC

45~300mm (Resolution(0.33))

PDF417

30~210mm (Resolution(0.25))

QR Code

30~240mm (Resolution(0.381))

DataMatrix

35~160mm (Resolution(0.31))

(Measured from the front end of the scanner)

※The product information and specifications are subject to change

without prior notice. To get the detailed information on RA-301/311,

please check this model from Posiflex Global Website

(http://www.posiflex.com/en-global/Download/download).
