Power-Pole 8 Bedienungsanleitung
Figure A
Insert and Twist
BLADE U-CHANNEL REPLACEMENT (UPPER OR LOWER)
INSTRUCTIONS
• 8’ Models 2012-Mid-2019
• 10’ Models (2012-2016)
Need help? Contact our Customer Service Team at 1 + 813.689.9932 Option 2
Installation Tools:
• 9/16” Wrench
• 9/16” Socket
• 1/2” Wrench
• 1/2” Socket
• Ratchet
• Spreader Block
(Not Included)
• 1/4” Flat Punch
REMOVAL & INSTALLATION:
STEP 1 Lower the Power-Pole Anchor®down so the Everflex™spike is about a foot off the ground.
STEP 2 Follow diagrams (see reverse) to remove all hardware that attaches the U-Channel you are replacing
(Upper or Lower).
STEP 3 Install the new U-channel by following the diagrams (see reverse).
QR Code A
Hardware Kit
NOTICE: No mounting hardware is included in this kit.
IMPORTANT! Replace any hardware that is worn or damaged. Always replace
nylon lock nuts. To order proper hardware, scan QR Code A.
DO NOT touch the spike
with bare hands.
IMPORTANT! A Spreader Block will be needed to install and remove the U-Channel to
and from the Knuckle and Stern Bracket. FIG A
Need help? Contact our Customer Service Team at 1 + 813.689.9932 Option 2
BLADE U-CHANNEL REPLACEMENT (UPPER OR LOWER)
INSTRUCTIONS
• 8’ Models 2012-Mid-2019
• 10’ Models (2012-2016)

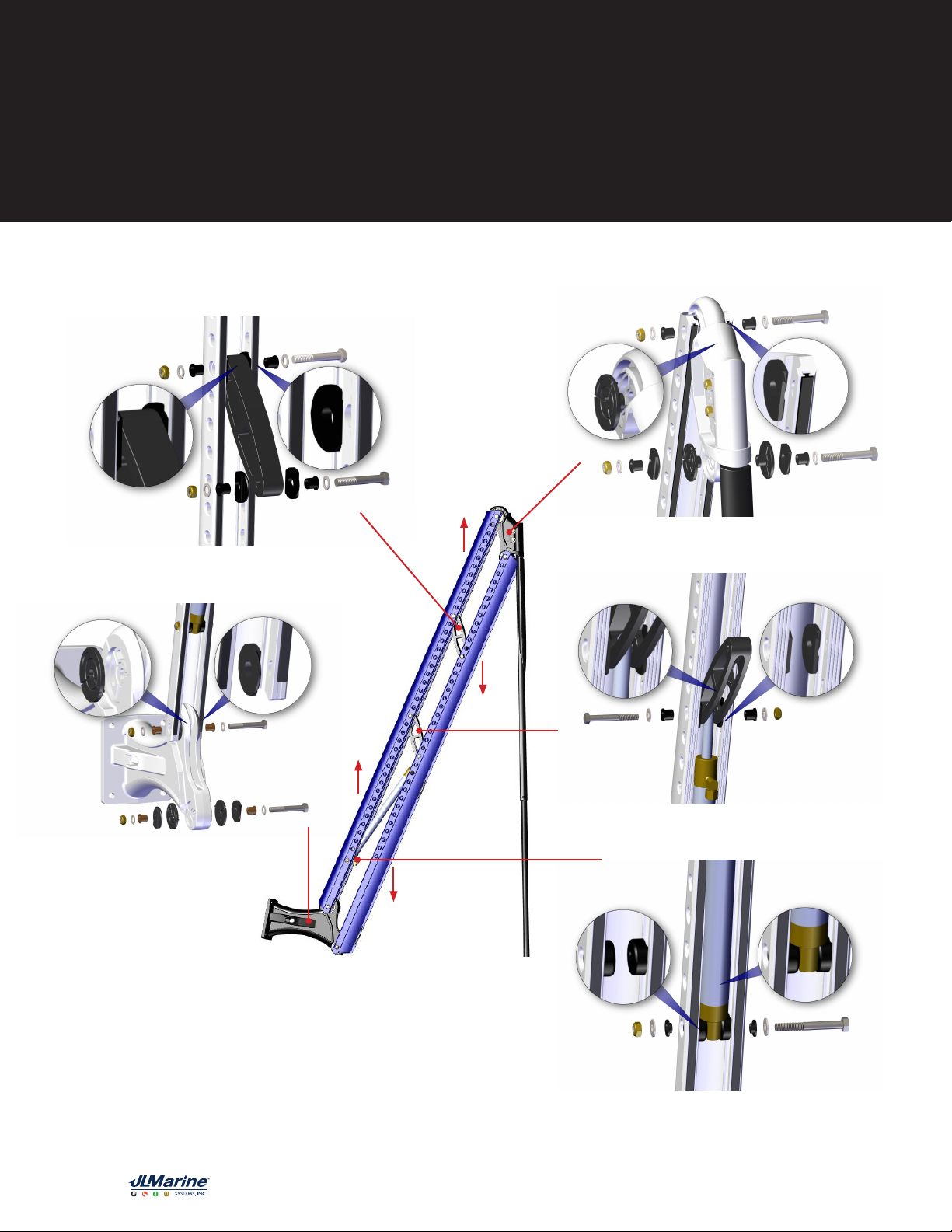

Knuckle Removal
(1/2” Tools; Upper or Lower Replacement)
Cylinder With Stabilizer Bar
(1/2” Tools; Upper or Lower Replacement)
Cylinder End Cap
(1/2” Tools; Upper Replacement ONLY)
Stabilizer Bar
(10’ Models ONLY; 9/16” Tools; Upper or Lower Replacement)
Stern Bracket
(9/16” Tools; Upper or Lower Replacement)
9010 Palm River Road, Tampa, Florida 33619 • phone 813.689.9932 • fax 813.689.8883 • power-pole.com
Power-Pole is a registered trademark of JL Marine Systems, Inc. © Copyright 2021 JL Marine Systems, Inc. All Rights Reserved.
