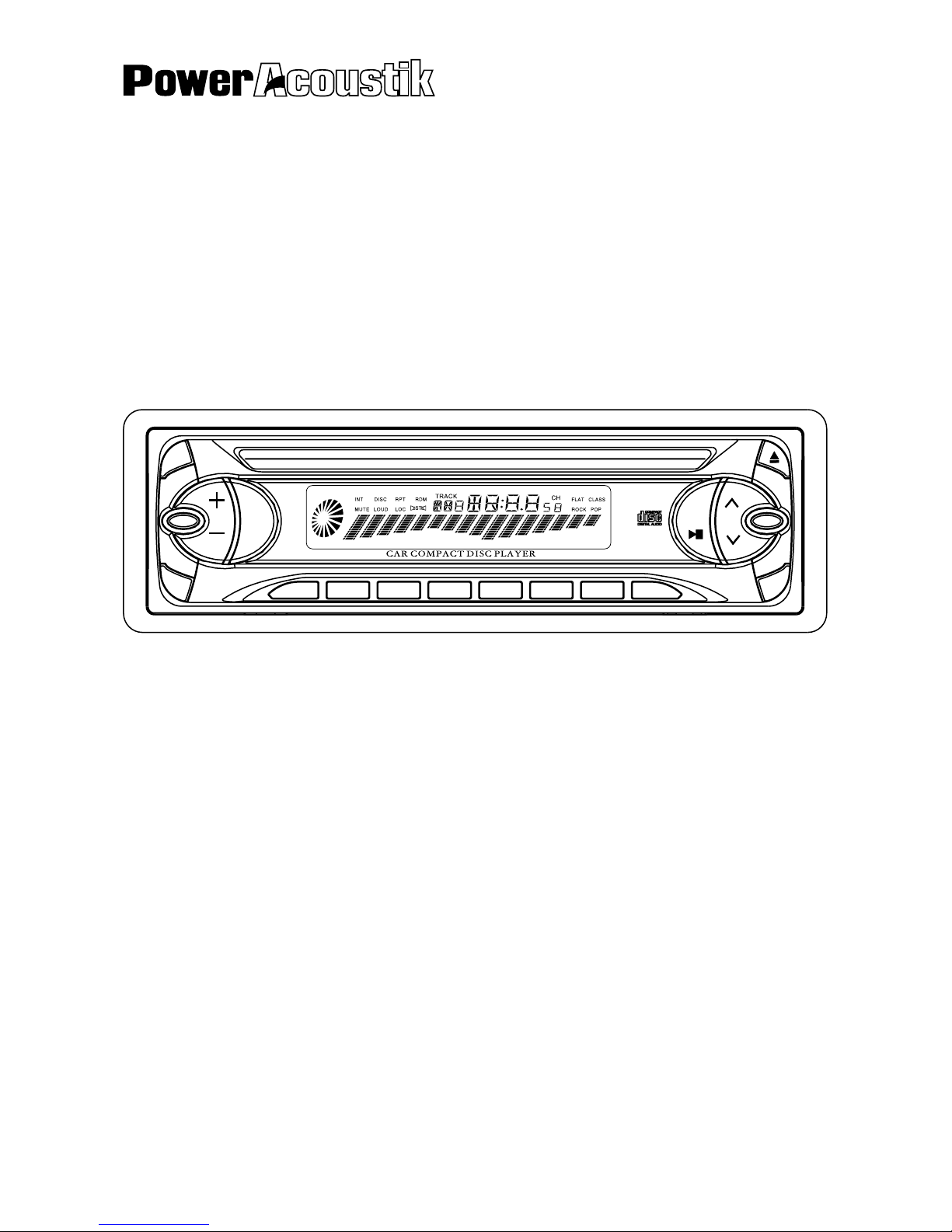

ANTI-THEFT FULL DETACHABLE PANEL

AUTO-LOADING COMPACT DISC PLAYER

AM/FM-STEREO DIGITAL PLL TUNING RADIO

INSTRUCTION MANUAL

TUNE

BND

ELR

LOC

VOL

4/RDM2/RPT1/TOP

LUD 3/INT 5 6 APS

MUT

CLK

RPW

SEL

PACD-875

DEAR CUSTOMER

Selecting fine audio equipment such as the unit you have just purchased is only the

start of your musical enjoyment. Now it is time to consider how you can maximize the

fun and excitement your equipment offers. We want you to get the most out of your

equipment by playing it at a safe level. One that lets the sound come through loud and

clear without annoying blaring or distortion - and, most importantly, without affecting

your sensitive hearing. Sound can be deceiving. Over time your hearing "comfort level"

adapts to higher volumes of sound. So what sounds " normal " can actually be loud

and harmful to your hearing. Guard against this by setting your equipment at a safe

level BEFORE your hearing adapts.

To establish a safe level:

Start your volume control at a low setting.

Slowly increase the sound until you can hear it comfortably and clearly, and without

distortion, we want you listening for a lifetime.

Once you have established a comfortable sound level:

Set the dial and leave it there.

Taking a minute to do this now will help to prevent hearing damage or loss in the future.

After all, we want you listening for a lifetime.

ABOUT THIS MANUAL

This product features a number of sophisticated functions ensuring superior reception

and operation. All are designed for the easiest possible use, but many are not self-

expanatory. This operation manual is intended to help you benefit fully from their

potential and to maximize your listening enjoyment. We recommend that you familiarize

yourself with the functions and their operation by reading through the manual before

you begin using this product. It is especially important that you read and observe the

" precaution " on the next page and in other sections. In this operation manual, the

Basic Operation for each sound source is outlined at the beginning of its explanation,

covering simple operation for that source, such as merely playing music.

CUSTOMER NOTICE

1. REL BUTTON

Press it to detach the front panel when you want to take the unit away.

2.8. SEL( AUDIO MODE SELECT)/+/- BUTTONS

Press SEL button to change the mode in the sequence of

A. The volume level can be adjusted at any time by pressing the audio level + or - button

as select mode has been initially defaulted at volume mode.

B. The volume level is also obtained by stepping through the SEL button until the

function VOL is displayed and then press + or - button to adjust the sound level.

C. Press and hold the + or - button to adjust the sound level.

D. Adjust sound balance between front and rear speakers by using + and - buttons.

3. LOC BUTTON

Press the LOC button to select between local setting for reception of strong station

and distant setting for reception of weak stations when tuning.

4. MUTE BUTTON

Press it to eliminate the sound immediately.

BASIC OPERATION

VOL BAS TRE BAL FAD

(Volume) (Bass) (Treble) (Balance) (Fader)

1234567

911 12 13 14 15 16 17

818 19 20

TUNE

BDN

REL

LOC

VOL

4/RDM2/RPT1/TOP

LUD 3/INT 5 6 APS

MUT

CLK

PWR

SEL

21 22

5. TRACK UP/DOWN BUTTONS

During CD mode, press button allow you to track forwards. Hold the button

allow you to skip forwards.

During AUDIO mode, press and hold or for more than 2 seconds you can auto

search channel. Then press or , you can have manual search channel.

6. EJECT BUTTON

Press it to eject the CD DISC.

7. CLOCK ADJUSTMENT BUTTON

During frequency display, press it to change into clock display function. Press the

button for more than 2 seconds, until time flashes, and you can adjust time now.

To adjust hour:

with time be flashed on display, push the tune button to adjust hour, when

adjustment is completed, release the button.

To adjust minute:

with time be flashed on display, push the tune button to adjust minute. When

adjustment is completed, release the button.

9. BAND BUTTON

Press it to select your desired radio band and the band which is selected will be

displayed on LCD.

10. EQ BUTTON

Press it to switch between 4 preset equalizer curves: FLAT, POP, CLAS, ROCK. The

sound quality will be changed.

11. LOUD BUTTON

When reduce the volume to half level, press it to enhance the bass effect.

12-13-14-15. 16-17. PRESET MEMORY BUTTONS

A. 18To memorize the current frequency, press any one of the six preset Buttons hold

for more than 2 seconds.

B. To recall the preset memory, press one of the preset buttons [1-6].

C. In CDP mode, press 1 TOP button to play first track.

D. In CDP mode, press 2 RPT button to continuously repeat same track. Press again

to stop repeating.

E. In CDP mode, press 3 INT button to play first ten seconds part of each track on disc.

Press again to stop scan and listen to track.

F. In CDP mode, press 4 ROM button to play all tracks on disc in random order. Press

again to stop random play.

18. AS/PS BUTTON

In radio mode:

When short pressing, the radio searches for each preset station. When the field

strength level is more than the threshold level of Stop level, the radio is holding at

that preset number for few secretary with releasing mute, and then searches again.

In FM band, FM 1, FM 2 and FM 3 is checked one at a time.

When long pressing (more than 1 second), the radio searches from the current

frequency and checks the signal strength level until 1 cycle search is finished. And

then 6 strongest stations are preset to the corresponding preset number. The AS

operation is implemented in the each band of selected band. When the AS

operation is finished, the radio executes the preset scan.

BASIC OPERATION

19. CDP BUTTON

When in RADIO mode, press the button to change into CD playing, press it again to

pause the CD playing, press it again to return back to CD playing.

20. POWER BUTTON

Press it to turn on or off the unit.

21. RESET BUTTON FUNCTION

RESET button is placed on the housing and must be activated with either a ballpoint pen

or thin metal object. The RESET button is to be activated for the following reasons:

- Initial installation of the unit when all wiring is completed.

- All the function buttons do not operate.

-Error symbol on the display.

Note: If press RESET button, the unit can’t work yet, please use a cotton swab

soaked in isopropyl alcohol to clean the socket on the back of the front panel.

22. FLASHING LED

If the front panel is not on the main unit, LED will be flashing.

BASIC POPERATION

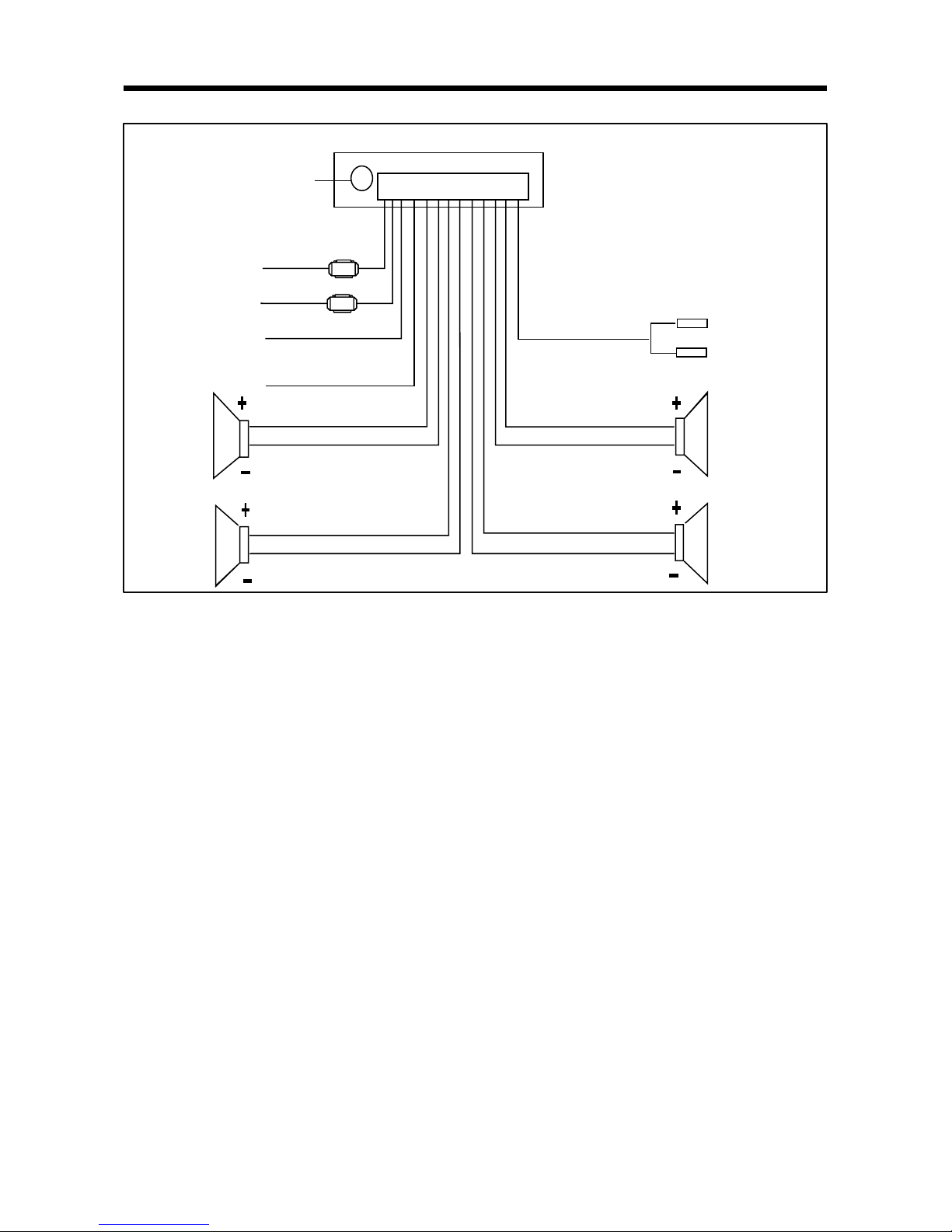

ELECTRIC CONNECTION

RED

YELLOW

BLACK

BLUE

VIOLET

VIOLET/BLACK

FRONT RCA

OUTPUT CABLE (optional)

RCH RED

LCH WHITE

FRONT

Rc SPK

REAR

Rc SPK

REAR

Lc SPK

FRONT

Lc SPK

AUTO

ANTENNA

GROUND(B-)

MEMORY (B+)

IGNITION

SWITCH (B+)

ANTENNA CONNECTOR

FUSEBOX

NOTE:

In spite of having any kinds of speaker system, must use 4-8 ohms impedance of

speaker to reduce the distortion during high volume level.

GREEN

GREEN/BLACK

GREY

GREY/BLACK

WHITE

WHITE/BLACK

INSTALLATION

HEX BOLT

METAL MOUNTING STRAP

DASH BOARD

CONSOLE

SLIDE BRACKET HOUSING

HEX NUT

SPRING WASHER

PLAIN WASHER

TAPPING SCREW

HOW TO REMOVE AND INSTALL THE FRONT PANEL

1. Press the release button and pull-off the front panel.

Keep front panel into the case.

2. To install the front panel, insert the panel into the housing and make sure the panel

is properly installed, otherwise, abnormalities occurs on the display or some keys

will not function properly.

REMOVING THE FRONT PANEL

INSTALLING THE FRONT PANEL

INSTALLATION

Release Button

Front Panel

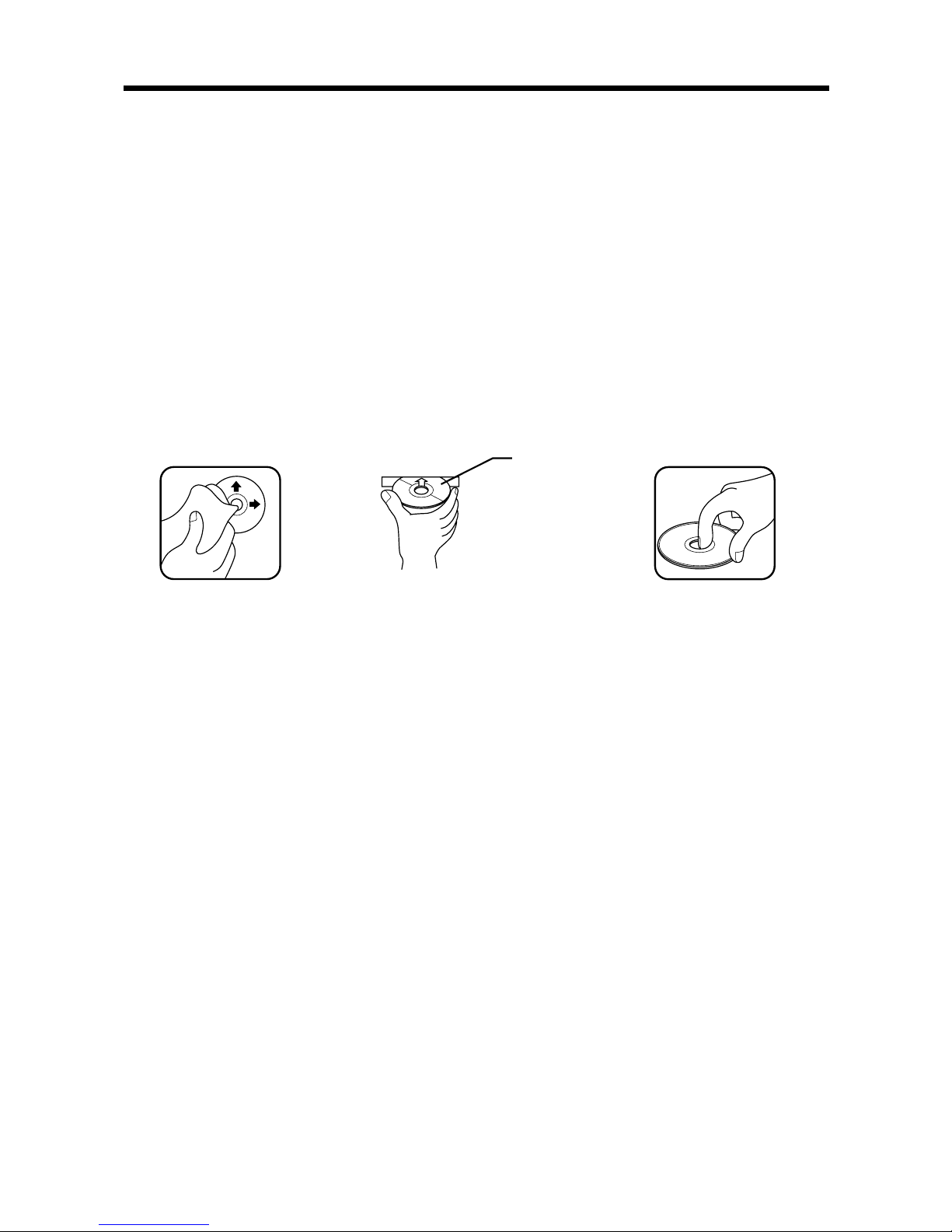

DISC PLAY:

Cleaning discs

Before playing, clean the disc with a clean, lint-free.

Flip the disc in the direction of the arrow.

NOTE:

Do not use so solvents such as benzine, thinners. Commercially available

cleaners or anti static spray damage the unit.

Insert a disc with the label surface down. Doing so may damage the unit.

NOTE:

Do not try to insert another disc when one has been already inserted.

Doing so may damage the unit.

Handle the disc by its edge. And to keep the disc clean, do not touch the surface.

Do not stick paper or tape on the disc.

Do not expose the disc to direct sunlight or heat sources such as hot air ducts. Or leave

it in a car parked in direct sunlight where there can be a considerable rise in temperature.

NOTES

Label

surface up

SPECIFICATIONS

Power requirement ........................................................................................... DC 12V

Current consumption .................................................................................................5A

POWER OUTPUT ................................................................................................7w x 4

FM SECTION

Frequency range ........................................................................... 87.5MHz-108.0MHz

Usable sensitivity .................................................................................................... 3uV

I.F Frequency ..................................................................................................10.7MHz

AM SECTION

Frequency range ...............................................................................522KHz-1620KHz

LINE-OUT [OPTION]

Output .......................................................................... 500mV@FM10% THD POWER

CD PLAYER

System ..............................................................................compact disc audio system

Usable disc ..............................................................................................compact disc

Signal format ..................................................................sampling frequency 44.1KHz

No of quantization bits ............................................................................................1bit

Frequency characteristics.............................................5-40Hz-5dB 10K-20KHz - 5dB

Signal to noise radio ....................................................... 70dB [1KHz][IEC-A net work]

Number of channels .....................................................................................2 STEREO

Chassis dimensions .................................................................184[W] X 54[H] X 170[D]
