PDR-340/PDR-340T

Flip-down/Detachable 3.4” Monitor

MP3/MP4 Player

AM/FM Radio

Built-in TV tuner (only for PDR-340T model)

Owner’s Manual

Take the time to read through this owner’s manual.

Familiarity with installation and operation procedures will help you obtain the best

Performance from your new device.

Important Safeguards

zUsing the device at temperature below -10 may cause the breakage of the device.℃

BEFORE USING PLEASE HEAT UP THE PASSENGER COMPARTMENT TO THE

RECOMMENDED TEMPERATURE!

zRead carefully through this manual to familiarize you with this high-quality sound system.

zDisconnect the vehicle's negative battery terminal while mounting and connecting the unit.

zWhen replacing the fuse, be sure to use one with an identical amperage rating. Using a fuse

with a higher amperage rating may cause serious damage to the unit.

zMake sure that pins or other foreign objects do not get inside the unit; they may cause

malfunctions, or create safety hazards such as electrical shock or laser beam exposure.

zIf you have parked the car for a long time in hot or cold weather, wait until the temperature in

the car becomes normal before operating the unit.

zDO NOT open covers and do not repair yourself. Consult the dealer or an experienced

technician for help.

zMake sure you disconnect the power supply and aerial if you will not use the system for a long

period or during a thunderstorm.

zMake sure you disconnect the power supply if the system appears to be working incorrectly,

(For example: making unusual sounds, smelling strange, emitting smokes from inside or

liquid having gotten inside it）Have a qualified technician check the system.

zThe unit is designed for negative terminal of the battery, which is connected to the vehicle

metal. Please confirm it before installation.

zDo not allow the speaker wires to be shorted together when the unit is switched on. Otherwise

it may overload or burn out the power amplifier.

zDo not install the detachable panel before connecting the wire.

zDon't remove the detachable panel when encoding.

Contents

Important Safeguards...............................................................................................................2

Contents...................................................................................................................................3

Accessories..............................................................................................................................4

Installation/Un-Installation........................................................................................................5

Wiring Connections..................................................................................................................6

Front panel...............................................................................................................................8

Inner panel...............................................................................................................................8

Remote control.........................................................................................................................9

Remove battery........................................................................................................................9

Main Menu.............................................................................................................................10

General Operation .................................................................................................................10

Radio operation......................................................................................................................13

USB/SD/MMC Operation .......................................................................................................14

TV Opeartion(only for PDR-340T model)...............................................................................15

Anti-theft system ....................................................................................................................16

Troubleshooting guide ...........................................................................................................17

Specification...........................................................................................................................18

Accessories

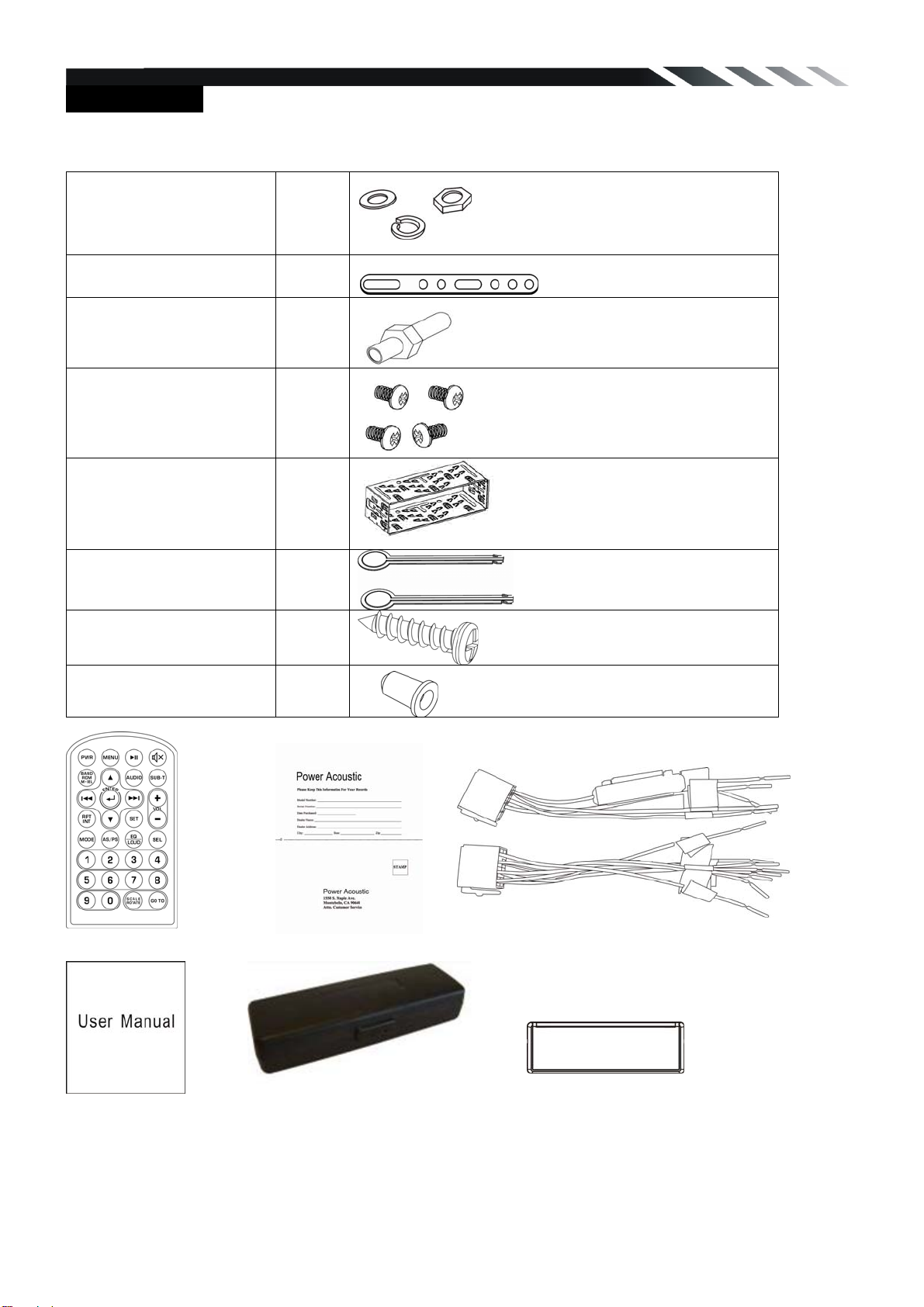

Package contains the following accessories for installation and operation of the unit.

(1) Washer, Spring

Washer, M5 Nut 1 each

(2) Mounting Strap 1

(3) Bolt 5*20 1

(4) Screw 5*6 4

(5) Mounting Collar 1

(6) Release Key 2

(7) Screw 5*20 1

(8) Rubber Cushion 1

RemoteControl Warrantycard ISOcable

User Manual 1x front panel protection case Trim ring

Noted:

Product image may vary from the actual delivery

Installation/Un-Installation

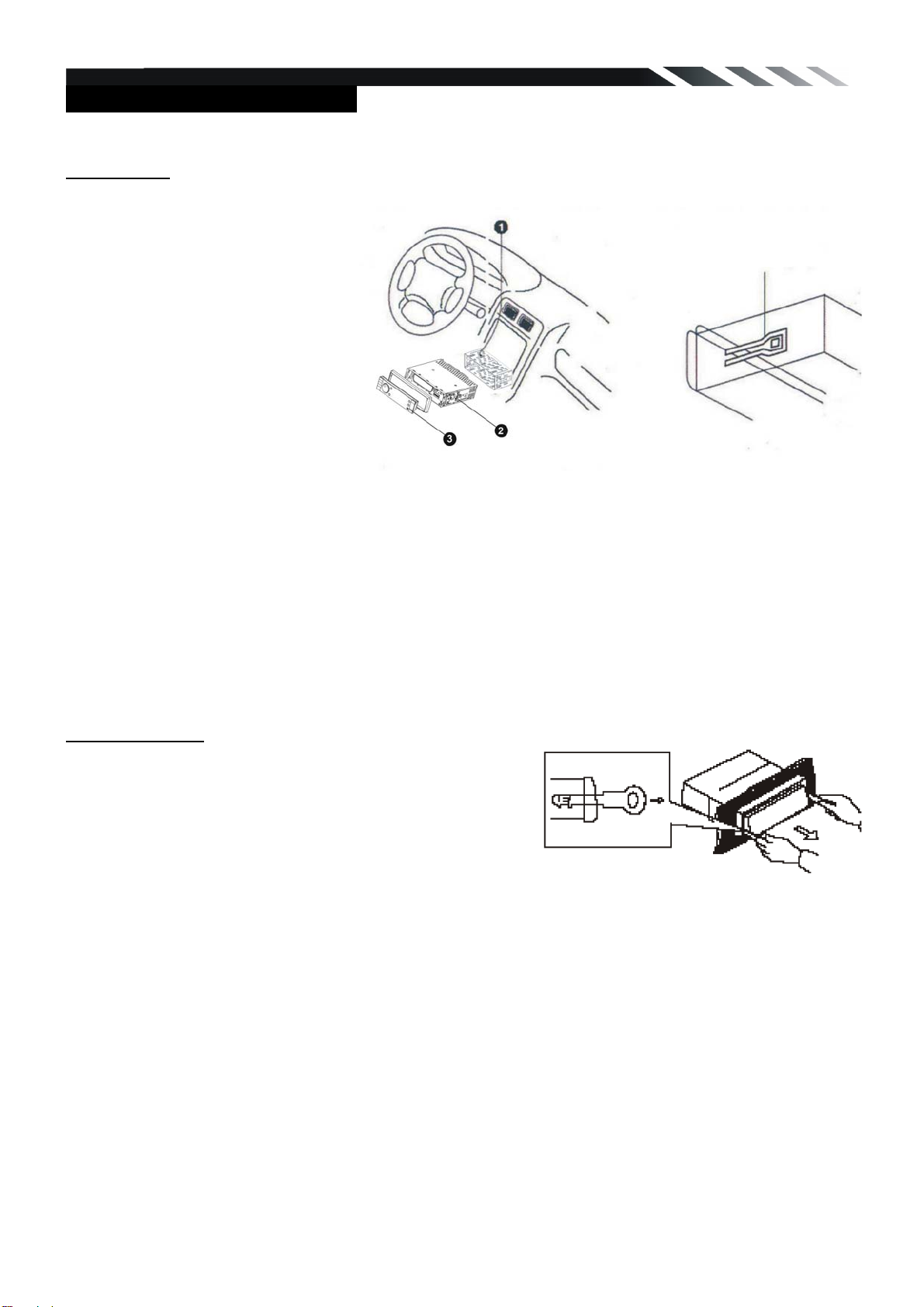

First complete the electrical connections, and then check them for correctness.

Installation

This unit can be installed in any

dashboard having an opening as

shown on the picture. The

dashboard should be 4.75 – 5.56

mm thick in order to be able to

support the unit.

1. Insert mounting collar into the

dashboard, and bend the

mounting tabs out with a

screwdriver.

Make sure that lock lever（※）is

flush with the mounting collar (not

projecting outward).

2. Secure the rear of the unit.

After fixing mounting bolt and power connector, fix the rear of the unit to the car body by rubber

cushion.

3. Insert trim plate.

When you prepare to insert trim plate, please check its direction. Once it was up side down, it

cannot be fixed.

Un-installation

Remove Trim Ring and insert Release Keys into left and

right side-end holes as shown in below picture and pull

the unit out of the dashboard.

Lock lever（※）

Wiring Connections

Make sure you have good chassis ground. A good ground connection will eliminate most

electrical noise problems. A good chassis ground requires a tight connection to the vehicle’s

metal chassis. The area around the ground connection should be clean, bare metal without rust,

paint, plastic, dust, or dirt for a good electrical connection.

Caution: Do not interchange the connection of the wiring!!!

For some car models you may need to modify wiring of the supplied power cord. Contact your

authorized car dealer before installing this unit.

(Only for PDR-340)

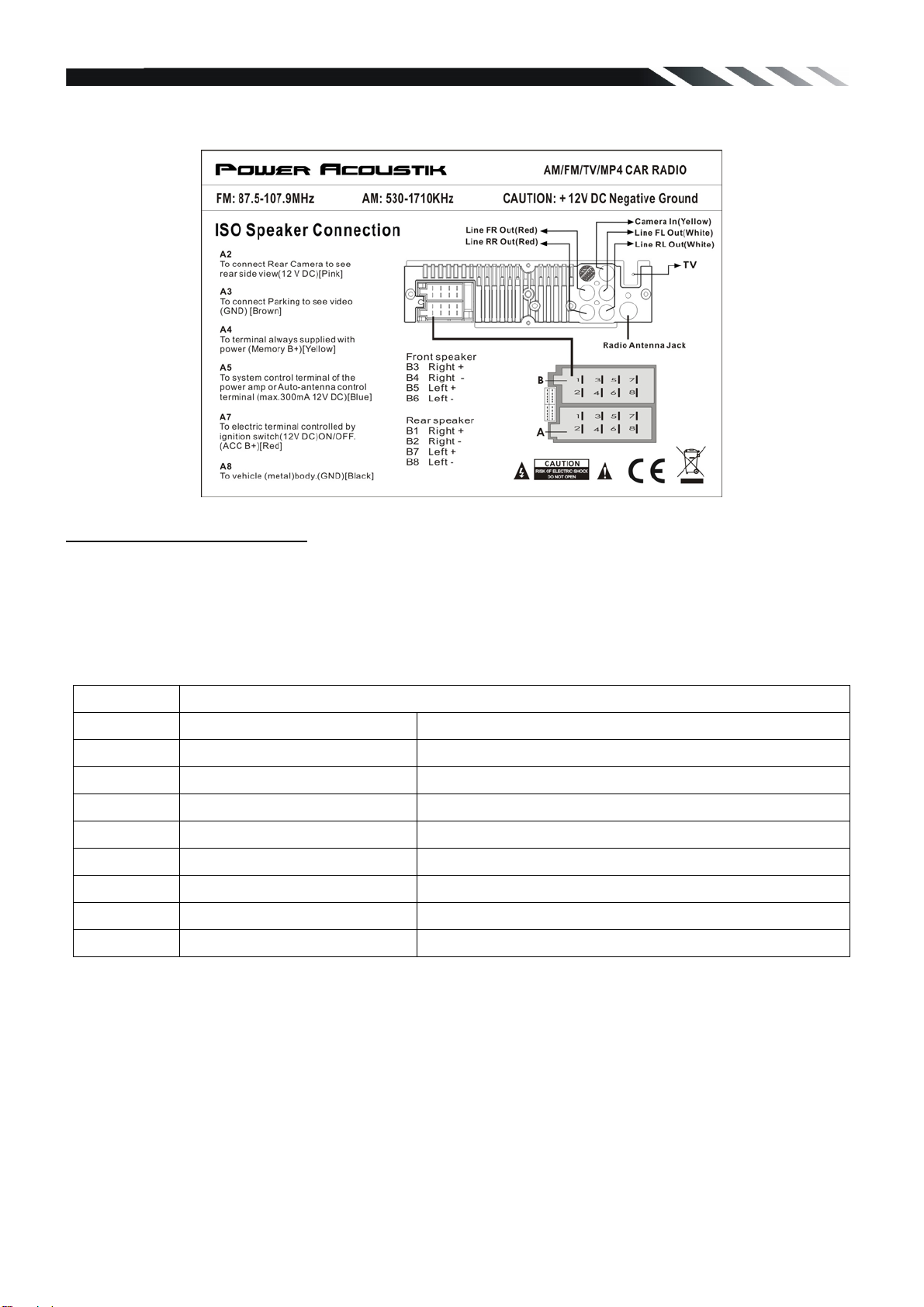

Using the ISO Connector

1. If your car is equipped with the ISO connector, then connect the ISO connectors as illustrated.

2. For connections without the ISO connectors, check the wiring in the vehicle carefully before

connecting, incorrect connection may cause serious damage to this unit.

3. Cut the connector; connect the colored leads of the power cord to the car battery as shown in

the color code table below for speaker and power cable connections.

Location Function

Connector A Connector B

1 Rear Right(+)---Purple

2 Rear Right(-)---Purple/Black Stripe

3 Parking (GND)---Brown Front Right(+)---Grey

4 Battery 12V (+)---Yellow Front Right(-)---Grey/Black Stripe

5 Auto Antenna---Blue Front Left(+)---White

6 Front Left(-)---White/Black Stripe

7 ACC(+)---Red Rear Left(+)---Green

8 Ground---Black Rear Left(-)---Green/Black Stripe

(Only for PDR-340T)

Using the ISO Connector

1. If your car is equipped with the ISO connector, then connect the ISO connectors as illustrated.

2. For connections without the ISO connectors, check the wiring in the vehicle carefully before

connecting, incorrect connection may cause serious damage to this unit.

3. Cut the connector; connect the colored leads of the power cord to the car battery as shown in

the color code table below for speaker and power cable connections.

Location Function

Connector A Connector B

1 Rear Right(+)---Purple

2 Rear Camera---Yellow Rear Right(-)---Purple/Black Stripe

3 Parking (GND)---Brown Front Right(+)---Grey

4 Battery 12V (+)---Yellow Front Right(-)---Grey/Black Stripe

5 Auto Antenna---Blue Front Left(+)---White

6 Front Left(-)---White/Black Stripe

7 ACC(+)---Red Rear Left(+)---Green

8 Ground---Black Rear Left(-)---Green/Black Stripe

Front panel

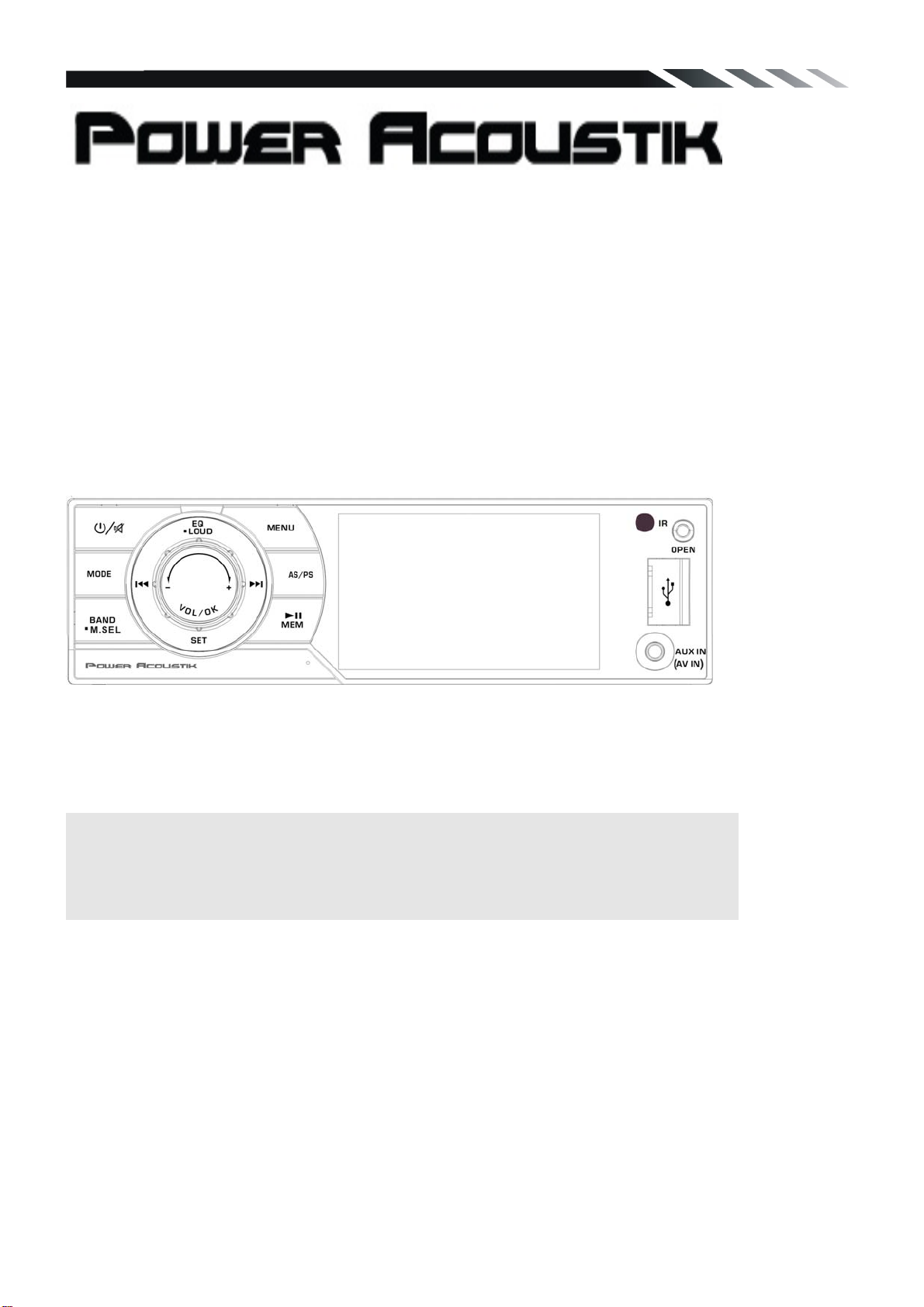

1）Power /Mute button

2）Mode button

3）Volume/OK button

4）BAND / Media select /Radom button

5）SET button

6）Previous / Reverse button

7）EQ /LOUD button

8）Next / Forward button

9）MENU button

10）AS/PS button

11）Play/Pause, Memory button

12）LCD Screen

13）IR sensor

14）OPEN button

15）USB slot

16）AUX IN jack/ AV IN jack(optional)

Inner panel

17）SD/MMC card slot

18）Reset button

19）Anti-Theft LED flash

NOTE：When turn off the power, the unit will switch to standby mode unless cut the ACC power.

The power light will continue lighting.

Remote control

Remove battery

Note:

The distance may vary according to the brightness of ambient light.

If the remote is not used for an extended period of time, remove the battery to prevent possible

damage from battery leakage and corrosion.

Do not place any objects between the remote

control unit and the sensor on the unit.

Do not drop the remote control onto the floor; it

will damage it beyond repair.

Do not use the remote control unit, while

simultaneously operating the remote control unit of any other equipment; they may interfere

resulting in improper operation.

The battery normally last for about one year although depending how often the remote control

is used. If the remote control unit isn’t working even when it is operated near the unit, replace

the battery with a new battery of the same make and use only a lithium cell battery type:

CR2025 (3V).

Dispose empty batteries in accordance with your local governmental regulations.

Do not short-circuit, disassemble, heat or dispose of fire or flames the battery.

Keep the battery out of reach of children, should the battery be swallowed, immediately consult

a doctor.

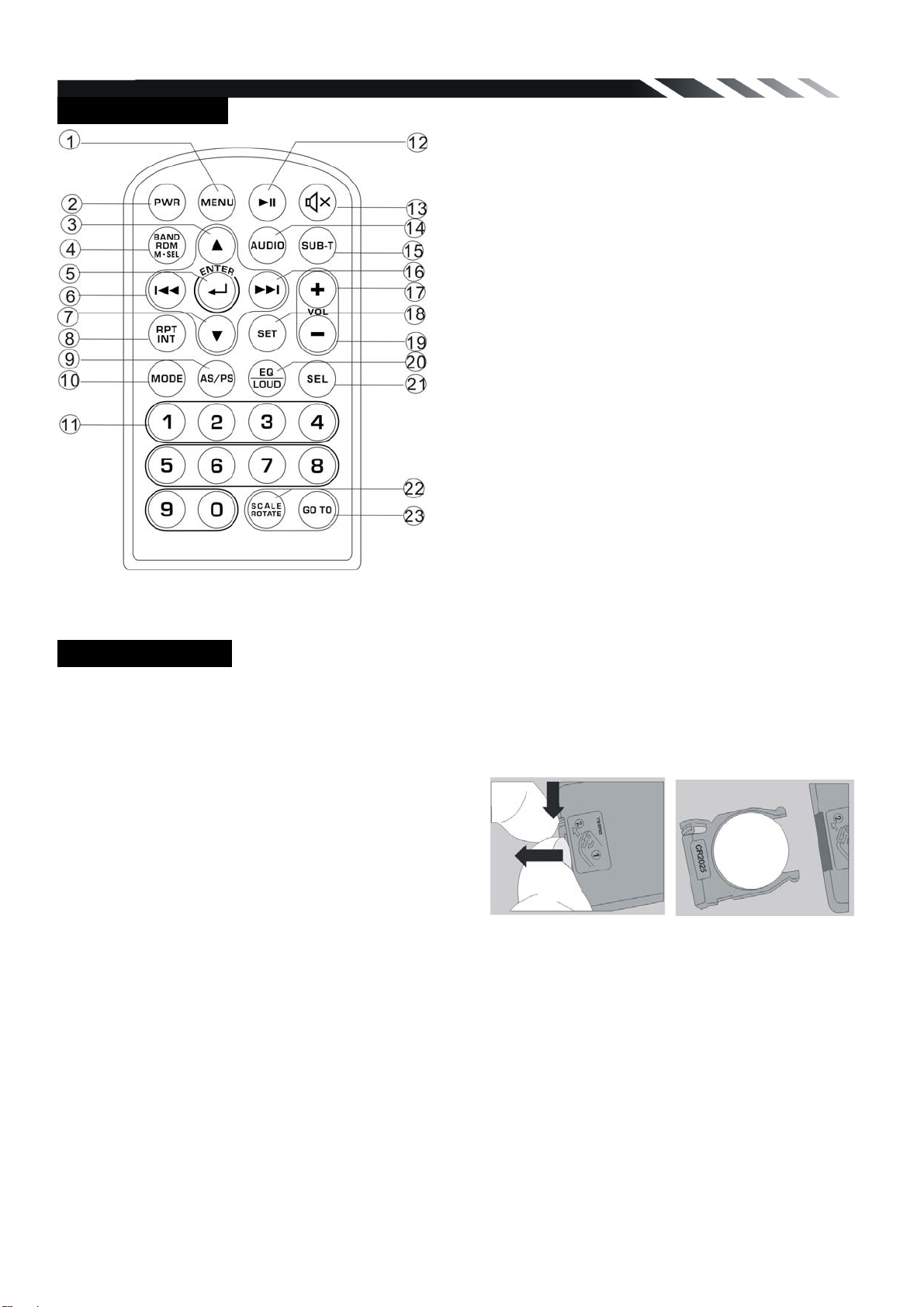

1: MENU

2: POWER

3: UP

4: BAND/M.SEL/RDM

5: ENTER

6: LEFT/SEEK-/FAST BACKWARD

7: DOWN

8:REPEAT/INT

9: AS/PS

10: MODE

11:DIGIT NUMBER

12:PLAY/PAUSE

13:MUTE

14: AUDIO

15: SUBTITLE

16:RIGHT/SEEK+/FAST FORWARD

17:VOLUME PLUS

18:SET

19: VOLUME MINUS

20: EQ/LOUD

21: SEL

22: SCALE/ROTATE

23:GO TO

Main Menu

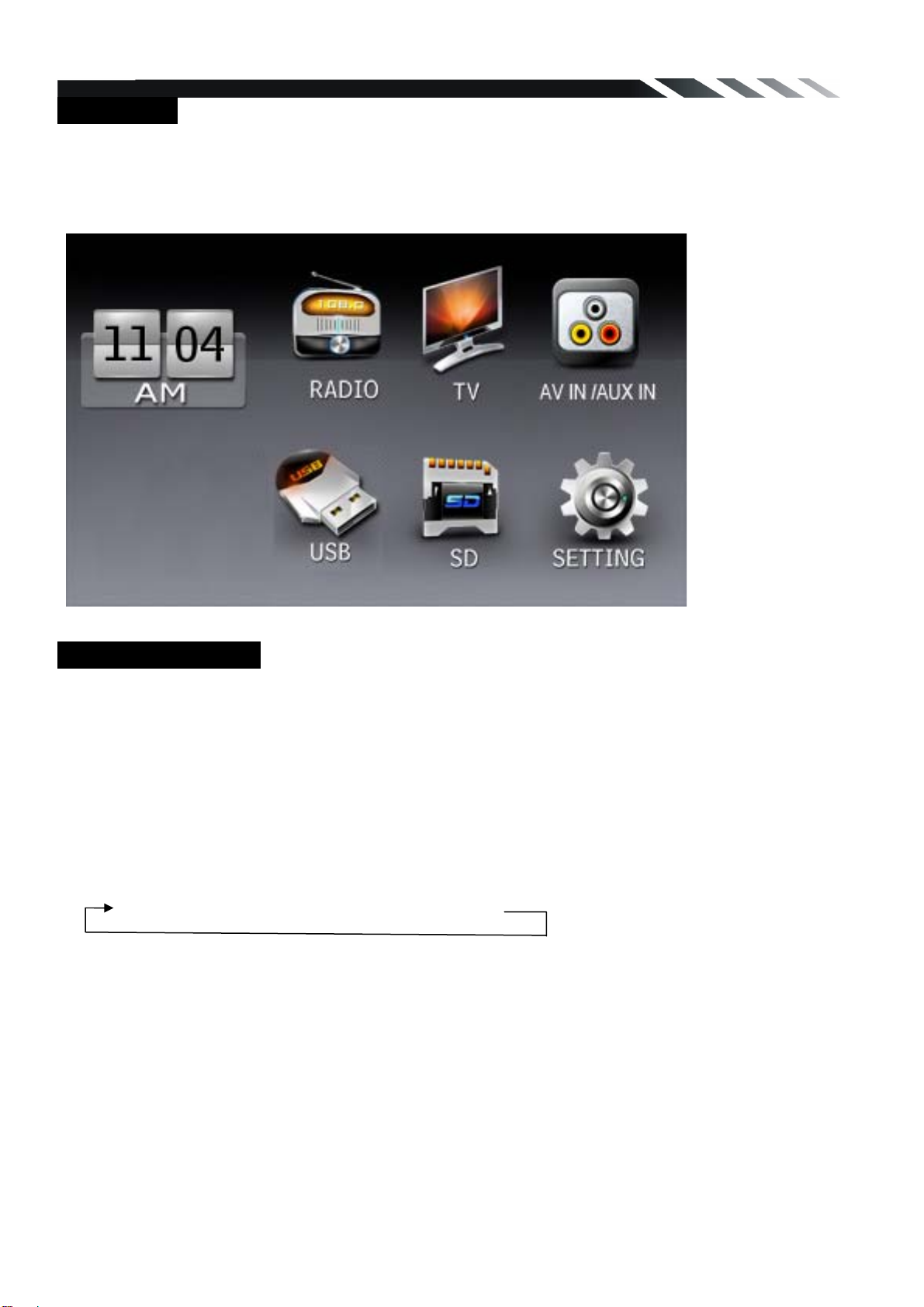

The best way to discover the program is to explore each screen in detail, and to find out how to

move from one to another. Read this chapter for a guided tour.

Unit starts by displaying the Main menu.

This is the root of the screen hierarchy, you can simply take knowledge of the features.

General Operation

Reset the unit

Operating the unit for the first time or after replacing the car battery, you must reset the unit.

Press OPEN button on the panel to open the panel and press RESET button to restore the unit to

its original factory settings.

Power on or off

Press any button (except open button) to turn on the unit.

Long press POWER button on front panel or press power button on the RC to power off the unit..

Mode setting

Press the MODE button repeatedly to switch between inputs:

RADIO→USB→SD→AUX IN/AV IN→RADIO

(* available only if there is media device in SD, USB slot connection is OK.)

Volume/OK

Adjust the volume level by turning the VOL knob on the panel clockwise to increase or

counterclockwise to decrease or pressing VOL+ or /VOL- on the RC to increase or decrease the

volume.

In any mode, rotate VOL knob to select the file you want to playback, press the OK button to enter

the next menu.

In Mp3 mode, when playing the music, press the OK button on the front panel, the music will

start from the beginning.

In Photo mode, when playing the photo, press the OK button on the front panel to enter the

photo setup menu.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere PowerAcoustik Autoempfänger Handbücher

PowerAcoustik

PowerAcoustik PADVD-340TV Bedienungsanleitung

PowerAcoustik

PowerAcoustik PTID-7300 Bedienungsanleitung

PowerAcoustik

PowerAcoustik PTID-8200 Bedienungsanleitung

PowerAcoustik

PowerAcoustik PAVN-4210 Bedienungsanleitung

PowerAcoustik

PowerAcoustik PADVD-110 Bedienungsanleitung

PowerAcoustik

PowerAcoustik PADVD-340B Bedienungsanleitung

PowerAcoustik

PowerAcoustik PTID-8960 Bedienungsanleitung

PowerAcoustik

PowerAcoustik PADVD-340 Bedienungsanleitung

PowerAcoustik

PowerAcoustik PACD-507 Bedienungsanleitung

PowerAcoustik

PowerAcoustik PACD-506 Bedienungsanleitung

PowerAcoustik

PowerAcoustik PADVD-130A Bedienungsanleitung

PowerAcoustik

PowerAcoustik PD-450 Bedienungsanleitung

PowerAcoustik

PowerAcoustik PACD-889R Bedienungsanleitung

PowerAcoustik

PowerAcoustik PTID-8001NT Bedienungsanleitung

PowerAcoustik

PowerAcoustik PACD-840 Bedienungsanleitung

PowerAcoustik

PowerAcoustik PTID-8970 Bedienungsanleitung

PowerAcoustik

PowerAcoustik PAMP3-845 Bedienungsanleitung

PowerAcoustik

PowerAcoustik PADVD-360 Bedienungsanleitung

PowerAcoustik

PowerAcoustik PADVD-230 Bedienungsanleitung

PowerAcoustik

PowerAcoustik PTID-8940NRT Bedienungsanleitung

PowerAcoustik

PowerAcoustik PA-551D Bedienungsanleitung

PowerAcoustik

PowerAcoustik PTID-8940NBT Bedienungsanleitung

PowerAcoustik

PowerAcoustik PAMP3-826R Bedienungsanleitung

PowerAcoustik

PowerAcoustik PACD-875 Bedienungsanleitung

Beliebte Autoempfänger Handbücher anderer Marken

Motorola

Motorola VWA63 Bedienungsanleitung

Nextar

Nextar D3201 Bedienungsanleitung

Alpine

Alpine CDE-163BT Bedienungsanleitung

Pioneer

Pioneer DEH-P645R Bedienungsanleitung

Axxera

Axxera XDMA7600 Betriebsanleitung

XM OnyX Bedienungsanleitung

Sound Storm

Sound Storm STM93R Bedienungsanleitung

Soundstream

Soundstream VIR-5000 Bedienungsanleitung

Avson

Avson MKT Platform Bedienungsanleitung

Sony

Sony MEX-1HD - Audio Library System Bedienungsanleitung

Pioneer

Pioneer DVH-P500UB Bedienungsanleitung

JVC

JVC KD-AHD69 Bedienungsanleitung

Blaupunkt

Blaupunkt SANTIAGO CR 87 Bedienungsanleitung

Sony

Sony CDX-4160 - Cd Receiver Bedienungsanleitung

XFIRE AUDIO

XFIRE AUDIO BMW42S Bedienungsanleitung

VDO

VDO CD 2253 Bedienungsanleitung

Volvo

Volvo 13 84 580 Bedienungsanleitung

ZENEC

ZENEC ZE-160DVD Bedienungsanleitung
