Operation Instruction Manual CPAA-70D10F

Operation Instruction Manual

CPAA-70D10F

1. Appearance

2. Accessories and Installation

3. Wiring Connection

4. Front panel Description

5. Remoto Control

6. Main Menu

7. Settings

8. Apple CarPlay & Android auto

9. Radio

10. USB

11. Disc

12. BT Audio

13. BT Phone

14. Specification

15. AV IN

FCC Notes

---------------------------------------------

---------------------------------

Content

---------------------------------

Main Menu

Carplay Menu

Android Auto Menu

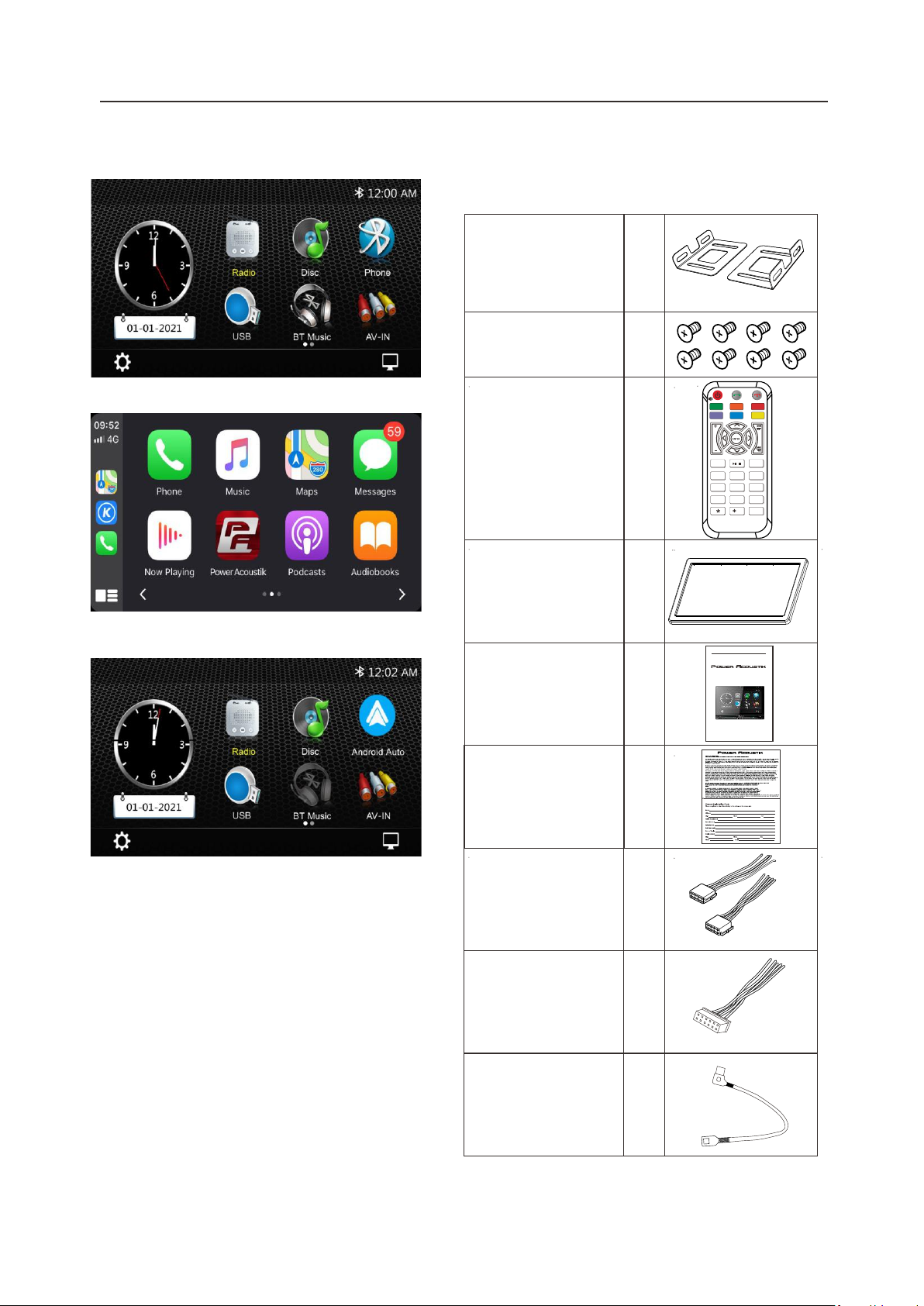

Appearance Accessories & Installation

(2) Screw 8

(1) Mounting bracket

Package contains the following accessories for

installation and operation of the unit.

(3) Remote 1

1 2 3

4 5 6

7 8 9

EJECT EQ

DISC BT USB

CP/AA

SXM Radio

(4) Trim Ring 1

(5) User Manual 1

(8) Warranty Card 1

(10) Harness cable 1

(9) ISO Cable 2

Page 1 of 31

Opera tion In struc tion Ma nual CPAA-7 0D10F

Oper ation I nstru ction M anual

CPAA -70D 10F

(11) USB cable 1

1. Appearance 2. Accessories & Installation

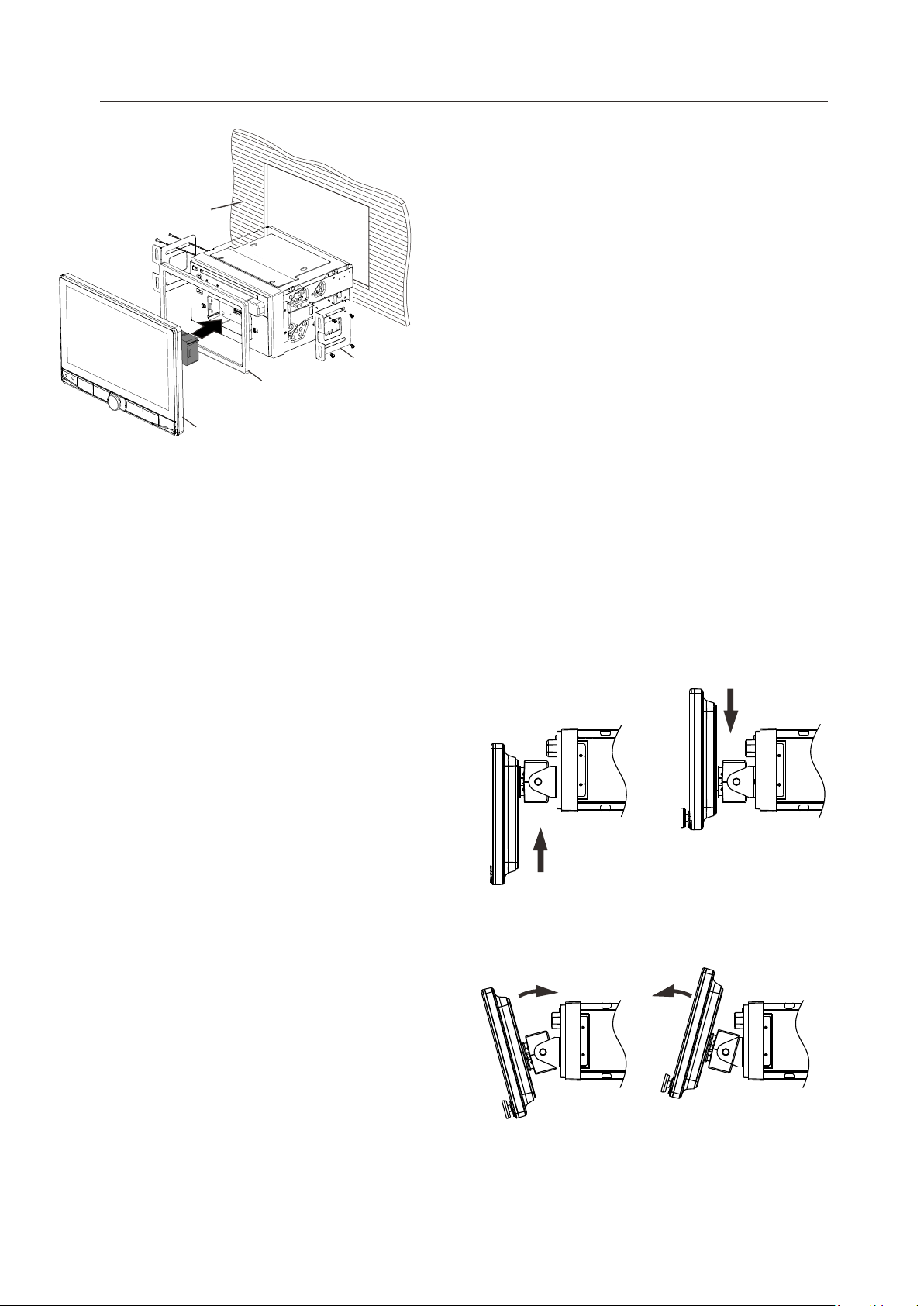

Installation

Dashboard

1.Put the 2 brackets to the left and right

side of the headunit.

2.Use screws to fix the brackets to the

unit.

3.Install the body chassis into the

dashboard via the 2 brackets.

4.Install the trim ring to the body

chassis.

5.Install the faceplate.

Note: Please note this faceplate is not

designed for detachable.

Disconnect / Connect the screen

connector ONLY for installation in

the vehicle.

Note:

1. Make sure the ignition is turned off,

and disconnect the cable from the

vehicle batteryʼs negative (-)

terminal.

You never want electricity running

when you install this 2-DIN car

receiver.

2. Before installation, disconnect the

wire harness and the antenna.

3. Attach the brackets on the both

sides of the car receiver with

screws as shown as the installation

drawing. Please buy from your

dealer according to the drilling of

holes size.

4. Consult with your nearest dealer if

installation requires the drilling of

holes or other modification of the

vehicle.

5. Install the car receiver in the dashboard.

6. Connect the wire harness & antenna

to the car receiver being carefully not

to pinch any wires or cables.

7. Install the plastic outer trim ring onto

the car receiver.

8. Reconnect the battery and run through

all of the options on this car receiver to

ensure that everything is working

correctly.

9. Particulars will vary widely depending

upon the kind of your car and the car

you intend to install it in. Please

choose the correct installation method

according to the actual situation of

your car. Always contact the car dealer

or manufacturer if you have any

questions.

Installation

Trim Ring

Faceplate

Bracket

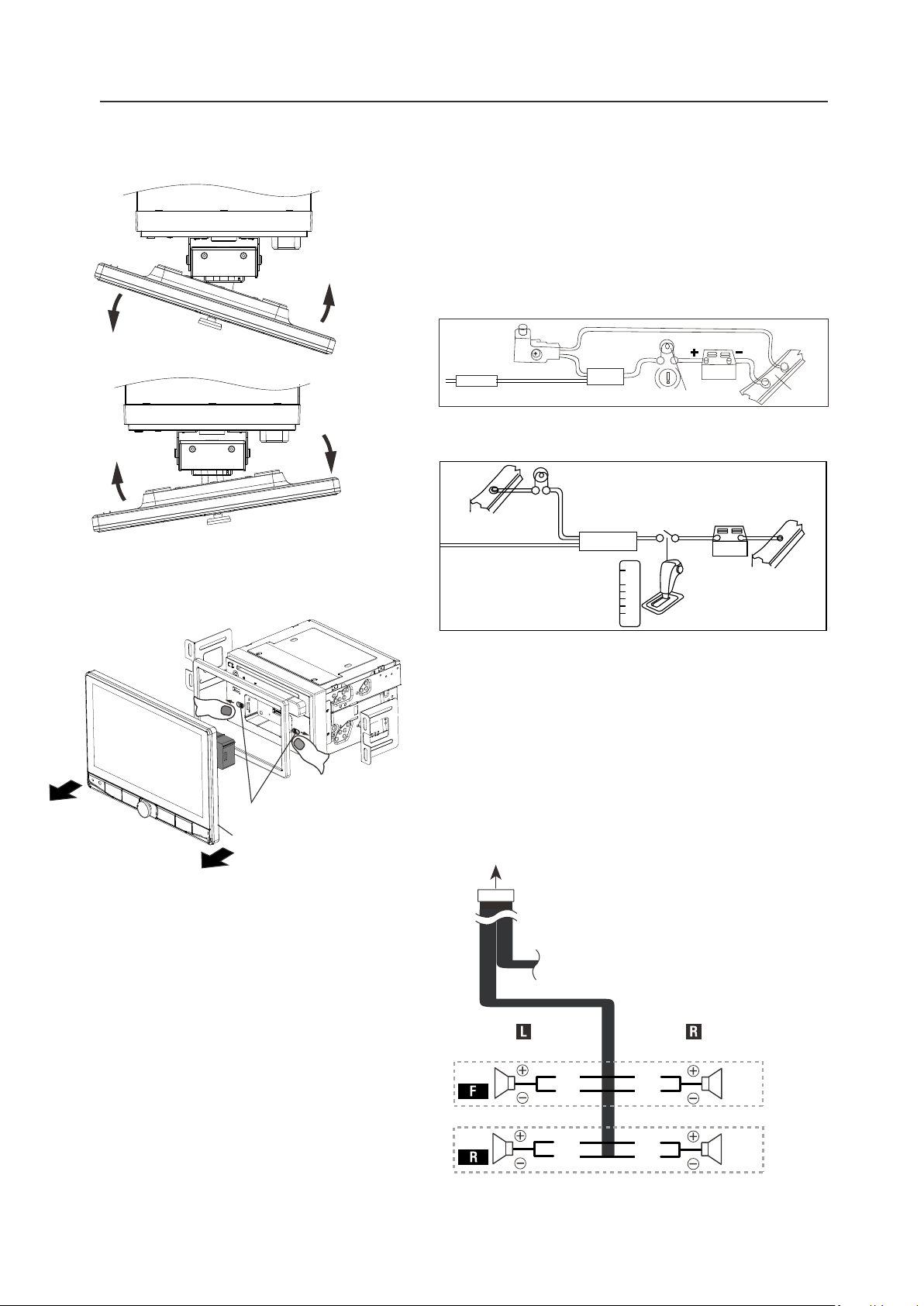

Faceplate Adjustable Position

1.Vertical

2. Tilt

2. Accessories & Installation

3. Swivel

Un-Installation

Faceplate

Panel Lock System

1.Pull and release the panel lock

system.

2.Pull out the faceplate.

Note: Please note this faceplate is not

designed for detachable.

Disconnect / Connect the screen

connector ONLY for installation in

the vehicle.

Note: To watch video the parking wire

should be connected to brake signal.

Parking wire

Note: The parking wire is connected with

brake signal; for safety, the programs can

be seen on the monitor after braking the

car..

Connecting the reversing line to taillight on

the car

After connecting, when you start up the

reverse gear, the unit will receive the

picture from car rear view camera.

Conn e ct t he s peaker s acc o rd ing the

following diagram, incorrect connections

will damage the unit or your loudspeakers

Speaker Connection

White

Green

Grey

Purple

Parking brake lead

Brown wire

Brake light

12V

battery

Car frame

12V

Car frame

Battery

Reverse driving light

Car frame

Pink wire

Rear view video camera lead

Gearbox

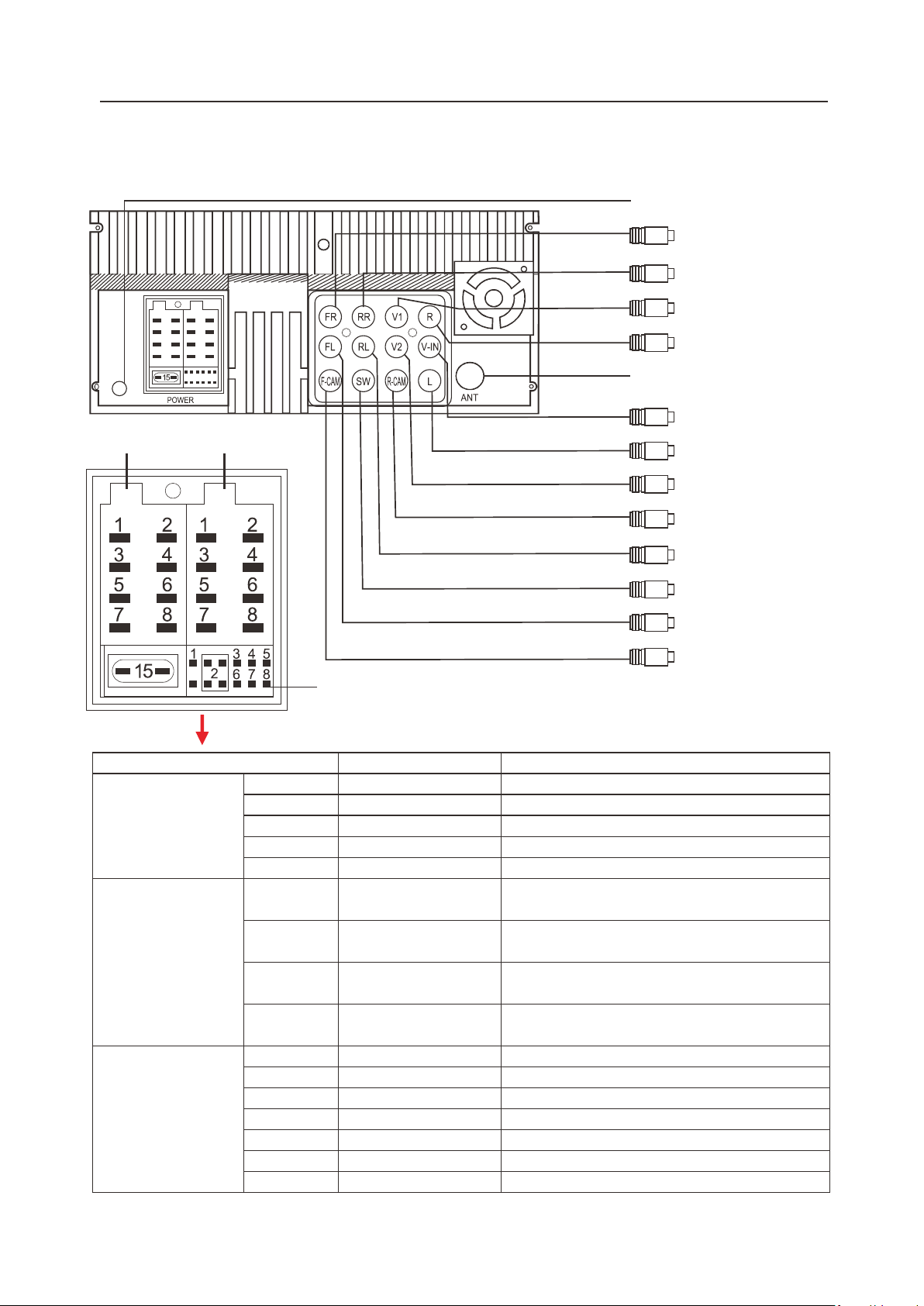

3. Wiring2. Accessories & Installation

MIC

Video Input

Red

White

Yellow

white

Green Subwoofer Out

Red

White

Brown Front camera input

Line Out (FL)

Line Out (RL)

Line Out (FR)

Line Out (RR)

Audio In (R)

Audio In (L)

Video Output2

Back camera input

Extraposition MIC jack

Video Output1

Red

Yellow

Radio antenna

ISO A ISO B

ISO A

8 Pin

connector

Portion Colour Connection

ISO B

Yellow

Orange

Blue

Black

Red

Purple

Purple / Black

Grey

Grey / Black

White

White / Black

Green

Green / Black

Blue / White

Brown

Pink

Pink / Black

Black

Green

Grey

Battery B+

ILL B+

Antenna

Ground

ACC B+

Rear right speaker(+)

Rear right speaker(-)

Front right speaker(+)

Front right speaker(-)

Front left speaker(+)

Front left speaker(-)

Rear left speaker(+)

Rear left speaker(-)

Amplifier control(B+)

Brake detect (Ground)

Back car control(Back camera B+)

Front camera(B+)

Ground

Steering Wheel 2

Steering Wheel 1

3. Wiring

CPAA-70D10F

MODE

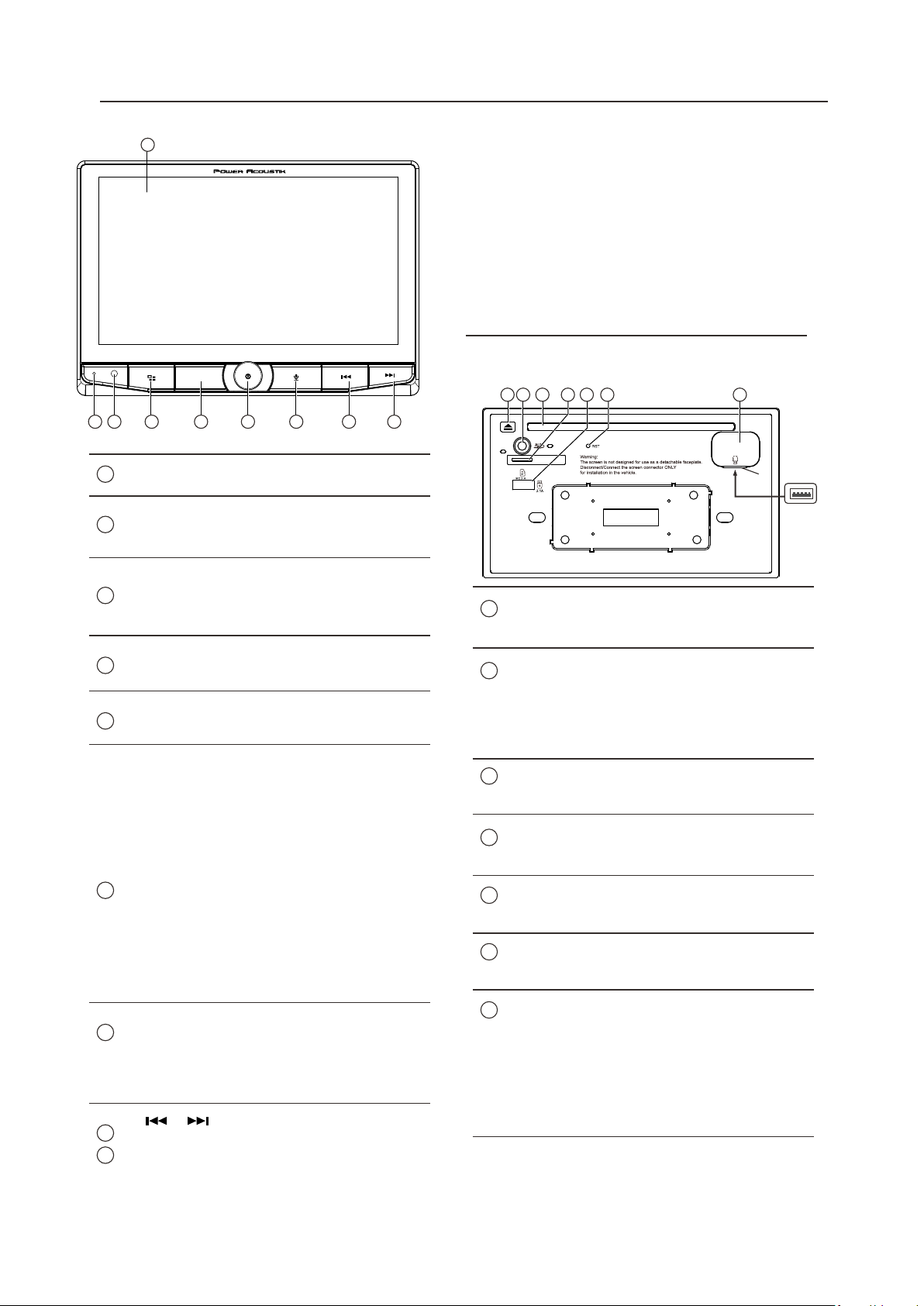

4.Front panel Description

10 11 12 13 14

2 3 4 5 6 7 8 9

Front panel

15 16

USB Slot

Base:

10.6 inch TFT LCD

Mic

Build in Microphone.

IR Sensor of Remote

IR remote control signal receiving

window.

4MENU button

Press to back to Main menu.

5MODE button

Press to select desired mode.

Rotary Control

On/Off button

Short press to switch On the

source unit.

Long press to switch Off the

source unit.

In operation, short press to Mute

the sound system, press again

to Un-Mute.

In operation, rotate to adjust the

sound output level.

7Siri button

When Apple CarPlay or Android

Auto available, hold Siri button

to start the voice control function.

8button

[Radio] Press repeatedly ro fine

tune the radio frequency upward

or downward.

Press and hold to tune the radio frequency

to the upward or downward station for

broadcasting.

[Disc/USB/SD Music] Press repeatedly to

shift track previous or next for playback.

Press and hold to active various fast rewind

or fast forward speeds for playback.

[Bluetooth Music] Press repeatedly to

shift track previous or next for playback.

Press to eject the disc.

Eject Button

Insert an extrenal device to this port

in order to have sound output of

that external device through the unit.

AUX in jack

Insert or eject the the disc.

Slot-in

Insert micro SD for playback.

Micro SD slot

Support fast charge USB port.

Fast charging USB port

Press to default factory settings.

Reset button

Connect USB for digital playback.

Connect your iPhone for Apple

CarPlay.

Connect your Android Phone for

Android Auto.

USB port

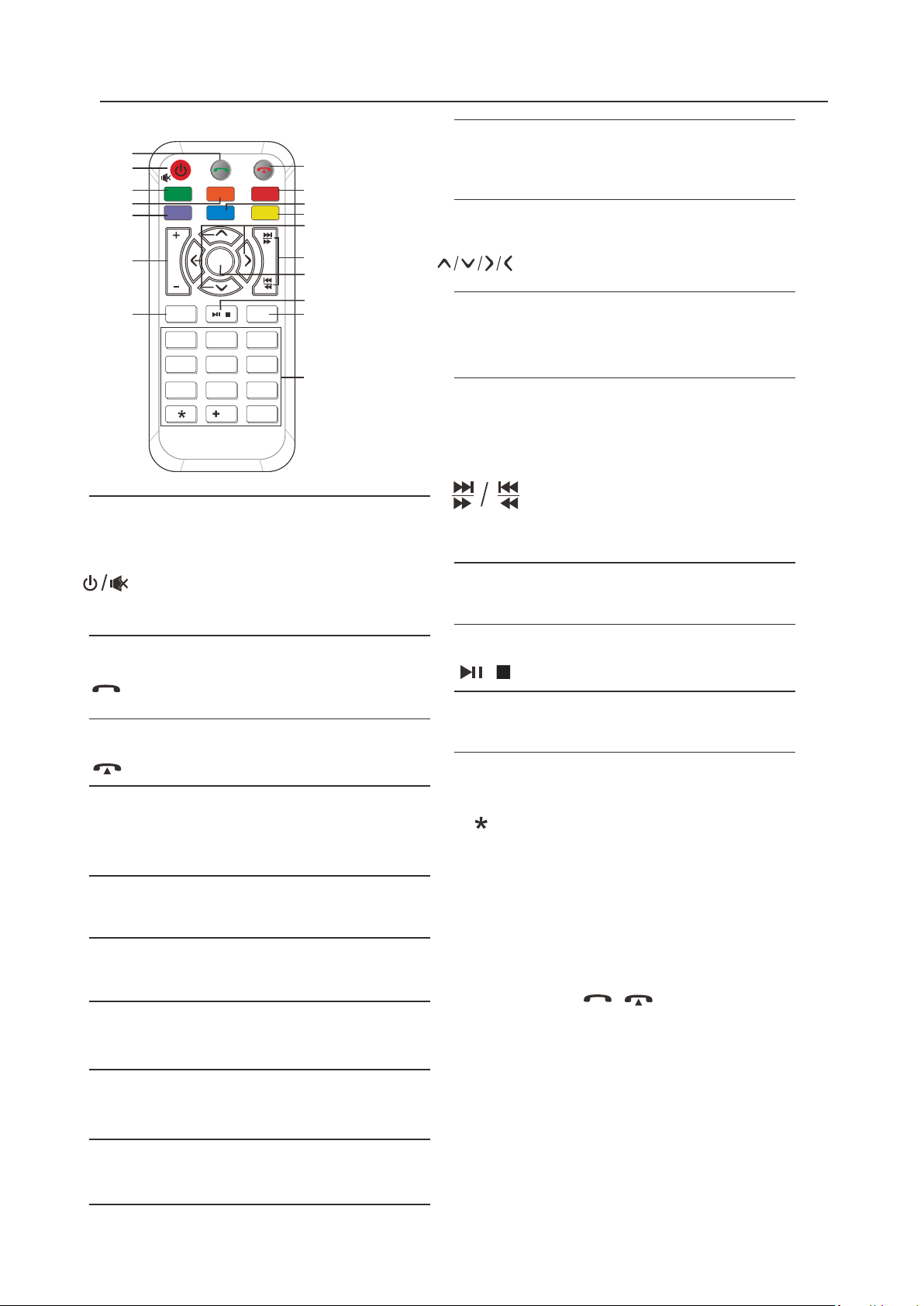

5.REMOTE CONTROL

NO. SYMBOL OPERATION & CONTROL MODES 1.

Press and hold to power it on or off.

Short press this button mute the

volume output when unit turn on.

Long press is Power OFF function

when unit turn on.

Press it to confirm selection.

Press it to increase or decrease the

volume level.

It is UP /Down/Left/Right Arrow, use

this button to select the menu item,

the title track or to show next frame.

[DVD/USB/SD]: short press it to

skip to the next track or previous

functions.

long press to activate fast forward

or fast review in a track .

Note: 1. SXM just for include SiriusXM

function models.

2. * # these functions

for Bluetooth.

14 16

1 2 3

4 5 6

7 8 9

EJECT EQ

ENTER

DISC BT USB

CP/AA

SXM Radio

2. [Bluetooth ]: Press it to make a call

after inputted a phone number or

answer an incoming call.

3. [Bluetooth ]: Press it to reject a coming

call or hangup while calling

4. Press it to switch to CarPlay or Android

Auto mode; Head Unit will show string

"invalid operation" when CP/AA is not

pluged in Head Unit.

CP/AA

5. Press it to switch to SXM mode.

SXM

6. Press it to switch to RADIO mode.

Radio

7. Press it to switch to DVD mode.

DISC

8. Press it to switch to Bluetooth mode.

9. Press it to switch to USB mode.

USB

10.

VOL+/-

11.

12.

ENTER

13.

[Bluetooth Music]: short press it to

skip to the next track or previous

functions.

Press it to eject the disc.

14.

EJECT

15.

[DVD/USB/SD]: short press it to

switch play or pause.

16.

EQ Press it to Equalizer functions .

17.

0-9 [Radio ]: Select 1-6 desired preset

station.

[DVD/SUB/SD ]:Input 0-9 for

selecting track number.

[BT Phone ]:Input 0-9/*/# for

desired phone number.

with Android Auto

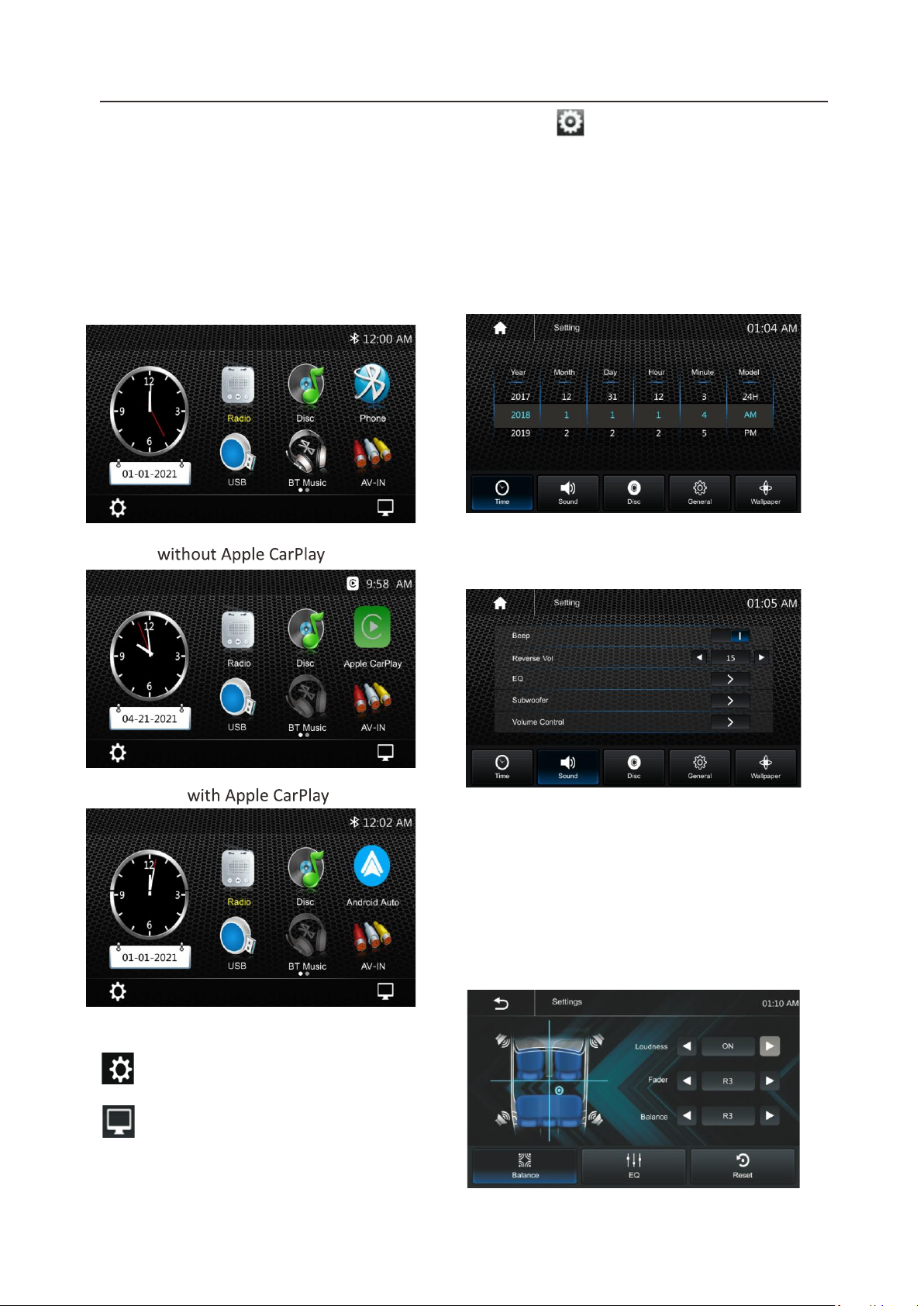

6.MAIN MENU

CPAA-70D10F is a 2-DIN car audio with

following functions:

Apple CarPlay, Google Android Auto,

Radio, Disc, Bluetooth, USB, SD.

The Mode icon in gray means the corre-

sponding function is not ready or proper

device have not been connected.

Touch the corresponding Mode icon to

enter playing mode.

Setup, to enter the Settings Menu.

Turn off TFT display.

TFT enter black mode touch any

zone return to TFT on.

7.Settings

Touch the icon to enter the Setup menu.

The Setup menu is included Time Settings,

Audio Setting s, Disc settings, General

Settings, Wallpaper Settings.

Time Settings

The Time Settings allow the user to set Date

& Time.

Audio Settings

Below shown is the Audio Setting Menu.

EQ Settings

Balance/Fader:

Touch the “+” or “-” of Balance /Fader to tune

for the driver and passenger preference.

The value of Balance (Left15-Right 15) and

Fader ( Front 15- Rear 15).

Touch Reset to set both Balance and Fader

to 0.

7.Settings

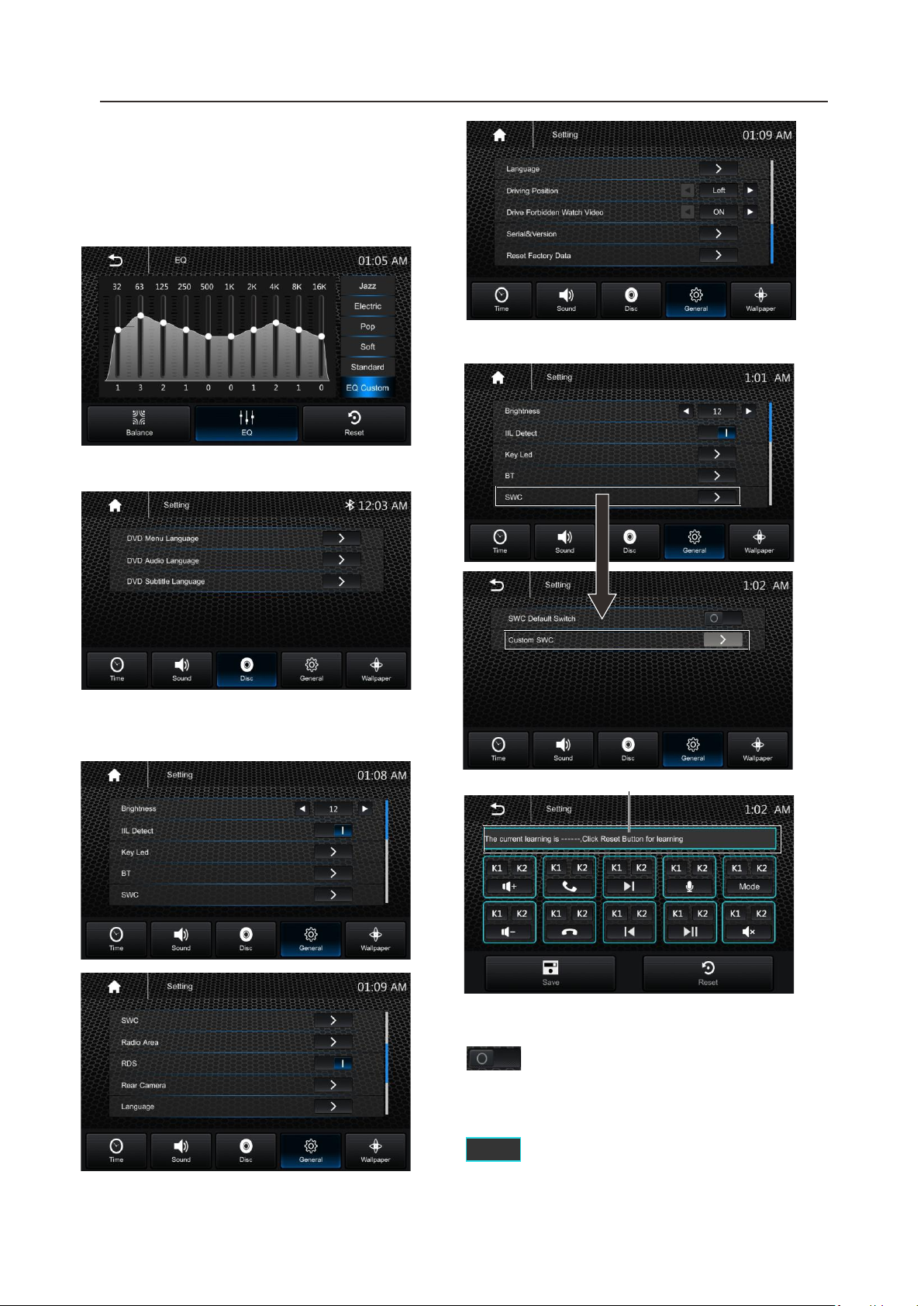

10 band of EQ tuning, slide the EQ bar to

tune each band frequency level according

to user preference.

Touch Reset to set all Band to０.

10-Band Equalizer:

Disc settings:

Steering Wheel Control Settings

General settings:

Touch SWC for steering wheel

control setting.

Click SWC Default Switch to be "on"

status.

Click Custom SWC to SWC study

mode.

Press the steering wheel control

button of the car first and then touch

the corresponding button on player

screen for learning and setting.

①

Inhaltsverzeichnis

Andere PowerAcoustik Auto-Videosystem Handbücher

PowerAcoustik

PowerAcoustik PTID-5800 Bedienungsanleitung

PowerAcoustik

PowerAcoustik PTID-6500 Bedienungsanleitung

PowerAcoustik

PowerAcoustik PT-92CM Bedienungsanleitung

PowerAcoustik

PowerAcoustik PMD-90CM Bedienungsanleitung

PowerAcoustik

PowerAcoustik CP-650 Bedienungsanleitung

PowerAcoustik

PowerAcoustik PTID-5300T Bedienungsanleitung

PowerAcoustik

PowerAcoustik PDN-626B Bedienungsanleitung

PowerAcoustik

PowerAcoustik PD-930 Bedienungsanleitung

PowerAcoustik

PowerAcoustik PT-727MSV Bedienungsanleitung

PowerAcoustik

PowerAcoustik PTID-5800 Bedienungsanleitung

PowerAcoustik

PowerAcoustik PTID-7250N Bedienungsanleitung

PowerAcoustik

PowerAcoustik PT-770HGM Bedienungsanleitung

PowerAcoustik

PowerAcoustik PT-622TS Bedienungsanleitung

PowerAcoustik

PowerAcoustik HD-14KIT Bedienungsanleitung

PowerAcoustik

PowerAcoustik MD-830CM Bedienungsanleitung

PowerAcoustik

PowerAcoustik PTID-7350NBT Bedienungsanleitung

PowerAcoustik

PowerAcoustik PT-725 Bedienungsanleitung

PowerAcoustik

PowerAcoustik H-8BK Bedienungsanleitung

PowerAcoustik

PowerAcoustik PTID-7001NT Bedienungsanleitung

PowerAcoustik

PowerAcoustik PT-700MHK Bedienungsanleitung

PowerAcoustik

PowerAcoustik CPAA-70D10M Bedienungsanleitung

PowerAcoustik

PowerAcoustik HD-7BG Bedienungsanleitung

PowerAcoustik

PowerAcoustik PT-501MHN Bedienungsanleitung

PowerAcoustik

PowerAcoustik PTID-5850N Bedienungsanleitung

Beliebte Auto-Videosystem Handbücher anderer Marken

Stinger

Stinger HEIGH10 RB10RAM13B Bedienungsanleitung

Eonon

Eonon E1057 Bedienungsanleitung

Milion

Milion D2223 Bedienungsanleitung

Metra Electronics

Metra Electronics 99-8153 Bedienungsanleitung

Voxx Electronics

Voxx Electronics HR8MA1 Bedienungsanleitung

Axxera

Axxera AV604Bi Bedienungsanleitung

Clarion

Clarion NX706E Bedienungsanleitung

Pyle view

Pyle view PLDN74BTi Bedienungsanleitung

Clarion

Clarion NX602 Bedienungsanleitung

RCA

RCA DRC6296 - Twin 9" Mobile DVD System Benutzerhandbuch

Lanzar

Lanzar SVDVD5 Bedienungsanleitung

Kia

Kia MTXM100YPPE Bedienungsanleitung

Eonon

Eonon E1060 Bedienungsanleitung

Macrom

Macrom M-AN900 Bedienungsanleitung

Hyundai

Hyundai BAPE-L3000N Bedienungsanleitung

r.LiNK

r.LiNK RL2-UCON8-SM Bedienungsanleitung

Blaupunkt

Blaupunkt DVP 01C Bedienungsanleitung

DP Audio Video

DP Audio Video dbd807nav Bedienungsanleitung
