PowerWalker VFI 1000 CRM / CRS

PowerWalker VFI 2000 CRM / CRS

PowerWalker VFI 3000 CRM / CRS

Manual

Uninterruptible Power Supply System

Table of Contents

1. Important Safety Warning....................................................................................................................... 1

1-1. Transportation...................................................................................................................................... 1

1-2. Preparation........................................................................................................................................... 1

1-3. Installation ........................................................................................................................................... 1

1-4. Operation ............................................................................................................................................. 1

1-5. Maintenance, service and faults........................................................................................................... 2

2. Installation and setup .............................................................................................................................. 3

2-1.1 Rear panel view ................................................................................................................................. 3

2-1.2 Rear panel view long-run model ....................................................................................................... 4

2-2. 1-3K Setup the UPS............................................................................................................................. 5

3. Operations ............................................................................................................................................... 7

3-1. Button operation .................................................................................................................................. 7

3-2. LCD Panel ........................................................................................................................................... 7

3-3. Audible Alarm...................................................................................................................................... 9

3-4. LCD display wordings index............................................................................................................... 9

3-5. UPS Setting.......................................................................................................................................... 9

3-6. Operating Mode Description ............................................................................................................. 12

3-7. Faults Reference Code....................................................................................................................... 13

3-8. Warning indicator .............................................................................................................................. 13

4. Troubleshooting .................................................................................................................................... 14

5. Storage and Maintenance...................................................................................................................... 16

6. Specifications........................................................................................................................................ 17

1. Important Safety Warning

Please comply with all warnings and operating instructions in this manual strictly. Save this

manual properly and read carefully the following instructions before installing the unit. Do not

operate this unit before reading through all safety information and operating instructions

carefully

1-1. Transportation

Please transport the UPS system only in the original package to protect against shock

and impact.

1-2. Preparation

Condensation may occur if the UPS system is moved directly from cold to warm

environment. The UPS system must be absolutely dry before being installed. Please

allow at least two hours for the UPS system to acclimate the environment.

Do not install the UPS system near water or in moist environments.

Do not install the UPS system where it would be exposed to direct sunlight or near

heater.

Do not block ventilation holes in the UPS housing.

1-3. Installation

Do not connect appliances or devices which would overload the UPS system (e.g. laser

printers) to the UPS output sockets.

Place cables in such a way that no one can step on or trip over them.

Do not connect domestic appliances such as hair dryers to UPS output sockets.

The UPS can be operated by any individuals with no previous experience.

Connect the UPS system only to an earthed shockproof outlet which must be easily

accessible and close to the UPS system.

Please use only VDE-tested, CE-marked mains cable (e.g. the mains cable of your

computer) to connect the UPS system to the building wiring outlet (shockproof outlet).

Please use only VDE-tested, CE-marked power cables to connect the loads to the UPS

system.

When installing the equipment, it should ensure that the sum of the leakage current of

the UPS and the connected devices does not exceed 3.5mA.

1-4. Operation

Do not disconnect the mains cable on the UPS system or the building wiring outlet

(shockproof socket outlet) during operations since this would cancel the protective

earthing of the UPS system and of all connected loads.

The UPS system features its own, internal current source (batteries). The UPS output

sockets or output terminals block may be electrically live even if the UPS system is not

connected to the building wiring outlet.

In order to fully disconnect the UPS system, first press the OFF/Enter button to

disconnect the mains.

Prevent no fluids or other foreign objects from inside of the UPS system.

1-5. Maintenance, service and faults

The UPS system operates with hazardous voltages. Repairs may be carried out only by

qualified maintenance personnel.

Caution - risk of electric shock. Even after the unit is disconnected from the mains

(building wiring outlet), components inside the UPS system are still connected to the

battery and electrically live and dangerous.

Before carrying out any kind of service and/or maintenance, disconnect the batteries

and verify that no current is present and no hazardous voltage exists in the terminals of

high capability capacitor such as BUS-capacitors.

Only persons are adequately familiar with batteries and with the required precautionary

measures may replace batteries and supervise operations. Unauthorized persons must

be kept well away from the batteries.

Caution - risk of electric shock. The battery circuit is not isolated from the input

voltage. Hazardous voltages may occur between the battery terminals and the ground.

Before touching, please verify that no voltage is present!

Batteries may cause electric shock and have a high short-circuit current. Please take

the precautionary measures specified below and any other measures necessary when

working with batteries:

－remove wristwatches, rings and other metal objects

－use only tools with insulated grips and handles.

When changing batteries, install the same number and same type of batteries.

Do not attempt to dispose of batteries by burning them. This could cause battery

explosion.

Do not open or destroy batteries. Escaping electrolyte can cause injury to the skin and

eyes. It may be toxic.

Please replace the fuse only with the same type and amperage in order to avoid fire

hazards.

Do not dismantle the UPS system.

2. Installation and setup

NOTE: Before installation, please inspect the unit. Be sure that nothing inside the package is

damaged. Please keep the original package in a safe place for future use.

NOTE: There are two different types of online UPS: standard and long-run models. Please refer

to the following model table.

2-1.1 Rear panel view

1.AC input

5.SNMP intelligent slot (option)

2.Input circuit breaker

6.External battery connection

3.USB communication port

7.Output receptacles

4.RS-232 communication port

8.Output terminal

Model

Type

Model

Type

PowerWalker VFI 1000 CRM LCD

Standard

model

PowerWalker VFI 1000 CRS LCD

Long-run

model w/o

batteries

PowerWalker VFI 2000 CRM LCD

PowerWalker VFI 2000 CRS LCD

PowerWalker VFI 3000 CRM LCD

PowerWalker VFI 3000 CRS LCD

PowerWalker VFI 1000 CRM

PowerWalker VFI 2000 CRM

PowerWalker VFI 3000 CRM

2-1.2 Rear panel view long-run model

1.AC input

5.SNMP intelligent slot (option)

2.Input circuit breaker

6.External battery connection

3.USB communication port

7.Output receptacles

4.RS-232 communication port

8.Output terminal

PowerWalker VFI 1000 CRS

PowerWalker VFI 2000 CRS

PowerWalker VFI 3000 CRS

2-2. 1-3K Setup the UPS

Step 1: Internal/ External battery connection

The CRM Model includes internal batteries, but due to transportation policies, the internal

batteries are disconnected! Please open the front panel (screwdriver is not necessary, only

minimal pulling needs to be applied) and connect the battery cable with color cable matching!

The CRS Model on the other side, does not include internal batteries and requires the following

step to fully function as a UPS. Please connect the in-package included (

Only CRS Model includes

the cable in the standard package

) external battery cable as below diagram:

Step 2: UPS input connection

Plug the UPS into a two-pole, three-wire, grounded receptacle only. Avoid using extension

cords. The power cord is supplied in the UPS package.

Step 3: UPS output connection

For socket-type outputs, simply connect devices to the outlets.

For terminal-type input or outputs, please follow below steps for the wiring configuration:

a) Remove the small cover of the terminal block

b) Suggest using AWG14 or 2.1mm2power cords for 3KVA model.

c) Upon completion of the wiring configuration, please check whether the wires are

securely affixed.

d) Put the small cover back to the rear panel.

To external battery

Step 4: Communication connection

Communication port:

USB port RS-232 port Intelligent slot

To allow for unattended UPS shutdown/start-up and status monitoring, connect the

communication cable one end to the USB/RS-232 port and the other to the communication port

of your PC. With the monitoring software installed, you can schedule UPS shutdown/start-up and

monitor UPS status through PC.

The UPS is equipped with intelligent slot perfect for either SNMP or AS400 card. When installing

either SNMP or AS400 card in the UPS, it will provide advanced communication and monitoring

options.

PS. USB port and RS-232 port can’t work at the same time.

Step 5: Turn on the UPS

Press the ON/Mute button on the front panel for two seconds to power on the UPS.

Note: The battery charges fully during the first five hours of normal operation. Do not expect

full battery run capability during this initial charge period.

Step 6: Install software

For optimal computer system protection, install UPS monitoring software to fully configure UPS

shutdown. You may insert provided CD into CD-ROM to install the monitoring software. If not,

please follow steps below to download and install monitoring software from the internet:

1. Go to the website

http://www.powerwalker.com/index.php?lang=&page=viewpower

2. Click ViewPower software icon and then choose your required OS to download the software.

3. Follow the on-screen instructions to install the software.

4. When your computer restarts, the monitoring software will appear as an orange plug icon

located in the system tray, near the clock.

Tower Installation

The UPS can be also installed in vertical position. The LCD can be rotated by 90 degrees.

Step 1

Step 2

Step 3

3. Operations

3-1. Button operation

Button Function

ON/Mute Button



Turn on the UPS: Press and hold ON/Mute button for at least 2 seconds to

turn on the UPS.

Mute the alarm: When the UPS is on battery mode, press and hold this

button for at least 5 seconds to disable or enable the alarm system. But

it’s not applied to the situations when warnings or errors occur.

Up key: Press this button to display previous selection in UPS setting

mode.

Switch to UPS self-test mode: Press and hold ON/Mute button for 5

seconds to enter UPS self-testing while in AC mode, ECO mode, or

converter mode.

OFF/Enter Button



Turn off the UPS: Press and hold this button at least 2 seconds to turn off

the UPS. UPS will be in standby mode under power normal or transfer to

Bypass mode if the Bypass enable setting by pressing this button.

Confirm selection key: Press this button to confirm selection in UPS

setting mode.

Select Button



Switch LCD message: Press this button to change the LCD message for

input voltage, input frequency, battery voltage, output voltage and output

frequency. It will return back to default display when pausing for 10

seconds.

Setting mode: Press and hold this button for 5 seconds to enter UPS

setting mode when UPS is in standby mode or bypass mode.

Down key: Press this button to display next selection in UPS setting mode.

ON/Mute + Select

Button



Switch to bypass mode: When the main power is normal, press ON/Mute

and Select buttons simultaneously for 5 seconds. Then UPS will enter to

bypass mode. This action will be ineffective when the input voltage is out

of acceptable range.

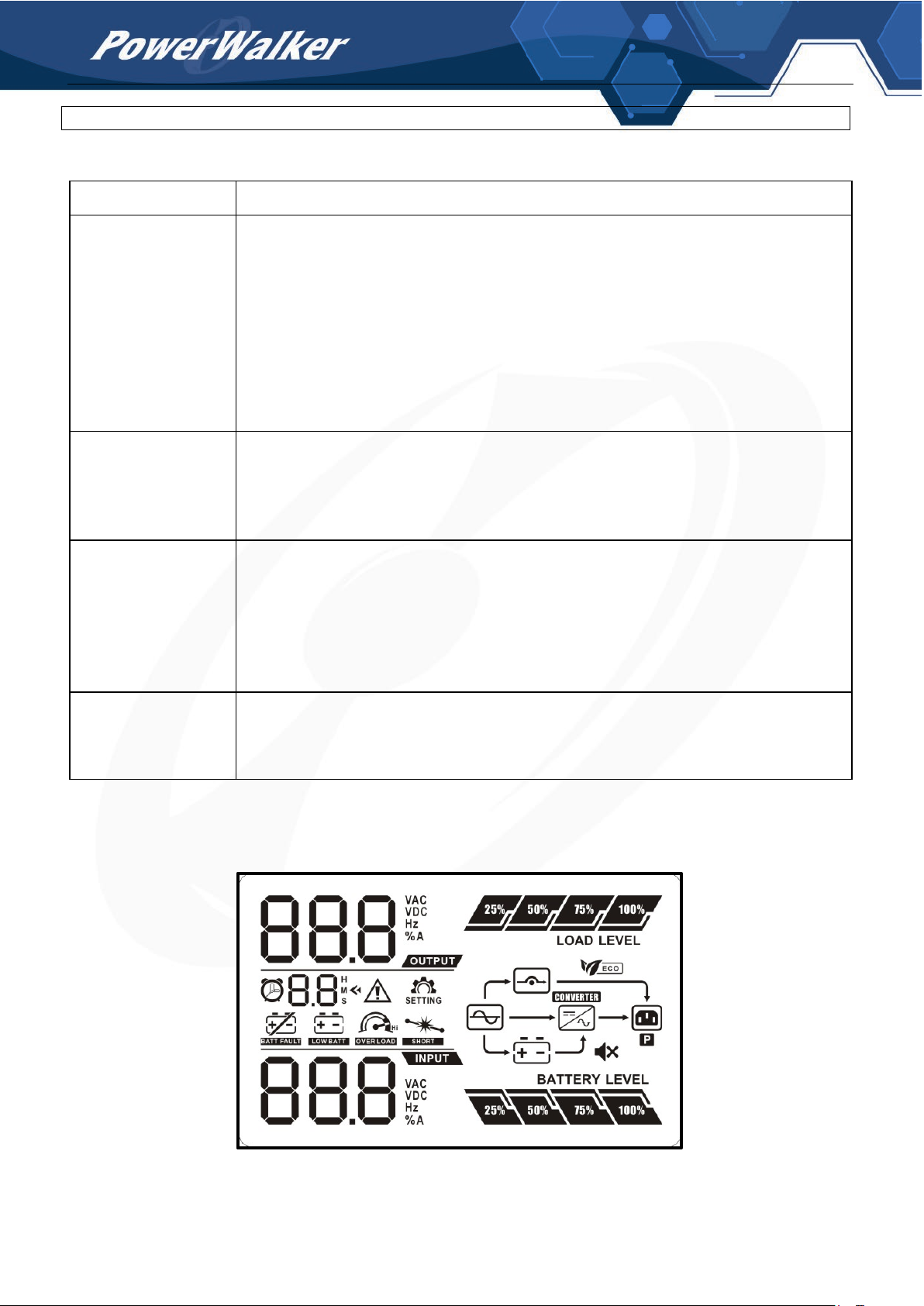

3-2. LCD Panel

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere PowerWalker UPS Handbücher

PowerWalker

PowerWalker VI 1000 Bedienungsanleitung

PowerWalker

PowerWalker VI 650 GX Bedienungsanleitung

PowerWalker

PowerWalker VFI 1000 Bedienungsanleitung

PowerWalker

PowerWalker VFI 1000RT LCD Bedienungsanleitung

PowerWalker

PowerWalker VFI 1000 RMG PF1 Bedienungsanleitung

PowerWalker

PowerWalker VFI 2000 RMG/S PF1 Bedienungsanleitung

PowerWalker

PowerWalker VI 750 PSW Bedienungsanleitung

PowerWalker

PowerWalker 1000 LCD/UK Bedienungsanleitung

PowerWalker

PowerWalker VI RT HID Series Bedienungsanleitung

PowerWalker

PowerWalker VFI 1000 R1U Bedienungsanleitung

PowerWalker

PowerWalker VFI 20000-40000TAP 3/3 BI Bedienungsanleitung

PowerWalker

PowerWalker VFI 1000-3000 CG PF1 Bedienungsanleitung

PowerWalker

PowerWalker VI RLP Series Bedienungsanleitung

PowerWalker

PowerWalker Basic VI SB Series Bedienungsanleitung

PowerWalker

PowerWalker VFI 6000 AT Bedienungsanleitung

PowerWalker

PowerWalker VFI 10000TCP 3/1 Bedienungsanleitung

PowerWalker

PowerWalker VI TW Series Bedienungsanleitung

PowerWalker

PowerWalker VFI 6000 TGB Bedienungsanleitung

PowerWalker

PowerWalker VFI 6000CRM LCD Bedienungsanleitung

PowerWalker

PowerWalker VI SCL Series Bedienungsanleitung

PowerWalker

PowerWalker VFI 6000RT LCD Bedienungsanleitung

PowerWalker

PowerWalker VI 650SE LCD Bedienungsanleitung

PowerWalker

PowerWalker VFI 10000 CPE 3/3 Bedienungsanleitung

PowerWalker

PowerWalker VFI 1000 AT Bedienungsanleitung

Beliebte UPS Handbücher anderer Marken

Pylontech

Pylontech Victron & Pylontech US5000 Bedienungsanleitung

Tecnoware

Tecnoware EVO DSP PLUS MM 6.8 Bedienungsanleitung

Mecer

Mecer ME-1000-WTU Bedienungsanleitung

Mustek

Mustek PowerMust 530(B) Plus Installations- und Betriebshandbuch

Emerson

Emerson Liebert NXL series Bedienungsanleitung

MAKELSAN

MAKELSAN BOXER SERIES Bedienungsanleitung

Block

Block PC-0524-400-0 Bedienungsanleitung

CyberPower

CyberPower CP585LCD Bedienungsanleitung

Eaton

Eaton 3S Montageanleitung

CyberPower

CyberPower Office Tower Series UPS 1000 Bedienungsanleitung

CyberPower

CyberPower BM100 Bedienungsanleitung

Best Power

Best Power 610 Bedienungsanleitung

Best Power

Best Power Unity/I UT3K Bedienungsanleitung

Mustek

Mustek PowerMust 400 Offline Bedienungsanleitung

Xantrex

Xantrex Trace 512 UR-UPS Bedienungsanleitung

Forza

Forza SL-1501UL Bedienungsanleitung

LEGRAND

LEGRAND keor 310081 Bedienungsanleitung

ABB

ABB Conceptpower DPA 500 Bedienungsanleitung
