This product is for domestic use only
Use & care manual
Important safeguards
UPRIGHT FREEZER
PFV885MW
PFV886MSS
PFV887MB
PFV1135MW
PFV1136MSS
PFV1137MB
11
Note: Compartment design may change due to product improvement without any
prior notice.

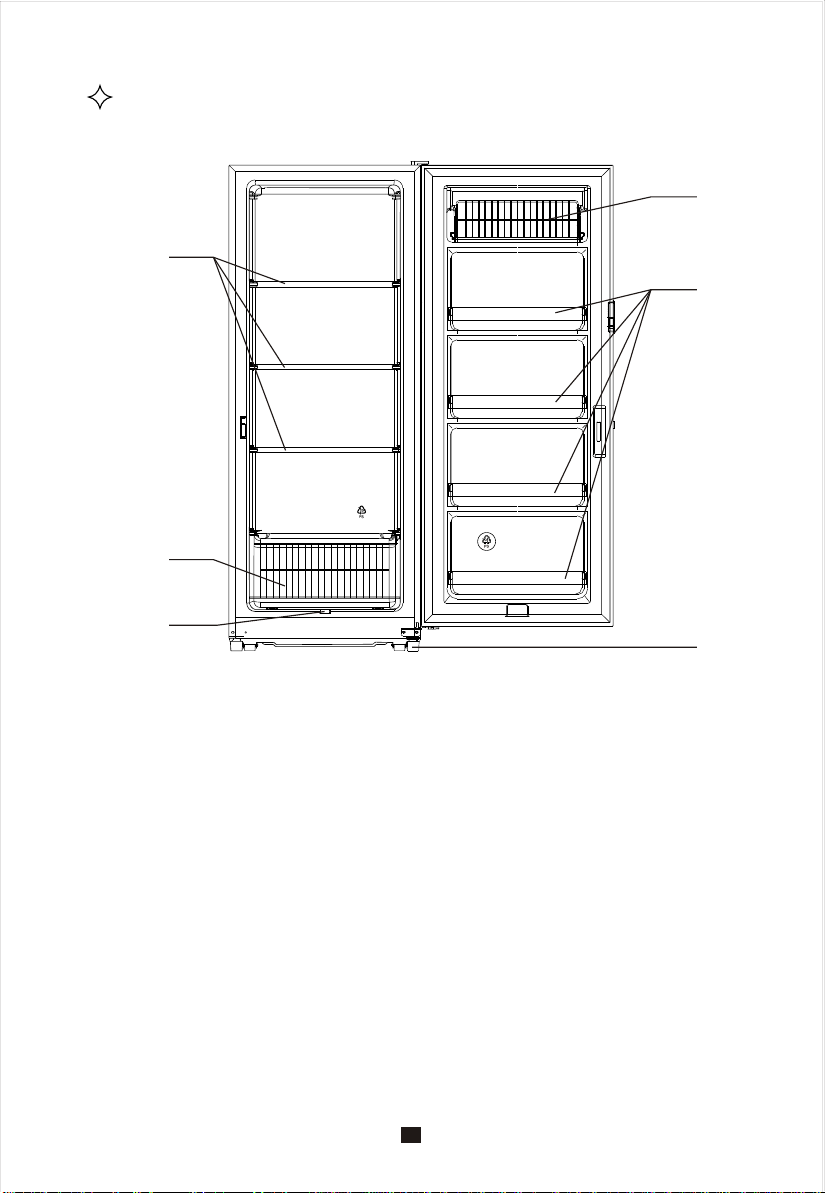

Structure Illustration
1. Steel wire shelf
2. Steel wire guardrail
3. Waterspout
4. Circumgyrate steel wire shelf
5. Refrigerator door rack
6. Adjustable feet
compartment
2
1
4
5
6
3
22

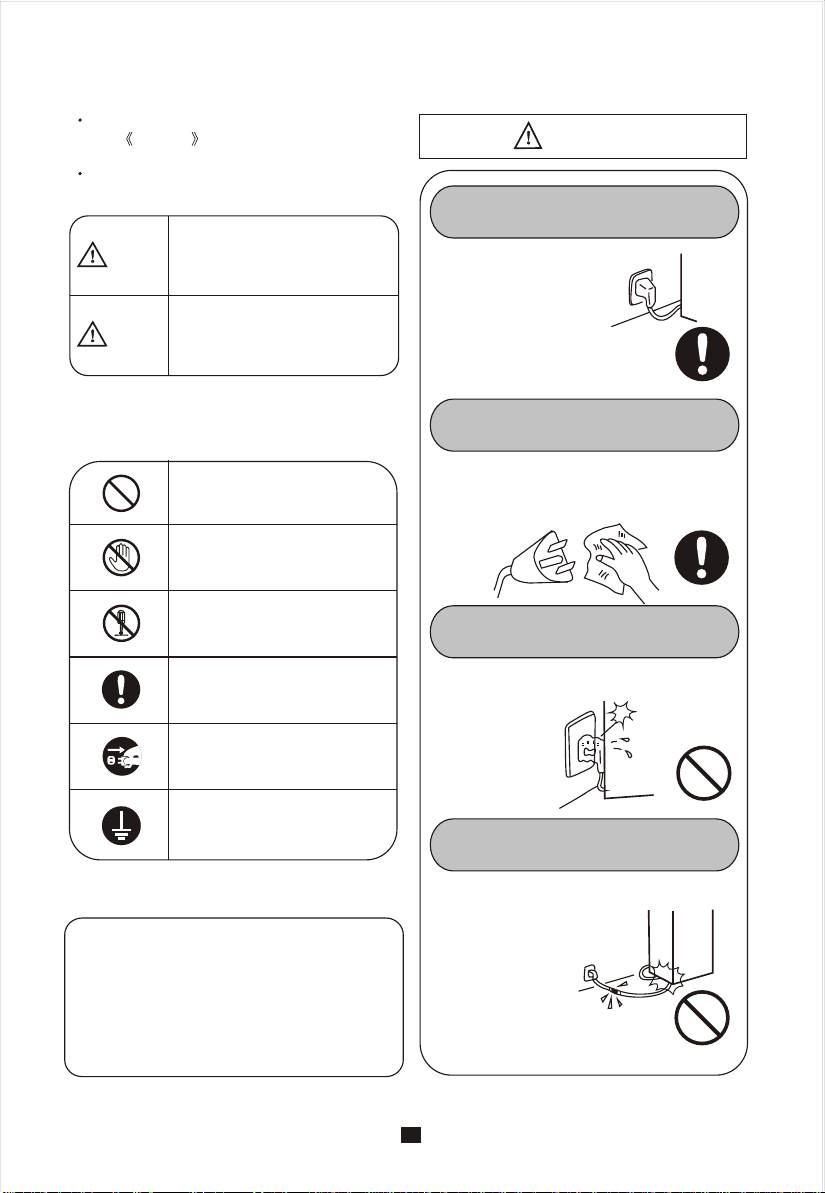

Points of safety
For proper usage and safety, please read
the Manual before using it.
Please follow all items of Instruction for
safety while using it.
Cautions
Cautions
Attentions
This symbol indicates the po sibility
of death or serious injury
s
.
This symbol indicates the possibility
of injury or damage to property.
The meaning of symbols in this book shown
in the following table
Never do this
NO removing
Must obey while use it
Pull out the plug while
maintenance
Connected to the earth
NO touching
Attention
Customer cannot change the plug and wire
without authorization. If the wire is destroyed,
it should be changed by the service department
of our company.
Own socket for its own use
Keep the plug and socket clean
Don't extrude the plug.
No damaging the power line
Dust and bad connection
might cause electric shock .
Short circuit caused by
damaged plug can make
fire.
Short circuit caused by
forcible bending,
stretching , twisting
packing , cutting the
wire might make fire.
The electric power
must be connected the
earth well . If the wire
is not long enough ,
the extension must be
according with the
demands.
33
If inflammable gas is leaked, open the
window to have fresh air, don t pull out plug
Cautions
No stretching the power line directly
Be sure to connet to earth well
Never use damaged wire, plug, socket
Shut off power while maintenance
Pull out plug in emergency
Do not install the unit in moist place
Please shut the power
off while handling the
plug , damaged wire
might make fire.
Make sure the appliance
is properly earthed.
It might cause electric shock ,
short circuit ,even fire.
Avoid using the appliance
in a damp moist place.
Unplug the socket
while cleaning.
Spark would be appeared
if the plug is pulled out
and it would make
burning, explosion or
fire.
Don't remove or repair it by yourself
Accident(short circuit)
may happen if it continues
to run.
to the
authorized service
personnel without delay.
Please contact
Please contact with the
Authorized
without delay.
Service Center
Remove the door gasket while abandon it
Remove the door gasket
in order to avoid that
children are trapped in-
side.
44
OK!
Cautions
Warnings
Please locate it and smooth
place, regulate by screwing the feet
on even
No stretching hand to the bottom
Don't store too much food. Shelf
may break.
To avoid frostbite, don't touch foods and
vessel in freezer with moist hands
Close the door with the handle
Turning over would
cause accidents.
Stretching hands to the
bottom might be hurt
by iron sheet.
Foods might fall down
and hurt people.
Don't put bottle into the freezer case
Glass might split by
frozen and hurt peo-
ple s hands while stor-
ing and getting foods.
,
Touching foods and
vessel in the freezer
with moist hands
.
would
cause frostbite
Closing the door with
hands on the upside,
downside or other sides
might make fingers
hurt.
Recycle foam, refrigerant, etc, according
to relevant national regulations.
Forbidden to throw away foam, refrigerant, etc. Especially when use refrigerant 600a, should
remove the foam tray, or cause to explode.
When place fridges, please remove
the foam tray
This appliance is not intended for use by people (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety. Children should be supervised to ensure that
they do not play with the appliance.
If the supply cord is damaged, it must be replaced by a special cord or assembly
avaible from the manufacturer or its service agent.
55
INSTALLATION
1 Placement
Keeping proper space
Earth line
Avoiding heat and moisture
Locating firmly and horizontally
Earth terminal (triangle plug)
! Attentions
A piece of wood should be placed first if the
refrigerator is located on the carpet etc.
Rotate the adjustable feet one round(let the
front feet hang in the air) and then firm the
refrigerator horizontally(to avoid vibration
and noise).
Heat, sunlight shining directly would influent
cooling seriously and waste the electric energy.
Many troubles are caused by moisture.
Too small space around it, putting goods on
the top or side, and pasting on the side might
prevent heat out, waste energy unnecessarily.
Contacting between back and wall might cause
vibration and noise.
Heat radiated from the refrigerator might scald
the wall or other things if space is too small.
! Cautions
The earth line should be connected if the refriger-
ator is located at the moist place such as toilet,
laundryroom, basement etc.
Please connect one side of the earth line to the
earth terminal.
Above 5cm
Above 5cm
Above 5cm
Adjustable
feet
66
6Pay more attention while moving.
Screw compressors are adopted inside. Inclination angle is no more than 45 degrees.
WARNING:
WARNING---keep ventilation opening, in the appliance enclosure or in the built-in structure, clear of
obstruction.
WARNING---do not use mechanical devices or other means to accelerate the defrosting process.
WARNING---do not use electrical appliances inside the food storage compartments of the appliance.
WARNING---d
If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly
qualified person in order to avoid a hazard.
on't damage the refrigerant loop.
3
2
Tear down the tape
firming case
Turn on the power
cleaning with
wet cloth
4
Storing after turning on
power 4~5 hours
The smell of plastic will
disappear automatically a
period later.
In hot season freezing foods completely needs 24 hours.
check the cooling condition in the next day. Something such as
ice-cream should be frozen completely.
Knob is to be adjusted. Large numbers indicate higher temperature, smaller numbers
indicate lower temperature
OFF show stop.In winter, usually place the knob at 4~7.In summer ,usually
place the knob at 4~1.
1 Please follow the step of control;
2 Improper adjust may lead to lower temperature ,higher temperature or influence energy consumption.
Caution:
Temperature adjustment Usually in MID position
5 Using the waterspout
When defrosting, please pull out waterspout cover flatly so that
drainage can be done through the waterspout. Users shall prepare
the defrosting pan by themselves. When drainage finish, push the
waterspout cover back to the original position by hand.
1
2
3
4
5
6
7
OFF
77
Maintenance
Cleaning procedure
Cautions
Always disconnect
the power plug.
Wipe off any oil on the
surfaces.
Soak a soft cloth in warm
water or dish abluent.
Wipe off all abluent.
Back of refrigerator Inspection after cleaning
10 minutes
Adjust the regulate feet and let it hang in the
air, then moving it.
Clean the dust at back and ground .
Caution
Check power line and plug.
If the power line and plug damaged.
Dust on the plug.
Unusual heat of plug.
If the socket become flexible.
If the plug inserted .
If the power line and plug are damaged or
sticked dust ,it would cause electric shock or
fire.
incompletely
Attention
Do not stretch hands to the bottom.
Reconnect in the power
at least 10 minutes later.
Cleaning monthly
88
Common Phenomena Trouble Shooting
Instruction trouble shooting
The following cases are not malfunction. Please check according to below steps before asking for service
No current; abnormal voltage; fusing; put in the plug ineffectively, Check the plug and fuse.
Not efficient
The temperature adjustment knob is in the OFF poisition;
Space around the refrigerator is not enough;
The door has been opened too frequently and too long;
The refrigerator is exposed to the sunlight directly or placed near some ;
There is no space between foods;
There are hot foods inside the case.
Please read the points of attention, keep away from the , don t open the door frequently.
Put the hot foods in the case , adjust the knob to 4 or 6 position.
Foods frozen in the steel wire shelf or s rack.
The temperature knob is in 7 position;
Foods containing rich water and freezed easily are near the rear wall. Troubles of sensors or controls,
adjust the knob to 4 position.
Noises
The refrigerator is not located firmly;
The refrigerator has been struck to other objects;
The copper pipe has been struck each other in the mechanical room;
Locate the refrigerator at a firm base and separate the copper pipe from other objects in the
mechanical room.
Compressor can not stop working automatically
Store too much foods at one setting;
Open the door frequently or too long;
The temperature knob is in 7 position;
,
Foods should be stored in separate batches, don t store too much foods at one setting; Decrease the
frequence of opening the door and shorten the time of opening the door;
Compressor cannot start
Turning on the power .the refrigerator cannot work exceeding 30 seconds .pull the plug down at once.
Reinsert the plug, if the refrigerator still don t work , please contact with service department.
heat sources
heat source
after it is cooled down
compartment imple
