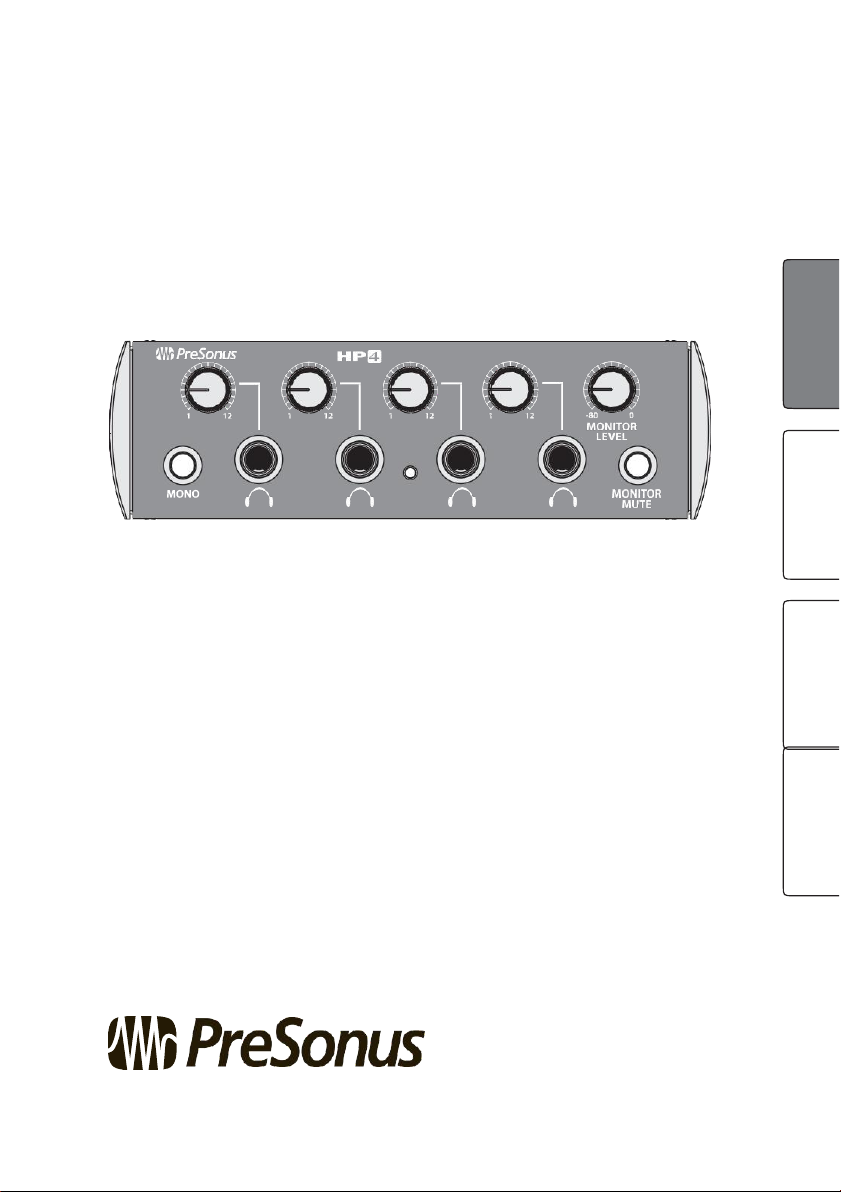

PRESONUS HP4 Bedienungsanleitung

HP4

Owner’s Manual

www.presonus.com

Français

Deutsch

Español

English

SPL Warning:

Exposure to extremely high noise levels

may

cause permanent hearing loss. Individuals

vary

considerably in susceptibility to noise-

induced hearing loss but nearly everyone will

lose some hearing if exposed to sufficiently

intense noise

for a period of time. The U.S.

Government’s

Occupational Safety and Health

Administration

(OSHA) has specified the

permissible noise level exposures shown in

the following chart. According

to OSHA, any

exposure in excess of these permissible

暴露在极强的噪声下，可能会导致永

久性的听力损伤风险。对于噪声引起

的听力损伤，个人的敏感度有很大差

异，但如果在一段时间内暴露在足够

强烈的噪声下，几乎每个人都会失去

一些听力。美国政府的职业安全与健

康管理局（OSHA）已经规定了允许

暴露的噪声水平如下图所示的。

limits could result in some hearing loss. To

ensure against potentially dangerous

exposure to high

sound-pressure levels, it is

recommended that all

persons exposed to

equipment capable of producing high sound-

pressure levels use hearing protectors while

the equipment is in operation. Earplugs or

protectors in the ear canals or over the ears

must be worn when operating the

equipment in order to prevent permanent

hearing loss if exposure is in

excess of the

limits set forth here:

根据OSHA的规定，任何超过这些允许限度的

暴露都可能导致一些听力损失。为避免接触

高声压级的潜在危险，建议能够接触到的所

有产生高声压级设备的人员，请使用听力保

护器在设备运行时。在操作设备时，必须在

耳道内或耳朵上佩戴耳塞或保护器，以防止

暴露于超过此处规定的限度，而导致出现永

久性听力损伤。

Owner’s Manual

Overview

Summary of Features 1.1

1.0 Overview 概述

Thank you for purchasing this PreSonus product.

PreSonus Audio Electronics, Inc., has manufactured

it using high-grade components to ensure

optimum performance that will last a lifetime.

The 150 mW headphone amps in the HP4 are

loud enough to explode the oysters in a Po-Boy

sandwich, yet the sound is clear and clean,

with a wide dynamic range. The HP4 is loaded

with professional features, such as a monitor

out put with level control and mute and a Mono

summing switch for the headphone and

monitor outputs.

感谢你购买PreSonus产品。PreSonus Audio

Electronics, Inc. 公司产品由先进的元件制造，以确

保最佳的性能，并经久耐用。HP4 中的150 mW 耳

机放大器的音量足以炸开 Po-Boy 三明治中的牡蛎

，但声音却清晰干净，动态范围宽广。HP4具有专

业的功能，例如带有电平控制和静音的监听输出，

以及耳机和监听输出的单声道开关。

1.1

Summary of Features 特点概述

•

4 discrete headphone-levelcontrols

•

Mono summing switch

•

Monitor level control

•

Monitor mute switch

•

2 balanced ¼” line inputs

•

Daisy-chain multiple units or pass signal to

studio monitors via monitoroutputs

•

4 stereo, ¼” headphone outputs

•

2 impedance-balanced, ¼” line outputs

Français

Deutsch

Español

English

4个分立的耳机级控制

单声道开关

监听电平控制

监听静音开关

2个¼" 平衡线路输入

Daisy-chain （链）多个单元或通过监听输出将信

号传递给录音室监听器

4个立体声，¼"耳机输出

2个阻抗平衡的¼"线路输出

We encourage you to contact us with questions or

comments regarding this product. You can reach

us by email at techsupport@presonus.com or call

us at 1-225-216-7887 between 9 a.m. and 5 p.m.

Central Time (GMT 05:00). PreSonus Audio

Electronics is committed to constant product

improvement, and we value your suggestions

highly. We believe the best way to achieve our goal

of constant product improvement is by listening to

the real experts: our valued customers. We

appreciate the support you have shown us through

the purchase of this product.

我们鼓励你与我们联系，提出有关该产品的问题或

意见。你可以通过电子邮件联系我们：

techsupport@presonus.com ，或者在总部上午9点

到下午5点（格林尼治标准时间05:00）之间致电1-

225-216-7887。PreSonus Audio Electronics 公司

致力于不断改进产品，我们高度重视你的建议。我

们相信，不断改进产品的实现我们目标的最佳方式

是听取真正的专家的建议：我们尊贵的客户。我们

感谢你通过购买本产品对我们的支持。

Owner’s Manual

Overview

Please use this manual to familiarize yourself with

the features, applications, and correct connection

procedure for the HP4 before trying to connect it to

your recording system. Pay close attention when

connecting the HP4 to your system, as bad cables

and improper grounding are the most common

causes of problems encountered in recording and

live P. A. environments. We recommend checking

your cables, connections, and grounding if you

experience any noise or other sonic performance

problems.

在尝试将 HP4 连接到你的录音系统之前，请熟悉

本手册HP4的使用功能、应用和正确的连接程序。

HP4连接到你的系统时，在将HP4连接到系统上时

要关注，因为坏的电缆和不当的接地，是在录音和

现场P.A.环境中遇到的常见问题的原因。如果你遇

到任何噪音或其他音质问题，我们建议检查你的电

缆、连接和接地。

Overview

1.1

Summary ofFeatures

PreSonus HP4

1.2

What Is In The Box 包装里有什么

In addition to this manual, your PreSonus

package contains the following:

除本手册外，你的PreSonus包装里，还包括以下

内容：

•

PreSonus HP4

•

16 VAC, 1,000 mA Power Supply 电源

English

Español

Deutsch

Français

Owner’s Manual

Overview

What’s inthe Box 1.1

2.0

Quick Start Guide 快速入门指南

This Quick Start guide is designed to help get your

HP4connected to yoursystem asquickly as

possible. The following step-by-step instructions

are based on a common studio environment. Your

actual setup may change based on your needs

and applications.

本快速入门指南旨帮助你尽快将HP4连接到你的系

统。下面的步骤说明是基于一个普通的演播室环境。

你的实际设置可能会根据你的需要和应用而改变。

2.1

Getting Started

Connect the

Power

连接电源

Turn every knob on the front panel of the

HP4 completely counterclockwise (left)..

将HP4 前面板上的每个旋钮完全逆时针

旋转（左）。

Connect the included power supply to

the HP4 and plug it in to a wall socket,

power strip, or surge protector.

将附带的电源连接到HP4，并将其插

入墙上的插座、电源线或电涌保护

器。

Connect Your Input Sources

连接你的输入源

Turn down the main output volume on your

audio interface or mixer to its lowest position.

把音频接口或调音台的主输出音量调到最低位置。

Connect the main outputs of youraudio

interface or mixer to the Left and Right TRS

inputs on the back of your HP4. For the best

Français

Deutsch

Español

English

PreSonus HP4

Quick Start Guide

sound quality, PreSonus recommends us-

ing balanced cables whenever possible.

将音频接口或调音台的主输出连接到HP4背面的左

右TRS输入。为了获得最佳音质，PreSonus建议尽

可能使用平衡电缆。

Connect the Left and Right Monitor/Thru outputs

on the back of your HP4 to the inputs of your pow-

ered studio monitors or power amp (if your studio

monitors are passive). This will allow you to use a

single output pair from your audio interface or mix-

er to feed both your HP4 and your studio monitors.

将HP4背面的左右监听/直通输出连接到带电源的工

作室监听或功率放大器（如果你的工作室监听是无

源的）的输入。这将允许你使用音频接口或调音台

的单一输出组，为你的HP4和你的演播室监听提供

信号。

Owner’s Manual

Overview

2.1

Getting Started

Set Monitor Levels

Connect a pair of headphones to the Phones 1 output.

将一副耳机连接到耳机1的输出。

Play a CD, DAWsession, or other audio record-

ing that is typical of your studio productions

through your audio interface or mixer outputs.

通过音频接口或调音台的输出，播放CD、DAW

会话或其他典型的工作室制作的音频记录。

Turn the main output volume of your audio interface

or mixer to unity gain. You may need to consult

the documentation that came with your device to

determine the knob or fader position for unity gain.

将你的音频接口或混音器的主输出音量调到统一增益。

你可能需要查看你的设备附带的文件，以确定统一增

益的旋钮或音量控制器位置。

Begin turning up the Phones 1 volume knob

on the front panel of your HP4 until your head-

phones are at a comfortable listening level.

开始调高HP4前面板上的电话1的音量旋钮，直

到你的耳机处于一个舒适的聆听水平。

Begin turning up the Monitor Level knob on

the front panel of your HP4 until your studio

monitors are at a comfortable mixing level.

开始调高HP4前面板上的监听电平旋钮，直

到你的录音室监听处于一个舒适的混音水

平。

Your HP4 is now ready to use!

你的HP4现在已经可以使用了!

English

Español

Deutsch

Français

PreSonus HP4

Quick Start Guide

Getting Started 2.1

2.2

Hookup Diagrams 连接图

2.2.1

Using the same stereo source for multiple HP4s. 对多个HP4使用同一个立体声

源。
