1 Overview

1.1 Introduction StudioLive™ Software

Library Reference Manual

1Overview

1.1 Introduction

Thank you for purchasing a PreSonus Quantum 2626 Thunderbolt 3 Audio

Interface. PreSonus Audio Electronics has designed the Quantum 2626 series

interface utilizing high-grade components to ensure optimum performance

that will last a lifetime. Loaded with high-headroom, Class A XMAX™

microphone preampliﬁers; an ultra-low latency Thunderbolt 3 recording and

playback engine; and more, Quantum 2626 breaks new boundaries for musical

performances and productions. All you need is a computer with a Thunderbolt

3-compatible connection, a few microphones and cables, powered speakers,

and your creativity, and you’re ready to record, mix, and release your music.

We encourage you to contact us with questions or comments regarding

your PreSonus Quantum 2626 interface. PreSonus Audio Electronics is

committed to constant product improvement, and we highly value your

suggestions. We believe the best way to achieve our goal of constant product

improvement is by listening to the real experts: our valued customers. We

appreciate the support you have shown us through the purchase of this

product and are conﬁdent that you will enjoy your Quantum 2626!

About this manual: We suggest that you use this manual to familiarize

yourself with the features, applications, and correct connection procedures

for your Quantum 2626 interface before trying to connect it to your computer.

This will help you avoid problems during installation and setup.

Throughout this manual you will ﬁnd Power User Tips that can quickly make

you a Quantum 2626 expert. In addition to the Power User Tips, you will ﬁnd an

assortment of tutorials throughout this manual. These tutorials are designed to help

you get the most out of your Quantum 2626 and its suite of companion software.

1 Overview

1.2 Companion Products StudioLive™ Software

Library Reference Manual

1.2 Companion Products

Thanks for choosing PreSonus! As a solutions company, we believe the best way to

take care of our customers (that’s you) is to ensure that you have the best possible

experience from the beginning of your signal chain to the end. To achieve this goal,

we’ve prioritized seamless integration throughout every design phase of these

products from day one. The result is systems that communicate with each other

as intended—straight out of the box—without excessive conﬁguration hassles.

We’re here for you. Find out more at www.presonus.com.

1.3 Studio One Artist Features

All PreSonus audio interfaces include PreSonus Studio One Artist recording

software, which comes with more than 4 GB of plug-ins, loops, and samples,

giving you everything you need for music recording and production. The Quick

Start Guide in Section 6 of this manual will help you conﬁgure your Quantum

2626 and provide you with a brief overview of Studio One’s features.

•Cue Mix provides complete integrated control over all Quantum functions

•Unlimited track count, inserts, and sends

•20 high-quality, Native Eﬀects™ plug-ins; amp modeling (Ampire), delay

(Analog Delay, Beat Delay), distortion (RedLightDist™), dynamics processing

(Channel Strip, Compressor, Gate, Expander, Fat Channel, Limiter, Tricomp™),

equalizer (Channel Strip, Fat Channel, Pro EQ), modulation (Autoﬁlter,

Chorus, Flage, Phaser, X-Trem), reverb (Mixverb™, Room Reverb), and

utility (Binaural Pan, Mixtool, Phase Meter, Spectrum Meter, Tuner)

1 Overview

1.5 What is in the Box StudioLive™ Software

Library Reference Manual

•More than 4 GB of loops, samples, and instruments, featuring:

Presence™ XT virtual sample player, Impact virtual drum machine,

SampleOne™ virtual sampler, Mai Tai virtual polyphonic analog modeling

synth, Mojito virtual analog-modeled subtractive synthesizer

•Innovative and intuitive MIDI mapping

•Powerful drag-and-drop functionality for faster workﬂow

•Available for macOS and Windows

1.5 What is in the Box

You Quantum 2626 interface package contains the following:

PreSonus Quantum 2626 Thunderbolt Audio Interface

and Studio Command Center

External power supply

Quantum 2626 Quick Start Guide

PreSonus Health Safety and Compliance Guide

Power User Tip: All companion software and drivers for your Quantum 2626 interface

interface are available for download from your My PreSonus user account. Simply visit

http://my.presonus.com and register your Quantum 2626 interface to receive downloads

and licenses.

Goonline to my.presonus.com and

registeryour serial number.

TheQuantum 2626 is loaded with professional features, such as

high-headroom,Class A XMAX microphone preampliﬁers; high-

deﬁnition24-bit, 192 kHz conversion; high-speed Thunderbolt 3

andmore. Once you’ve registeredyour Quantum 2626, you’ll be

ableto download your complimentary copy of Studio One Artist

aswell as additional plugins, content, and more. It’sour gift

toyou for becoming a PreSonus customer.Please review your

Quantum2626 User Manual available at www.PreSonus.com for

moreinformation on proper operation and installation.

ÖﬀnenSie die Webseite My.PreSonus.

comund registrieren Sie Ihre

Seriennummer.

Quantum2626 bietet eine Vielzahl professioneller Funktionen

wieClass-A XMAX Mikrofonvorverstärker mit großer

Aussteuerungsreserve,hochauﬂösende D/A-Wandler mit 24

Bit/192kHz, Thunderbolt 3 Hochgeschwindigkeitsschnittstelle

u.v.m.Nachdem Sie Ihr Quantum 2626 registriert haben, können

SieIhr kostenloses Studio One Artist sowie zusätzliche Plug-Ins,

Inhalteetc. herunterladen. Dies ist unser Willkommensgeschenk

fürSie als PreSonus Kunden. WeitereInformationen zur

korrektenEinrichtung und Verwendung ﬁnden Sie in der

Quantum2626 Bedienungsanleitung, unter

www.presonus.com.

Quantum2626 具备专业功能，如高净空、A 级 XMAX 麦克风前置放

大器；高清 24 位，192khz 转换；高速 Thunderbolt 3 及以上。注册了

Quantum2626 后，您就可以下载StudioOneArtist 的免费副本以及其

他插件、内容等。这是我们送给 PreSonus 新客户的礼物。有关正确操

作和安装的更多信息，请查询 www.PreSonus.com 上的 Quantum 2626

用户手册。

Allezsur my.presonus.com et

enregistrezvotre numéro de série.

LaQuantum 2626 oﬀre des fonctionnalités professionnelles,

tellesque des préampliﬁcateurs de microphone de classe A

àgrande marge XMAX, une conversion haute déﬁnition en

24bits, 192 kHz, la haute vitesse du Thunderbolt 3 et plus

encore.Après avoir enregistré votreQuantum 2626, vous

pourreztélécharger gratuitement Studio One Artist ainsi,

entreautres, que des plugins et du contenu supplémentaires.

C’estnotre cadeau pour vous remercierd’être maintenant un

clientPreSonus. Veuillezconsulter le mode d’emploi de votre

Quantum2626, disponible sur www.PreSonus.com pour plus

d’informationssur son installation et son utilisation.

Navegueonline a my.presonus.com y

registresu número de serie.

LaQuantum 2626 viene cargada de características

profesionales,como un techo dinámico alto, previosde micro

XMAXClase A; conversión en alta deﬁnición a 24-bit y 192

kHz;Thunderbolt 3 de alta velocidad y más. Una vez que haya

registradosu Quantum 2626, podrá descargar su copia gratuita

deStudio One Artist así como plug-ins adicionales, contenido y

más.Es nuestro regalo para usted, por ser cliente de PreSonus.

Porfavor,consulte su Manual del Usuario del Quantum 2626

disponibleen www.PreSonus.com para más información sobre

elcorrecto manejo e instalación.

Quantum 2626

24-bit, 192 kHz Thunderbolt™3 Audio Interface

Getting Started • Erste Schritte • Cómoempezar • Pour commencer • 开始

Part#71-12000131-A

18011GrandBay Ct. • Baton Rouge,

Louisiana70809USA• 1-225-216-7887

www.presonus.com

2 Hookup

2.1 Front Panel Connections and Controls StudioLive™ Software

Library Reference Manual

2Hookup

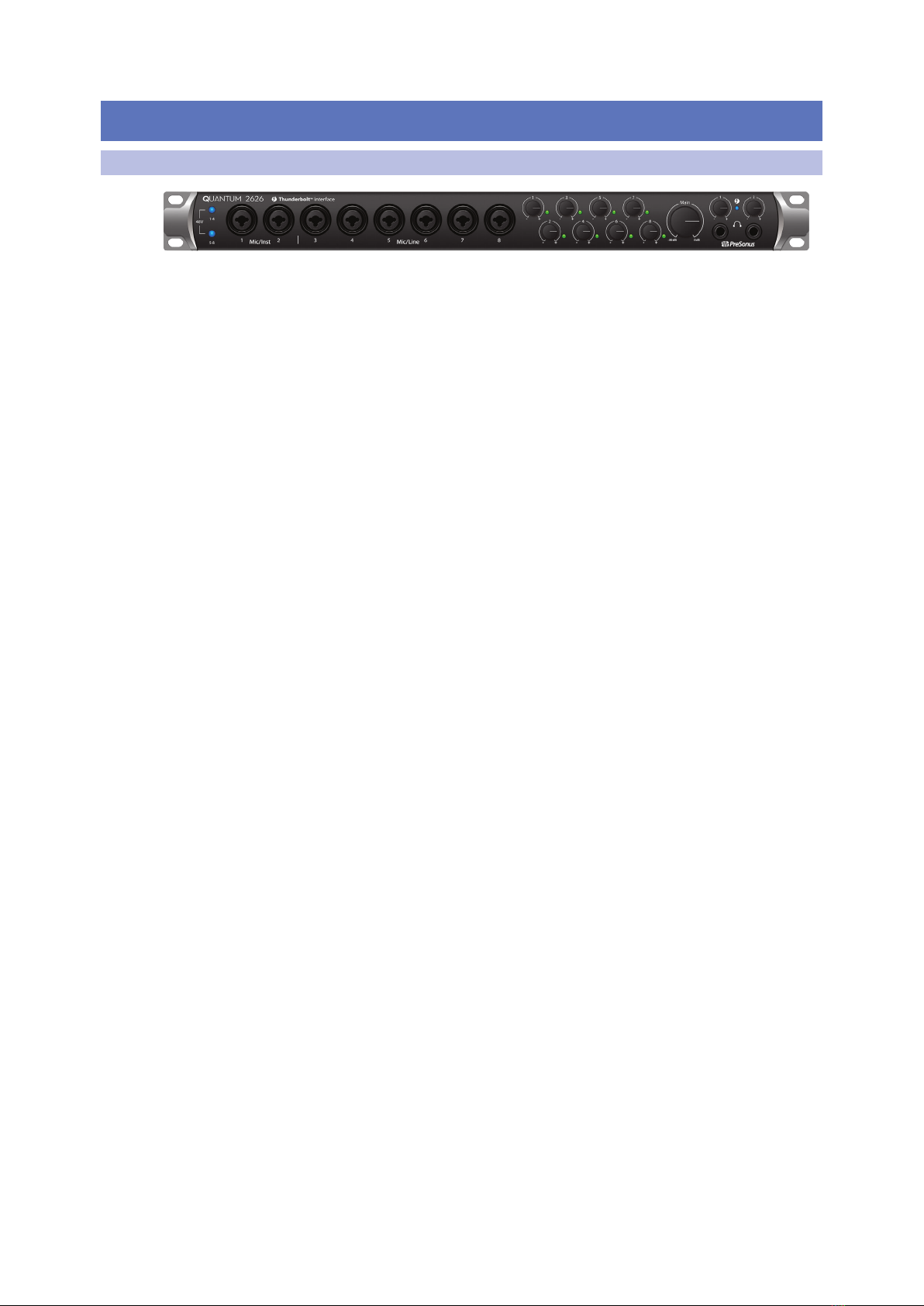

2.1 Front Panel Connections and Controls

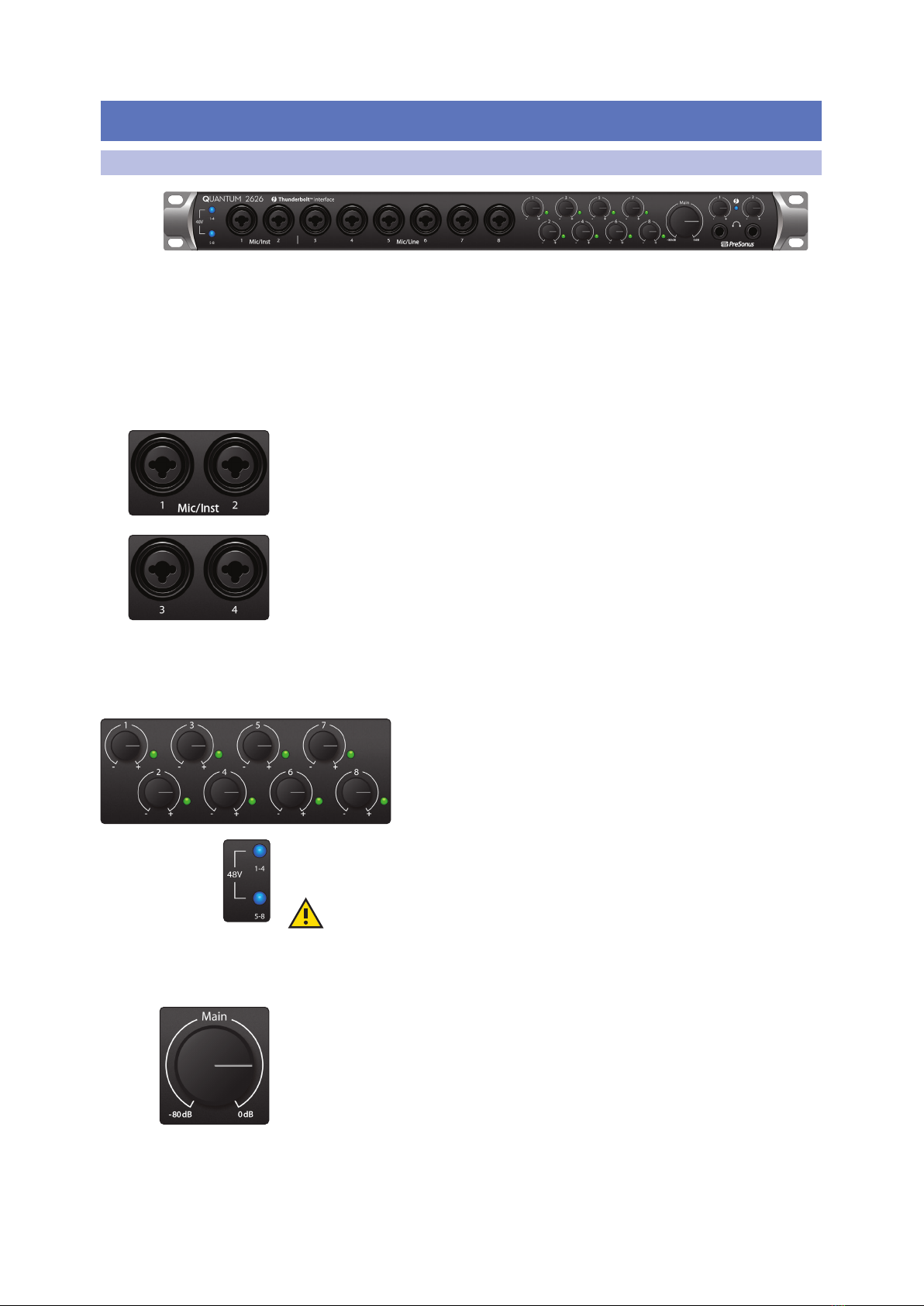

About XMAX Preamps and Combo Jacks. Your Quantum 2626 interface is

equipped with 8 PreSonus XMAX microphone preampliﬁers for use with all types

of microphones. The XMAX design provides a Class A input buﬀer, followed by a

dual-servo gain stage. This arrangement results in ultra-low noise and wide gain

control, allowing you to boost signals without increasing noise. The Quantum

2626 provides two Mic/Inst inputs and six Mic/Line inputs on the front panel.

Each analog input on the Quantum 2626 interface features a combo jack. This

convenient connector accepts either a ¼-inch phone plug or an XLR plug.

Microphone/Instrument inputs. The ¼-inch TS connectors on Channels 1

and 2 are for use with instruments (guitar, bass, etc.). When an instrument

is plugged into the instrument input, the mic preamp is bypassed,

and the signal is routed to the instrument preampliﬁer stage.

Microphone/Line inputs. The ¼-inch TRS connectors on Channels 3 through

8 are for use with line-level sources (synths, keyboards, eﬀects processors,

etc.). When a devilce is plugged into the Line input, the mic preamp is

bypassed, and the signal is routed to the instrument preampliﬁer stage.

Please note: As with any audio input device, plugging in a microphone or an instrument,

or turning phantom power on or oﬀ will create a momentary spike in the audio output of

your Quantum 2626 interface. Because of this, we highly recommend that you turn down

the channel trim before changing connections or turning phantom power on or oﬀ. This

simple step will add years to life of your audio equipment.

Preamp Gain: Use this control to adjust the level of the

microphone preamps for each Channel.

•48V: The Quantum 2626 interfaces provide 48V phantom power

in two banks of four microphone preamps. When 48V is active, the

blue LED at the top of that channel’s meters will illuminate.

Warning: Phantom power is only required for condenser microphones and

can severely damage unbalanced dynamic mics, especially ribbon mics.

Therefore, switch phantom power oﬀ for all channels where it is not required.

XLR connector wiring for phantom power:

Pin 1 = GND Pin 2 = +48V Pin 3 = +48V

Main. The Main knob can control any or all of the outputs on the rear panel of your

Quantum 2626 and has a range of -80 dB to 0 dB. In addition to level control, the

main outputs have the following controls:

2 Hookup

2.2 Back Panel Connections StudioLive™ Software

Library Reference Manual

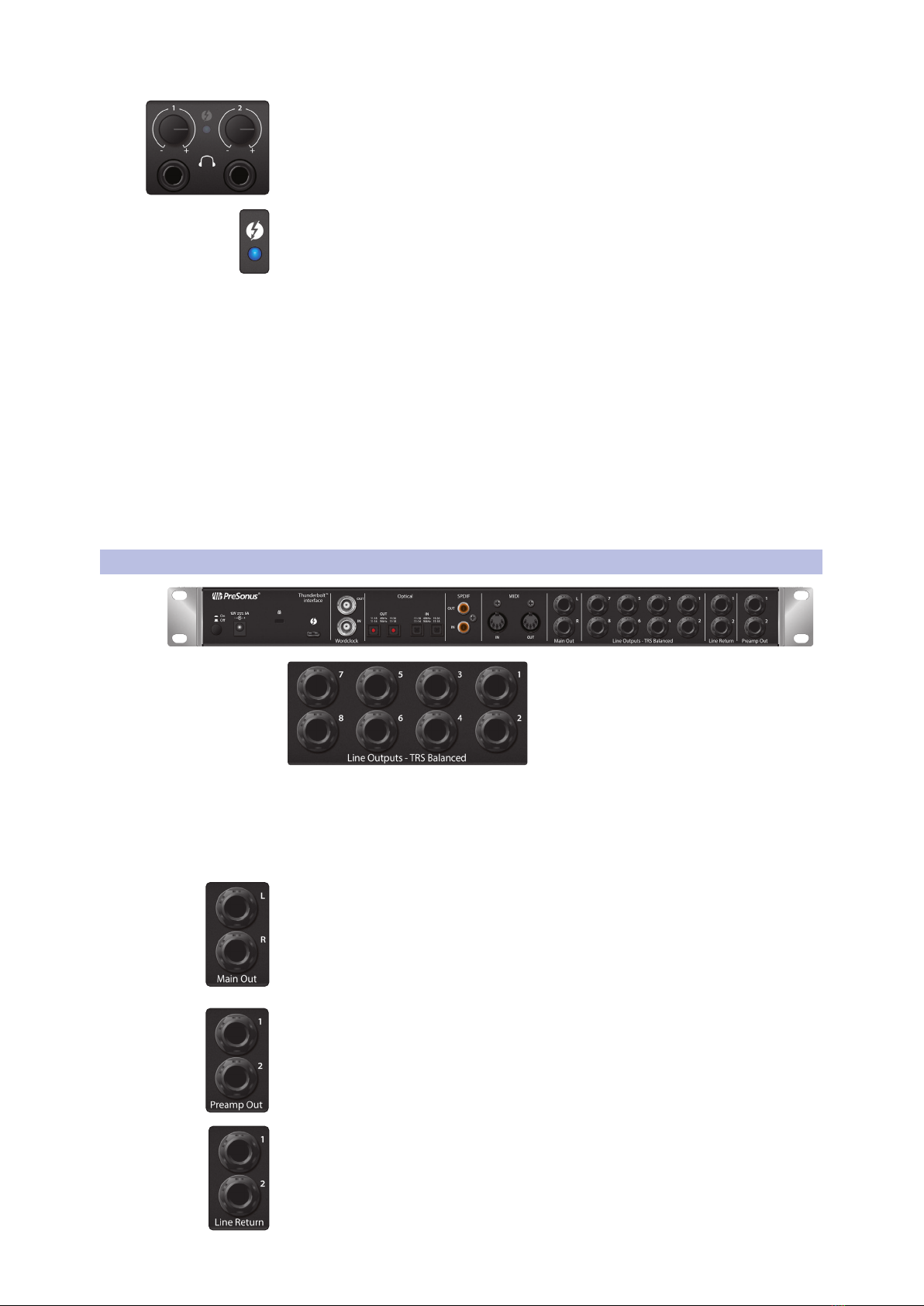

Headphones. Your Quantum 2626 interface provides two

headphone outputs, each with its own level control. Both

headphone outputs share a stream with the Main Outputs.

Sync light. This light is the clock source / sync indicator. It lets

you know if you unit is receiving word clock correctly.

•Blue. When this light is blue, your Quantum 2626 is correctly

synced via Thunderbolt, word clock, ADAT, or S/PDIF

•Flashing red and blue. Quantum 2626 is in the process

of trying to sync to a received clock signal.

•Red. Quantum 2626 is either not synced to your computer

or its external clock source is not present.

•Flashing purple. The identify button is active in UC Surface.

Power User Tip: Word clock is the timing signal with which digital devices sync frame

rates. Proper word clock sync prevents digital devices from having pops, clicks, and

distortion in the audio signal due to mismatched digital audio transmission. In

general, you will use your Quantum 2626 interface as the master clock in your studio;

it provides high-quality word clock for this purpose. However, if you would like to use

another device as the master clock, you can set the input source for clocking in UC

Surface. See Section 4.1 for details.

2.2 Back Panel Connections

Line Outputs. Quantum 2626 interfaces have 8 TRS Balanced Line Outputs

to route to external devices, such as headphone amps, signal processors,

and additional monitors. Each output has an independent playback stream.

Every line output is DC coupled to provide control voltage to external analog

equipment. This feature can be used with any plug-in that supports it.

Main Outs. These are the main outputs for Quantum 2626. The output level of

the Main Outputs is controlled by the Main level control on the front of the unit.

Like the eight line outputs, the main outputs are sourced from playback streams

1 and 2. Both Main Outputs are DC coupled to provide control voltage to external

analog equipment. This feature can be used with any plug-in that supports it.

Preamp Outs and Line Returns. These line-level connections for channels 1 and

2 allow you to insert outboard hardware like compressors and EQs into the signal

chain.

Line Returns are normalled to the channel 1 and 2 preamp outputs, so they take

precedence over the corresponding Mic/Inst input on the front of the Quantum 2626.

Power user tip: the Line Returns can also be used to input line-level devices that have

their own volume control; synths, channel strips, preamps, etc.

2 Hookup

2.2 Back Panel Connections StudioLive™ Software

Library Reference Manual

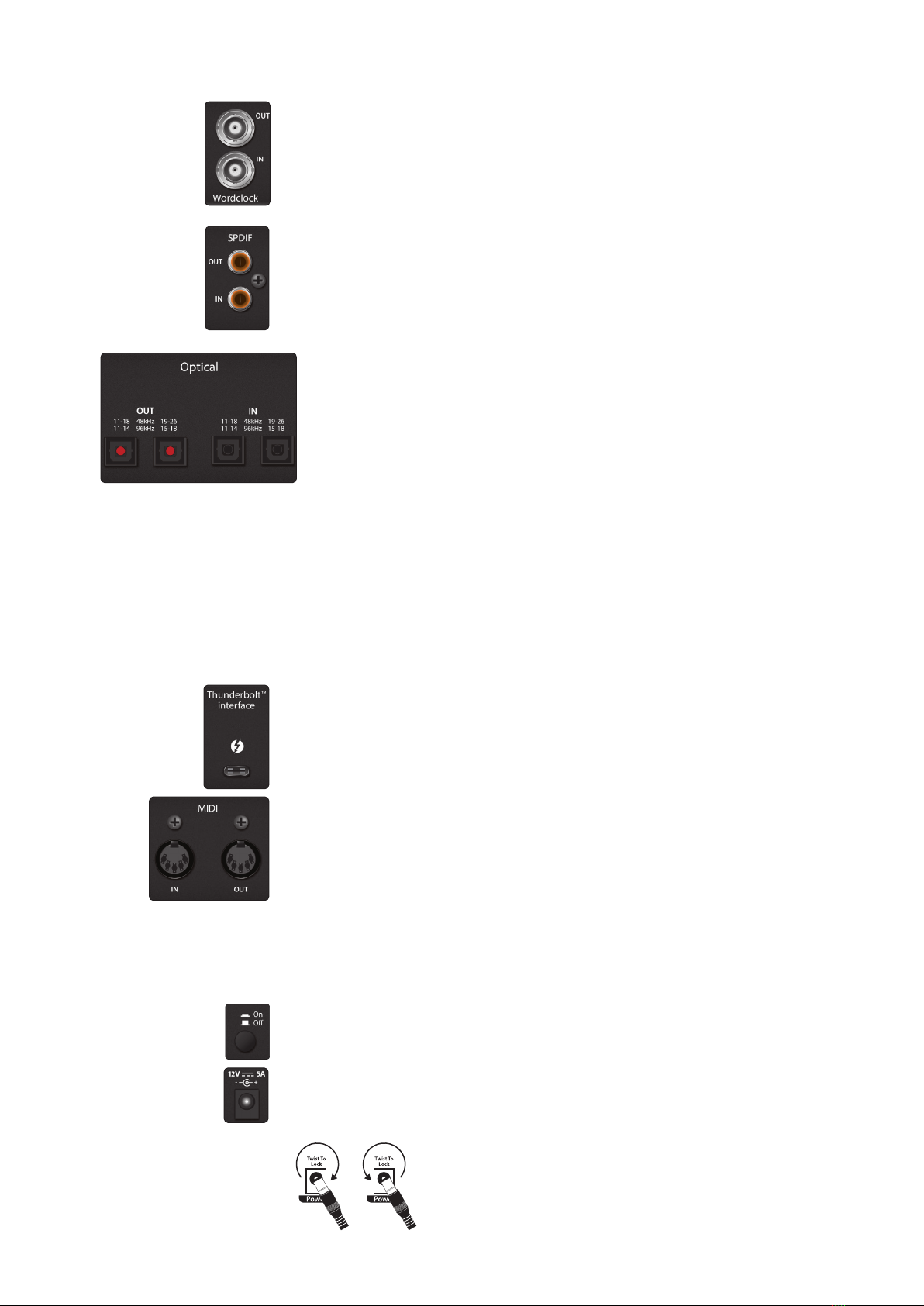

Word Clock In and Out. These BNC connections allow Quantum 2626 to

receive and transmit word clock to and from other digital audio devices.

Power User Tip: In UC Surface, when using the BNC Clock input, you will need to set “BNC”

as the Clock Source and set the sample rate to correspond to that of the external device.

See Section 4.1 for details. A 75Ω BNC word clock cable is required to achieve proper sync.

S/PDIF In and Out. The S/PDIF connections allow two channels of audio to be

transmitted and received at rates up to 24-bit, 96 kHz. The S/PDIF I/O also allows all

Quantum 2626 interfaces to send and receive word clock to external digital devices.

Power User Tip: In UC Surface, you will need to set “S/PDIF” as the Clock Source and the

sample rate to correspond to the external device when using an external S/PDIF device as

your master clock. See Section 4.1 for details.

ADAT – S/MUX In and Out. These are the ADAT – Dual S/MUX connections

for your external digital devices. When recording or playing back at 44.1

or 48 kHz, each ADAT I/O will provide 8 of the 16 available channels

consecutively, from left to right. When recording or playing back at 88.2 or

96 kHz, each connection will provide four of the available eight channels.

These inputs and outputs do not function at 176.4 or 192 kHz:

ADAT 1 Input ADAT 2 Input ADAT 1 Output ADAT 2 Output

44.1 / 48 kHz Channels 11-18 / 7-14 Channels 19-26 / 15-22 Channels 17-24 / 9-16 Channels 25-32 / 17-24

88.2 / 96 kHz Channels 11-14 / 7-10 Channels 15-18 / 11-14 Channels 17-20 / 9-12 Channels 21-24 / 13-16

When connecting a DigiMax DP88 to your Quantum interface, the ADAT

connections will also send and receive preamp control information for the DigiMax

DP88, so that it can be controlled directly from UC Surface or Studio One.

Power User Tip: In UC Surface, you will need to set “ADAT 1” as the Clock Source and the

sample rate to correspond to the external device when using an external ADAT device as

your master clock. See Section 4.1 for details. The ADAT 2 input cannot be used to receive

word clock.

Thunderbolt port. Use this port to connect your Quantum 2626 interface to

your computer.

Note: If your computer has Thunderbolt 2 ports, you’ll need a bi-directional Thunderbolt

3 to Thunderbolt 2 adapter.

MIDI I/O. These are the MIDI input and output connections. MIDI stands for

“Musical Instrument Digital Interface.”However, MIDI can be used for many things

other than instruments and sequencing. The MIDI inputs and outputs allow

connection to a variety of MIDI-equipped hardware, such as keyboard controllers,

and can be used to send and receive MIDI Machine Control and MIDI Time Code.

Note: MIDI does not carry audio signals but is frequently used to trigger or control an

audio source, such as a virtual instrument or hardware synthesizer. You should ensure

that MIDI data is correctly sent and received by the appropriate hardware or software.

You may also need to route hardware sound sources’ audio to the inputs of your

Quantum 2626 interface. Please consult the User’s Manual of your MIDI devices for

help with MIDI setup and usage.

Power Button. This turns your Quantum 2626 on and oﬀ.

Power Connection. This is where you connect the Quantum 2626 interface’s

external power supply. Your Quantum interface is equipped with a twist-lock power

connection, keep this in mind when connecting disconnecting it from your interface.

Lock Unlock

2 Hookup

2.3 Quantum Hookup Diagram StudioLive™ Software

Library Reference Manual

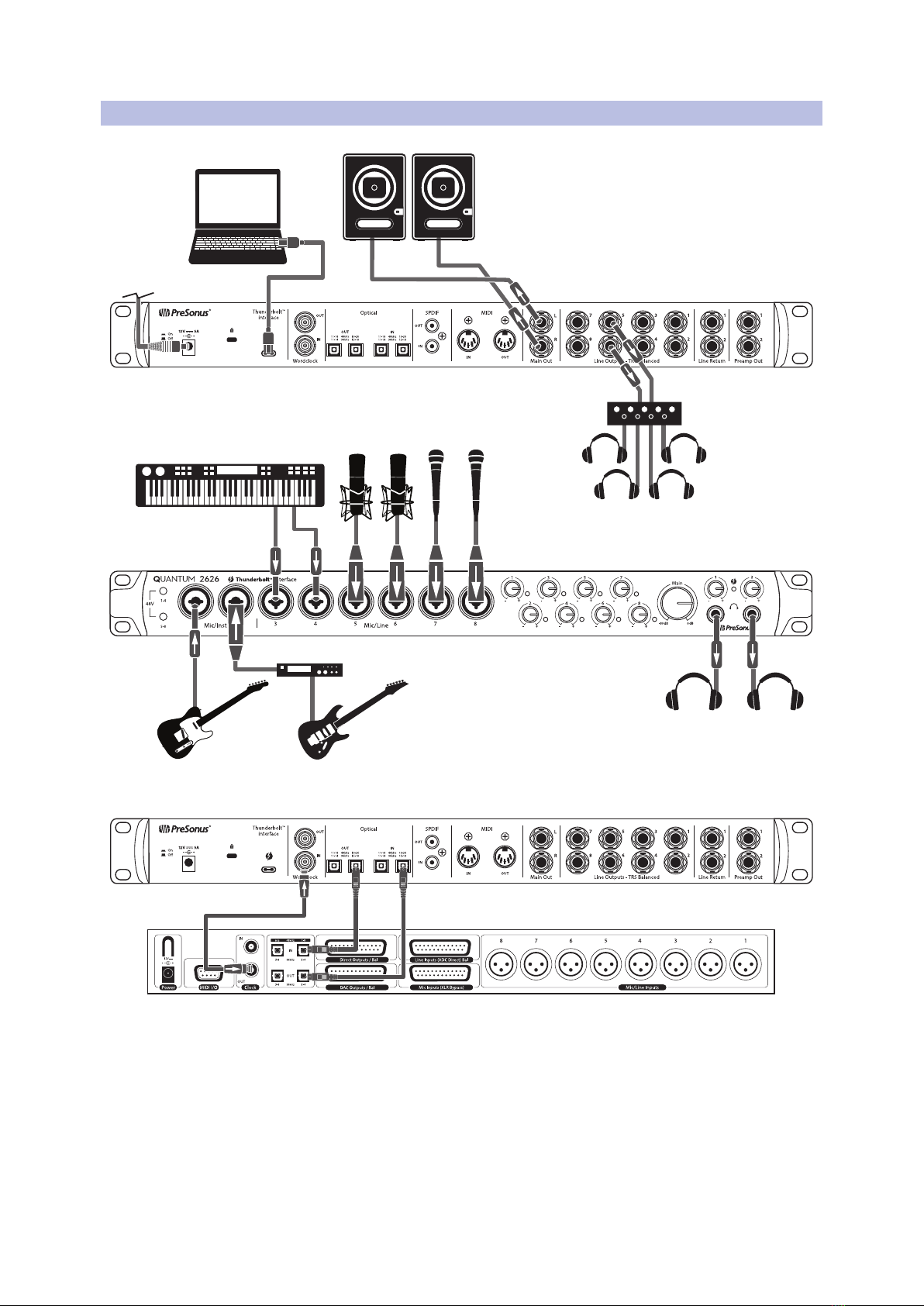

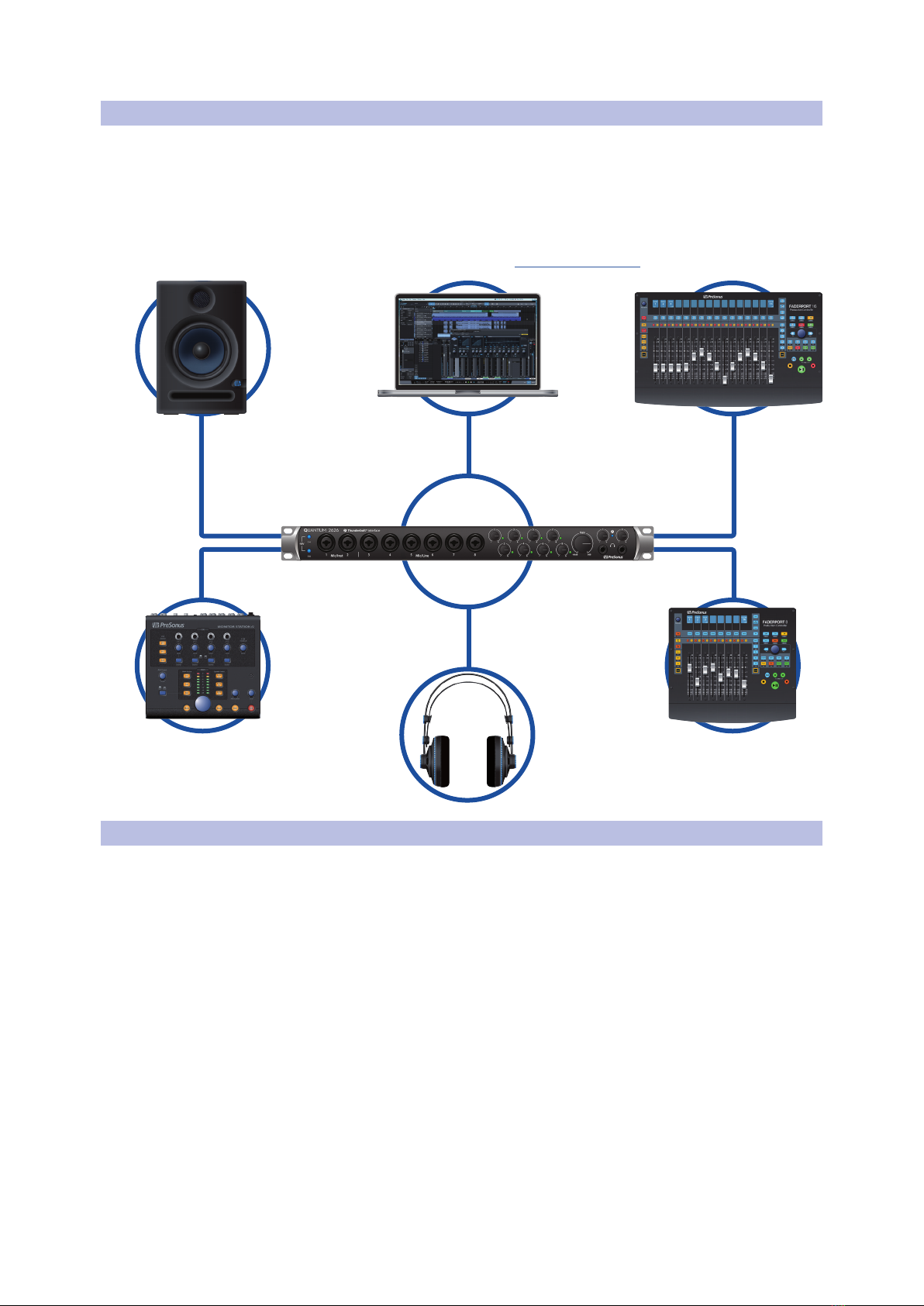

2.3 Quantum Hookup Diagram

DigiMax-series preamps

or other compatible hardware

See www.presonus.com for

the latest system

requirements.

3 Connecting to a Computer

3.1 Installation for Windows and macOS StudioLive™ Software

Library Reference Manual

3Connecting to a Computer

Your Quantum 2626 interface is loaded with professional audio tools and ﬂexible

monitoring controls. Before connecting to a computer, please visit www.presonus.

com/products/Quantum/techspecs to verify the latest system requirements.

Note: The speed of your processor, amount of RAM, and capacity, size, and speed of your

hard drives will greatly aﬀect the overall performance of your recording system. A faster

processor and more RAM can reduce signal latency (delay) and improve overall

performance.

The Universal Control installer for macOS and Windows is available for download

from your My PreSonus user account. This bundled installer includes Universal

Control, UC Surface, and the audio driver for your Quantum 2626. To begin, you

must ﬁrst visit http://my.presonus.com, create or log into your user account,

and register your Quantum 2626 interface. Once registered, all software

downloads will be available from within your My PreSonus user account.

3.1 Installation for Windows and macOS

Connect your Quantum 2626 interface to an available Thunderbolt port and

launch the Universal Control installer. The installer will take you through each

step of the installation process. This application will install the macOS or

Windows drivers as well as UC Surface. Please read each message carefully.

It is recommended that you quit all applications before you start the installation.

The Universal Control installer will take you through

each step of the installation process.

3.2 Using a Quantum 2626 Interface with Popular Audio Applications

Complete setup instructions for Studio One Artist and a brief tutorial on its

features can be found in Section 6 of this manual. However, you can use your

Quantum 2626 interface with any audio-recording application that supports

Core Audio or ASIO. Please consult the documentation that came with your

audio application for speciﬁc instructions on how to select the Quantum

2626 interface driver as the audio-device driver for your software.

Below are basic driver-setup instructions for a few popular audio applications.

Ableton Live

1. Launch Ableton Live.

2. Go to Options | Preferences | Audio.

3. Choose Driver Type: ASIO | Audio Device: ASIO PreSonus Quantum 2626

Go to Input Conﬁg: Enable and select the desired Input channels.

4. Go to Output Conﬁg: Enable and select the desired Output channels.

Apple Logic

1. Launch Logic.

2. Go to Logic | Preferences | Audio.

3. Click on the Devices Tab.

4. On the Core Audio tab, check Enabled.

5. Select PreSonus Quantum 2626 from the device menu.

6. You will be asked if you’d like to relaunch Logic. Click try (re)launch.

Inhaltsverzeichnis

Andere PRESONUS Aufnahmegeräte Handbücher

PRESONUS

PRESONUS AudioBox Stereo Bedienungsanleitung

PRESONUS

PRESONUS Firestudio Project Bedienungsanleitung

PRESONUS

PRESONUS FIREBOX Bedienungsanleitung

PRESONUS

PRESONUS AudioBox Stereo Bedienungsanleitung

PRESONUS

PRESONUS Studio 24c Bedienungsanleitung

PRESONUS

PRESONUS FIREPODOD Bedienungsanleitung

PRESONUS

PRESONUS BLUEMAX - Bedienungsanleitung

PRESONUS

PRESONUS Recording Interface w/ Eight Microphone Preamplifiers Version... Bedienungsanleitung

PRESONUS

PRESONUS FIRESTUDIO - V 3.0 Bedienungsanleitung

PRESONUS

PRESONUS DEQ 624 Bedienungsanleitung

PRESONUS

PRESONUS Revelator io24 Bedienungsanleitung

PRESONUS

PRESONUS Revelator io44 Bedienungsanleitung

PRESONUS

PRESONUS FIREPOD Bedienungsanleitung

PRESONUS

PRESONUS FIRESTUDIO LIGHTPIPE - V2.0 Bedienungsanleitung

PRESONUS

PRESONUS FIRESTUDIO MOBILE - SCHEMA Bedienungsanleitung

PRESONUS

PRESONUS AudioBox 22VSL Bedienungsanleitung

PRESONUS

PRESONUS ACP-22 Bedienungsanleitung

PRESONUS

PRESONUS INSPIRE 1394 Bedienungsanleitung

PRESONUS

PRESONUS AudioBox GO Bedienungsanleitung

PRESONUS

PRESONUS Revelator io24 Bedienungsanleitung

PRESONUS

PRESONUS FIRESTUDIO 26X26 - SCHEMA Bedienungsanleitung

PRESONUS

PRESONUS AudioBox Stereo Bedienungsanleitung

PRESONUS

PRESONUS FIRESTATION Bedienungsanleitung

PRESONUS

PRESONUS FIREPOD Betriebsanleitung

Beliebte Aufnahmegeräte Handbücher anderer Marken

KV2 Audio

KV2 Audio 500 Series Bedienungsanleitung

Robotics Technologies

Robotics Technologies microBus-Cam II Bedienungsanleitung

Seca

Seca 460 Bedienungsanleitung

Cognex

Cognex MVS-8000 Series Bedienungsanleitung

Mect

Mect MPNC006 Series Bedienungsanleitung

Bad Caf

Bad Caf THE LEASH Bedienungsanleitung

Strymon

Strymon NIGHTSKY Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric 16CH DIGITAL RECORDER DX-TL5000U Bedienungsanleitung

Tews Technologies

Tews Technologies TPMC465 Bedienungsanleitung

Honeywell

Honeywell Excel 50 Bedienungsanleitung

SeaLevel

SeaLevel COMM+8.LPCI Bedienungsanleitung

Arturia

Arturia AUDIOFUSE STUDIO Bedienungsanleitung

Rukra

Rukra RK-1240 Bedienungsanleitung

Samson

Samson SCOM Bedienungsanleitung

Dynacord

Dynacord DPS260 Bedienungsanleitung

Nice

Nice Core Bedienungsanleitung

Pyle Pro

Pyle Pro PSS8 Bedienungsanleitung

RF-System

RF-System TinyGate Gebrauchs- und Pflegehandbuch
