Prestigio VISCONTE 121 Betriebsanleitung

PRESTIGIO VISCONTE 121

TECHNICAL SERVICE

MANUAL

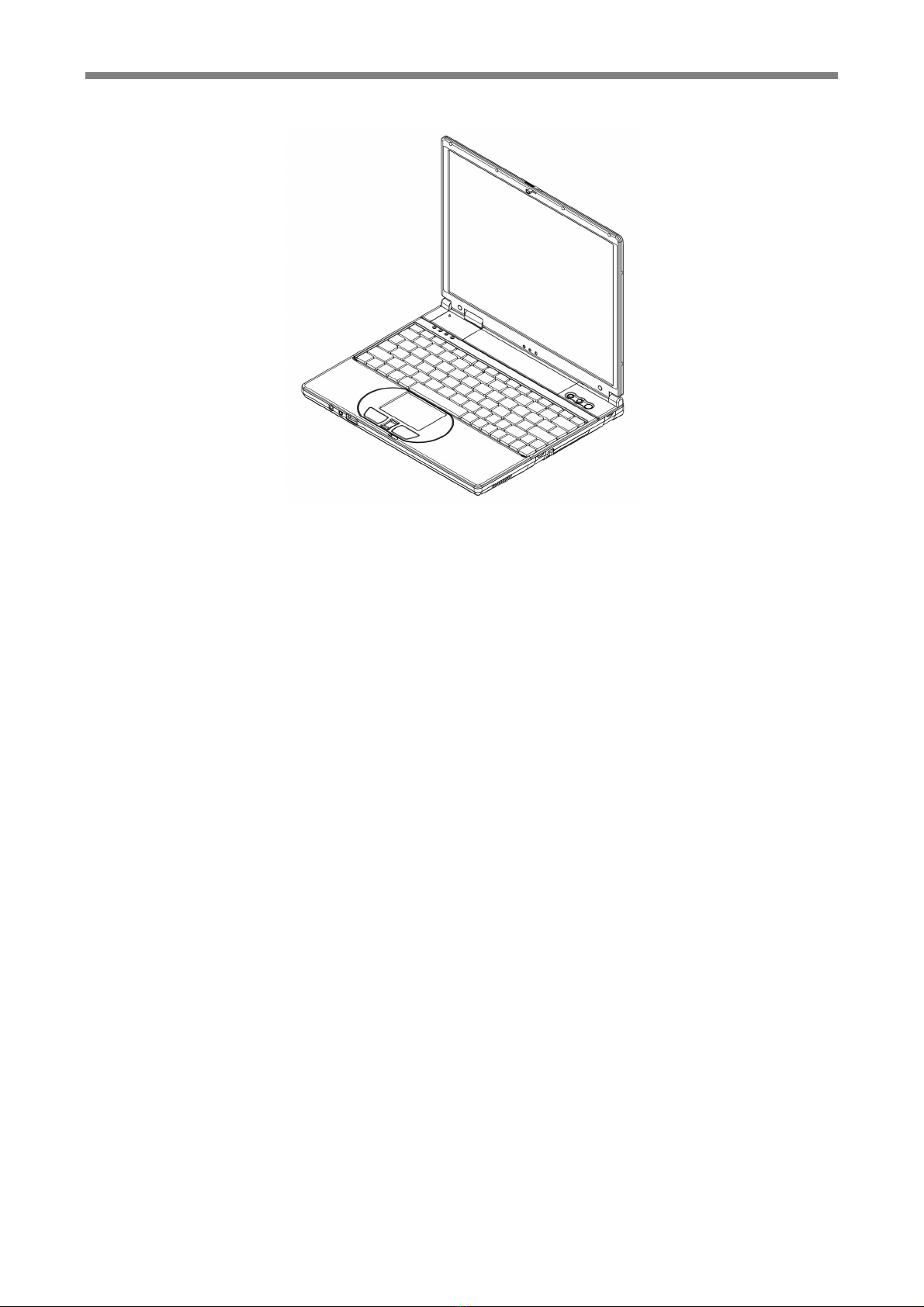

Prestigio Visconte 121 Technical Service Manual

Prestigio Visconte 121

Notebook

Service Technical

Manual

Prestigio Visconte 121 Technical Service Manual

This page is left blank intentionally.

Prestigio Visconte 121 Technical Service Manual

I-I

Chapter 1 Introduction ______________________________________________________ 1-1

1.1 Overview Of This Manual__________________________________________________________ 1-1

1.2 System Overview ________________________________________________________________ 1-1

1.3 Other References____________________________________________ 1-Error! Bookmark not defined.

Chapter 2 The BIOS Setup ___________________________________________________ 2-1

2.1 Configuration Software ____________________________________________________________ 2-1

2.2 Running the Setup Utility __________________________________________________________ 2-2

2.3 Main Setup _____________________________________________________________________ 2-3

2.4 Advanced Setup _________________________________________________________________ 2-5

2.5 Security Setup___________________________________________________________________ 2-7

2.6 Boot Setup _____________________________________________________________________ 2-8

2.7 Exit Setup______________________________________________________________________ 2-9

Chapter 3 System Utilities____________________________________________________ 3-1

3.1 The BIOS Flash Utility ____________________________________________________________ 3-1

3.2 The KBC (H8) Flash Utility ________________________________________________________ 3-1

Chapter 4 Upgrading Memory ________________________________________________ 4-1

Chapter 5 Removing Mini-PCI Module __________________________________________ 5-1

Chapter 6 Preliminary Dis-Assembly ___________________________________________ 6-1

Chapter 7 Removing The HDD Drive ___________________________________________ 7-1

Chapter 8 Removing The Motherboard __________________________________________ 8-1

Chapter 9 Removing The Palmrest _____________________________________________ 9-1

Chapter 10 Removing The Modem Module _______________________________________ 10-1

Chapter 11 Removing The Heatsink ____________________________________________ 11-1

Chapter 12 Removing The LCD Display _________________________________________ 12-1

Chapter 13 Fuse Rating Table ________________________________________________ 13-1

CONTENTS

Prestigio Visconte 121 Technical Service Manual

I-II

This page is left blank intentionally.

Prestigio Visconte 121 Technical Service Manual

1-1

Chapter 1 Introduction

1.1 Overview Of This Manual

This Service Manual is written for engineers and technicians and is meant to help them to

service and repair the notebook. Detail descriptions on major parts and components will

not be discussed in this manual. This manual is mainly written with Office 2000 Word

software. Should you find any error or spelling mistake that we have inadvertently missed,

we apologize for such negligence; but please let us know.

1.2 System Overview



VIA C3 Ezra-T EBGA 800MHz/933MHz/1GHz processor with 128KB (L1)/64KB

(L2) cache memory.



Core Logic: VIA chipset composing of VT8606-T Twister (NorthBridge) and

VIA VT82C686B (SouthBridge).



One SDRAM S.O. DIMM memory socket is upgradeable from the basic 128MB/256MB

to 640MB/768MB memory.



512KB Flash ROM contains BIOS and is easily user upgradeable.

System Display



UMA Module with embedded high performance 8MB/16MB/32MB video memory.



Display Panel: TFT 12.1” XGA.

System Storage



Industry standard 20GB/40GB 9.5mm hard disk drive.



Optional external USB industry standard 3.5inch 1.44MB floppy disk drive.



Optional external USB CD-ROM Drive, or

DVD-ROM drive, or

Combo Drive.

Prestigio Visconte 121 Technical Service Manual

1-2

System Keyboard



83 full keys, including 2 Windows keys, and embedded numerical keypad.

Connectivity and Expansion



One 15-pin VGA port.



One microphone-in connector.



One headphone-out.



One RJ11 Fax/Modem connector.



Two 4-pin USB ports.



One DC-in Jack.



One RJ45 LAN connector.



One type II CF card connection.



One IEEE1394 port.



One type II slot for PCMCIA connection.

Power



Two battery slots to support dual Lithium Ion (Li-Ion) battery packs.



Offline battery charging time is around 2.5 hours for Li-Ion battery pack.



Full range 110 to 240V auto-switch AC adapter; 100Vac input voltage on load power

consumption < or = 1W.

Physical

Weight (TFT color, 12.1”) : 1.33kg, including one battery pack.

Length/Width/Height : 265mm/220mm/23mm.

Note: Weight and height might change due to different configurations and models.

Environment

Operating Temperature : 10°C to 35°C.

Non-Operating Temperature : -20°C to 60°C.

Humidity : 20% to 80% non-condensing.

Shock : 5G operating, 60G non-operating.

Vibration : 3-200Hz @ 1.0G operating.

: 3-200Hz @ 1.5G non-operating.

Warning: Don't expose your notebook to excessive heat or coldness (frost). Don't

drop, spill fluids or open the exterior of the case. This can damage the

notebook and void the warranty.

Prestigio Visconte 121 Technical Service Manual

1-3

POWER MANAGEMENT

Advanced Configuration Power Interface (ACPI) 2.0 for Windows XP®.

OPERATING SYSTEM

Windows® XP.

OPTIONS



Standard SDRAM S.O. DIMM self-fresh 512MB memory module for expansion from

128MB/256MB to 640MB/768MB.



Optional Lithium Ion (Li-Ion) battery pack in slot B.



External CD-ROM Drive, or

DVD-ROM Drive, or

Combo Drive.

Prestigio Visconte 121 Technical Service Manual

1-4

This page is left blank intentionally.

Prestigio Visconte 121 Technical Service Manual

2-1

Chapter 2 The BIOS Setup

2.1 Configuration Software

The notebook can easily be configured to suit your personal needs. The built-in SETUP

program allows you to setup various system parameters. The information is stored in a

battery-backed CMOS memory; so when the power is turned off, your setup is retained.

This Configuration Software is sometimes referred to as CMOS Setup, BIOS Setup, or

simply the SETUP.

Note: The SETUP can be activated by pressing <F2> during system boot-up.

You are requested to perform the following one-time procedure immediately after you have

upgraded/reprogrammed your BIOS:

•Press <F2> during system boot-up to get into the SETUP.

•Go to the EXIT sub-menu and choose Load Setup Defaults. Press Enter.

•Now, you can customize the BIOS for your personal needs.

For detail on the BIOS SETUP, read on.

Note: For information on the BIOS upgrade, contact your local notebook dealer.
