Prestigio P179

3PRESTIGIO P179

ENG

All Information in this manual may change from time to time without prior notice.

Safety Instructions

1.Please read these safety instructions carefully.

2.Please keep this User‘s Manual for later reference.

3.Please disconnect this equipment from connecter before cleaning.Don‘t use liquid or sprayed detergent for cleaning.

Use moisture sheet or cloth for cleaning.

4.Make sure the voltage of the power source when you try to connect the equipment to the power outlet.

5.All cautions and warnings on the equipment should be noted.

6.Never pour any liquid into opening, this could cause fire or electrical shock.

7.Never open the equipment.For safety reason,the equipment should only be opened by qualified service personnel.

8.If one of the following situations arises,get the equipment checked by a service personnel :

a.Liquid has penetrated into the equipment.

b.The equipment has been exposed to moisture.

c.The equipment has not work well or you can not get it work according to user‘s manual.

d.The equipment has dropped and damaged.

e.If the equipment has obvious sign of breakage.

9.DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT UNCONDITIONED,STORAGE TEMPERATURE ABOVE 40°C,IT MAY

DAMAGE THE EQUIPMENT.

10.Adaptor source :

a.Channel Well Technology, MODEL PAA050F.

b.Linearity Electronics co.LTD,MODEL LAD6019AB4

4PRESTIGIO P179

ENG

View of Monitor

Front View (1)

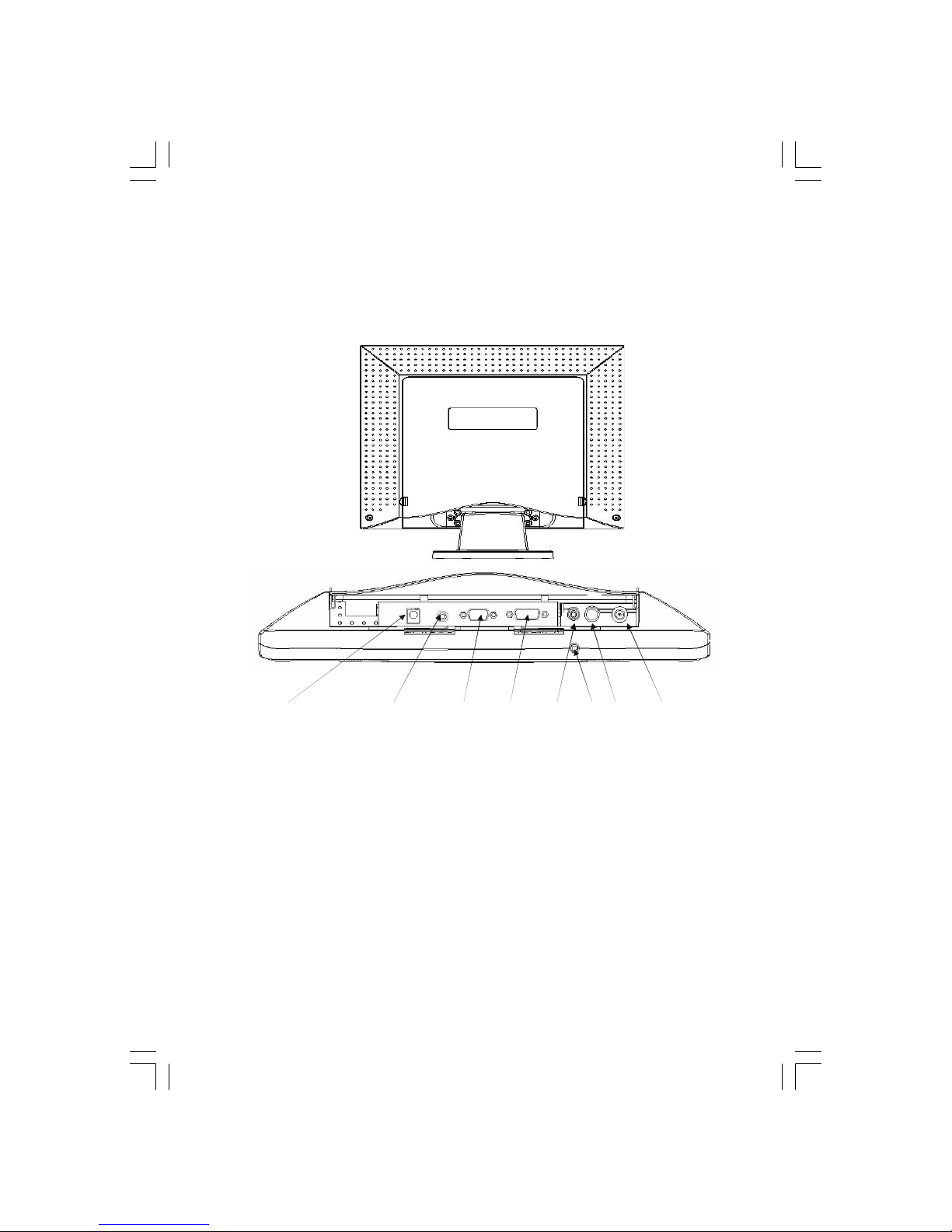

Back View (2)

5PRESTIGIO P179

ENG

View of Monitor

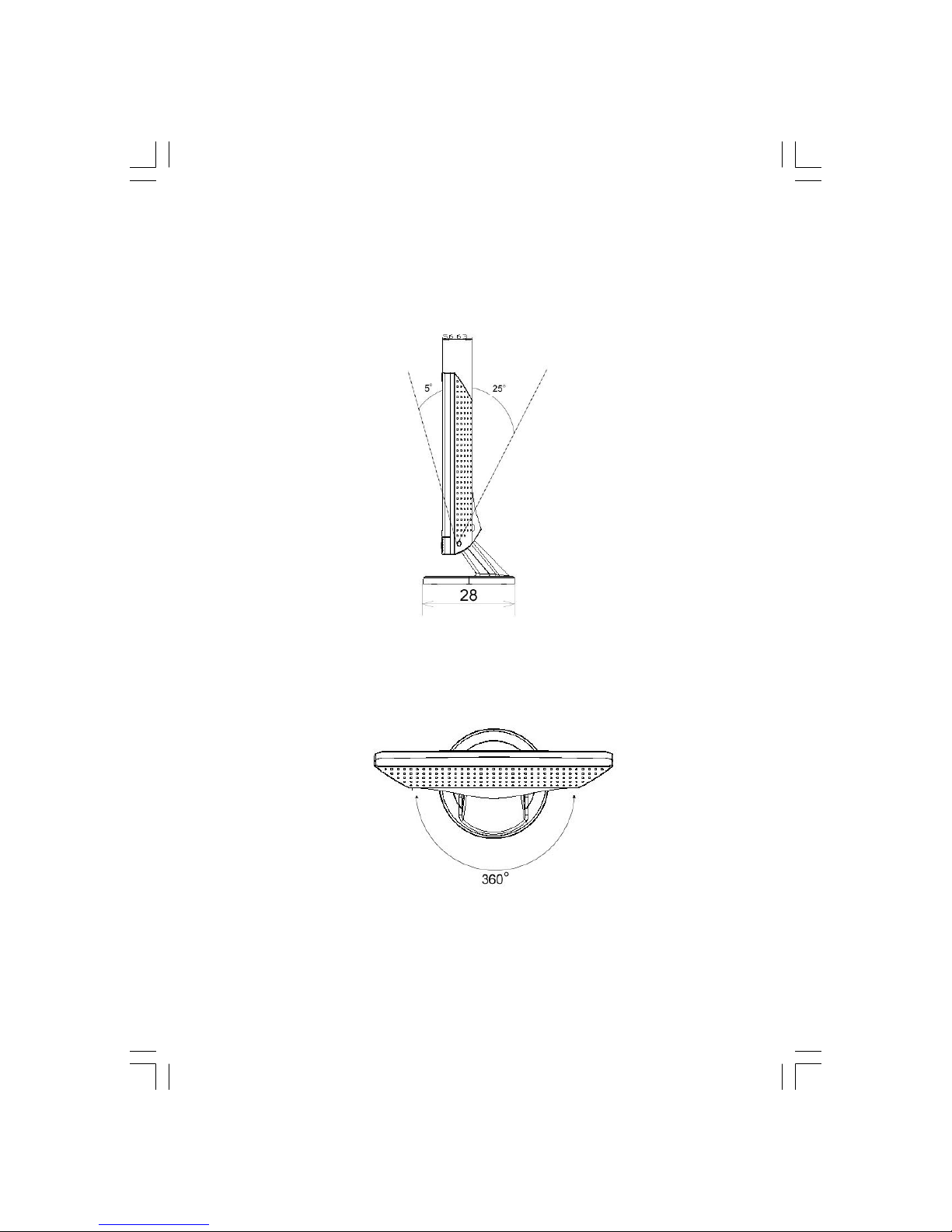

Side View (3)

Top View (4)

6PRESTIGIO P179

ENG

Unpacking

Thank you for your purchase. Please first check the following package content of the 17” LCD monitor. Contact your

dealer or store where you purchased the LCD monitor if anything is missing.

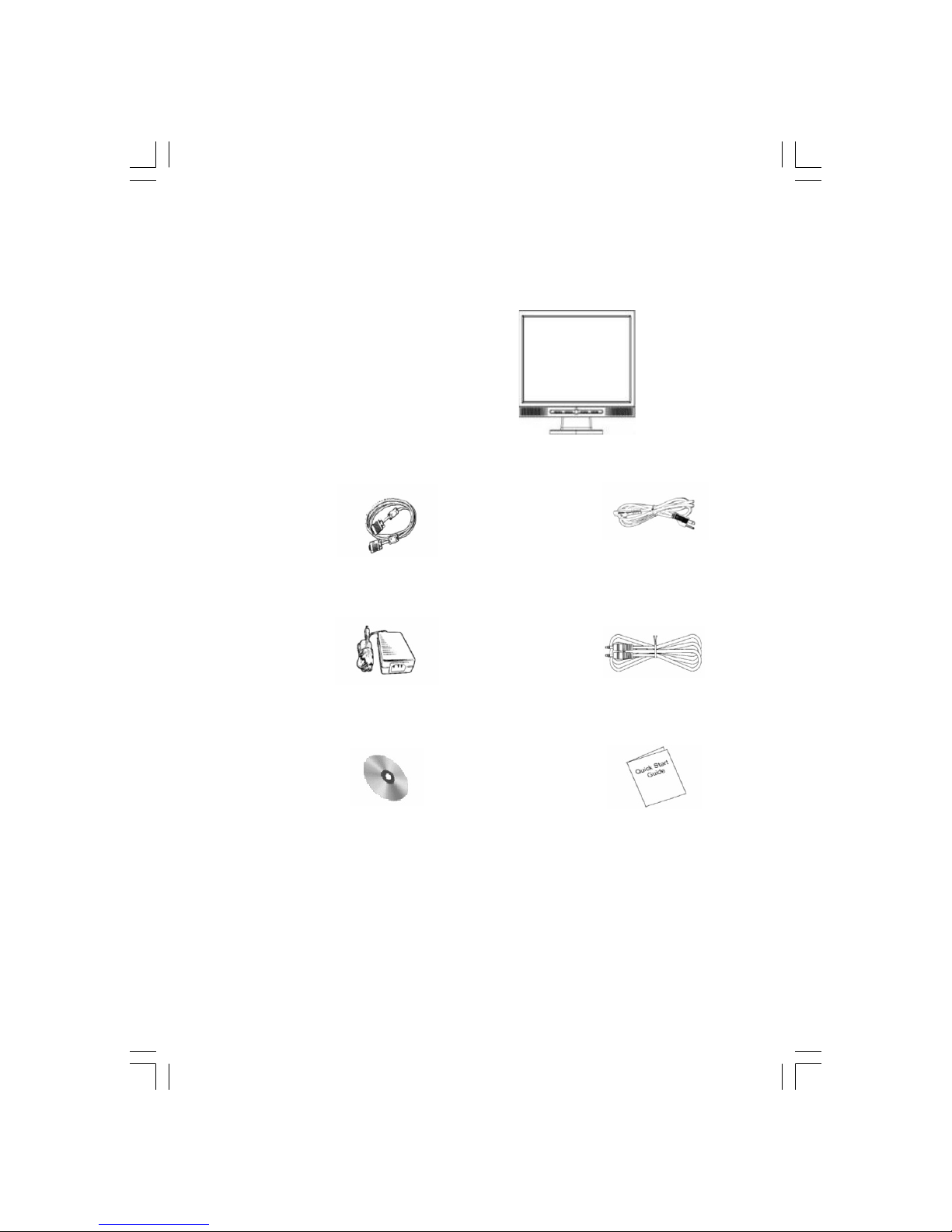

17”TFT LCD Monitor

External Univ15 pin

D-sub (RGB Analog) Power Cord

input signal cable

*DVI.andVideo are optional*

AD / DC Adpter External Audio Cable with

Universal (DC 12V,50 / 60Hz) Stereo Phone Jack

(AC 100-240V)

CD User’s Manual Quick Start Guide

Warning

1.Make sure that the system power is turned off.

2.Plug the signal cable to the signal connector at the rear of PC.

3.Plug adapter output cable to the jack at the rear of LCD monitor and the power cord to the adapter.

4.Connect the power cord to power source.

5.Turn on the computer and the monitor.

6.For the best display quality, we suggest that you set the resolution as shown on page Display Mode.

7PRESTIGIO P179

ENG

Optional TV Tuner

The 17”LCD monitor optionally supports TV tuner function with the following accessories.It can be purchased sepa-

rately.Contact your dealer for detail.

Optional TV Tuner

S-Video Cable Composite Cable

Europ PAL System I to I Dungle U.S.NTSC System PH

to F Dungle

RCA to Phone Jack Cable Remote Control

Remote Control

Use the remote control by point toward the IR sensor window.

Notice:1.The remote may not work properly during the low battery condition.

2.Do not place the remote under direct sunlight or area with high humidity.

If the remote control fails to operation,replace the battery in the remote control.

Notice: Insert battery (Lithium battery) with its terminals corresponding to the <+> and <-> indications in the

battery compartment.

8PRESTIGIO P179

ENG

Cleaning Notes

1.Be gentle to clean the screen.

2.Never use any kind of corrosiveness chemical dissolvent to clean the screen, it may hurt your screen surface.

3.We suggest that a camel hair brush or a soft,lint-free cloth be used to clean the screen.

4.Don’t exert any pressure directly to the LCD screen.

Precaution

1.Do not expose the monitor to direct sunlight or heat.

2.Do not spill liquid on the monitor.

3.Do not attempt to open the monitor.You may be hurt by electric shock.For service,call your place of purchase.

4.Do not use your monitor when magnets or electronic products are operating nearby.

5.Do not use harsh chemicals or strong cleaning solvents to clean the monitor screen.Wipe it with clean,soft clothes

applied with mild solution.

6.Do not place anything on your monitor. Bad ventilation may elevate temperature in the monitor.

7.Don’t use your fingers to touch the LCD screen,directly.Fingerprint contains oil and may be difficult to clean.

Features

Power Saving:

The power management complies with VESA DPMS standard.When the system is idle (Off Mode), the monitor

automatically cut its power consumption to a level less than 5w.

Auto Adjustment Key Function:

With“AUTO” key,you can automatically adjust the display for your best view.

Wide Viewing Angle:

The horizontal 150°and vertical 125° offer you great screen view.

Plug and play compatibility:

With DDC1/DDC2B compliance,the monitor is plug and play compatible toWindows 95/98/me/2000/XP.

Space Saving:

The monitor is designed with 280 mm indepth to provide you with more hand room for desk working space.

Side-by-Side :

The monitor comes with 17.7 mm trimmed down frame to offer side-by-side operation

9PRESTIGIO P179

ENG

Hardware Installation

Be careful to your LCD monitor.It’s very delicate and easy to break.Turn off LCD’s and PC’s power before installation.

Follow the installation step by step described below.

Input

[1] DC-IN :This is for connecting the power cable

[2] AUDIO-IN :This can be connected to the audio-out connector of any sound resource.

[3] VGA-IN :This can be connected with the D-Sub 15 pin signal cable.

[4] VIDEO :This is for (RCA) composite video in from video source .*(option)

[5] S-IN :This can be connected with the S-Video signal cable.* (option)

[6] TV :This can be connected with the TV signal cable.*(option)

[7] Audio Out :This is for connection of headphone or external speaker.

[8] DVI In-Put :Support DVI-D 24pin In-Put signal.*(option)

[1] [2] [3] [8] [4] [7] [5] [6]

[3]

10 PRESTIGIO P179

ENG

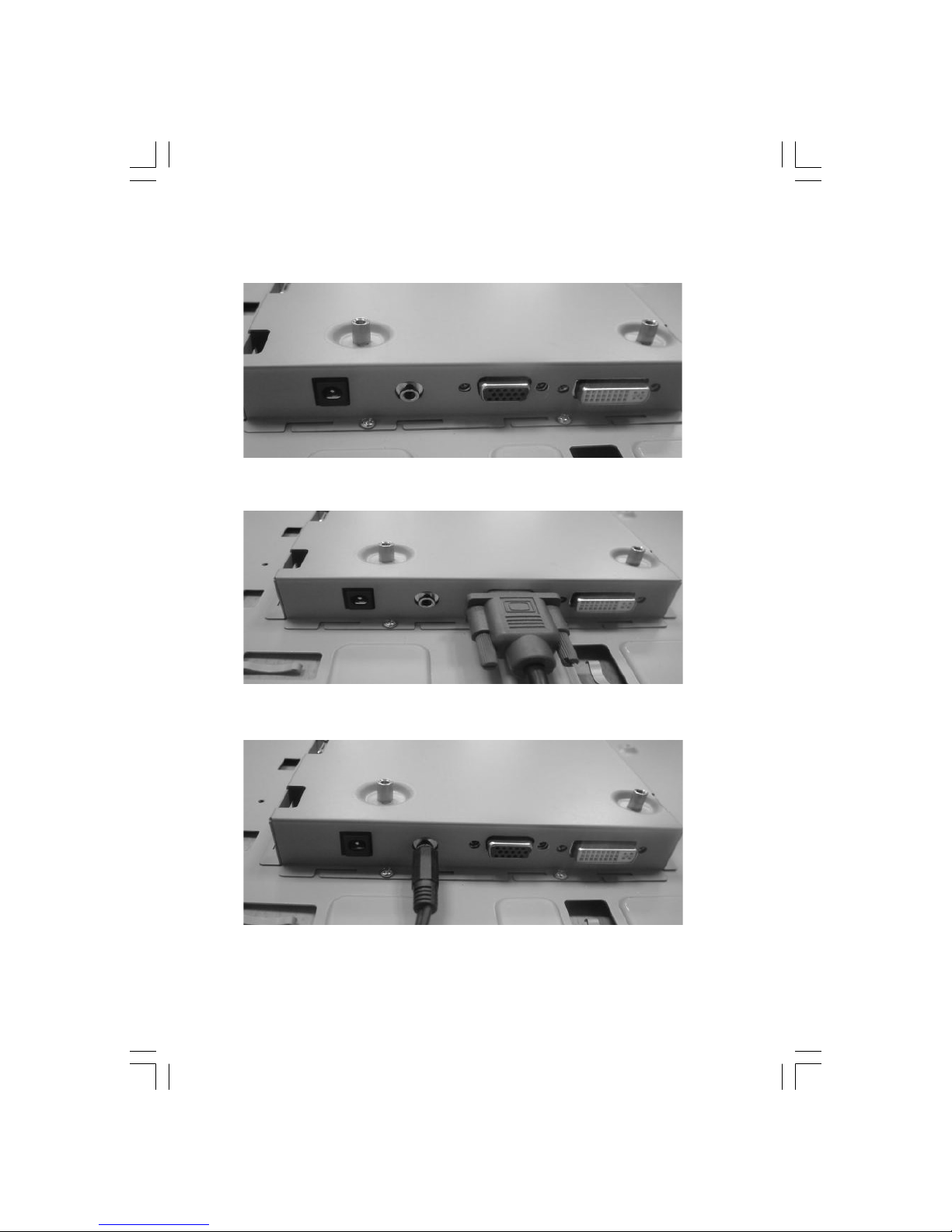

Hardware Installation Step by Step

1.Turn your monitor upside down carefully with panel facing you to locate all connector port.

2.Plug in signal cable toVGA-IN of the monitor and the other side of the cable to the computer.

3.Connect the audio cable to AUDIO-IN on the monitor,and the other side to computer line out.

11PRESTIGIO P179

ENG

3.Plug in signal cable to DVI-IN 24-pin of the monitor and the other side of the cable to the computer.

4.Plug the DC cable from power adapter onto the DC-IN on monitor.

5.Congratulations! You have just completed the hardware installation.
