Printronix L7032 Bedienungsanleitung

L7032 Laser Printer

Quick Setup Guide

This Quick Setup Guide contains a

CD-ROM with the following materials:

•The L7032 User’s Manual

•This Quick Setup Guide in English,

French, German, Italian, Russian,

and Spanish

•The User’s Manuals for optional

paper stackers

•Printer drivers

The CD-ROM is in a plastic pocket in

the back cover.

Save this Setup Guide. If you move or

re-ship the printer in the future, you can

reverse the instructions in this guide to

repack the printer.

NOTICE

This document contains proprietary information protected by

translated, or incorporated in any other material in any form or by

any means, whether manual, graphic, electronic, mechanical, or

otherwise, without the prior written consent of Printronix, Inc.

Printronix makes no representations or warranties of any kind

regarding this material, including, but not limited to, implied

warranties of merchantability and fitness for a particular purpose.

Printronix shall not be held responsible for errors contained herein

or any omissions from this material or for any damages, whether

direct or indirect, incidental or consequential, in connection with the

furnishing, distribution, performance, or use of this material. The

information in this manual is subject to change without notice.

Table of Contents

Choose a Space for the Printer....................................................7

Location of Printer Components...................................................9

Front of the Printer ...............................................................9

The Operator Panel............................................................10

Components on the Right Side of the Printer.....................11

Components on the Left Side of the Printer .......................12

Components on the Back of the Printer .............................13

Components Inside the Printer's Door ...............................13

Components Inside the Printer...........................................14

Unpack the Cardboard Buffer ....................................................16

Remove the Orange Tape Strips ...............................................16

Install the Fuser Cleaning Roller, Ozone Filter, & Power Cord ..20

Install the Developer Mix............................................................23

Initialize the Developer Unit .......................................................31

Install and Remove the Seal From the Toner Cartridge.............32

Load Paper.................................................................................37

Make A Test Print.......................................................................40

Contact Information....................................................................41

Printronix Customer Support Center ..................................41

Printronix Supplies Department..........................................41

Corporate Offices ...............................................................42

For More Information..................................................................43

Notices .......................................................................................44

Trademarks................................................................................47

Regulatory Information...............................................................47

Table of Contents

Basic Setup

This Quick Setup Guide shows you how to set up and test your

L7032 printer. For information on configuring the printer for use with

a computer or network, attaching the data cable, ordering spare

consumables, etc., refer to the User’s Manual, which is on the CD-

ROM attached to the back cover of this guide.

The fact that you are reading this means you have unpacked your

printer from the shipping carton and removed the plastic bag and

accessories. You will now select a printer site, prepare the printer

for operation, and print a test page.

Choose a Space for the Printer

Figure 1 shows the minimum clearances you need to install,

operate, and maintain the printer. You need a space at least 80

inches (2032 mm) wide—more if you have the optional power

paper stacker—and 55 inches (1397 mm) deep:

1. You need at least 28 inches (711.2 mm) at the front of the

printer to open the front access door and replace consumables.

2. You need at least 28 inches (711.2 mm) on the paper-input

side of the printer to load paper.

3. You need at least 28 inches (711.2 mm) on the paper-exit side

of the printer to stack and remove the printed media.

If you are using the optional power paper stacker, leave

sufficient room for it.

4. Leave at least six inches (152.4 mm) between the back of the

printer and the wall to allow air circulation. The printer's fans

vent air out the back of the printer.

Choose a Space for the Printer

NOTE: Direct sunlight will not damage the printer. Direct sunlight

may change the color of the printer's plastic surfaces as it

would change the color of any plastic surface.

Figure 1. Correct Printer Positioning

Front of the Printer

Location of Printer Components

This section show the components of your printer. Please review

the illustrations so you will be familiar with the printer's components

as you set up and operate the printer.

Front of the Printer

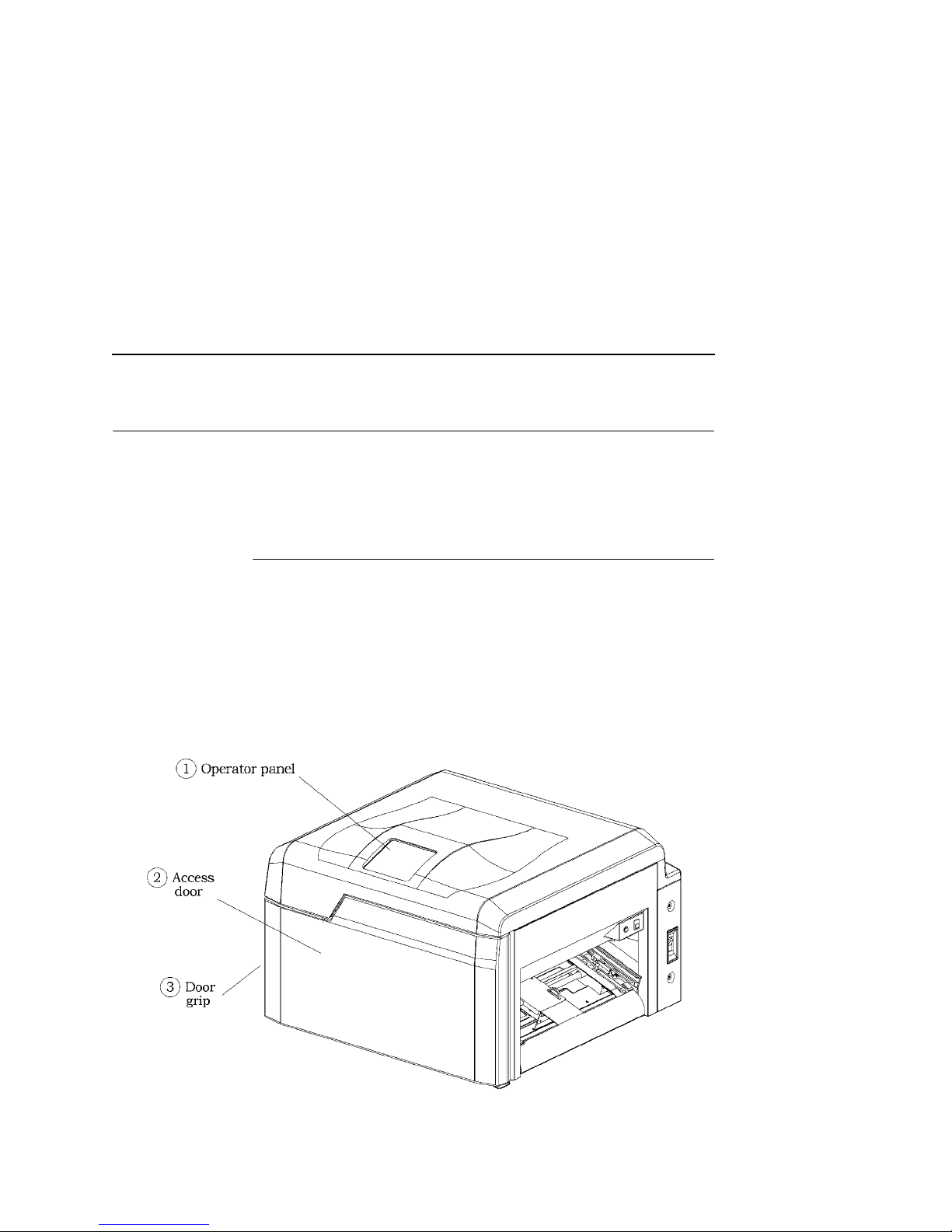

Figure 2 shows the components on the front of the printer. The use

of the words LEFT and RIGHT assumes you are viewing the front

of the printer, unless otherwise noted. For example, the paper

enters on the RIGHT side of the printer and exits on the LEFT side

of the printer.

Figure 2. The Front of the Printer

Location of Printer Components

The Operator Panel

Figure 3 shows the buttons on the operator panel, which is on the

top front of the printer.

Using the Shift button, there are also the following functions:

•Shift/Left Arrow ;= Feed paper forward

•Shift/Up Arrow == Exit

•Shift/Down Arrow >= Enter

•Shift/Right Arrow <= Feed paper backward

Figure 3 also shows the three status lights on the operator panel:

Ready, Data, and On Line

The operator panel displays messages, menus, and printing

parameters on a liquid crystal display (LCD).

Figure 3. Operator Panel

For more information about the operator panel, see Chapter 2,

Printer Operation, in the printer User’s Manual.
