Printronix P7000 H-Series Bedienungsanleitung

Quick Reference Guide

P7000, P7000HD, and P7000 H-Series

This Quick Setup Guide contains a

CD-ROM with the following materials:

•The User’s Manual

•Programmer’s Reference Manuals

•Useful utility programs

The CD-ROM is in a plastic pocket in

the back cover.

Save this guide. If you move or pack

the printer in the future, you will need to

reverse the instructions in this guide.

NOTICE

This document contains proprietary information protected by

translated, or incorporated in any other material in any form or by

any means, whether manual, graphic, electronic, mechanical, or

otherwise, without the prior written consent of Printronix.

Printronix makes no representations or warranties of any kind

regarding this material, including, but not limited to, implied

warranties of merchantability and fitness for a particular purpose.

Printronix shall not be held responsible for errors contained herein

or any omissions from this material or for any damages, whether

direct or indirect, incidental or consequential, in connection with the

furnishing, distribution, performance, or use of this material. The

information in this manual is subject to change without notice.

Table of Contents

Loading Ribbon And Paper ..................................................7

Loading Ribbon...............................................................7

Loading Paper (Standard Configuration) ......................10

Set The Top-Of-Form .........................................................16

Clearing Paper Jams..........................................................19

Most Frequent Problems and Solutions .............................24

Contact Information............................................................25

Printronix Customer Support Center .............................25

Printronix Supplies Department ....................................26

Corporate Offices..........................................................26

For More Information..........................................................27

Notices ...............................................................................29

Table of Contents

Loading Ribbon And Paper

The following sections describe how to install ribbon and load

paper.

Loading Ribbon

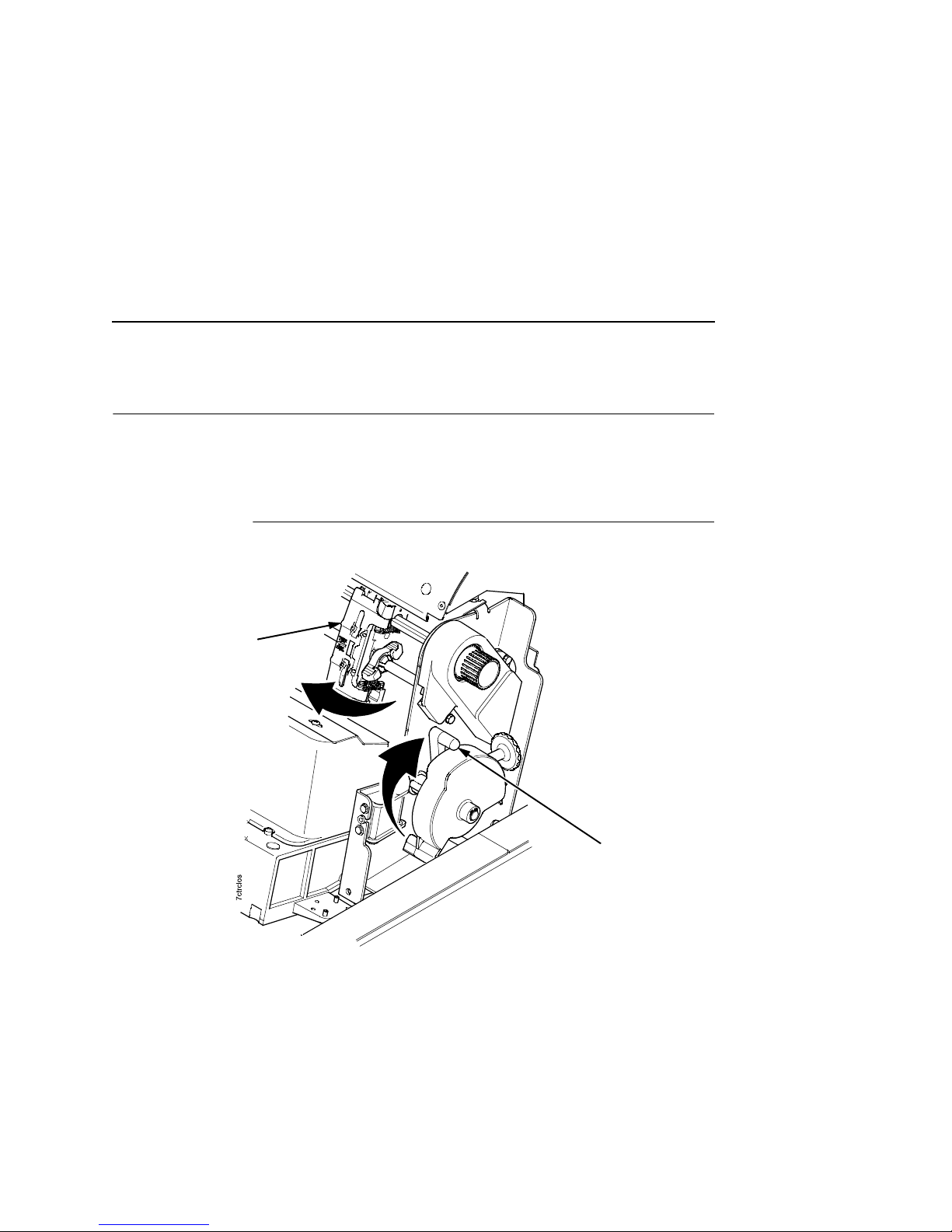

Figure 1. Preparing to Load the Ribbon

1. Make sure the printer cover is open.

2. Raise the platen lever as far as it will go.

3. Close the blue tractor doors.

Blue Tractor

Door (2)

Platen Lever

Loading Ribbon And Paper

Figure 2. Loading the Ribbon

4. Place the empty spool on the right hub. Be sure the ribbon

feeds off the outside of the spool.

5. Press the spool down until it snaps into place.

IMPORTANT

The empty spool has a barcode label on the bottom side and a

date code label on the top. Once the sensor automatically

reads and logs the ribbon barcode, the Integrated Print

Management System starts to track ribbon usage.

If you remove the ribbon during the course of its life and want

to re-install the same ribbon, be sure to place the same spools

on the correct hubs. Do not reverse the spools. Be sure to

re-install the spool with the date code label on the top onto the

right hand hub.

Right Hub

Spool

Loading Ribbon

Figure 3. Threading the Ribbon Around the Ribbon Guide

6. Thread the ribbon around the ribbon guide and along the ribbon

path. Be sure to thread the ribbon between the hammer bank

cover and the ribbon mask.

7. Place the full spool on the left hub.

8. Press the spool down until it snaps into place.

9. Turn the left spool by hand to make sure the ribbon tracks

correctly in the ribbon path and around the ribbon guides.

Ribbon Guide

(both sides)

Left Hub

Ribbon Spool

Ribbon Mask

Hammer

Bank Cover

Ribbon Loading

Instructions

(for future reference)

Loading Ribbon And Paper

NOTE: If there are ink stained fingerprints on the ribbon barcode

(located on the ribbon spool), wipe it clean with a soft cloth

or towelette moistened with alcohol.

Loading Paper (Standard Configuration)

When you start this procedure, verify that the printer cover is open,

the platen lever is raised, and the blue tractor doors are open.

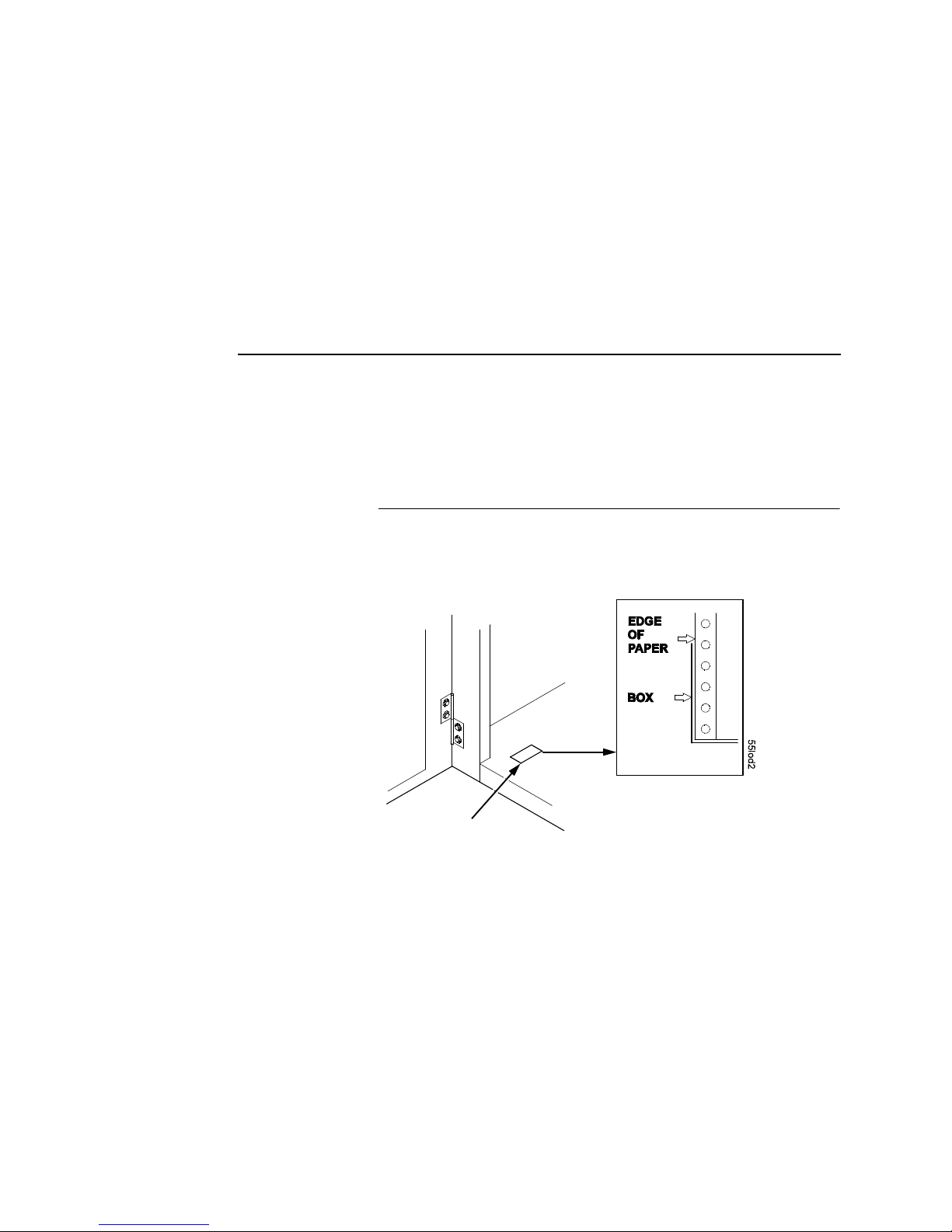

Figure 4. Aligning the Paper Supply

1. Prepare the paper supply:

Cabinet Model

a. Open the front door of the printer cabinet.

b. Place the paper supply inside the printer, on the floor of the

cabinet.

c. Align the paper supply with the front label on the floor of the

printer.

d. Ensure that the paper pulls freely from the box.

e. Feed the paper up through the paper slot.

NOTE: The P7220 and P7280HD model have a metal paper guide.

Load the paper on top of this guide.

Label
