Printronix P7000 H-Series Bedienungsanleitung

Quick Setup Guide

P7000, P7000HD, and P7000 H-Series

This Quick Setup Guide contains a

CD-ROM with the following materials:

•The User’s Manual

•Programmer’s Reference Manuals

•Useful utility programs

The CD-ROM is in a plastic pocket in

the back cover.

Save this guide. If you move or pack

the printer in the future, you will need to

reverse the instructions in this guide.

NOTICE

This document contains proprietary information protected by

translated, or incorporated in any other material in any form or by

any means, whether manual, graphic, electronic, mechanical, or

otherwise, without the prior written consent of Printronix.

Printronix makes no representations or warranties of any kind

regarding this material, including, but not limited to, implied

warranties of merchantability and fitness for a particular purpose.

Printronix shall not be held responsible for errors contained herein

or any omissions from this material or for any damages, whether

direct or indirect, incidental or consequential, in connection with the

furnishing, distribution, performance, or use of this material. The

information in this manual is subject to change without notice.

Table of Contents

Basic Installation Procedures................... 7

Printer Component Locations...............................................8

Remove Packing Materials...................................................9

Adjust The Paper Supports ................................................14

Release The Paper Chains – Cabinet Model .....................15

Remove Tags – Cabinet Model..........................................16

Remove The Shipping Restraints From

The Power Paper Stacker (If Equipped).............................17

Remove The Paper Tent Tape...........................................19

Attach The Control Panel Overlay......................................20

Connect The Interface And Power Cables.........................21

Cabinet Model ...............................................................21

Interface Connections (Cabinet And Pedestal) .............24

Pedestal Model .............................................................26

Loading Ribbon And Paper ................................................27

Loading Ribbon.............................................................27

Loading Paper (Standard Configuration) ......................30

Set The Top-Of-Form .........................................................37

Adjust The Paper Fence – Cabinet Model .........................40

Adjust The Optional Passive Paper Stacker –

Cabinet Model ....................................................................41

Power Paper Stacker Option..............................................42

Power Paper Stacker Component Locations ................43

Setting Up The Power Paper Stacker ...........................44

Loading And Starting The Power Paper Stacker ..........47

Front Access Paper Stacker Option...................................49

Checking The Paper Feed – Cabinet Model ......................50

Attach The Input Paper Shelf And Output Basket –

Pedestal Model...................................................................51

Table of Contents

Install The Optional Acoustic Shroud – Pedestal Model ....53

Quick Access Cover Setup – Pedestal Model....................54

Checking The Paper Feed – Pedestal Model ....................56

The Control Panel ..............................................................57

Printer Self-Test .................................................................58

Quick Setup Menu..............................................................58

P7000 Quick Setup Menu .............................................59

P7000HD Quick Setup Menu........................................61

P7000 H-Series Quick Setup Menu ..............................62

Print A Test Page ...............................................................65

Contact Information............................................................67

Printronix Customer Support Center.............................67

Printronix Supplies Department ....................................67

Corporate Offices..........................................................68

For More Information..........................................................68

Basic Installation

Procedures

This Quick Setup Guide provides general information for setting up

and testing your printer. For detailed information, refer to your

User’s Manual which is on the CD-ROM attached to the back cover

of this guide.

Printer Component Locations

Familiarize yourself with the names and locations of the printer

components, shown in Figure 1, before continuing with the rest of

the installation procedures.

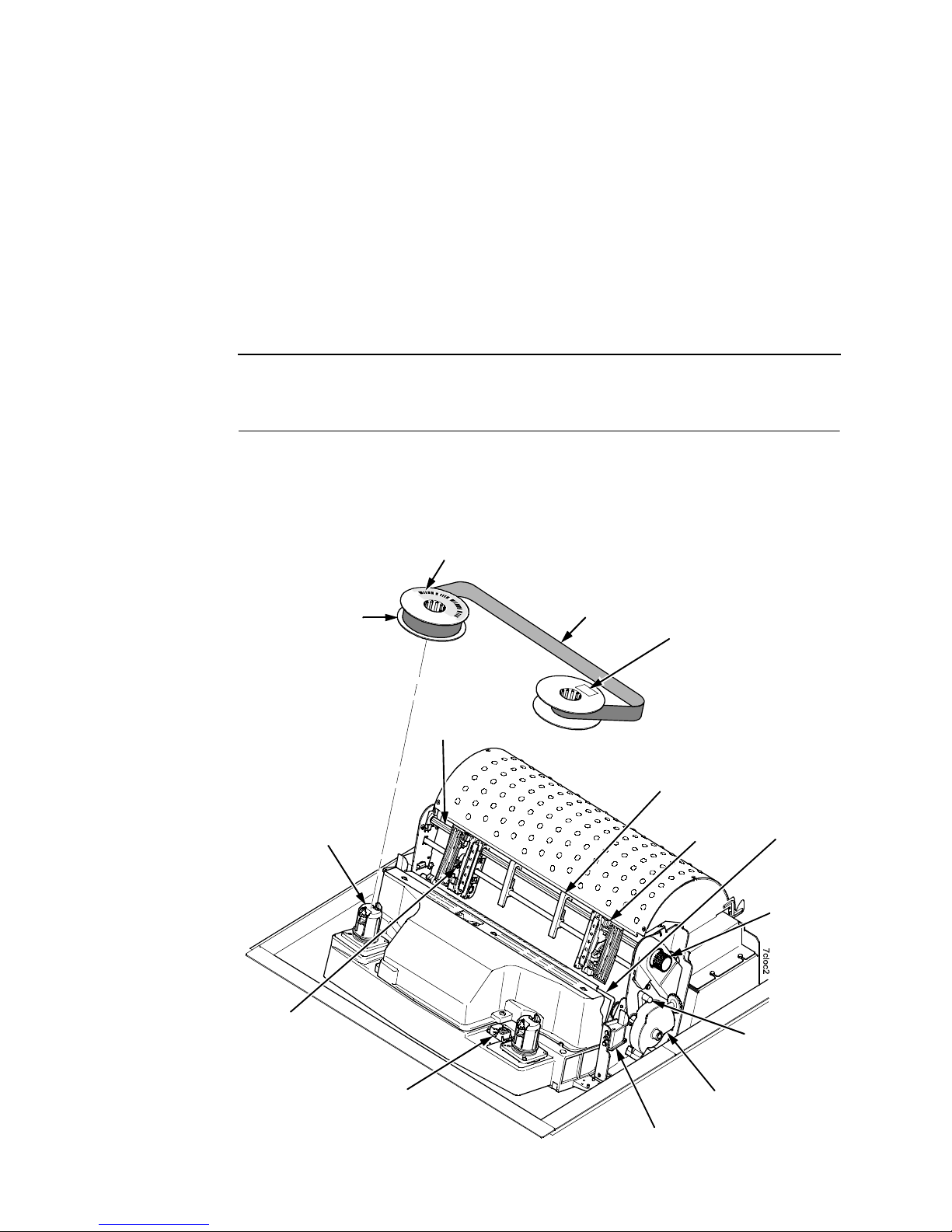

Figure 1. Printer Component Locations

Ribbon Spool

Ribbon Hub

Blue Tractor

Lock (2)

Paper Support

Tractor (2)

Vertical

Position Knob

Platen Lever

Ribbon Guide (2)

Ribbon

Splined

Shaft

Platen Stop

Barcode

Hammer Bank

Cover and

Ribbon Mask

Date Code Label

Barcode Sensor

Remove Packing Materials

CAUTION

To avoid shipping damage, reinstall the shipping restraints

whenever you move or ship the printer.

Save the cardboard packing, foam blocks, and bubble wrap along

with the other packing materials in case you need to move the

printer. If it is necessary to move the printer, reinstall the shipping

restraints, reversing the steps in this section.

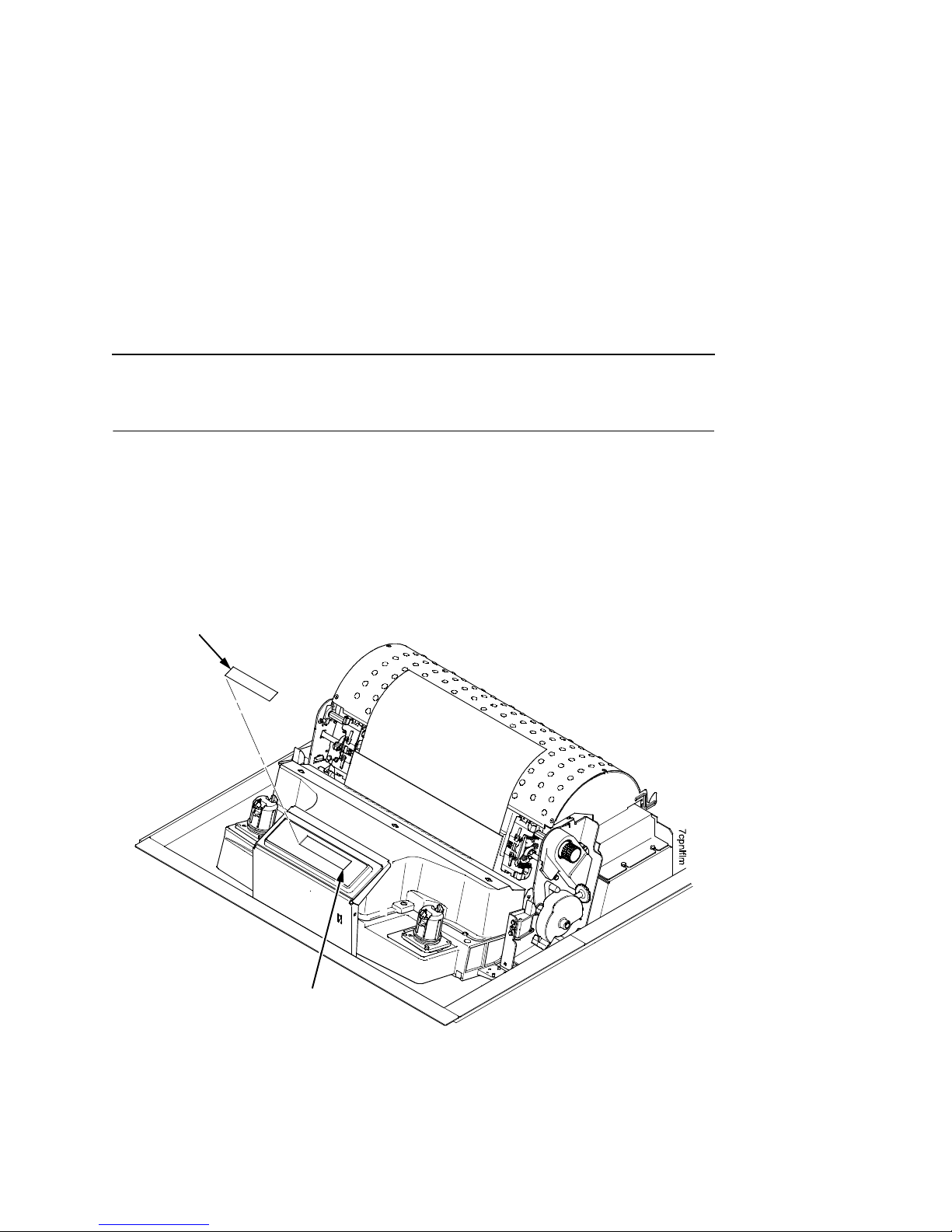

Figure 2. Removing the Protective Film

1. Peel the tape off carefully and lift the protective film off the

control panel message display.

Protective Film

Control Panel

Message Display

Remove Packing Materials

Figure 3. Removing the Sample Configuration Printout

2. Open the blue tractor doors.

3. Move the tractor locks to the middle position to unlock them.

4. Raise the platen lever to the fully open (raised) position.

5. Remove the envelope containing the sample configuration

printout.

6. Store the envelope in the pouch attached to the left interior side

of the cabinet.

7. Remove the cardboard packing.

Envelope

Platen Lever

Blue Tractor

Door (2)

Blue Tractor

Lock (2)
