Printronix P7000 H-Series Bedienungsanleitung

Quick Reference Guide

P7000, P7000HD, and P7000 H-Series

Cartridge Ribbon Printers

This Quick Reference Guide contains a

CD-ROM with the following materials:

•The User’s Manual

•Programmer’s Reference Manuals

•Useful utility programs

The CD-ROM is in a plastic pocket in

the back cover.

Save this guide. If you move or pack

the printer in the future, you will need to

reverse the instructions in this guide.

NOTICE

This document contains proprietary information protected by

translated, or incorporated in any other material in any form or by

any means, whether manual, graphic, electronic, mechanical, or

otherwise, without the prior written consent of Printronix.

Printronix makes no representations or warranties of any kind

regarding this material, including, but not limited to, implied

warranties of merchantability and fitness for a particular purpose.

Printronix shall not be held responsible for errors contained herein

or any omissions from this material or for any damages, whether

direct or indirect, incidental or consequential, in connection with the

furnishing, distribution, performance, or use of this material. The

information in this manual is subject to change without notice.

Table of Contents

P7000 Cartridge Ribbon Printer Control Panel ....................7

P7000 H-Series Cartridge Ribbon Printer Control Panel .....7

Loading Ribbon Cartridge And Paper ..................................8

Loading Ribbon Cartridge ...............................................8

Loading Paper (Standard Configuration) ......................11

Set The Top-Of-Form .........................................................17

Clearing Paper Jams..........................................................20

Most Frequent Problems and Solutions .............................25

Contact Information............................................................26

Printronix Customer Support Center .............................26

Printronix Supplies Department ....................................27

Corporate Offices..........................................................27

For More Information..........................................................28

Notices ...............................................................................29

Table of Contents

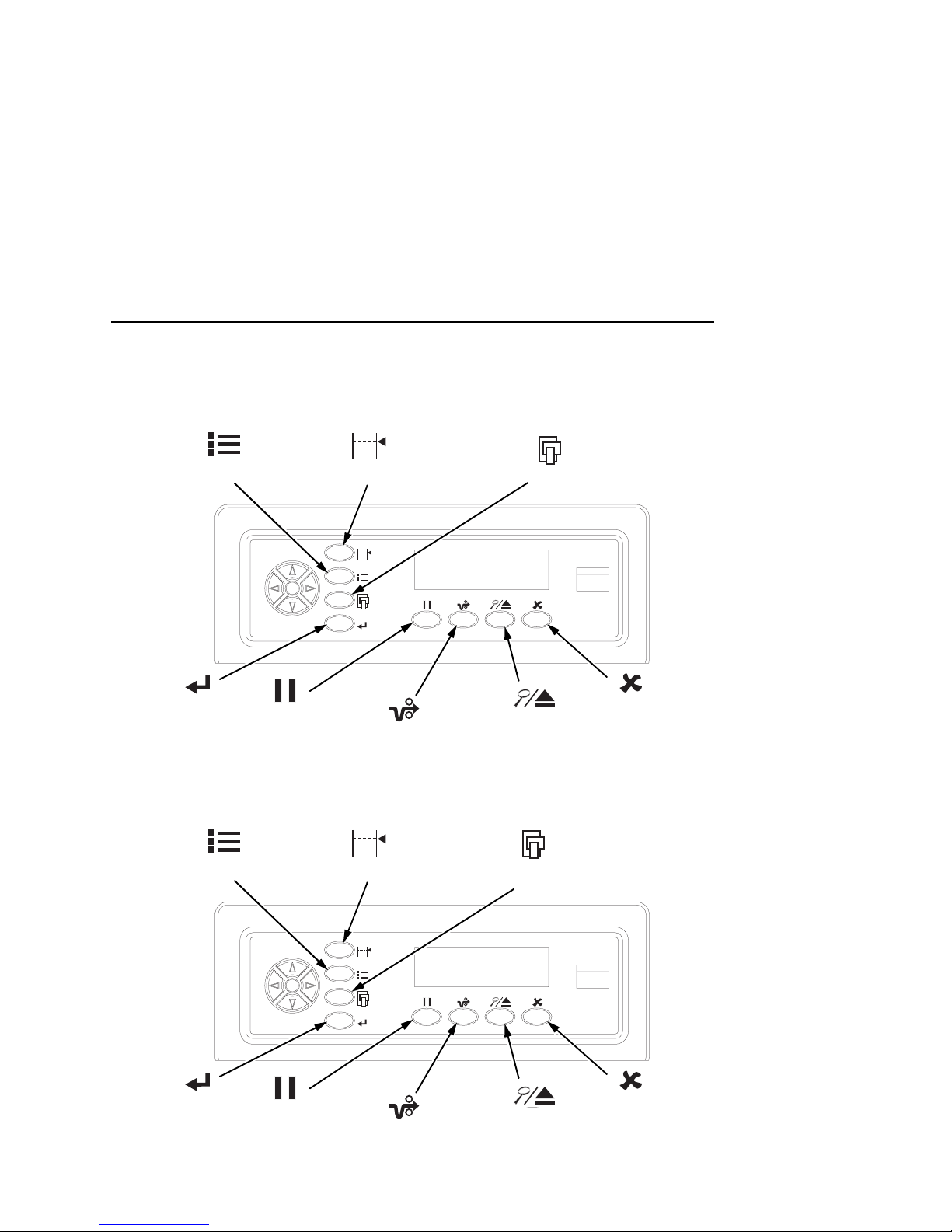

P7000 Cartridge Ribbon Printer Control Panel

P7000 H-Series Cartridge Ribbon Printer Control Panel

183452b

JOB SELECT

PRT CONFIG SET TOF

ENTER ON LINE/CLEAR

PAPER ADVANCE VIEW/EJECT

CANCEL

183452b

JOB SELECT/

PRINT MODE

PRT CONFIG SET TOF

ENTER ON LINE/CLEAR

PAPER ADVANCE VIEW/EJECT

CANCEL

Loading Ribbon Cartridge And Paper

The following sections describe how to install ribbon and load

paper.

Loading Ribbon Cartridge

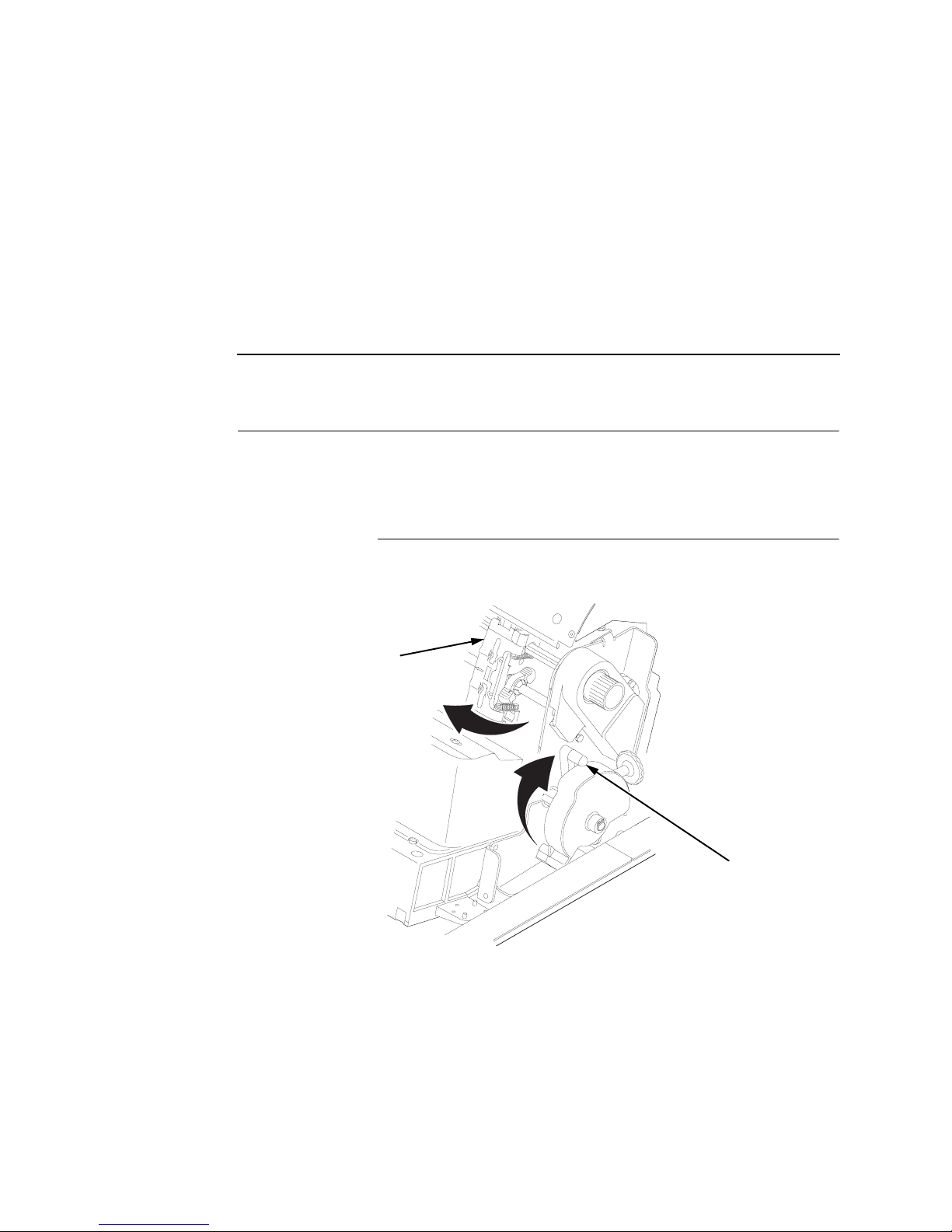

Figure 1. Preparing to Load the Ribbon Cartridge

1. Make sure the printer cover is open.

2. Raise the platen lever as far as it will go.

3. Close the tractor doors.

TOF

183816a

Blue Tractor

Door (2)

Platen Lever

Loading Ribbon Cartridge

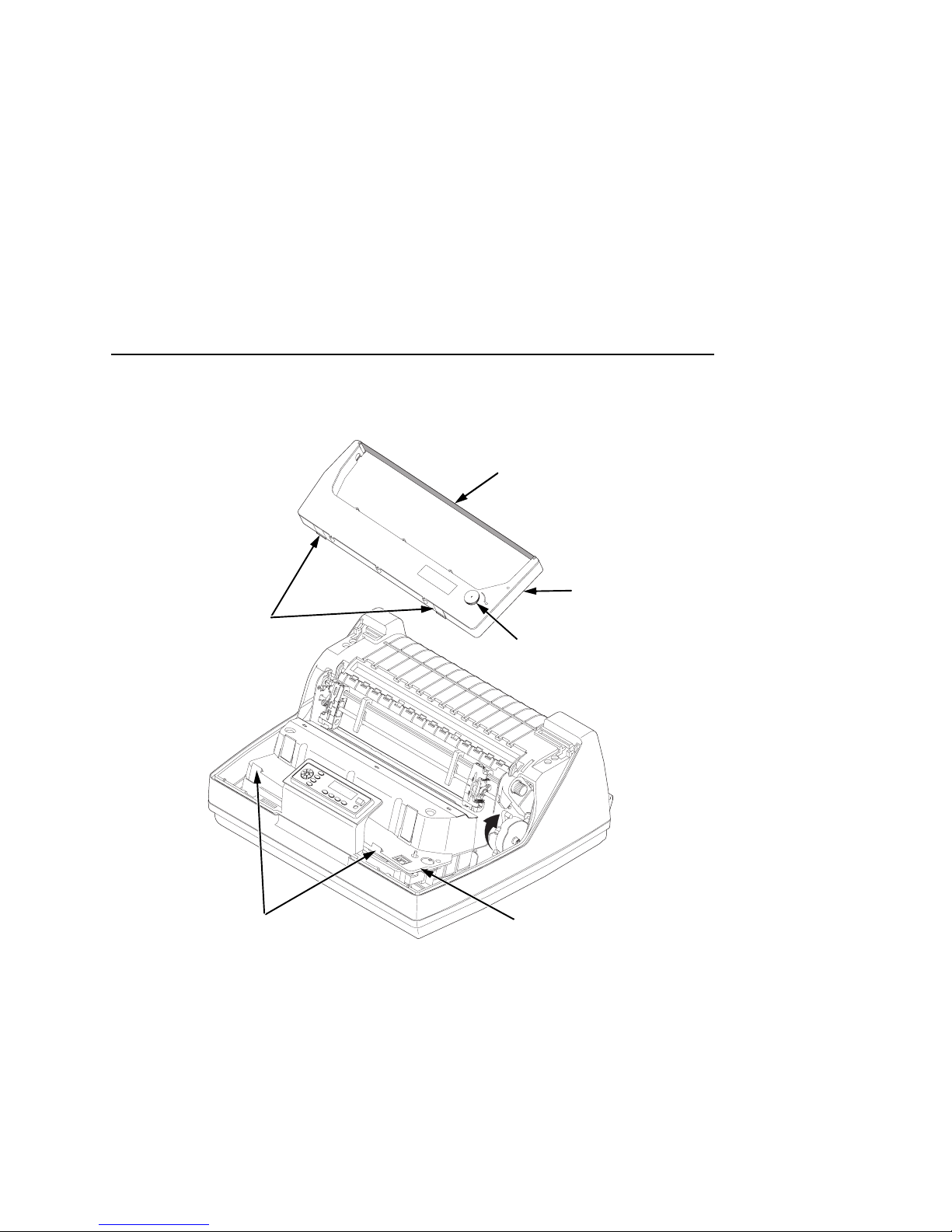

Figure 2. Installing the Ribbon Cartridge

4. Remove the ribbon slack on the ribbon cartridge by turning the

ribbon tension knob clockwise.

CAUTION

Do not turn the ribbon tension knob counterclockwise. This

could damage the ribbon cartridge.

5. Hold the cartridge at an angle, so that the rear side nearest you

is lower than the side with the ribbon. Find the two tabs on the

outside of the cartridge and place them into the corresponding

slots on the air shroud assembly (see Figure 2).

TOF

183871a

Ribbon

Cartridge

Ribbon Tension

Knob

Air Shroud

Assembly

Tab (2)

Tab Slot (2)

Loading Ribbon Cartridge And Paper

Figure 3. The Ribbon Cartridge Snapped in Place

6. Rock the cartridge downward, making sure that the ribbon goes

between the hammerbank cover and the ribbon mask

(see Figure 3). You will feel it snap into place.

CAUTION

Make sure that the ribbon does not twist or fold over.

7. Turn the ribbon tension knob clockwise a few times to make

sure the ribbon tracks correctly in the ribbon path.

TOF

183872a

TOF

183874a

Ribbon

Cartridge A

Hammerbank

Cover

Ribbon Mask

Ribbon Cartridge

Ribbon

Ribbon Tension Knob
