Pro Breeze PB-AC05 Bedienungsanleitung
Instruction manual
Model PB-AC05
12000 BTU Portable Air Conditioner
Portable Air Conditioner

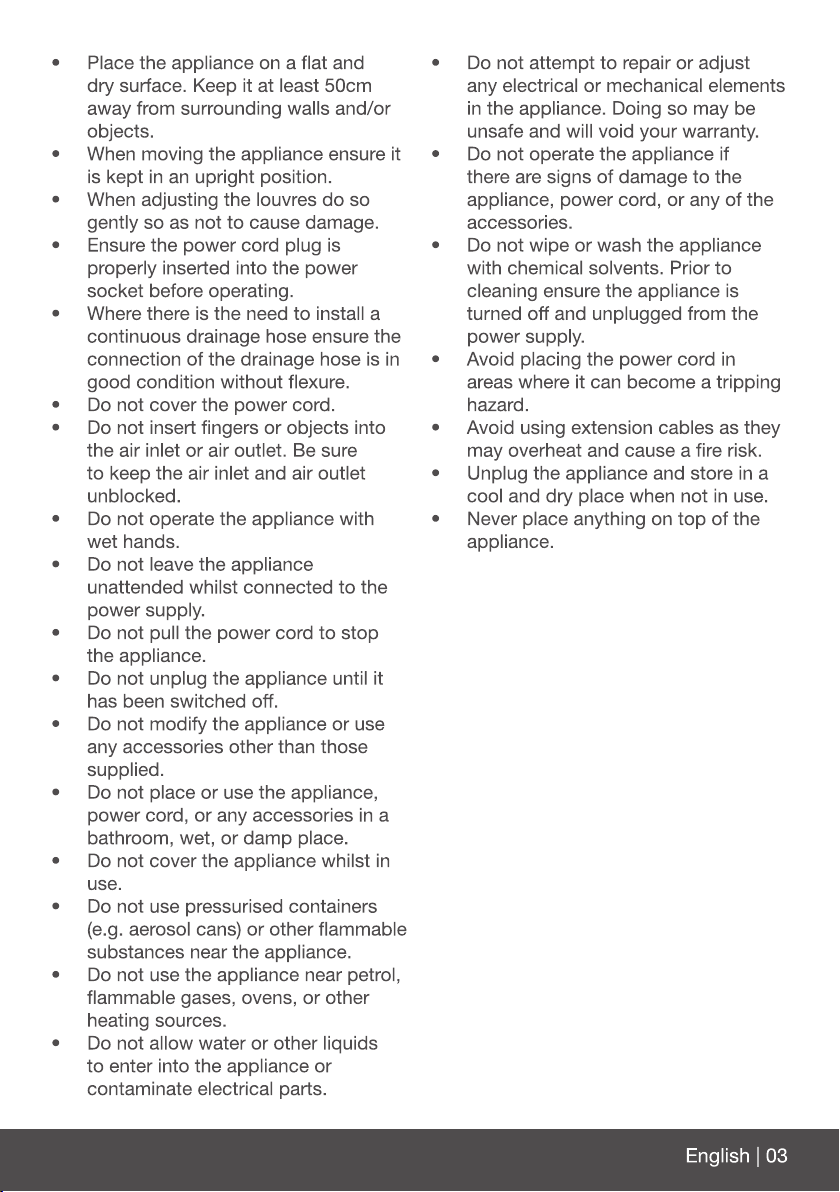

Safety Warning

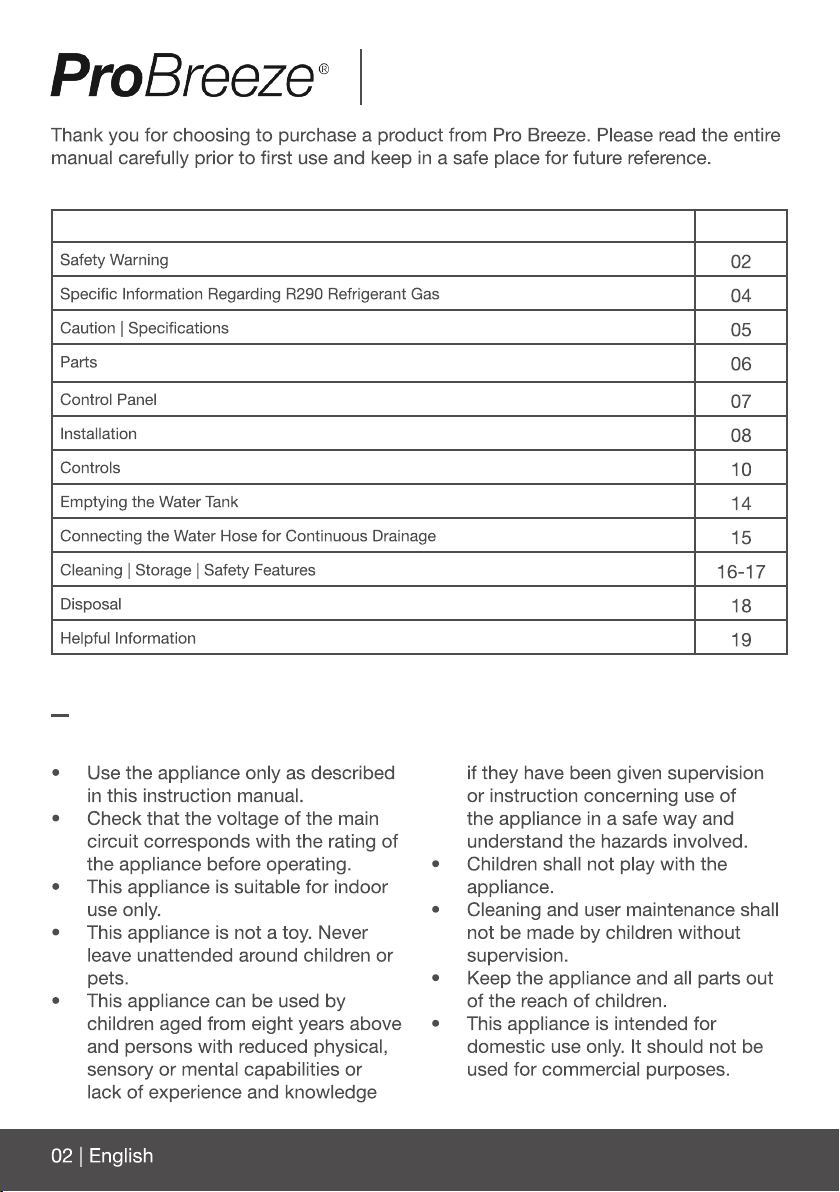

Contents Pg
Specific Information
Regarding R290
Refrigerant Gas
Caution
Specifications
Parts
Front View
Rear View
Accessories
Control Panel
1. Buttons moving from left to right
•
•
•
•
•
•
2. Indicator light symbols moving from
top to bottom and left to right
•
•
•
•
•
•
•
•
•
3. Digital display panel moving from top
to bottom
•
•
Remote Control
Note:
Installation
Prior to and after installation adhere to
the below:
•
•
•
Leave the appliance in an upright
position for at least two hours prior
to first use.
Heat Exhaust Hose Installation
Sliding Window Sealing Board Assembly
Installation
Notes:
•
•
Hinged Window Sealing Fabric
Assembly Installation
1. Open window and clean frame and
casement surfaces of dust and
particles.
2. Stick the velcro tape around the
entire window frame. Never stick
to the window seal as doing so will
prohibit the window from closing fully.
3. Stick the velcro tape around the
entire window casement (inside or
outside). Check to ensure the window
can close fully.
4. Attach side A of the sealing fabric
assembly to the velcro on the window
frame working from the centre
outwards.
5. Close and open window to ensure no
fabric gets trapped.
6. Attach side B of the sealing fabric
assembly to the velcro on the window
casement working from the centre
outwards.
7. Open the window slightly and
insert the heat exhaust hose short
connector into the sealing fabric
assembly securing with the zippers
around its lip.
8. The sealing fabric assembly is now
ready for use.
Notes:
• Do not bend the heat exhaust hose in
excess of 45 degrees. It should be as
short and as straight as possible to
• Do not overstretch the heat
exhaust hose as this may affect the
Frame
Side A
Side B
Casement
7
4 & 6
2 &3
Hinged window sealing fabric zip

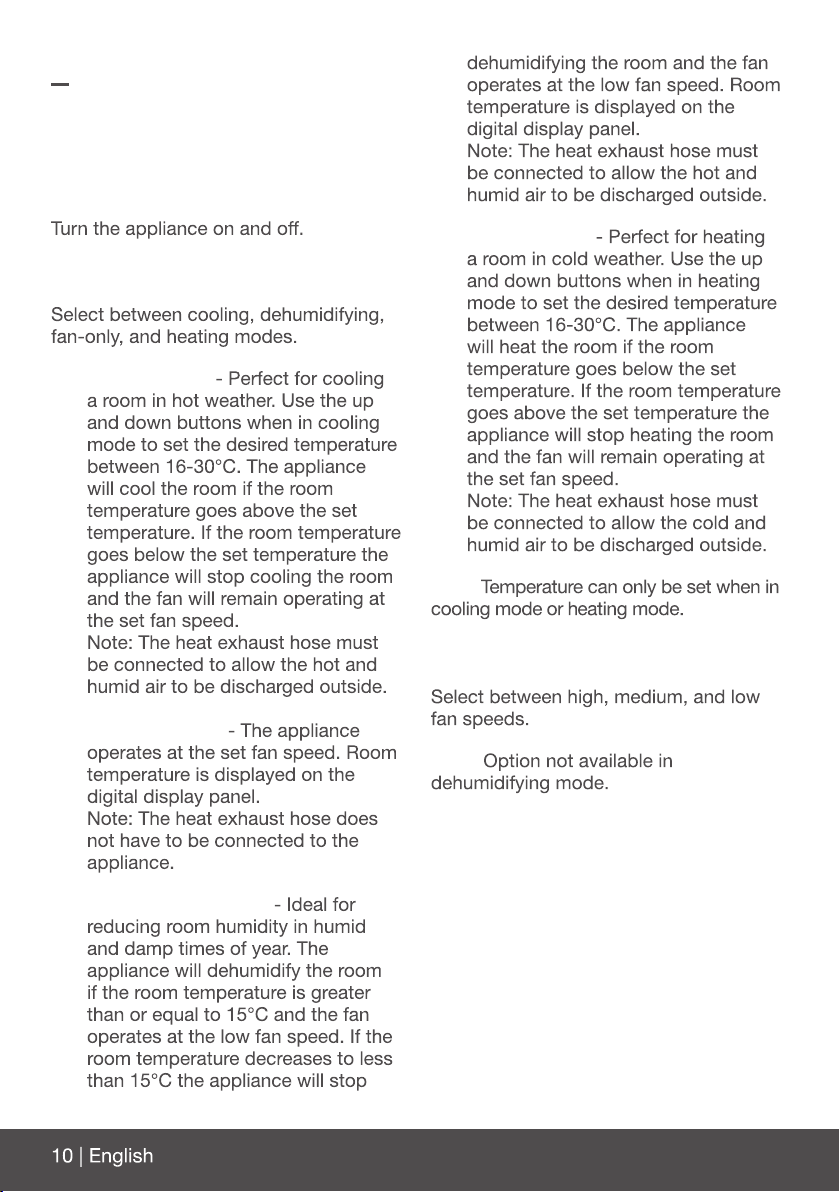

Controls
Control Panel
Power Button
Mode Button
• Cooling Mode
• Fan-Only Mode
• Dehumidifying Mode
• Heating Mode
Note:
Fan Speed Button
Note:
