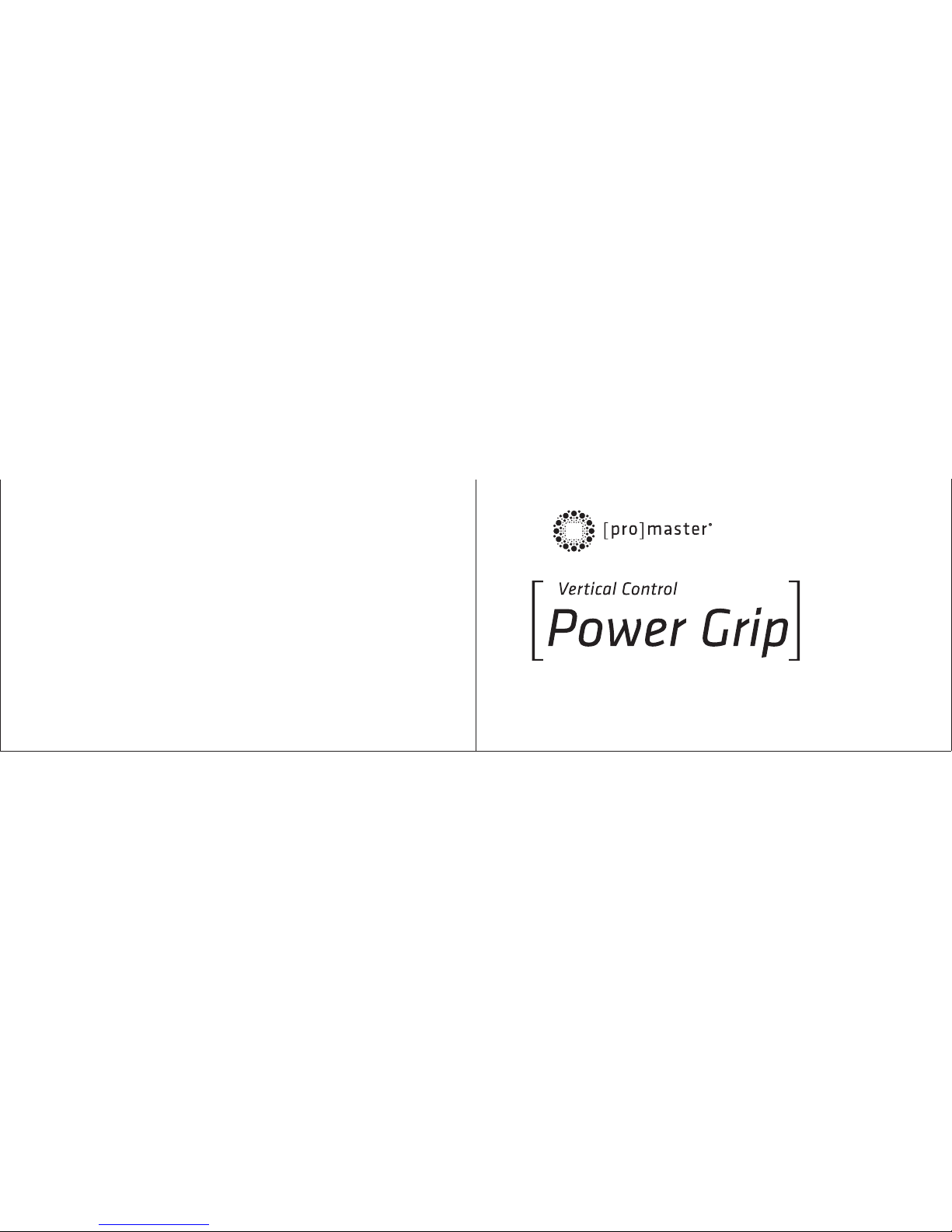

pro master 6942 Bedienungsanleitung
i s
code 6942
One Year Unconditional Warranty
If for any reason, this ProMaster product fails within ONE YEAR of the date of purchase, return
this product to your ProMaster dealer and it will be exchanged for you at no charge. ProMaster
products are guaranteed for ONE FULL YEAR against defects in workmanship and materials. If at
any time after one year, your ProMaster product fails under normal use, we invite you to return it
to ProMaster for evaluation.
Part Names
Protective Cover
Power/Signal Contacts
Vertical Grip Operation Switch
AE Lock / FE Lock / Index/
Reduce Button
AF Point Selection /
Magnify button
Aperture / Exposure
Compensation Button
Attachment Screw
Attachment Wheel
Battery Holder
Release Handle
Camera Battery Compartment
Cover Slot
Shutter Button
Main Dial
Tripod Socket
Hand Strap Mount
Battery Pack Compartment
LP-E17 Battery Holder
Installing The Batteries
1. With your camera and the Vertical Grip
Operation Switch (3) OFF, turn the
Battery Holder Release Handle (9)
counter-clockwise and pull. This will
allow you to slide the Battery Holder (16)
out of the grip.
2. Install one or two LP-E17 Li-ion battery(s)
into the Battery Pack Compartment (15)
while aligning the contacts carefully.
*Note, you can power the camera using just
one battery. Two will provide twice as much
shooting time.
3. Insert the Battery Holder (16) into the
grip and turn the Battery Holder Release
Handle (9) clockwise to lock it in place.
4. Once the Battery Holder (16) is properly
inserted, turn on your camera. Then
activate the grip by sliding the Vertical
Grip Operation Switch (3) to ON.
Caution
• This product should only be used with compatible devices specified in this instruction sheet.
• Use ONLY the batteries and battery holder recommended.
• Cover the power terminals with the contact cap when not in use. This prevents electrical
shorts caused by metal objects touching the terminals.
• When the battery holder is removed from the grip, remove the batteries or place the holder
in a container to prevent electrical shorts caused by contact with other metal objects.
• The battery level may not display properly if batteries are inserted before attaching the grip
to the camera.
• Remove batteries from the grip when not in use for an extended period.
• Do not disassemble or repair this product yourself. Doing so will void your warranty.
• Avoid water or extreme humidity and be sure to store in a cool, dry location.
• Do not dispose of in fire or extremely high temperature environment.
• Keep the product or parts away from children to avoid hazard from swallowing.
Congratulations on your purchase of the ProMaster Vertical Control Power Grip for the Canon
T6i / T6s. This battery grip will provide longer shooting times for your camera, comfortable
photography when taking vertical-orientation shots, and a more stable overall camera rig which
reduces the chance of shake and blur.
To ensure proper operation, please read this manual thoroughly before using this product.
This grip is specially designed for the Canon EOS T6i and T6s cameras. It is equipped with an
alternate shutter button and main dial for easy shooting in a vertical position. This battery grip
can hold two LP-E17 rechargeable Li-ion batteries to extend your shooting time.
Attaching Your Camera
1. Please turn off your
camera and be sure the
Vertical Grip Operation
Switch (3) is in the 'OFF"
position.
2. Open the camera's
battery chamber.
3. Detach the chamber
cover by opening it to
approximately a 35 degree
angle and pulling it away
from the camera.
4. Store the camera battery
chamber cover in the
Camera Battery
Compartment Cover Slot
(10) on the grip.
5.
Align the grip with the
camera paying attention to
the Power/Signal Contacts
(2) which go straight into the
camera’s battery chamber.
Also align the grip’s
Attachment Screw (7) with
the camera’s tripod socket.
6. Turn the Attachment Wheel
(8) in the direction of the
lock arrow to securely
fasten the power grip to
the tripod mount on your
camera.
Specifications
Approximate measurements
All the trademarks are the property of their respective owners
Specification and design are subject to change without notice
Model 6942
Power Source 1or 2 LP-E17 Li-Ion batteries
Camera Compatibility Canon 750D\760D\T6i\T6s\X8i\8000D
Replacement for Canon BG-E18
Operating Temperature 0~40º (32~104°F)
Dimensions Approx. 130 x 80 x 105mm
Weight (without batteries) Approx. 7.3 oz. / 207g
Operation and Use of the Grip
1. Your camera must be turned ON for the grip to operate. When your camera is ON the grip
may be switched ON or OFF by using the Vertical Grip Operation Switch (3). Please note,
the grip will continue to supply power to your camera whether the Vertical Grip Operation
Switch is set to ON or OFF. Setting the Vertical Grip Operation Switch to OFF only disables
the operation of the grip’s camera controls to prevent accidental changes to your camera’s
settings and/or taking of photographs.
2. Use the Grip’s Shutter Button (11) to comfortably auto focus and take photographs while
holding your camera in a vertical position.
3. Use the Main Dial (12), AE lock / FE lock / Index / Reduce Button (4), AF Point Selection /
Magnify Button (5), and Aperture / Exposure Compensation Button (6) as you would on
your camera. These controls work the same as they do on your camera.
4. Use the Tripod Socket (13) to mount your grip and camera to a tripod or quick release plate.
