Pro's Kit SS-331 Bedienungsanleitung



SS-331

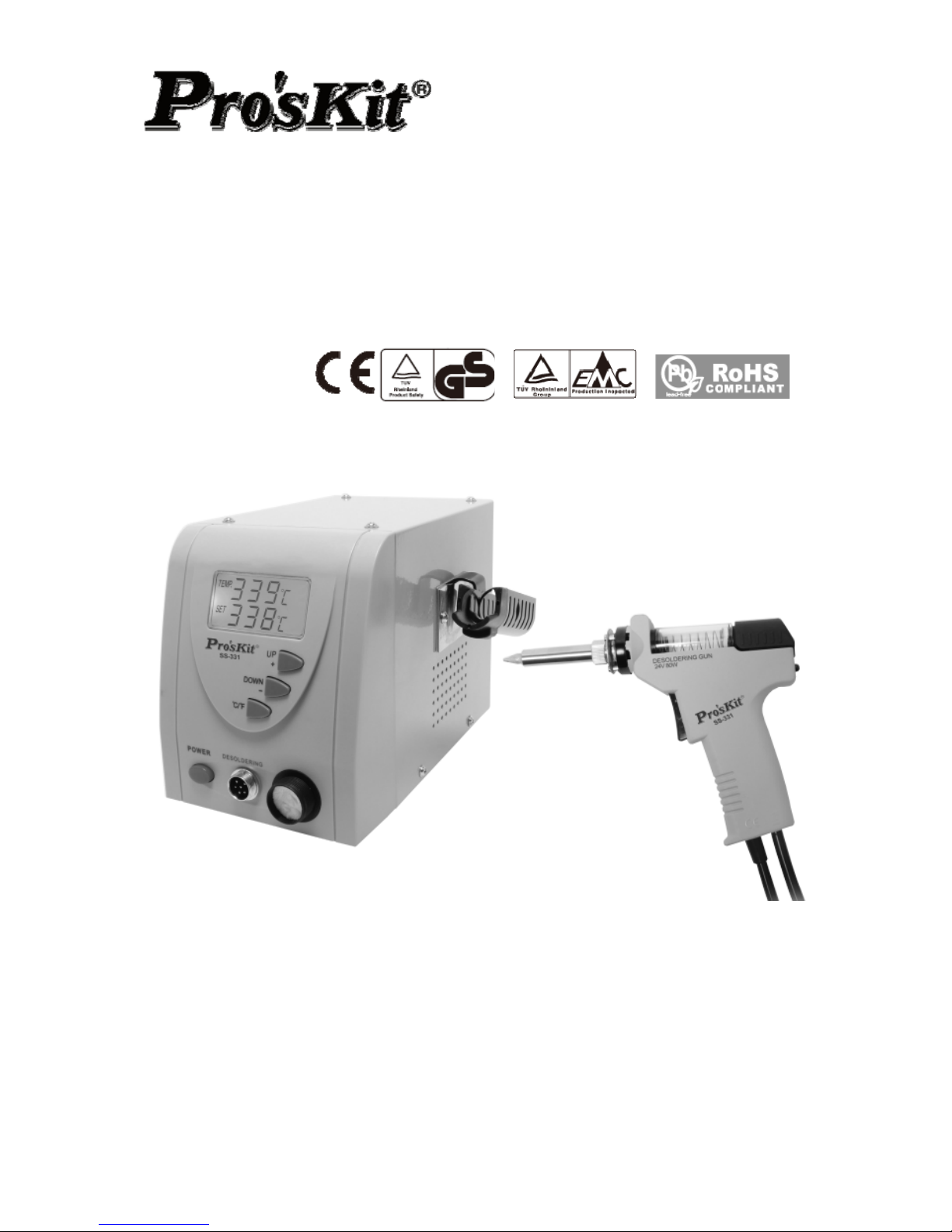

LCD Desoldering Station

User’s Manual

1st Edition,

Description



SS‐331designedforleadfreedesolderingespecially.Thequick

heatingandstrongpowerareforconvenientandclearsoldering/

desolderingalltypesofDIPcomponents.

Reasonablestructure,singlehandoperationandstrongabsorbing

powercanbeeasyremovaloftheresidualsolderfromthe

one‐sidedortwosidedofthePCB.

Thistoolisusedinthefieldsofelectronicresearch,teachingand

production,especiallyintherepairinganddesolderingonthe

electronicappliancesandcommunicationequipments.



1. ControlUnit

Thedesolderingironguniscontrolledautomaticallybythe

micro‐processor.Thedigitalcontrolelectronicsandhigh‐quality

sensorandheatexchangesystemguaranteeprecisetemperature

controlatthesolderingtip.Thehighestdegreeoftemperature

precisionandoptimaldynamicthermalbehaviorunderload

conditionsisobtainedbythequickandaccuraterecordingofthe

measuredvaluesinaclosedcontrolcircuit,andthisdesignis

especiallyforthelead‐freeproductiontechniques.



2. DesolderingIrongun

Desolderingirongunwithapowerof60W（Heatuprating130W）

andawidespectrumofsolderingtipscanbeusedanywherein

theelectronicsfield.

Thehighpowerandguntypedesignmakethisirongunsuitable

forfinedesolderingwork.Theheatingelementismadeofceramic

andthesensoronthedesolderingtipcancontrolthedesoldering

temperaturequicklyandaccurately.



TechnicalSpecification

Voltage220~240VAC

PowerConsumption140W

Temperature160°C~480°C

VacuumPressure600mmHg

HeatingElementCeramicHeater

Accessories

Sparetipx3(0.8(onthegun)1.0/

1.3mm)

Cleaningtoolx3(0.7/0.9/1.2mm)

Filterspongex4(φ20.8x1+φ16.8x3)

CertificateCE,GS,RoHS

StationSize(mm)225x160x130

Weight(kgs)2.5



OperatingInstruction

Caution：Makesurethatthefourscrewswhichareusedtofasten

theDiaphragmpumpareremovedfromthecontrolsystembefore

use.Otherwiseseriousdamagesmaybecausedtotheuserand

thesystem.

1. Placethedesolderingirongunintheholderseparately.Then

connecttheplugtothereceptacleonthestationandturn

clockwisetotightentheplugnut.Checkthatthepowersupply

iscorrespondingtothespecificationonthetypeplateandthe

powerswitchisonthe“OFF”position.Connectthecontrol

unittothepowersupplyandswitchonthepower.Thena

self‐testiscarriedoutinwhichalldisplayelementsare

switchedonbriefly.Theelectronicsystemthenswitcheson

automaticallytothesettemperatureanddisplaysthisvalue.

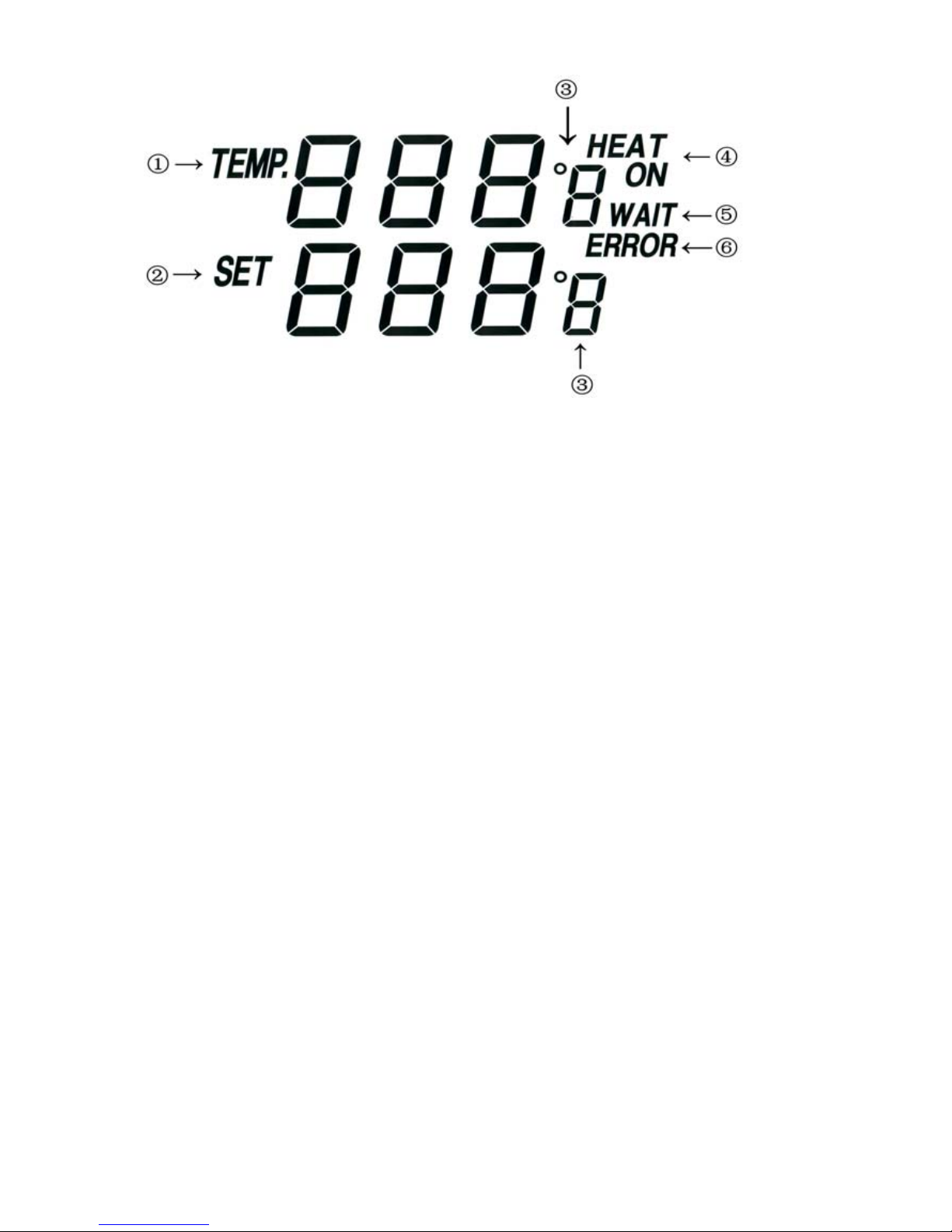

2. Thedisplayandtemperaturesetting



①. Showstheactualtemperatureofthedesolderingtip.

②. Showsthesettingtemperature:Pressingthe“UP”or

“DOWN”buttoncanswitchthedigitaldisplaytotheset

pointdisplay.Theset‐pointcanbechangedfor±1℃by

tappingthe“UP”or“DOWN”button.Pressingthebutton

willchangetheset‐pointquickly.Thedigitaldisplaywill

returnautomaticallytotheactualvalueandtheironwill

reachtothesettingtemperaturequickly.

③. ℃/℉display:Switchingthetemperaturedisplayfrom

℃to℉bypressingthe“℃/℉”buttonandthenthe

electronicsystemwilldisplaytheactualtemperature①and

settingtemperature②in℉,andviceversa.

④. Whentheactualtemperatureonthesolderingtipisless

thantheset‐point,“HEATON”willdisplayandmakethe

desolderingtipheatingup.

⑤. Whentheabsoluteoffsetismorethan±10℃between

theactualtemperatureandtheset‐pointonthesoldering

tiporthenozzle,“WAIT”willdisplay.Itmeansthatthe

temperatureelectroniccontrolsystemisnotinthestable

situation,weshouldwaitamomenttoletthe“WAIT”

disappear.

⑥. When“ERROR”display,theremaybeatroubleonthe



SafetyInstruction

1. Themanufacturerassumesnoliabilityforusesotherthan

thosedescribedintheoperatinginstructionsorfor

unauthorizedalterations.

2. Theoperatinginstructionsandcautionsshouldberead

carefullyandkeptinaneasilyvisiblelocationinthevicinityof

thecontrolsystem.Non‐observanceofthecautionswillresult

inaccidents,injuryorriskstohealth.



Caution

1. Thepowercordonlycanbeinsertedinapprovedpower

socketsoradapters.

2. HighTemperature

Thetemperatureofthesolderingtipwillreachashighasaround

400℃（752℉）whenthepowerswitchison.Sincemishandling

mayleadtoburnsandfire,besuretocomplywiththefollowing

precautions:

①. Donottouchmetallicpartsnearthesolderingtip/

nozzle.

②. Donotusethissystemneartheflammableitems.

③. Adviseotherpeopleintheworkareathattheunitcan

reachaveryhightemperatureandshouldbe

consideredpotentiallydangerous.

④. Turnoffthepowerswitchwhiletakingbreaksandwhen

finishingusing.

⑤. Beforereplacingpartsorstoringthesystem,turnoffthe

powerandletitcooldowntotheroomtemperature.

⑥. Warning:thistoolmustbeplacedonitsstandwhennot

inuse.

⑦. Afiremayresultiftheapplianceisnotusedwithcare,

therefore:

1) Becarefulwhenusingtheapplianceinplaceswhere

thereiscombustiblematerial.

2) Donotapplytothesameplaceforalongtime.

3) Donotuseinpresenceofanexplosiveatmosphere.

4) Beawareheatmaybeconductedtocombustible

materialsthatoutofsight.

5) Placetheapplianceonitsstandafteruseandallow

ittocooldownbeforestorage.

6) Donotleavetheapplianceunattendedwhenitis

switchedon.

3. Takecareofyourtools

Donotusethetoolsforanyapplicationsotherthansoldering

ordesoldering.

Donotraptheironagainsttheworkbenchorotherwise

subjecttheirontosevereshocks.

Donotfilethesolderingtiptoremovetheoxide,pleasewipe

thetiponthecleaningsponge.

Useonlyaccessoriesorattachmentswhicharelistedinthe

operationmanual.Useofothertoolsandotheraccessories

canleadtoadangerofinjury.

Pleaseturnoffthepowerbeforeconnectingordisconnecting

thesolderingiron.

4. Maintenance

Beforefurtheruse,safetydevicesorslightlydamagedparts

mustbecarefullycheckedforerror‐freeandintended

operation.Inspectmovingpartsforerror‐freeoperationand

thattheydon’tbind,orwhetheranypartsaredamaged.

Damagedsafetydevicesandpartsmustberepairedor

replacedbyaqualifiedtechnician,solongasnothingelseis

indicatedintheoperationmanual.Useonlyaccessoriesor

attachmentswhicharelistedintheoperationmanual.Useof

othertoolsandotheraccessoriescanleadtoadangerof

injury.

5. Keepchildrenatadistance

Warning:thisapplianceisnotintendedforusebyyoung

childrenandinfirmpersonsunlesstheyhavebeen

adequatelysupervisedbyaresponsiblepersontoensure

thattheycanusetheappliancesafely.

Warning:Youngchildrenshouldbesupervisedtoensurethat

theydonotplaywiththeappliance.

Unusedsolderingtoolsshouldbestoredinadrylocation

whichisoutofthereachofchildren.Switchoffallunused

solderingtools.

6. Protectyourselfagainstelectricalshocks

Avoidtouchinggroundedpartswithyourbody,e.g.pipes,

heatingradiatorsandsoon.Thegripofantistaticdesigned

solderingtoolisconductive.

7. Workenvironment

Donotusethesolderingtoolinamoistorwetenvironment.

Thesolderingironshouldbeplacedontheholderafter

finishedusing.

8. Observethevalidsafetyregulationsatyourworkplace.



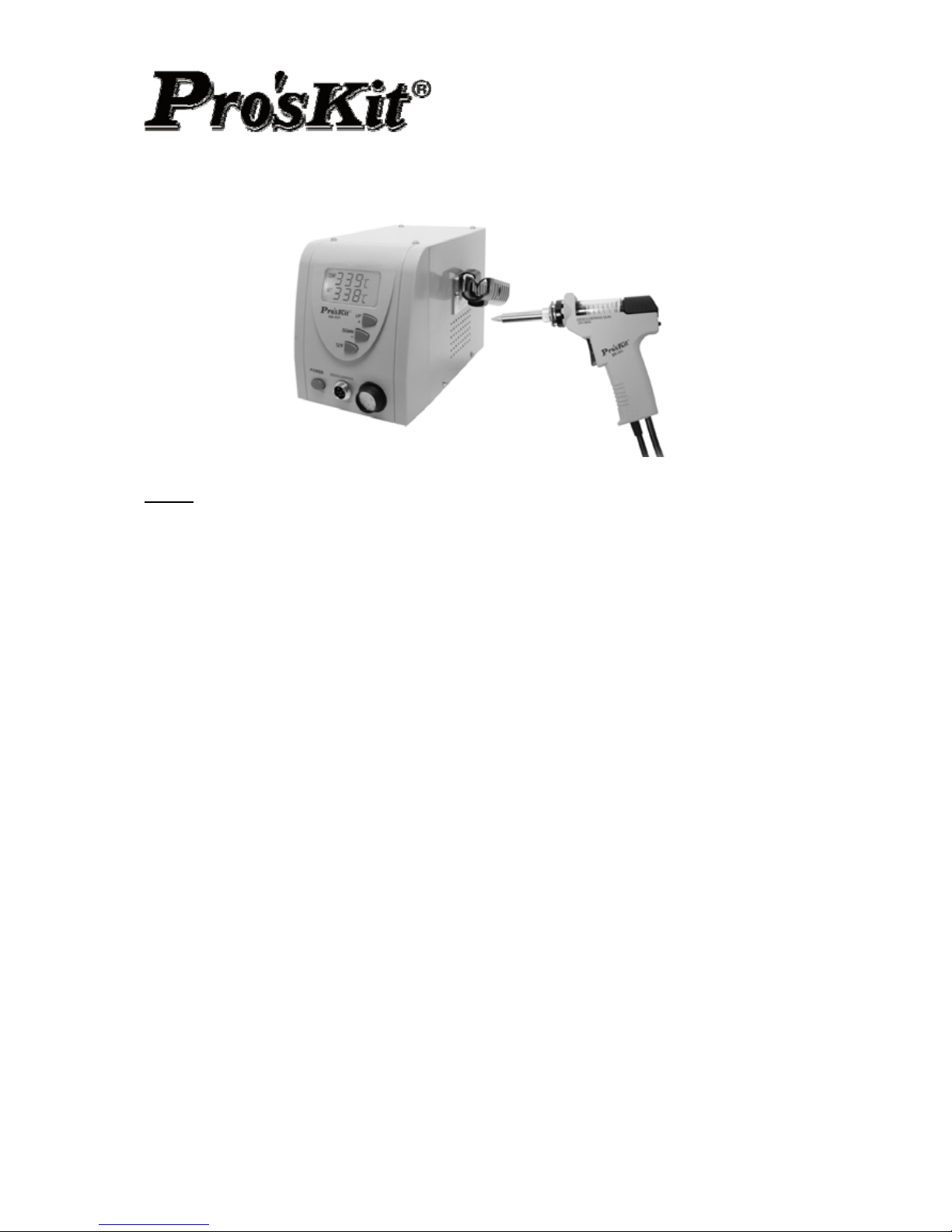

SS-331 數顯吸焊台

概述

SS-331 特別為無鉛吸焊而設計。快速升溫和大功率的特點使其可

以方便快速的焊接/拆焊所有類型的 DIP 元器件。

合理的結構，單手操作和強大的吸焊功率能夠輕鬆的從 PCB 一面

或兩面除去殘餘錫渣。

目前已廣泛的應用於電子科研，教學以及生產等單位，特別是家

電維修和通訊器材維修人員所不可缺少的首選專用工具。

1. 控制單元

吸焊槍由微處理器自動控制。數位控制裝置和高品質的感測器及

加熱交換系統保證對烙鐵頭的溫度進行精確的控制。通過快速準

確的記錄閉和控制回路測量可以獲得作高的溫度精度和帶負載狀

況下最佳熱量轉遞性能，特別適合用於無鉛制程工藝。

2. 吸焊槍 (5SS-331-DG)

吸焊槍的功率為 60W（額定加熱功率 130W），可以配各種尺寸

的烙鐵頭（U系列），廣泛應用於電子領域。

大功率和細長外形設計使這個電烙鐵適合做精密的焊接操作，發

熱芯採用陶瓷發熱材料製作，頂端溫度感測器設計其特點在於能

夠快速並準確的控制焊接溫度。

技術規範.

電壓220~240VAC

消耗功率140W

溫度160°C~480°C

真空吸力600mmHg

發熱原件陶磁發熱芯

配件吸嘴 x 3(0.8(裝在吸槍上)1.0/  1.3mm)

通針 x 3( 0.7/  0.9/  1.2mm)

過濾棉 x 4 ( 20.8mm x1 +  16.8mm x3)

認證CE,GS,RoHS

尺寸(mm)225x160x130

重量(kgs )2.5

操作說明：

1將吸焊槍放置在支架上。然後將插頭插入插座順時針方向鎖

緊螺母。檢查供電電源符合本產品的規格並確認總電源開關

處於 OFF 的位置。接通控制系統的電源並打開電源開關。系

統進行自檢，所有的液晶顯示都暫時被點亮。電子系統自動

打開並迅速達到設定的溫度值。

2顯示幕和溫度設置：

數位顯示說明：

①. 顯示吸焊烙鐵頭的實際溫度。

②. 顯示的是設定溫度，通過按“UP＂或“DOWN＂鍵來改變設定

值。輕壓單下“UP＂或“DOWN＂鍵設定值將以±1℃變化，持

續按下“UP＂或“DOWN＂鍵設定值將會快速改變。改變設

定值後，電子系統自動工作，顯示溫度會迅速到達設定值。

③. ℃或℉溫度，通過按“℃/℉＂按鈕切換攝氏或華氏溫度，切換

後電子系統會自動顯示的攝氏或華氏實際溫度①和設定溫度②

數值。

④. 當烙鐵頭實際溫度小於設定溫度時顯示“HEAT ON＂表示電

子系統對烙鐵正在加熱。

⑤. 當烙鐵頭實際溫度與設定溫度的絕對偏差大於±10℃時顯示

“WAIT＂，表示電子控溫系統還沒到達穩定狀態，請稍做等

待，待“WAIT＂不顯示時即可正常使用了。

⑥. 顯示“---＂則表示系統有故障，或者是電烙鐵沒有正確連接到

控制系統。

3安全操作說明

3.1 製造商對於超出操作說明中所到的其他使用或未經授

權的更改，不負任何責任。

3.2 應仔細閱讀操作說明及警告並將其放置在控制系統附

近，如不遵守這些警告，將有可能發生意外事故，人體

傷害或健康傷害。

4警告及注意事項

4.1 電源線只能插入經認證過的電源插座或適配器中。

4.2 小心高溫:在開機狀態下，烙鐵頭或熱風槍焊嘴的溫度可以

達到大約 400℃（752℉）左右，由於不正確的操作可能

會造成燒傷或引起火災，故應確保遵守以下預防措施：

不要讓金屬部件接觸到焊嘴和烙鐵頭；

不要在易燃物品附近使用該系統；

告知工作區域中的其他人員此設備會達到非常高的

溫度應注意識別其潛在的危險性；

在休息及使用完後應關閉總電源

在更換零件或儲存前，應關閉總電源並讓其冷卻到
