3200 NON-ADDRESSABLE

FIRE ALARM CONTROL PANEL

INSTALLATION, COMMISSIONING AND

MAINTENANCE MANUAL

www.acornfiresecurity.com

93-331-73 Issue 2 Page 2 of 32 © Protec Fire Detection PLC 2013

Document Revision Details

Issue Modification Detail Author Date

0 Document Creation NH 23/06/05

1 Remove reference to fire link interface RB 18/04/07

2 Refer to ECN3367 NH 23/05/13

www.acornfiresecurity.com

93-331-73 Issue 2 Page 3 of 32 © Protec Fire Detection PLC 2013

Table of Contents

1.0 3200 SYSTEM OVERVIEW.....................................................................................................................................4

2.0 IMPORTANT NOTES – PLEASE READ................................................................................................................. 5

3.0 ITEMS SUPPLIED WITH THE 3200 PANEL ..........................................................................................................6

4.0 CABLING REQUIREMENTS ..................................................................................................................................7

4.1 DETECTOR,ALARM AND AUXILIARY WIRING......................................................................................................7

4.2 MAINS WIRING ....................................................................................................................................................7

5.0 INSTALLATION PROCEDURE ..............................................................................................................................8

6.0 TESTING OF CABLING PRIOR TO CONNECTION...............................................................................................9

7.0 DETECTOR CIRCUIT CONNECTIONS ................................................................................................................ 10

8.0 ALARM CIRCUIT CONNECTIONS.......................................................................................................................11

9.0 AUXILIARY INPUT AND OUTPUT WIRING......................................................................................................... 12

9.1 KEYSWITCH INPUT ............................................................................................................................................. 12

9.2 REMOTE ALARM INPUT...................................................................................................................................... 12

9.3 CLASS CHANGE INPUT ....................................................................................................................................... 12

9.4 GLOBAL FAULT OUTPUT.................................................................................................................................... 12

9.5 GLOBAL FIRE OUTPUT ....................................................................................................................................... 12

10.0 COMMISSIONING................................................................................................................................................. 13

10.1 CONNECTING THE MAINS................................................................................................................................... 13

10.2 CONNECTING THE BATTERIES ........................................................................................................................... 14

10.3 SWITCHING ON.................................................................................................................................................. 14

11.0 PROGRAMMING OVERVIEW ..............................................................................................................................15

11.1 ACCESS LEVELS ................................................................................................................................................. 15

11.2 ZONE PROGRAMMING CHOICES ......................................................................................................................... 16

12.0 PROGRAMMING DETAILS ..................................................................................................................................17

12.1 PROGRAMMING ZONE DISABLEMENTS............................................................................................................... 18

12.2 PROGRAMMING ALARM DISABLEMENTS............................................................................................................ 19

12.3 PROGRAMMING ZONES INTO TEST MODE .......................................................................................................... 20

12.4 PROGRAMMING COINCIDENCE ZONES................................................................................................................ 21

12.5 PROGRAMMING NON-LATCHING ZONES ............................................................................................................ 22

12.6 PROGRAMMING THE DETECTION ZONE END OF LINE MONITORING TYPE.......................................................... 23

13.0 FAULT RECTIFICATION GUIDELINES ............................................................................................................... 24

14.0 3200 TECHNICAL SPECIFICATION ....................................................................................................................25

15.0 3200 FEATURES SPECIFICATION......................................................................................................................26

APPENDIX 1 - ACCESSORIES AVAILABLE FOR THE 3200........................................................................................ 27

APPENDIX 2 - 3200 SPARES LIST..................................................................................................................................28

APPENDIX 3 - 3200 MAIN PCB. DETAILS ...................................................................................................................... 29

APPENDIX 4 - 3200 PROGRAMMING QUICK REFERENCE GUIDE .............................................................................30

www.acornfiresecurity.com

93-331-73 Issue 2 Page 4 of 32 © Protec Fire Detection PLC 2013

1.0 3200 System Overview

The Protec 3200 fire alarm system features:

•2 detection zones.

•2 monitored alarm circuits rated at 150mA each.

•Common negative (allowing three wire operation).

•Re-sounding of outputs if a zone changes from automatic to manual activation

•Three auxiliary inputs: Keyswitch, Class Change and Remote Alarm.

•Global Fire and Global Fault clean contact connections.

•Monitored Auxiliary 24V output (Overload Protected, 100mA maximum).

•Capacitive or resistive detector circuit end of line monitoring (programmable).

•Extensive range of engineering functions accessed via 5 digit entry codes:

•Disablement of zones.

•Coincidence operation.

•Test zones.

•Non-latching zones.

•Disablement of alarm circuits.

•End of line type selection.

•Low quiescent current of 15mA (24V dc supply, mains fail fault, no external equipment).

Note: Due to a policy of continuous improvement Protec Fire Detection plc. reserve the right to alter

the specification without prior notice.

www.acornfiresecurity.com

93-331-73 Issue 2 Page 5 of 32 © Protec Fire Detection PLC 2013

2.0 Important Notes – PLEASE READ

•THE FIRE ALARM PANEL AND ITS ASSOCIATED CONNECTIONS MUST BE INSTALLED,

COMMISSIONED AND MAINTAINED BY A SUITABLY SKILLED AND COMPETENT PERSON.

•THIS EQUIPMENT MUST BE EARTHED.

•THIS EQUIPMENT IS NOT GUARANTEED UNLESS INSTALLED AND COMMISSIONED IN

ACCORDANCE WITH CURRENT NATIONAL STANDARDS.

•THIS EQUIPMENT HAS BEEN DESIGNED AND MANUFACTURED TO CONFORM WITH

THE REQUIREMENTS OF ALL APPLICABLE EU COUNCIL DIRECTIVES.

•THIS MANUAL MUST BE THOROUGHLY READ AND UNDERSTOOD BEFORE

INSTALLATION AND COMMISSIONING OF THIS EQUIPMENT IS UNDERTAKEN.

www.acornfiresecurity.com

93-331-73 Issue 2 Page 6 of 32 © Protec Fire Detection PLC 2013

3.0 Items Supplied with the 3200 panel

•Installation, Commissioning and Maintenance manual.

•User manual.

•Mounting template.

•Accessory pack, comprising:

•2 x 100µF/22Ωdetector circuit end of line units

•2 x 10k alarm circuit end of line units

•1 x red battery lead

•1 x black battery lead

•1 x inter-battery connection lead

•1 x 1 Amp HRC power supply fuse

•1 x 1 Amp anti-surge battery fuse

www.acornfiresecurity.com

93-331-73 Issue 2 Page 7 of 32 © Protec Fire Detection PLC 2013

4.0 Cabling Requirements

4.1 Detector, Alarm and Auxiliary Wiring

All external wiring associated with the system must conform to the current I.E.E Regulations and

cabling must conform to the relevant BS specifications. ECA recommended Cable Separation for

Electromagnetic Compatibility in Buildings must be followed.

To comply with EMC regulations Protec recommends the use of screened cabling throughout the

installation. The screens must be securely connected to the screwed earthing studs provided inside

the 3200 enclosure.

Screened cables that are suitable for wiring are:

MICC (PyroTM), Pirelli FP200TM, FireTuffTM, or any other cable which complies with BS 6387

(categories C, W, Z).

Proper glanding of the cable is vital for the correct performance of the system.

4.2 Mains Wiring

The 3200 requires a mains supply exclusive to the panel that uses fixed three core wiring (between

0.75mm2and 2.5mm2) which is fed from an isolating fused spur, fused at 3A.

Unauthorised operation of the mains supply should not be allowed and the fused spur should be

labelled “FIRE ALARM: DO NOT SWITCH OFF”

Important Note:

Do not connect the mains wiring to the control panel until all other connections (detector

circuits, alarm circuits, auxiliary inputs/outputs) have been checked.

www.acornfiresecurity.com

93-331-73 Issue 2 Page 8 of 32 © Protec Fire Detection PLC 2013

5.0 Installation Procedure

The 3200 fire alarm panel circuit boards are housed in a metal enclosure. This enclosure has a

lockable metal front door (holding the display board).

The panel can be surface or flush mounted (a bezel is required for flush mounting).

The panel must be located internally in an area that is not subject to dampness, extremes of

temperature or physical abuse. The environmental limits are given in Section 21

1) Unpacking

After opening the box, remove the installation template from the packaging, leaving the 3200

in the cardboard box for protection.

2) Preparing the Mounting Position

Use the installation template in conjunction with a spirit level to mark out the fixing locations

for the panel. Drill and plug the three mounting holes previously marked.

3) Removal of the Main Board.

NOTES ON ANTI-STATIC HANDLING OF THE PCBs

Before handling any of the circuit boards in the 3200 it is vital that any operatives

discharge themselves of any static charge that may have built up on them. This can be

done by momentarily touching a solid earth point (a non-painted part of a radiator, for

example).

Handle the PCB. by its sides and DO NOT touch the electronic components.

The PCB. should be stored in a clean, dry place away from the place of work. Retain the

PCB. in a cardboard box for safety until it is required.

Disconnect the 16 way display board ribbon cable from the main PCB. Take care not to strain

the PCB.

Remove the supplementary earth cable from the mains terminal block.

Unscrew the five posidrive screws on the main PCB. Then remove the PCB, the screws (and

any washers) and the power supply insulation sheet and place them in the cardboard box for

protection.

4) Preparing and Fixing the Unit

Using the installation template, mark out suitable positions for cable entry on the top of the

enclosure (not behind the main board or battery locations). The mains cable entry position

should be kept away from other system cabling.

Drill out the cable entry positions and mount the enclosure at the position prepared in (2)

whilst feeding the cables into the enclosure.

Ensure any metal swarf is completely removed from the enclosure before the main PCB. is re-

fitted.

www.acornfiresecurity.com

93-331-73 Issue 2 Page 9 of 32 © Protec Fire Detection PLC 2013

5) Refitting of the Main Board

NOTE: Do not over-tighten any screws.

Refit the power supply insulation sheet over the PCB mounting pillars.

Replace the main PCB and refit the five posidrive screws. Ensure the top right screw includes

a metal star washer to maintain earth connectivity.

Reconnect the 16-way ribbon cable from the display board, and reconnect the supplementary

earth connection to the mains input terminal block.

6.0 Testing of Cabling Prior to Connection

Before connecting any external cables to field device (detectors, sounders, auxiliary inputs or outputs),

or the 3200, tests must be carried out using a 500V dc insulation tester (MeggerTM). The readings

between each cable core, and each core and earth should be greater than 10MΩ.

Important Notes:

•Equipment connected to the cabling during insulation tests could be damaged with the high

voltages produced during the test.

•Field devices and the 3200 MUST NOT be connected when high voltage insulation tests are being

performed on the cabling.

•The cabling must be completely discharged prior to connection to any field devices or the 3200.

www.acornfiresecurity.com

93-331-73 Issue 2 Page 10 of 32 © Protec Fire Detection PLC 2013

7.0 Detector Circuit Connections

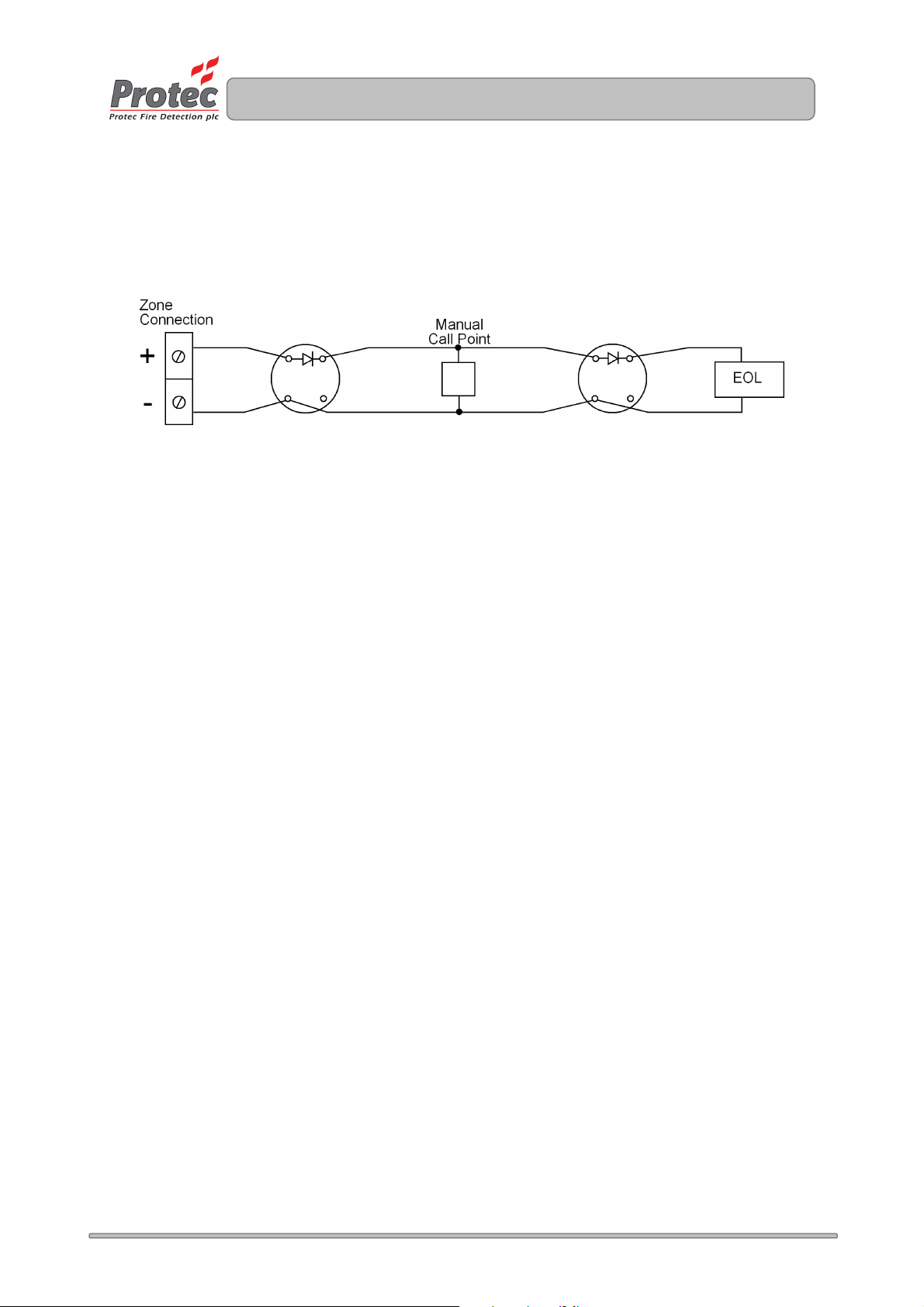

Figure 7 shows a typical connection regime for a detector zone on the 3200.

Figure 7.0 Typical 3200 Detector Connection

•Ensure the length of the zone wiring is no more than 500 metres.

•Ensure the resistance of each conductor is no more than 15Ω.

•Ensure the capacitance of the zone wiring is no more than 0.27µF (micro-Farads)

when no end of line capacitor is present.

•The end of line unit (8.2kΩresistor or 100µF/22Ωnetwork) must be placed at the very end of the

detector zone wiring, to ensure the whole zone is monitored.

•Spurs should not be connected from the zone wiring, as a spur cannot be monitored for open

circuit faults.

•To ensure compliance with EN54 Part 2 each detector base must include a series low voltage

drop diode, so that manual call points following a removed detector still function correctly. Protec

S3000 bases incorporate the diode as standard.

•Manual call points must incorporate a series resistor to ensure the zone does not enter a short

circuit fault condition when the manual call point is activated. If the panel is to be able to

distinguish between automatic and manual zone activation. The resistor value in the manual call

point must be 180Ω. In retrofit situations, values up to 560Ωcan be used but the ‘MCP Fire’

indication may not be given in all cases.

Protec 3100 manual call points incorporate the series resistor as standard.

www.acornfiresecurity.com

Inhaltsverzeichnis

Andere Pro-tec Bedienfeld Handbücher

Pro-tec

Pro-tec Digilite DL500 Leitfaden

Pro-tec

Pro-tec Digilite Bedienungsanleitung

Pro-tec

Pro-tec 3100 Bedienungsanleitung

Pro-tec

Pro-tec 3500 Leitfaden

Pro-tec

Pro-tec 6100 Leitfaden

Pro-tec

Pro-tec 3500 Bedienungsanleitung

Pro-tec

Pro-tec Algo-Tec 6500 Bedienungsanleitung

Pro-tec

Pro-tec 6100 Bedienungsanleitung

Pro-tec

Pro-tec Algo-Tec 6300 Bedienungsanleitung

Pro-tec

Pro-tec 6100 Betriebsanleitung

Pro-tec

Pro-tec Algo-Tec 6400 Bedienungsanleitung

Pro-tec

Pro-tec Digilite DL500 Bedienungsanleitung

Beliebte Bedienfeld Handbücher anderer Marken

RDZ

RDZ PC-HRX Bedienungsanleitung

STG-BEIKIRCH

STG-BEIKIRCH MZ3 Technisches Handbuch

Efka

Efka Variocontrol V810 Bedienungsanleitung

Cebora

Cebora 208-10 Bedienungsanleitung

AMX

AMX AutoPatch CP-15 Bedienungsanleitung

Satel

Satel CA-6 KLED-S Bedienungsanleitung

Evolution

Evolution IQ plus 800 Bedienungsanleitung

Fagor

Fagor 8040 TCO CNC Bedienungsanleitung

Trane

Trane ComfortLink II XL950 Control Bedienungsanleitung

AKO

AKO PROCool AKO-17635-2 Bedienungsanleitung

ABB

ABB 6136/30M-101 Bedienungsanleitung

Telikou

Telikou BK-603 Belt Pack Bedienungsanleitung

Mapei

Mapei Mapeheat Thermo Touch Bedienungsanleitung

Bosch

Bosch D9412GV4 Bedienungsanleitung

Mitsubishi Heavy Industries

Mitsubishi Heavy Industries SC-SL4-AE2/1 Bedienungsanleitung

Sminn

Sminn BOX L VF1L EI Bedienungsanleitung

Balboa

Balboa TP600 Bedienungsanleitung

Nice

Nice HSCU1 Technische Daten
