PROAIM Dove Tail Bedienungsanleitung

What’s In The Box

Please inspect the contents of your shipped package to ensure you have received everything that is listed

below.

Dove Tail Mount Base Plate for Camera Carts (P-DTP-01)

No part of this document may be reproduced, stored in a retrieval system, or transmied by any form or by any means,

electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permied by the applicable copyright

statutes or in wring by the Publisher.

Assembly Manua l

Proaim Dovetail Mount Base Plate

2 x (¼” x 1 ¼”) Mounng Screws

2 x (¼”x ¾”) Screws

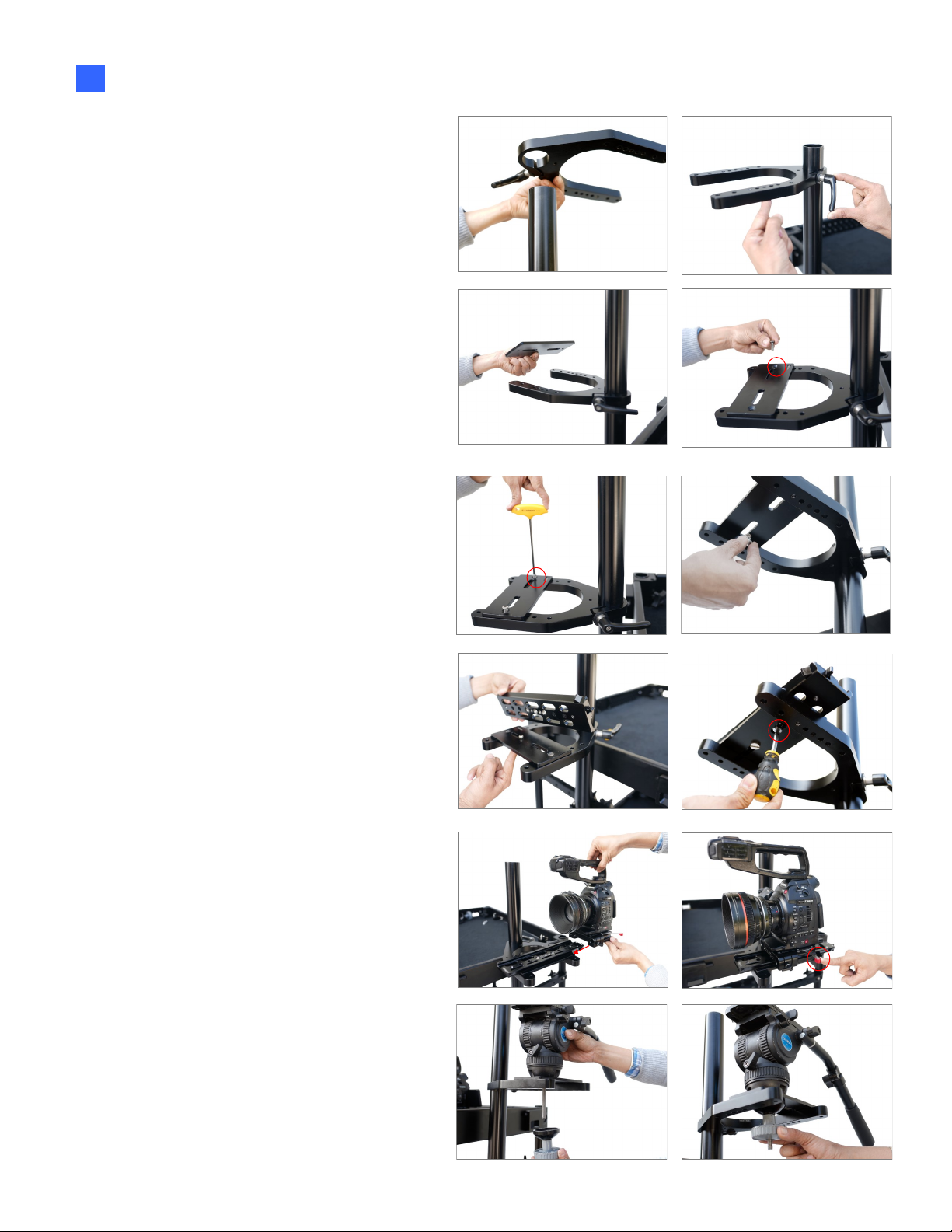

 Mount the horse-shoe on the rod and secure

it with the knob. Mounng the dovetail base

plate requires a horse-shoe mount rst.

 Aer inserng the screws, secure it with an

Allen key and insert the bolt of 3/8”-16

screws from the boom of the dovetail plate

as shown in the image.

Dove Tail Base Plate Setup

 For direct camera mounng, slide the C-100

camera (Not included) onto the dovetail plate

and press the lever to secure the camera

properly.

 For uid head camera mounng, mount the

uid head (Not included) on the dovetail base

plate and secure it with the knob.

Note: Proaim uid head comprises a sliding

camera plaorm, opmizing lt control. The

sturdy knob sens the lt mechanism to help

stop the camera from pping backward or

forwards when using a heavy lens.

 Mount the dovetail base plate onto the

horse-shoe, insert the 2 x (¼”x ¾”) screws

aligning the plate and horse-shoe mount

threads.

Note: Proaim Dovetail Mount Base Plate is

designed for Camera Carts. It instantly aaches

to horse-shoe mount.

 Mount the dovetail tripod plate on the

dovetail base plate and secure it properly

using a screwdriver.

Note: The Dovetail Tripod Plate is a 10" ARRI

standard plate with safety catches on each end.

YOUR PROAIM DOVE TAIL MOUNT BASE PLATE FOR CAMERA CARTS

ALL DRESSED UP AND READY TO GO!

(SHOWN WITH OPTIONAL ACCESSORIES)

Warranty: We oer one year warranty for our products from date of purchase. Within this period of

me, we will repair it without charge for labor or parts. Warranty doesn’t cover transportaon costs nor

does it cover a product subjected to misuse or accidental damage. Warranty repairs are subjected to

inspecon and evaluaon by us.

Liability: We are not liable for damage caused by products that we do not supply or from mishandling

in transit, accident, misuse, neglect, lack of care of the product, or service by anyone other than our

company.

utmost support and care unl you use our product.

 Mount the C-100 camera (Not included) on

the uid head, as shown in the picture.

Note: Proaim Dovetail Mount Base Plate oers

stable support to any quick release camera

systems & 3-axis Gimbals. It adapts cameras like

Canon C100 and DSLR Video camera like Red

scarlet.
