PROAIM SL-ALPN-01 Bedienungsanleitung

What’s In The Box

Please inspect the contents of your shipped package to ensure you have received everything that

is listed below.

No part of this document may be reproduced, stored in a retrieval system, or transmied by any form or by any means,

electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permied by the applicable copyright

statutes or in wring by the Publisher.

Assembly Manual

Alpine Vercal Tower Mitchell Camera Slider w Euro

Base (SL-ALPN-01)

Proaim Alpine Tower Slider

Mitchell Mount

Plate Weight Rod (Dia: 50mm)

with Weight Closer

Bag Packing

Weight Rod

(Dia:25mm)

 Loosen the bolt using the Allen key to attach

the Mitchel plate into the Alpine tower slider

and then remove the bolt.

 Now the Mitchell to the Euro adapter

(Not Included) has properly been secured over

the Cyrus pro Mitchell high-hat (Not Included),

as shown in the image.

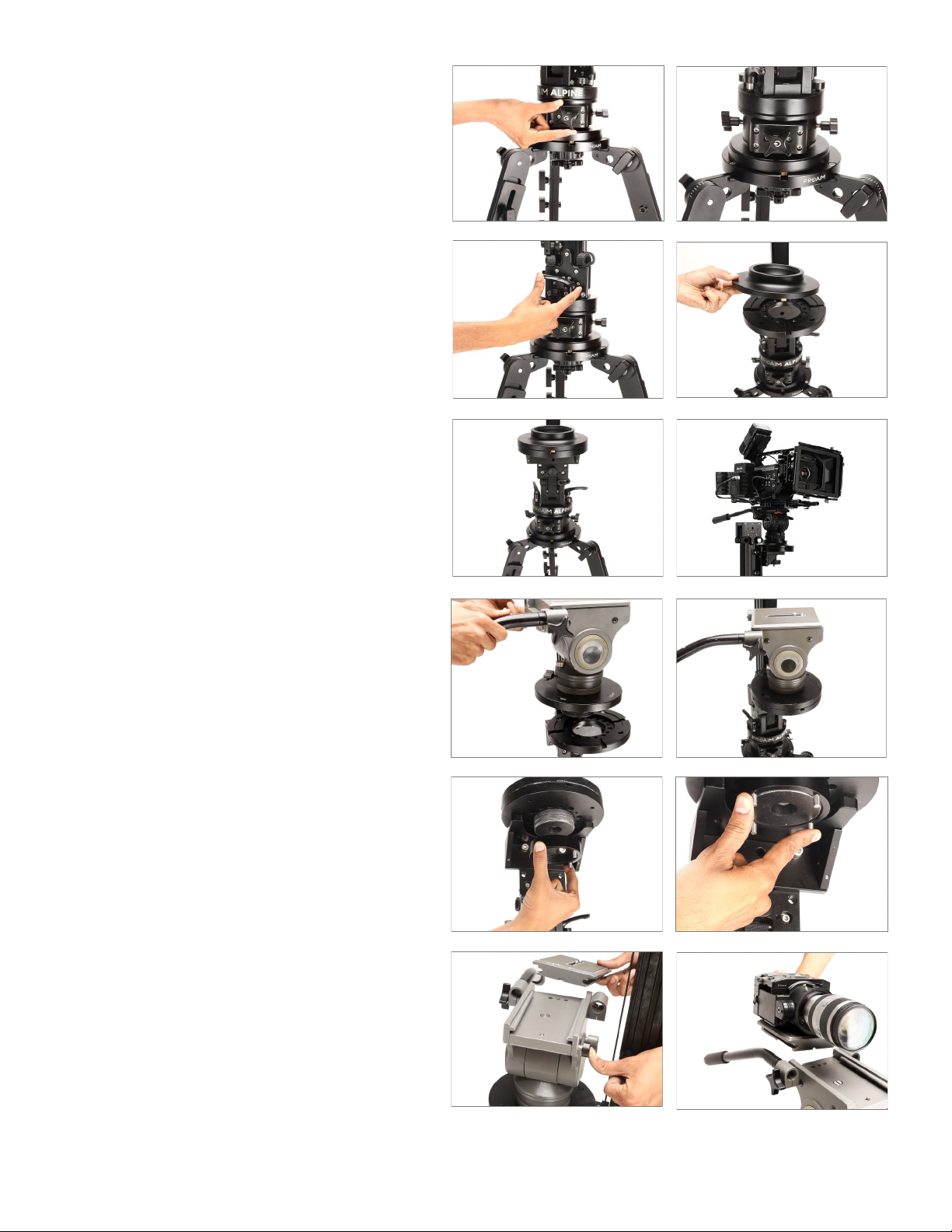

Alpine Vercal Tower Mitchell Camera Slider Setup

 Attach the Mitchell mounting plate on the

tower slider plate and then insert the bolt by

aligning the thread, as shown in the image.

 To mount the Alpine Tower Slider over the

Euro Adapter (Not Included), loosen all the

knobs from bottom and then mount.

 Mount the Mitchell to Euro adapter

(Not Included) to Cyrus pro Mitchell high-hat

(Not Included) and then secure it from bottom

using the locking knob.

 After inserting the bolt on the Mitchell mount

plate, secure the bolt with the help of the

Allen key, as shown in the image.

Alpine Tower Mount on Cyrus Pro Mitchell Hi-Hat

 After mounting the Alpine Tower Slider, again

tighten the knob and properly secure it.

 Secure the Properly Alpine tower slider with

the ratchet knob. Then aach the bowl plate

(Not Included) to the Mitchell plate.

 Attach the bowl plate (Not Included) to the

Mitchell plate to mount the bowl’s fluid head

(Not Included) and then mount the camera on

the fluid head, as shown in the image.

 Attach the Mitchell’s fluid head (Not Included)

to the Mitchell plate.

NOTE: Its rugged design supports any camera/

uid head combinaon up to 22.6. Mulple

3/8"-16 threaded holes for mounng

accessories.

 Secure with the castle nut after mounting the

fluid head as shown in the image.

 To release the top plate of the fluid head,

press the side knob. Then match the camera’s

thread to the fluid head (Not Included) and

attach top plate of the fluid head to the

camera and then slide the camera to the fluid

head.

 Camera has been properly mounted on the

fluid head (Not Included).

NOTE: Alpine tower slider compable with

Mitchell Base to Bowl Adapter & Euro/Elemac

Base Adapter.

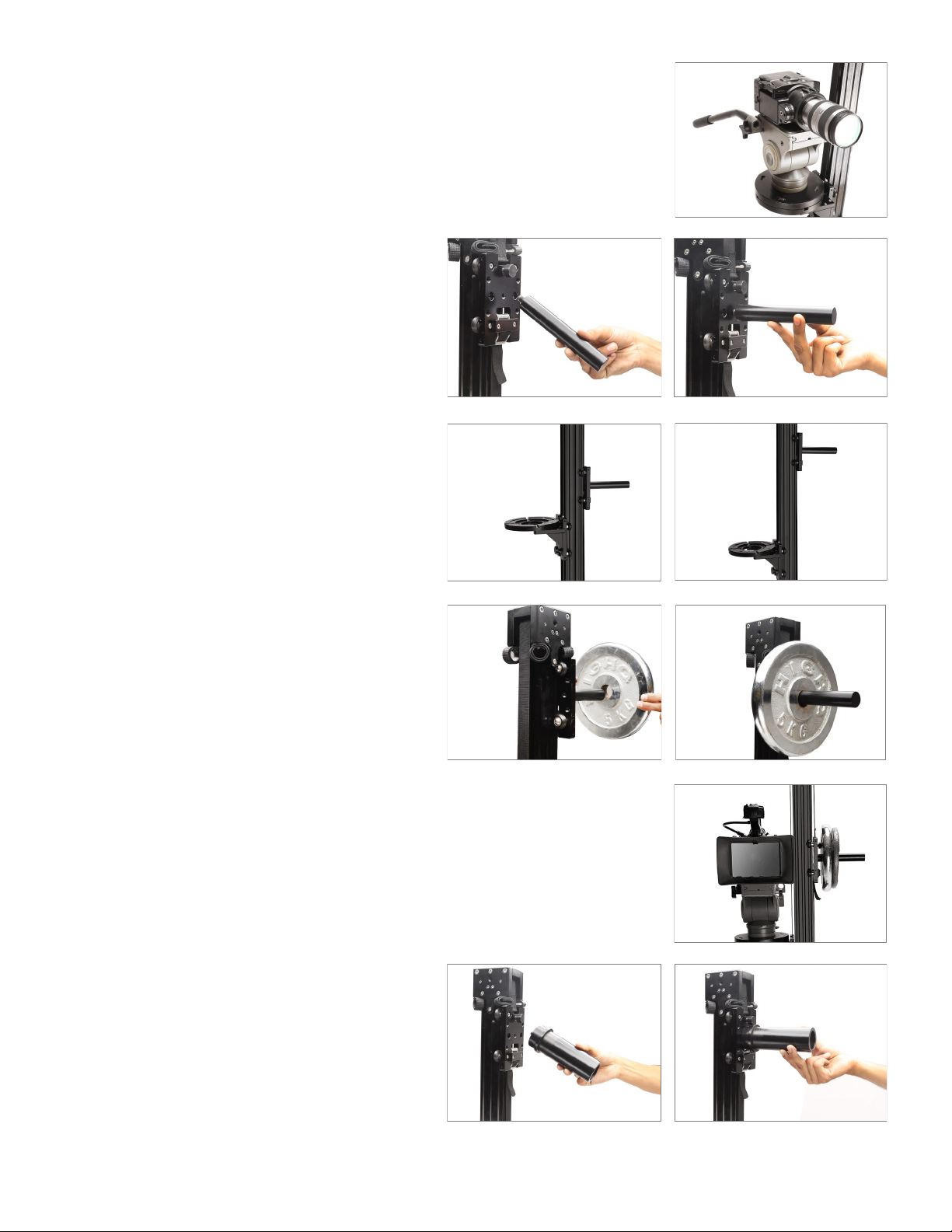

 As per the requirement of the setup, insert

the weight to the weight rod.

 After matching the alpine tower slider to the

mounting thread, insert the weight rod

(Dia: 25mm) into it and then properly secure

the rod.

 After matching the alpine tower slider’s

mounting thread with the weight rod, and

then insert the weight rod (Dia: 25mm) into it

and then properly secure the rod.

 You can set setup in steady motion.

NOTE: Alpine Tower Slider is a counterbalanced

elevaon tower that gives operators 26.7” of

smooth vercal movement as well as a

complete 360° of rotaon.

 Now setup is ready to use.

 Alpine Tower Slider is designed to work with

various camera plaorms like Heavy-duty

sliders, Doorway Dollies, Tripods, Pipe dollies,

Hi-hats, Bazookas, or any other plaorm with

an Elemac mounng base.

YOUR PROAIM ALPINE VERTICAL TOWER MITCHELL CAMERA SLIDER W EURO BASE

ALL DRESSED UP AND READY TO GO!

(SHOWN WITH OPTIONAL ACCESSORIES)

 To properly secure the weight on the weight

rod, weight closer will be used.

Warranty: We oer one year warranty for our products from date of purchase. Within this period of me,

we will repair it without charge for labor or parts. Warranty doesn’t cover transportaon costs nor does it

cover a product subjected to misuse or accidental damage. Warranty repairs are subjected to inspecon

and evaluaon by us.

Liability: We are not liable for damage caused by products that we do not supply or from mishandling in

transit, accident, misuse, neglect, lack of care of the product, or service by anyone other than our company.

most support and care unl you use our product.
