Progress Lighting AirPro Schaal P250101 Bedienungsanleitung

P250101

93165624_A

Limited Lifetime Warranty

Date Purchased

Store Purchased

UL Model No.

Serial No.

Vendor No.

UPC

P250101

Progress Lighting fan motors are warranted to the original purchaser to be free of electrical and/or mechanical

defects for so long as the original purchaser owns the fan. Pull chain switches, reverse switches, capacitors and

metal nishes are warranted to be free from defects in materials or workmanship for a period of 1 year from

the date of purchase. Warping of wooden or plastic blades is not covered by this warranty nor is corrosion and/

or deterioration of any nishes for fans installed within ten miles of any sea coast. Extended warranties for

ENERGY STAR® qualied products may apply.

Progress Lighting ceiling fans with built-in LED light sources, when properly installed and under normal

conditions of use, are warranted to be free from defects in material and workmanship which cause the light

sources to fail to operate in accordance with the specications for (i) ve (5) years from the date of purchase

on the LED Light modules and electrical components for fans used in single family residences, and (ii) three

(3) years from the date of purchase on the LED Light modules and electrical components for fans used in

multi-family or commercial applications. LED bulbs supplied by Progress Lighting carry no warranty other

than manufacturer’s warranty. Non-LED bulbs carry no warranty.

With proof of purchase, the original purchaser may return the defective fan to the place of purchase during the

rst 30 days for replacement. After 30 days, the original purchaser MUST contact Progress Lighting at (864)

678-1000 for repair or replacement which shall be determined in Progress Lighting’s sole discretion and shall

be purchaser’s sole and exclusive remedy.

Labor and Shipping Excluded. This warranty does not cover any costs or fees associated with the labor

(including, but not limited to, electrician’s fees) required to install, remove, or replace a fan or any fan parts.

This warranty shall not apply to any loss or damage resulting from (i) normal wear and tear or alteration,

misuse, abuse or neglect, or (ii) improper installation, operation, repair or maintenance by original purchaser

or a third party, including without limitation improper voltage supply or power surge, use of improper parts or

accessories, unauthorized repair (made or attempted) or failure to provide maintenance to the fan.

THE FOREGOING WARRANTIES STATE PROGRESS LIGHTING’S ENTIRE WARRANTY OBLIGATION

AND ORIGINAL PURCHASER’S SOLE AND EXCLUSIVE REMEDY RELATED TO SUCH PRODUCTS.

PROGRESS LIGHTING IS NOT RESPONSIBLE FOR DAMAGES (INCLUDING INDIRECT, SPECIAL,

INCIDENTIAL OR CONSEQUENTIAL), DUE TO PRODUCT FAILURE, WHETHER ARISING OUT OF

BREACH OF WARRANTY, BREACH OF CONTRACT, OR OTHERWISE. THIS WARRANTY IS GIVEN

IN LIEU OF ALL OTHER WARRANTIES, WHETHER EXPRESSED OR IMPLIED, INCLUDING THOSE

OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NONINFRINGEMENT.

Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitations

of incidental or consequential damages, so the above limitations and exclusions may not apply to you. This

warranty gives you specic rights and you may have other rights which vary from state to state.

785247255511

785247255528

111017

Safety Rules

Unpacking Your Fan

Installing Your Fan

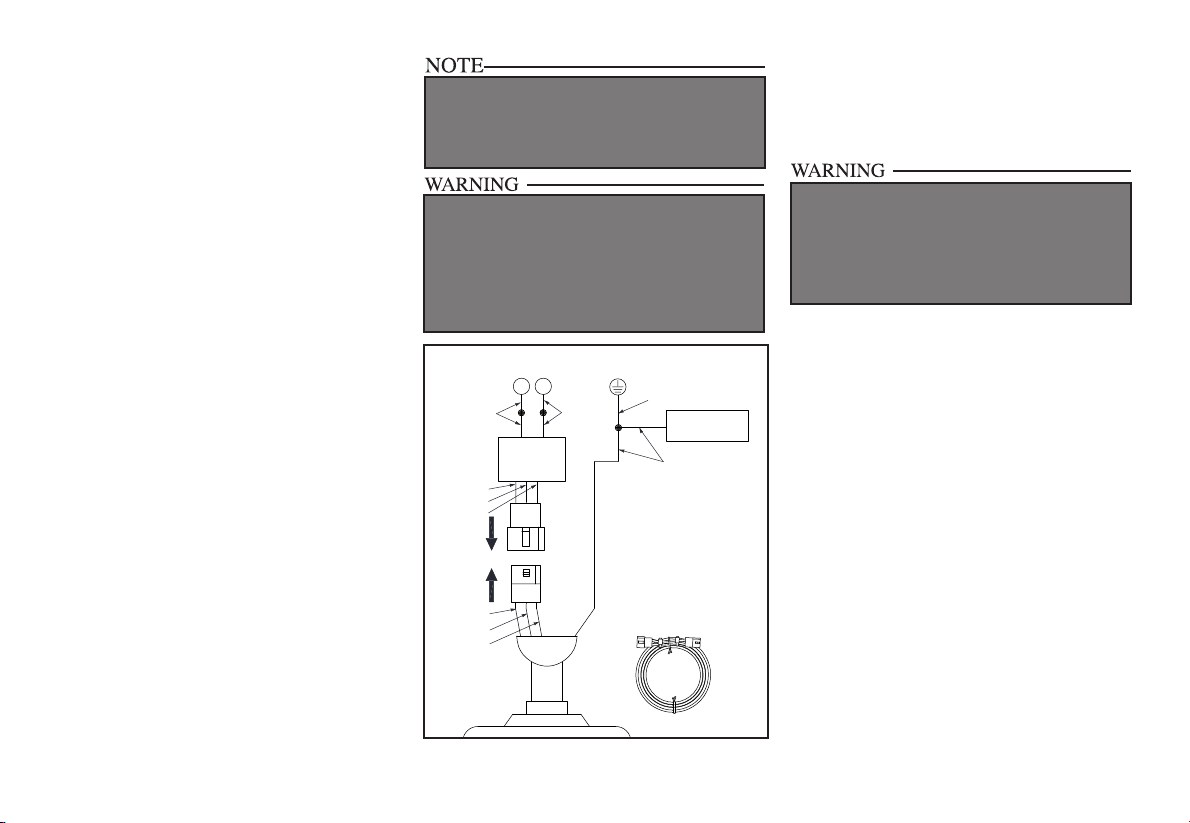

Making the Electrical Connections

Operating Your Fan

Care of Your Fan

Troubleshooting

Specications

Table of Contents

1. To reduce the risk of electric shock, insure electricity has been

turned off at the circuit breaker or fuse box before beginning.

2. All wiring must be in accordance with the National

Electrical Code ANSI/NFPA 70-1999 and local electrical

codes. Electrical installation should be performed by a

qualied licensed electrician.

3. CAUTION: To reduce the risk of personal injury, use only the

screws provided with the electrical box.

4. The outlet box and support structure must be securely mounted

and capable of reliably supporting 35 lbs. (15.9 kg). Use only

UL Listed outlet boxes marked “Acceptable for Fan Support of

35 lbs. (15.9 kg) or less.”

5. CAUTION: The fan must be mounted with a minimum of 7

feet clearance from the trailing edge of the blades to the oor.

6. Do not operate reversing switch while fan blades are in motion.

Fan must be turned off and blades stopped before reversing

blade direction.

7. Avoid placing objects in path of the blades.

8. To avoid personal injury or damage to the fan and other items,

be cautious when working around or cleaning the fan.

9. Do not use water or detergents when cleaning the fan or fan

blades. A dry dust cloth or lightly dampened cloth will be

suitable for most cleaning.

10. After making electrical connections, spliced conductors should

be turned upward and pushed carefully up into

electrical box. The wires should be spread apart with the

grounded conductor and the equipment-grounding

conductor on one side of the electrical box and ungrounded

conductor on the other side of the electrical box.

11. Electrical diagrams are for reference only. Light kits that are

not packed with the fan must be UL Listed and marked suitable

for use with the model fan you are installing. Switches must be

UL General Use Switches. Refer to the instructions packaged

with the light kits and switches for proper assembly.

12. All set screws must be checked and retightened where

necessary before installation.

13. WARNING: To reduce the risk of re or electric shock, do not

use this fan with any solid-state speed control device.

14. WARNING: To reduce the risk of re or electric shock, this

fan should only be used with speed controller UC7312RE,

manufactured by Rhine Electronic Co., Ltd.

15. Suitable for use in damp locations. Use only with light kits

marked “Suitable for use in damp locations.”

1. Safety Rules

READ AND SAVE THESE INSTRUCTIONS

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL

INJURY, MOUNT TO OUTLET BOX MARKED “ACCEPTABLE FOR FAN

SUPPORT OF 35LBS. (15.9 KG) OR LESS”, AND USE SCREWS PRO-

VIDED WITH THE OUTLET BOX.

TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE

BLADE BRACKETS (ALSO REFERRED TO AS (“FLANGES”) DURING

ASSEMBLY OR AFTER INSTALLATION. DO NOT INSERT OBJECTS IN

THE PATH OF THE BLADES.

TO REDUCE THE RISK OF SHOCK, THIS FAN MUST BE INSTALLED

WITH AN ISOLATION CONTROL/SWITCH.

a. Blade attachment hardware

(16 screws for for attaching blades to blade

arms)

b. Blade bracket attachment hardware

(11 screws for attaching blade arms to the

fan motor assembly)

c. Light shade attachment hardware

(4 screws)

d. Electrical hardware and balancing kit

(3 plastic wire connectors, blade balancing kit)

7. Blade Arms (5)

8. Light Kit Pan

9. Light Kit Fitter Assembly

10. Light Shade

11. Transmitter and Receiver

1. Mounting Bracket (inside canopy)

2. 6” Ball/Downrod Assembly (hanger pin

and locking pin pre-attached)

3. Canopy with Canopy Ring (attached)

4. Decorative Motor Collar Cover

5. Fan Motor Assembly

6. Blades (5)

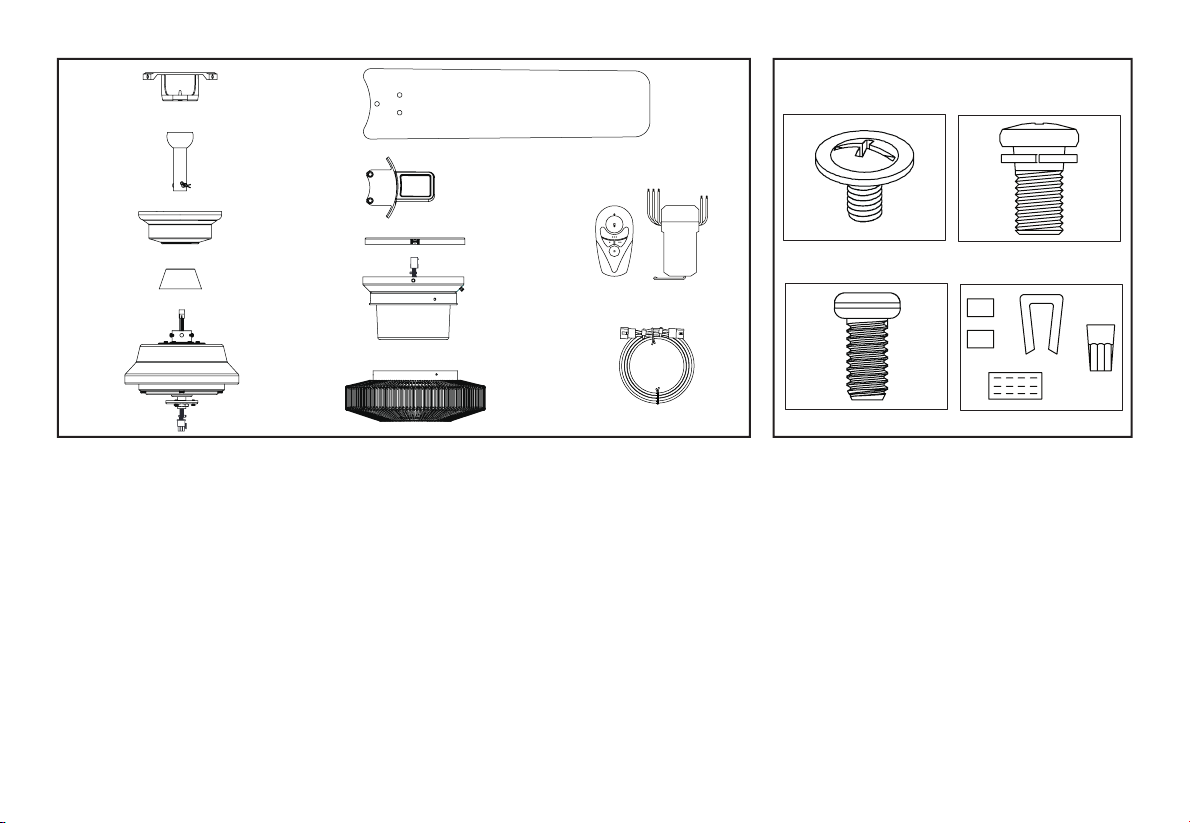

2. Unpacking Your Fan

Unpack your fan and check the contents. You should have the following items:

12. Extension Lead Wire

3. Installing Your Fan

Tools Required

Phillips screw driver or straight slotted screw

driver, adjustable wrench, step ladder, and

wire cutters.

Mounting Options

If there isn’t an existing electrical box, then

read the following instructions. Disconnect

the power by removing fuses or turning off

circuit breakers.

Secure the electrical box directly to the building

structure. Use appropriate fasteners and

building materials. The electrical box and

its support must be able to fully support the

moving weight of the fan (at least 35 lbs.).

Do not use plastic electrical boxes.

Figures 1, 2, and 3 are examples of different

ways to mount the electrical box.

Note: You may need a longer downrod to

maintain proper blade clearance when installing

on a steep, sloped ceiling. The maximum

angle allowable is 20˚. If the canopy touches

downrod, remove the decorative canopy

bottom cover and turn the canopy 180˚ before

attaching the canopy to the mounting plate.

To hang your fan where there is an existing

xture but no ceiling joist, you may need an

installation hanger bar as shown in Figure 4.

TO REDUCE THE RISK OF FIRE, ELECTRIC

SHOCK OR PERSONAL INJURY, MOUNT

TO OUTLET BOX MARKED “ACCEPTABLE

FOR FAN SUPPORT OF 35LBS. (15.9 KG) OR

LESS”, AND USE SCREWS PROVIDED WITH

THE OUTLET BOX. ELECTRICAL BOXES

COMMONLY USED FOR THE SUPPORT OF

LIGHTING FIXTURES MAY NOT BE ACCEPT-

ABLE FOR FAN SUPPORT AND MAY NEED TO

BE REPLACED. CONSULT A QUALIFIED ELEC-

TRICIAN IF IN DOUBT.

Figure 1

Figure 2

Figure 4

Figure 3

Hanging the Fan

REMEMBER to turn off the power. Follow

the steps below to hang your fan properly.

NOTE: This fan is recommended for

standard ceiling mount using the downrod

provided with this fan. When using standard

ceiling installation with the 6 inch downrod

provided, the distance from the ceiling

to the bottom of the fan blades will be

approximately 11.8 inches.

Standard Ceiling Mounting

1. Remove the canopy ring from the canopy

by turning the ring until it unlocks.

(Figure 5)

2. Remove the mounting bracket from the

canopy by loosening the four screws on

the top of the canopy. Remove the two

non-slotted screws and loosen the slotted

screws. This will enable you to remove

the mounting bracket. (Figure 6)

3. Remove the hanger pin and locking pin

from downrod assembly.

4. Route the wires exiting the top of the fan

motor through the decorative motor collar

cover then the canopy ring. Make sure the

slot openings are on top. Route the wires

through the canopy and then through the

ball/downrod assembly. (Figure 7)

Remove

Loosen but Do Not Remove

Turn Canopy Ring to Remove

Figure 5

Figure 6

5. Loosen, but do not remove, the set screws

on the collar on the top of the motor

housing.

6. Align the holes at the bottom of the

downrod with the holes in the collar on top

of the motor housing. (Figure 7)

Carefully insert the hanger pin through the

holes in the collar and downrod. Be careful

not to jam the hanger pin against the wiring

inside the downrod. Insert the locking pin

through the hole near the end of the bolt

until it snaps into its locked position, as

noted in the circle inset of Figure 7.

7. Re-tighten the set screws on the collar on

top of the motor housing.

8. Make sure the grommet is properly installed

in the collar cover, then slide the collar cover

on the downrod until it rests on the motor

housing. Be sure that the canopy and the

collar cover are both oriented correctly.

9. Proceed to “Installing the Fan” section.

FAILURE TO PROPERLY INSTALL SET SCREWS

AS NOTED IN STEP 7 COULD RESULT IN FAN

LOOSENING AND POSSIBLY FALLING.

Figure 7

Motor wires

Ball/downrod

assembly

Canopy

ring

Motor collar

cover

Hanger pin Locking pin

Motor collar

Tighten

screws

Pin in locked

position

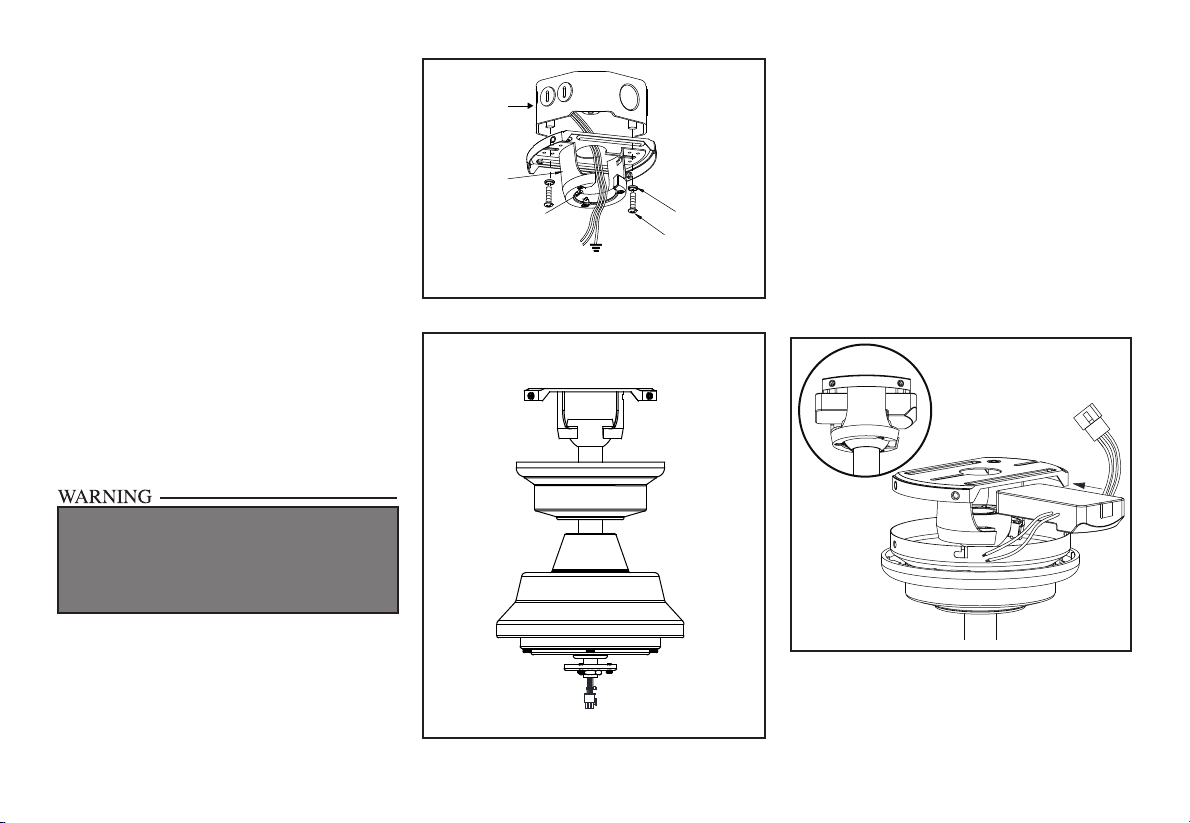

Installing Fan to

the Electrical Box

1. Pass the 120-volt supply wires through the

center hole in the ceiling mounting bracket

as shown in Figure 8.

2. Install the ceiling mounting bracket on the

electrical box by using the mounting screws

provided with the electrical box. Note that

the at side of the mounting bracket is

toward the electrical box. (Figure 8)

3. Tighten the two screws on the electrical box

securely.

4. Carefully lift the fan assembly up to the

ceiling mounting bracket. Make sure the tab

on the mounting bracket is properly seated

in the groove in the hanger ball. (Figure 9)

WHEN USING THE STANDARD BALL/DOWNROD

MOUNTING, THE TAB IN THE RING AT THE

BOTTOM OF THE MOUNTING BRACKET MUST

REST IN THE GROOVE OF THE HANGER BALL.

FAILURE TO PROPERLY SEAT THE TAB IN THE

GROOVE COULD CAUSE DAMAGE TO WIRING.

Figure 9

Washers

Mounting

screws

(supplied with

electrical box)

UL Listed

electrical box

Ceiling

mounting

bracket

Hook

120V wires

Standard mounting

Figure 8

Installing the

Receiver into the

Mounting Bracket

1. Position the house supply wires to one side

of the slide-on mounting bracket; position

the fan wires to the opposite side.

2. Insert the receiver into the slide-on

mounting bracket until it rests on top of the

ball/downrod assembly. (Figure 10)

Figure 10

EACH WIRE NUT (WIRE CONNECTOR) SUPPLIED

WITH THIS FAN IS DESIGNED TO ACCEPT UP TO

ONE 12 GAUGE HOUSE WIRE AND TWO WIRES

FROM THIS FAN. IF YOU HAVE LARGER THAN

12 GAUGE HOUSE WIRING OR MORE THAN

ONE HOUSE WIRE TO CONNECT TO THE FAN

WIRING, CONSULT AN ELECTRICIAN FOR THE

PROPER SIZE WIRE NUTS TO USE.

USE THE PLASTIC WIRE CONNECTORS

SUPPLIED WITH YOUR FAN. SECURE THE

CONNECTORS WITH ELECTRICAL TAPE AND

ENSURE THERE ARE NO LOOSE STRANDS OR

CONNECTIONS.

SUPPLY CIRCUIT

WHITE

Remote

Receiver

WHITE

L N

BLACK

BLUE

GREEN

WHITE

BLACK

BLUE

MOUNTING

BRACKET

GREEN

Figure 11

Wiring the Receiver

to the Household

Wiring

REMEMBER to disconnect the power. If

you feel you do not have enough electrical

wiring knowledge or experience, have your fan

installed by a licensed electrician.

1. Connect the green wire to the household

ground wires using a wire connecting nut.

2. Connect the receiver black wire to

the household black wire using a wire

connecting nut.

3. Connect the receiver white wire to

the household white wire using a wire

connecting nut.

Wiring the Fan to the

Receiver

1. If using the 6 in. ball/downrod assembly

provided, wire the receiver to the fan wires

by connecting the molded adaptor plug from

this receiver with the molded adaptor of the

fan motor assembly together. (Figure 11)

2. If you wish to use longer downrod, you can

use the extension lead wire (66 in.) provided

by connecting the molded adaptors together.

Making the Electrical Connections

Finishing the Fan

Installation

STANDARD CEILING MOUNTING

1. Align the locking slots of the ceiling

canopy with the two screws in the

mounting plate. Push up to engage the

slots and turn to lock in place. Immediately

tighten the two mounting screws rmly.

2. Install the remaining two mounting screws

into the holes in the canopy and tighten

rmly.

3. Install the decorative canopy ring by

aligning the ring’s slots with the screws in

the canopy. Rotate the ring clockwise to

lock in place.

4. You may now proceed to attaching the

fan blades.

WHEN USING THE STANDARD BALL/DOWNROD

MOUNTING, THE TAB IN THE RING AT THE

BOTTOM OF THE MOUNTING PLATE MUST

REST IN THE GROOVE OF THE HANGER BALL.

FAILURE TO PROPERLY SEAT THE TAB IN THE

GROOVE COULD CAUSE DAMAGE TO WIRING.

Attaching the Fan

Blades to Motor

Assembly

Figure 12

Figure 13

1. Attach blade to blade arm by inserting the

blade arm screw holes into the three screw

holes in the blade. Secure using the blade

attachment screws provided (Figure 12).

2. Fasten the blade assembly to the motor

assembly by aligning the two screw holes in

the blade assembly with the two screw holes

in the motor assembly. Attach using the

blade bracket screws provided (Figure 13).

3. Repeat steps 1 and 2 for the remaining

blades.

NOTE: Your fan blades are reversible.

Select the blade side nish which best

accentuates your decor.

Screw

Blade assembly

Motor Assembly

Screw

Blade

Blade arm

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere Progress Lighting Lüfter Handbücher

Progress Lighting

Progress Lighting AirPro P2574 Bedienungsanleitung

Progress Lighting

Progress Lighting Air Pro P2525 Bedienungsanleitung

Progress Lighting

Progress Lighting AirPro P250102 Bedienungsanleitung

Progress Lighting

Progress Lighting AirPro P250059 Bedienungsanleitung

Progress Lighting

Progress Lighting AirPro P2556 Bedienungsanleitung

Progress Lighting

Progress Lighting AirPro P250110 Bedienungsanleitung

Progress Lighting

Progress Lighting P2529 Bedienungsanleitung

Progress Lighting

Progress Lighting AirPro CALERA Bedienungsanleitung

Progress Lighting

Progress Lighting AirPro P250004 Bedienungsanleitung

Progress Lighting

Progress Lighting 111017 Bedienungsanleitung

Progress Lighting

Progress Lighting AirPro P2560 Bedienungsanleitung

Progress Lighting

Progress Lighting AirPro Huff P250030-031 Bedienungsanleitung

Progress Lighting

Progress Lighting AirPro P250089 Bedienungsanleitung

Progress Lighting

Progress Lighting AirPro P2542-3030K Bedienungsanleitung

Progress Lighting

Progress Lighting AirPro Claret P250007 Bedienungsanleitung

Progress Lighting

Progress Lighting AirPro P2548 Bedienungsanleitung

Progress Lighting

Progress Lighting AirPro Verada P2558 Bedienungsanleitung

Progress Lighting

Progress Lighting AirPro P2586 Bedienungsanleitung

Progress Lighting

Progress Lighting AirPro Lindale P250028 Bedienungsanleitung

Progress Lighting

Progress Lighting AirPro P250030 Bedienungsanleitung

Progress Lighting

Progress Lighting AirPro P2553 Bedienungsanleitung

Progress Lighting

Progress Lighting P2550 Bedienungsanleitung

Progress Lighting

Progress Lighting AirPro P250070 Bedienungsanleitung

Progress Lighting

Progress Lighting AirPro P250108 Bedienungsanleitung

Beliebte Lüfter Handbücher anderer Marken

ELTA FANS

ELTA FANS H03VV-F Bedienungsanleitung

Hunter

Hunter 20714 Gebrauchsanweisung

Emerson

Emerson CARRERA VERANDA CF542ORB00 Bedienungsanleitung

Hunter

Hunter Caraway Gebrauchsanweisung

Panasonic

Panasonic FV-15NLFS1 Bedienungsanleitung

Kompernass

Kompernass KH 1150 Bedienungsanleitung

VES

VES FALA100/12V/TR Bedienungsanleitung

Vertiv

Vertiv Liebert DCD Bedienungsanleitung

Westinghouse

Westinghouse GFP Series Bedienungsanleitung

Venmar

Venmar KUBIX HRV PLUS Series Bedienungsanleitung

Maico

Maico ECR 31 Bedienungsanleitung

Sonnenkonig

Sonnenkonig Dinky Bedienungsanleitung

S&P

S&P ECOWATT HXBR Bedienungsanleitung

Wider

Wider IMP03369BH Bedienungsanleitung

Panasonic

Panasonic F-60DHN Bedienungsanleitung

Hinkley

Hinkley HIGHLAND Bedienungsanleitung

Broan

Broan 766BN Bedienungsanleitung

Premium

Premium PFS16022 Montageanleitung
