ProScan PLED2243A-C Bedienungsanleitung

LED TV

PLED2243A-C

INSTRUCTION MANUAL

Table of Contents

Caution

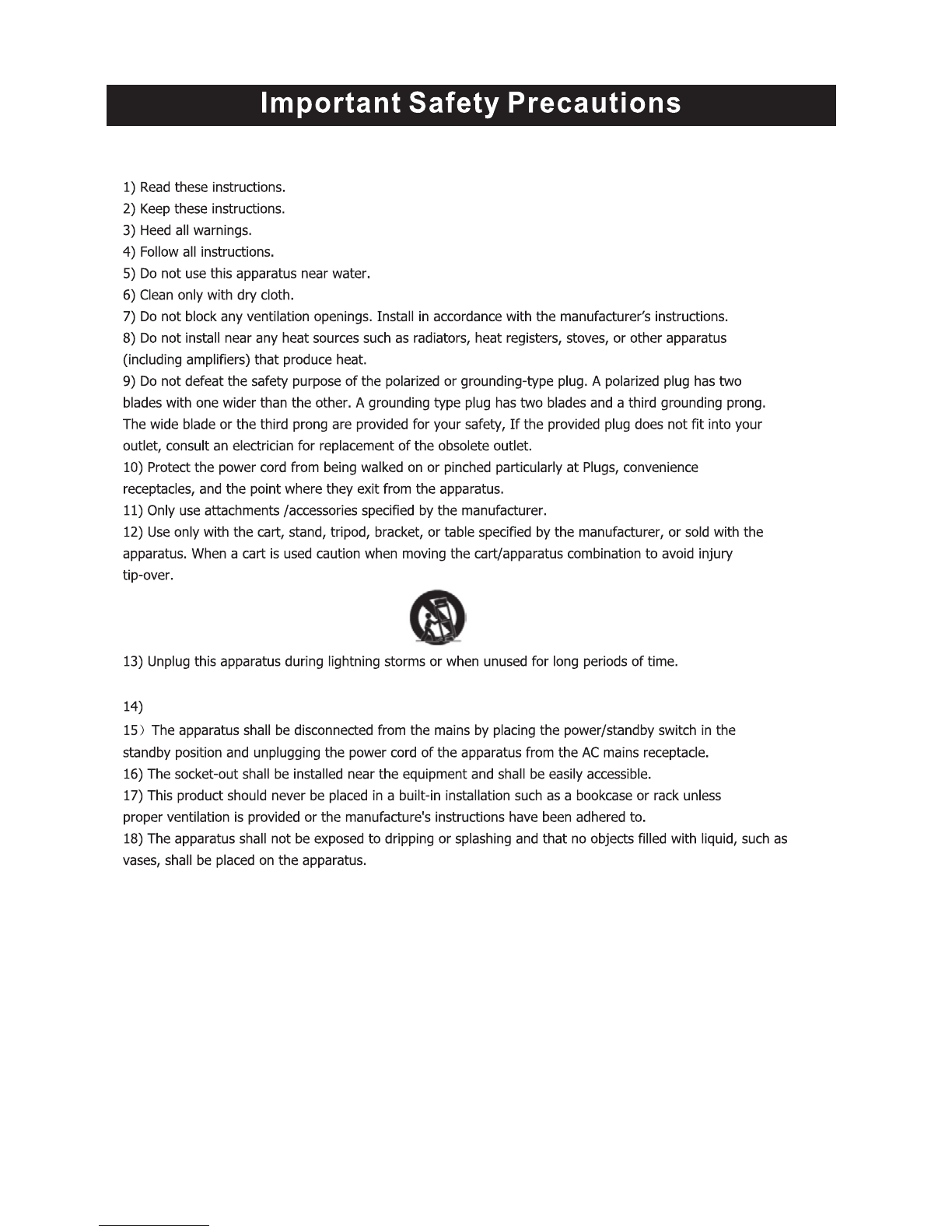

Important Safety Precautions

Top/Side panel diagram

Remote Controller

Battery Installation

Using the Remote Control

Install TV

Set your TV

Connect Antenna and power

Turn On TV

Help

6-7

10-11

13-25

TV Bracket assembly 5

Specifications

Select Input Source

Wall Mount In Stallation

24-25

Picture Menu

Sound Menu

Time Menu

Setup Menu

Close Caption

Lock Menu

Channel Menu

PC Menu

13-14

15-16

18-19

20-21

22-23

The lightening flash with arrowhead symbol, within an equilateral triangle is

intended to alert the user to the presence of un-insulated "dangerous voltage"

within the products enclosure that may be of sufficient magnitude to constitute a

risk of electric shock to the persons.

The exclamation point within an equilateral triangle is intend to alert the user to

the presence of important operating and maintenance (servicing) instructions in

the literature accompanying the appliance.

Cor rect disposal of this Product

Waste Electrical & Electronic Equipment (WEEE)

Your product is designed and manufactured with high quality materials and

components which can be recycled and reused.

This symbol means that electrical and electronic equipment, at their end-of-life,

should be disposed of separately from your household waste.

Please dispose of this equipment at your local community waste

collection/recycling centre.

In the European Union there are separate collection systems for used electrical

and electronic products. Please help us to conserve the environment we live in!

Caution

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.2

Caution:

These servicing instructions are for use by qualified service personnel only. To reduce the risk of

electric shock do not perform any servicing other than that contained in the operating instructions.

unless you are qualified to do so.

19) Do not place any sources of danger on the apparatus (e.g. liquid filled objects, lighted candles).

20) Wall or Ceiling Mounting - The appliance should be mounted to a wall or ceiling only as

recommended by the manufacturer.

3.95”

3.95” x 3.95”

100 100

1．Match the position hole in the middle of the stand poles

to the position holes undter the bottom to the TV unit and

connect the stand base with the TV unit, the position holes

locates between the 2 screws of the stand poles.

2. Fix the stand and the stand poles with 3 pieces of

BM4*10 screws

TV Bracket assembly

Indicator on(Red) Standby mode

Indicator on(Green) Power on mode

(IR) Infrared Receiver: Receives IR signals from the remote control.

(Power on/Standby) LED Indicator: Press to turn on and off

VOL

SOURCE External signal input selection and confirm the

item selected.

The functions of the buttons on the are as follows:TV

CH+/-:When watching TV: select channels.

MENU:

1.Press Menu.

2.Press SOURCE to enter.

3.Use CH+/- to shift UP/DOWN.

4.Press SOURCE to confirm,then press VOL+/-to adjust.

5.Press SOURCE to confirm

Top panel diagram

(Left Side)

(Back Side)

Side panel diagram

VIDEO

Service Port

R F

AC 100-240V~

50/60Hz

COAXIAL

Connect to ANT or cable source

Power Socket

HDMI2 IN Connect to HDMI of DVD or other equipment

PC AUDIO IN PC audio input

VGA IN VGA signal from computer output

YPBPR Connect to the composite terminal of your DVD/VCR

ANT 75 Ω

EARPHONE

For Upgrade Use.

AV INPUT

Earphone output

AC 100-240V~ 50/60Hz

COAXIAL Digital Audio Output

Service Port

Name Function Description

HDMI1 IN Connect to HDMI of DVD or other equipment

S.MODE: Press to cycle through the different sound settings

P.MODE: Press to cycle through the different picture settings

CH +/- : Pr es s to sc an throu gh or to sel ect a cha nnel .

V +/-: Pr es s to inc rea se / decr ea se the so un d le vel.

Pres s "- " to ent er a prog ram numb er fo r mul tipl e prog ram

chan ne l, such as 2- 1 et c.

SLEEP: Select amount of time before TV turn

off

automatically.

MTS:

Pres s to selec t the audi o mode ,yo u can se lect st er eo ,

Mon o, or SAP( se co nd au di o pr og ram) .

GUIDE:

ENTER

MENU SOURCE

EXIT DISPLAY

P.MODE

S.MODE

SLEEP MTS GUIDE

FAV FAV- FAV+

Universal remote code

This is the code for remote control of

PLED2243A-C,if you want to change to a

universal remote control,you can edit

this code into your universal remote control.

(1)Open the battery compartment cover

on the back side

(2)Insert two 1.5V batteries of AAA type

with correct polarity

(3)Close the battery compartment cover

on the back side

Universal Remote Control code:007F

(Universal Remote control is not included)

Remote Controller

side

indicator

10cm

10cm 10cm
