Proscend M331 Bedienungsanleitung

P/N: 604040000077

-1-

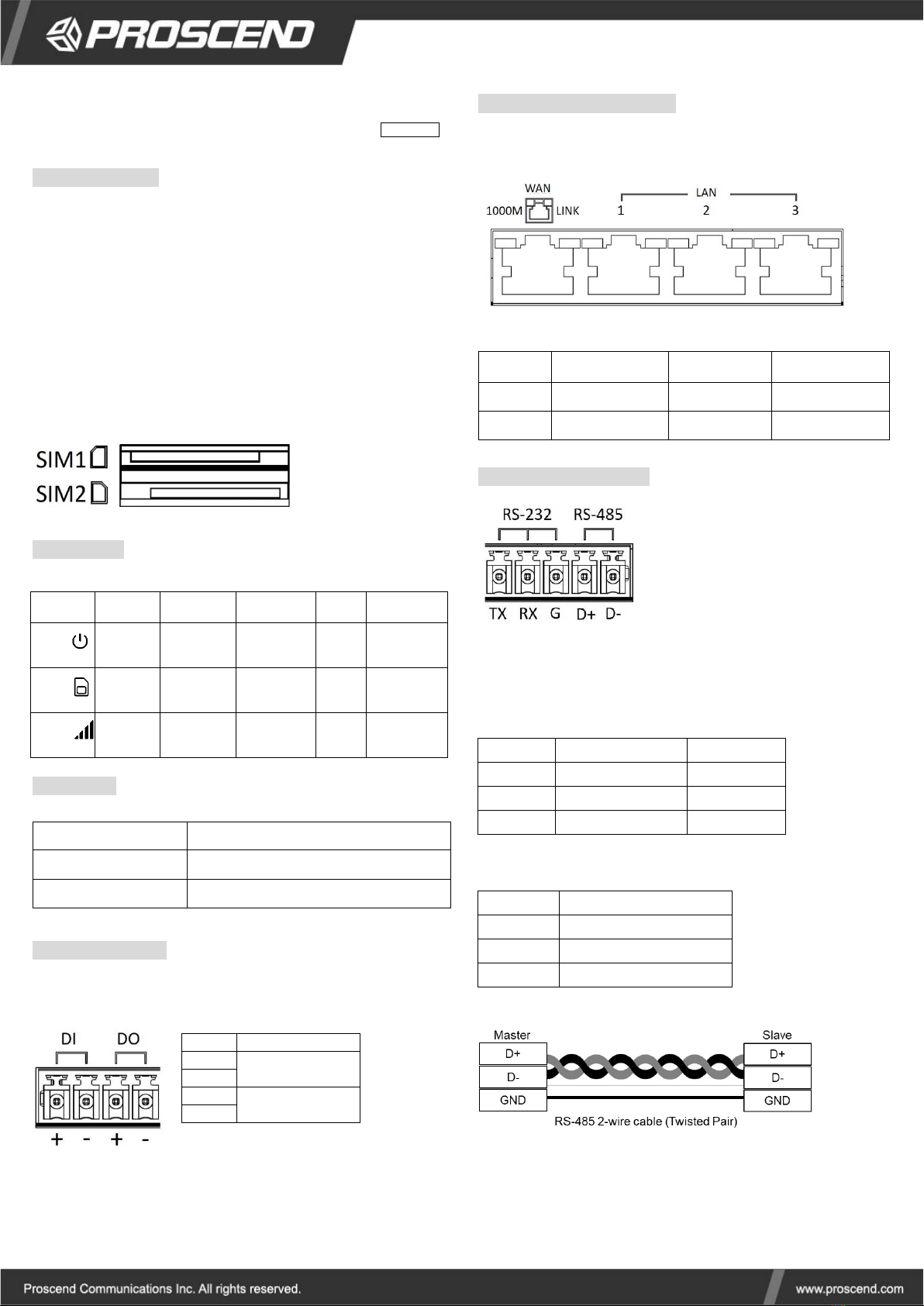

M331 Industrial Cellular Router

Quick Installation Guide Version: 1.00

Install the SIM Card

STEP 1: Before inserting or removing the SIM card, ensure that the

power has been turned off, or the power connector has been

removed from the M331 Cellular Router.

STEP 2: Using a screwdriver to remove the metal protective cover first,

insert the SIM card into the card slots. The cut-off edge of the

SIM card on upper SIM slot 1 (lower SIM slot 2) is to the left

(right).

STEP 3: Push the SIM card and lightly press it to lock into the slot.

STEP 4: Remove the SIM card, lightly press it and it will pop out of the

slot.

LED Indicators

The following table explains the LED indicators on the front panel.

LED

Off

Slow

Fast

Heartbeat

SYS

Power

down

Power up

N/A

SIM

Not

working

Connected

Connecting

Error

Reading

Signal

No signal

High signal

Medium

signal

Low

signal

N/A

Reset Button

Connecting I/O Ports

There are four terminals on the terminal block with two terminals used

for digital input and two terminals used for digital output.

DI: Low (+0 to +3V) / High (+8 to +40V)

DO: Open Collect (maximum 30V/300mA)

LED Indicators of Ethernet Port

There are two LED indicators for each of three LAN ports and one WAN

port.

RS-232 and RS-485 pinouts

NOTE:

RS-232 and RS-485 share the common ground pin “G”.

RS-232

Signal

Direction

Transmit Data

Output

Receive Data

Input

Signal Ground

RS-485

Description

D +

Serial Port, Data+ (A) wire

D -

Serial Port, Data- (B) wire

Signal Ground

LED

Blinking

Off

1000M

N/A

1000Mbps

10/100Mbps

LINK

Data Transmitting

LINK UP

LINK DOWN

Function

Operation

Reset

Press the button for 1 seconds.

Reset to default setting

Press the button for more than 5 seconds.

Description

DI +

Digital Input

DI -

DO +

Digital Output

DO -

P/N: 604040000077

-2-

Connecting the Power Supply

Powering the M331 Cellular Router is by either a terminal block or a DC

jack.

One terminal block is on the front panel.

The power input voltage range is 8 ~ 26 VDC.

One DC Jack is on the front panel.

The power input voltage is 12 VDC.

Antenna Installation

Three SMA connectors placed on the left panel are for connecting to

external LTE and GPS antennas.

MAIN: for LTE Transmit and Receive

AUX: for optional LTE Receive for better downstream speed

GPS: for GPS

DIN-rail Mounting

STEP 1: Use the screws to install the DIN-rail kit to attach at the rear side

of the device.

NOTE:

Three screw types are flat head M3 x 4 mm.

STEP 2: Hook the unit onto the DIN-rail.

STEP 3: Push the bottom of the unit towards the DIN-rail until it locks in

place.

Wall Mounting

STEP 1: At the bottom side of the device, use two screws to install each

bracket.

NOTE:

Each screw type is flat head M3 x 6 mm.

STEP 2: Use the screws to attach the bracket of the device for wall

mounting.

NOTE:

These screws are not included in the package. The head of each screw is less

than 7 mm in diameter, the shaft is less than 3 mm in diameter, and the length

is less than 10 mm in diameter.

Setup

(1) Access the Web Configurator

a. Type the default URL http://192.168.1.1 in your web browser.

b. In the login page, enter the default username root and the default

password 2wsx#EDC and then click the Login button.

(2) Change Password

Go to the Management -> Administration and enter the desired New

Password and then scroll down the page and click the Apply button.

Please scan below QR Code to download online resources.

Download link: https://www.proscend.com/en/product/M331.html

M331

NOTE
