Provision ISR Light Cruiser LC-10 Bedienungsanleitung

Table of Content:

Chapter 1: Product Summary:

1.1 Technical Parameters…………..………….…………….…………….2

1.2 Package Contents….………………………………………….……….3

1.3 Function description………………………………………….……….3

Chapter 2: Equipment installation:

2.1 DIP switch settings…………………................................................5

2.2 Dome camera structure diagram……………………………….……7

2.3 Bracket installation diagram...……………………………………….8

Chapter3: System OSD menu settings:

3.1 Power-on self-test………….……………..………………………..….8

3.2 Preset point setting and calling…………..……………………..….8

3.2.1 Set preset points………….……………….………..………………..9

3.2.2 Call preset points…….…………………….………….……………..9

3.3 Preset point function table.………………….……………………….9

3.4 <MAIN MENU>………….…………………………..………………….10

3.5 <SYSTEM INFORMATION>.…………………….………………..…11

3.6 <ADDR SETTING>………………..……………………….………..…11

3.7 <MOTION>……………………………………….………………........12

3.7.1 <SET FRAME SCAN>………………………………….……………12

3.7.4 <POWER UP>……………..…………………….…………...………13

3.7.5 <PARK ACTION>……………………………………...………..……13

3.8 <PATTERNS>…..............................................................................14

3.8.1 <PROGRAM PATTERN>.............................................................14

3.9 <CAMERA >(Lens) settings menu................................................15

3.10 <CRUISE> (preset points, cruise settings) menu….…..……....15

3.11 <IR SETTING>...............................................................................16

3.12 <DISPLAY SETUP>.......................................................................16

Chapter 4: Troubleshooting:

4.1 Troubleshooting Table……………..………………..…….....………17

Chapter 1:Product Summary:

1.1 Technical Parameters:

Model number 4" High Speed Mini Dome Camera

Optical focus 10X

Image sensor 1/3"CCD

Signal mode PAL/NTSC

Resolution 650TVL

Optical focus Manual/Auto, high performance DSP to utilize high

continuous focusing function.

Presets 256

Pattern scan 4groups,each can record 100 actions

Cruise scan Up to 30 presets cruise with independent dwell

duration.

Other scan Supports Horizontal scan, Deuce area scan and

random scan

Rotation range Horizontal 360°unlimited rotation, Vertical 180°, auto

flip

Rotation speed Horizontal & Vertical Min 0.01°Max 300°/s.

Protocol PELCO-D and PELCO-P

OSD Full screen menu

Temperature

control system Optional

Power supply DC12V

Ball cover

dimension 4 inch optical glass cover (Non-IR model only)

Material Aluminum shell

IP Rating IP66 (Non-IR Model Only)

Work

environment

-20℃~+50℃(select temperature control accessories),

<95%RH

1.2 Package Contents:

1. Speed Dome Camera – 1 Pcs

2. Wall Bracket – 1 Pcs

3. Ceiling Bracket – 1 Pcs

4. Power Supply – 1 Pcs

5. User Manual – 1 Pcs

6. Installation Accessories – Lot.

1.3Main Functions Description:

1. Set address coding, baud rate, control protocol:

Each command transmitted to the camera has its own address coding,

baud rate and control protocol. APTZ camera will respond only if its own

address coding, baud rate and control protocol matches the ones of the

command. In order to set the camera address coding, baud rate and

control protocol settings please refer to the DIP settings.

2. Auto speed matching to focal length technical:

Based on user-friendly design, the camera's intelligent response

mechanism will be generate different tracking speeds according to the

proximity of the focal length of the camera. The camera will automatically

adjust the horizontal and vertical tracking speed, so that manual operation

is simpler and track targets become easier.

4. Auto Flip:

When the lens is pulled all the way down (vertically) by the operator, the

lens will auto-rotate 180° and continue the move turning up immediately

after the 90°, this allows a direct watch to the back of the scene in order to

achieve the full 180°continuous vertical surveillance.

5. Set and call preset position:

Preset function stores a given state of the ball. The PTZ memory will store

the horizontal angle; tilt angle and camera lens focal length. "Calling" these

parameters will quickly send the PTZ ball to the saved location. The

operator can quickly and easily store and call preset points by using a PTZ

keyboard, infrared controller or other equipment such as DVR which

supports PTZ feature. The PTZ supports up to 256 preset points.

6. Lens Control:

(1) Zoom control

Users can control the PTZ lens in order to adjust the zoom level of the

camera and get wide/narrow view according to the scene.

(2) Focus Control

System default is auto-focus. The object in center of the screen will be the

subject of focus. In exceptional circumstances the user can manually

adjust the focus in order to maintain a clear picture.

When in momentarily manual focus state (achieved by Focus +/- controls

on the control unit), any shift of the camera by user or preset call will

reinstate the auto-focus.

In the following situations the camera lens may not autofocus on the

desired objective:

a. Target is not in the screen center;

b. The target has different parts that are both near and far.

c. The target is light objects such as neon lighting, spotlights and other

luminous items;

d. Target is behind interfering layer (Such as droplets or glass).

e. Large monotone area targets, such as walls.

f. Large area targets, such as walls;

g. Target is located in extremely dark/foggy environment.

7. Aperture Control:

Users can control the lens in order to manually adjust the aperture size to

get the required picture brightness.

8. Backlight Compensation:

When the backlight compensation function is on, the camera will disregard

bright areas in the scene and will open the shutter further more to light up

dark areas in the scene.

9. White Balance:

The camera will reproduce color shadings according to the changes in

ambient light in order to achieve true color shades in any conditions.

10. Night Mode (color / Black & White conversion):

Cameras with night mode, automatic color / monochrome conversion mode,

in accordance with changes in ambient light automatic conversion CCD

illumination. Such as: adequate lighting during the day due to the use of

general illumination to ensure colorful images. In the night illumination can

be automatically changed to black and white images show a clear interest.

11. Cruise:

Cruise can be built from several preset points. The presets for this speed

dome can be configured in consecutive order only (you may skip a

non-relevant preset, but you cannot change the order of the called

presets).Dwell durations can be configured according to the needs. The

cruise can be activated using the OSD or the RS-485 controller.

12. Pattern scanning:

Pattern scan will record any movement of the camera's ball in order to

make a consecutive scan with special characteristics.

13. Continuous scan:

Continuous horizontal scan with adjustable height and speed. It can be

triggered in power-up or RS-485 controller.

14. Random Scan:

Random horizontal scan with adjustable height and speed; unlike the

continuous scan, the random scan will shift the camera left and right and

dwell in random points. It can be triggered in power-up, by OSD or RS-485

controller.

15. Area scan

Continuous horizontal scan with adjustable height, speed and left/right

borders which the camera is confined to. It can be triggered in power-up,

by alarm or RS-485 controller.

Chapter 2 Equipment installation:

2.1DIP switch setting:

The four channel DIP switch is the baud rate and the control protocol switch.

The eight channels DIP switch is

the address setting switch.

DIP switch to “ON” means to “1”,DIP switch to "OFF" means "0".

The baud rate and control protocol as the following table:

NO. 1 2 3 4

Baud rate

(BPS）

OFF OFF PELCO-P

ON OFF PELCO-D

OFF ON PELCO-D/P

ON ON PELCO-D/P

Control

Protocol

OFF OFF 9600

ON ON 9600

OFF ON 4800

ON OFF 2400

8-bit DIP switch is used to set the camera's address coding. Address set

binary mode can be set to a total of 256 different dome camera address

coding, see coding table address.

Camera

address

Camera address coding form

1 2 3 4 5 6 7 8

0 OFF OFF OFF OFF OFF OFF OFF OFF

1 ON OFF OFF OFF OFF OFF OFF OFF

2 OFF ON OFF OFF OFF OFF OFF OFF

3 ON ON OFF OFF OFF OFF OFF OFF

4 OFF OFF ON OFF OFF OFF OFF OFF

5 ON OFF ON OFF OFF OFF OFF OFF

6 OFF ON ON OFF OFF OFF OFF OFF

7 ON ON ON OFF OFF OFF OFF OFF

8 OFF OFF OFF ON OFF OFF OFF OFF

9 ON OFF OFF ON OFF OFF OFF OFF

10 OFF ON OFF ON OFF OFF OFF OFF

11 ON ON OFF ON OFF OFF OFF OFF

12 OFF OFF ON ON OFF OFF OFF OFF

… … … … … … … … …

246 OFF ON ON OFF ON ON ON ON

247 ON ON ON OFF ON ON ON ON

248 OFF OFF OFF ON ON ON ON ON

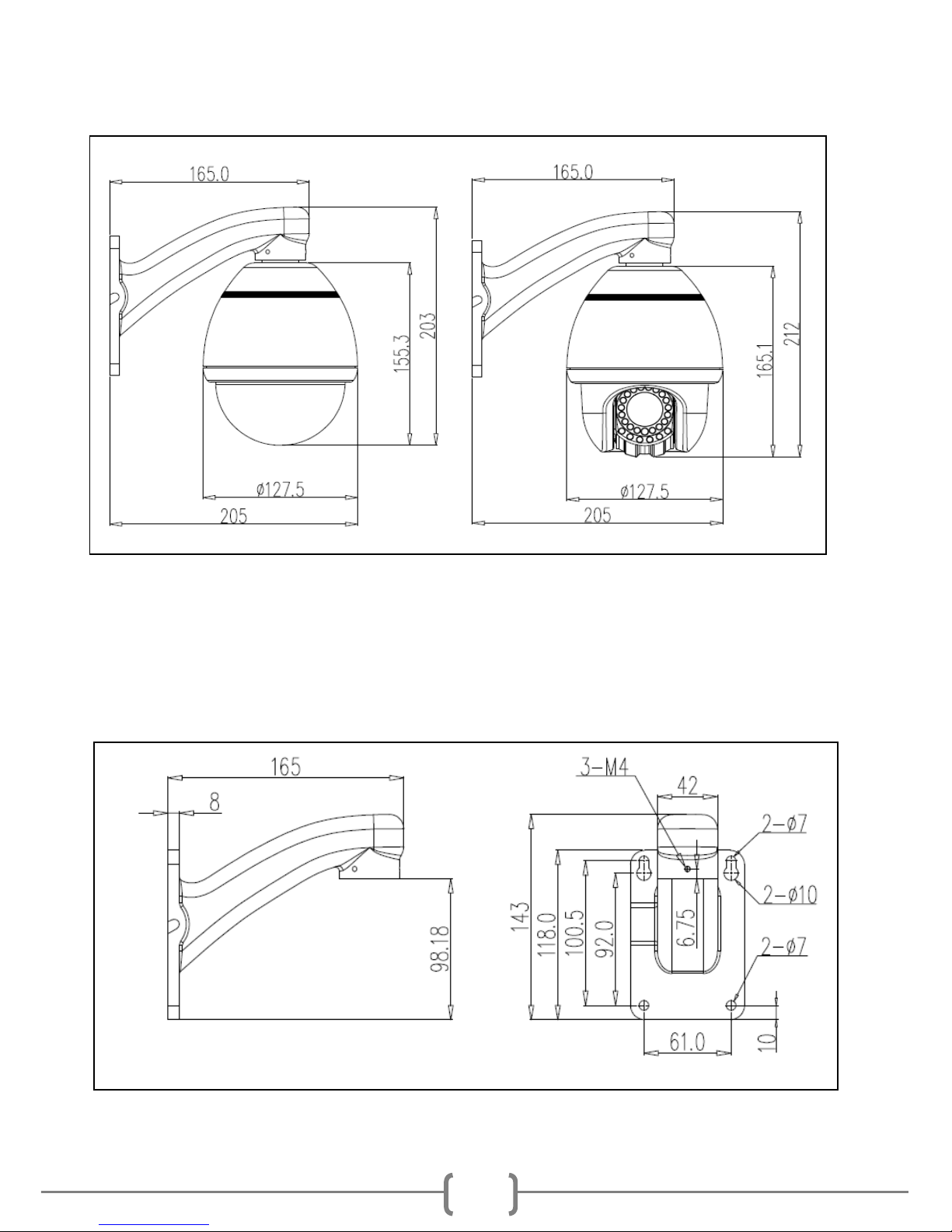

2.2 Dome camera structure diagram:

Figure 1 Figure 2

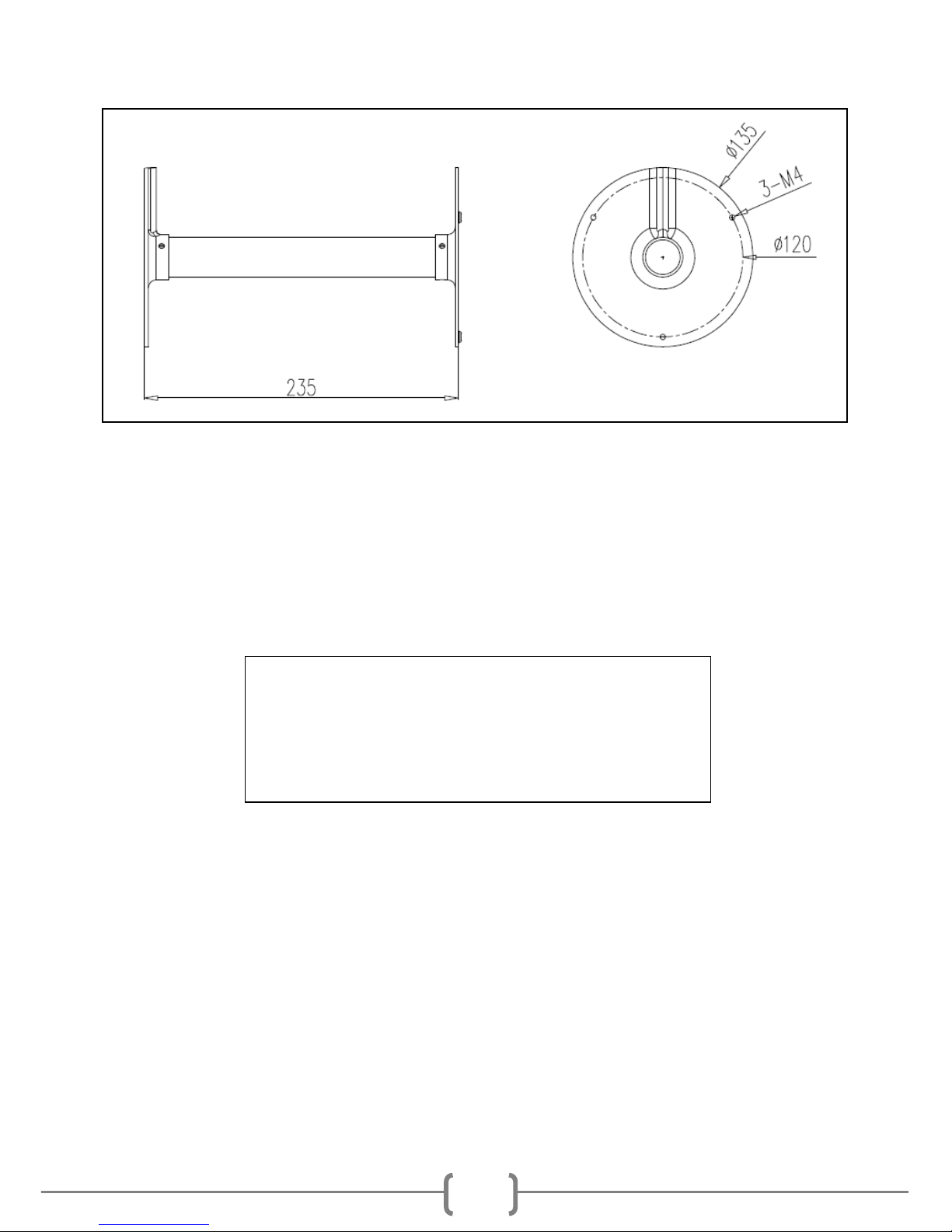

2.3 Bracket installation diagram

Figure 3

Figure 4

Chapter 3 System OSD menu settings:

3.1Power-On Self-Test:

When power is connected to the dome camera, the camera will move in

horizontal and vertical directions to confirm that motors and belts are in order.

The screen will show system-related information.

PTOL：PELCO-D

COMM：2400，N，8，1

ADDR：1

Display: PELCO-D protocol、Baud Rate 2400、Address code 1

3.2Preset point setting and calling:

3.2.1 Set Preset points:

(1) Make sure the correct camera is selected in your controller.

(2) Adjust pan, tilt and zoom to the desired location.

(3) Press the required preset number + PRESET*to preserve the scene

preset parameters.
