Proxim ORiNOCO Einrichtungshandbuch
1
ORiNOCO 802.11 b/g USB Adapter
Quick Start User’s Guide
2
Contents
1. Before You Start………………………………………………...…… 3
1.1 Features………………………………………………………… 4
1.2 System Requirement………………………………………….. 4
2. Step1: Software Installation…………………………….……..……. 5
2.1 For Windows XP users……………….……………….............. 6
2.2 For Windows 2000 users…………….……………….....…….. 8
3. Step 2: Hardware Installation…………….………………......…….. 9
3.1 For Windows XP users……………….……………….............10
3.2 For Windows 2000 users…………….……………….....…… 12
4. Step 3: Configuration …..…………………………………............. 15
4.1 WPA/WPA2 Set Up for Windows XP………….…….............17
4.2 WPA Set Up for Windows 2000……….……........................ 20
5. Technical Support…………………………………………....…..… 21
3
1. Before You Start
Please check USB Adapter package content:
•USB Adapter
•USB Adapter Stand with 1.5M USB cable
•CD-ROM containing software driver and documentation
If any of the items appear to be damaged or missing, please contact
your supplier.
CAUTION: To maintain compliance with FCC’s RF exposure
guidelines, this equipment should be installed and operated with
minimum distance 20cm between the radiator and your body. Use
on the supplied antenna. Unauthorized antenna, modification, or
attachments could damage the transmitter and may violate FCC
regulations.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including
interference that may cause undesired operation.
4
1.1 Features
•Double swivel design provides 180° rotation on 2 axis.
•Automatic fallback: 54, 48, 36, 24, 18, 12, 11, 9, 6, 5.5, 2, 1
Mbps.
•Powered by the host machine: no need for external power
•Automatic power management
•Corresponding to IEEE 802.11b/g specifications.
•Interoperable with IEEE 802.11b and 11g compliant systems.
•Conforms to industry-standard USB specification 1.1 and 2.0.
•Support for Windows 2000 and Windows XP.
1.2 System Requirements
Supported Operating System:
•Windows 2000
•Windows XP
Hardware:
•32MB memory or greater
•300MHz processor or higher
Language support:
•English
5
2. Step 1: Software Installation
Insert the CD-ROM, and it will auto-run as shown in the following
picture. It is required to install the software first, prior to hardware
installation.
6
2.1 For Windows XP users
Step 1: Please click “Install” and the InstallShield Wizard will start the
installation. Just follow the instructions for the installation.
Step 2: Click “Next” to continue the installation.
7
Step 3: After you click “Next”, the system will start to install the
program as shown in the following picture.
Step 4: Click “Finish” to complete the installation and restart your
computer again.
8
2.2 For Windows 2000 users
Please follow page 6 steps 1 and 2 to start the installation. After
that, please ignore the Windows hardware message and click
“Yes” to continue the installation.
The computer will complete the installation as shown in the page 7
step 3 and 4. After that, please restart your computer again.
9
3. Step 2: Hardware Installation

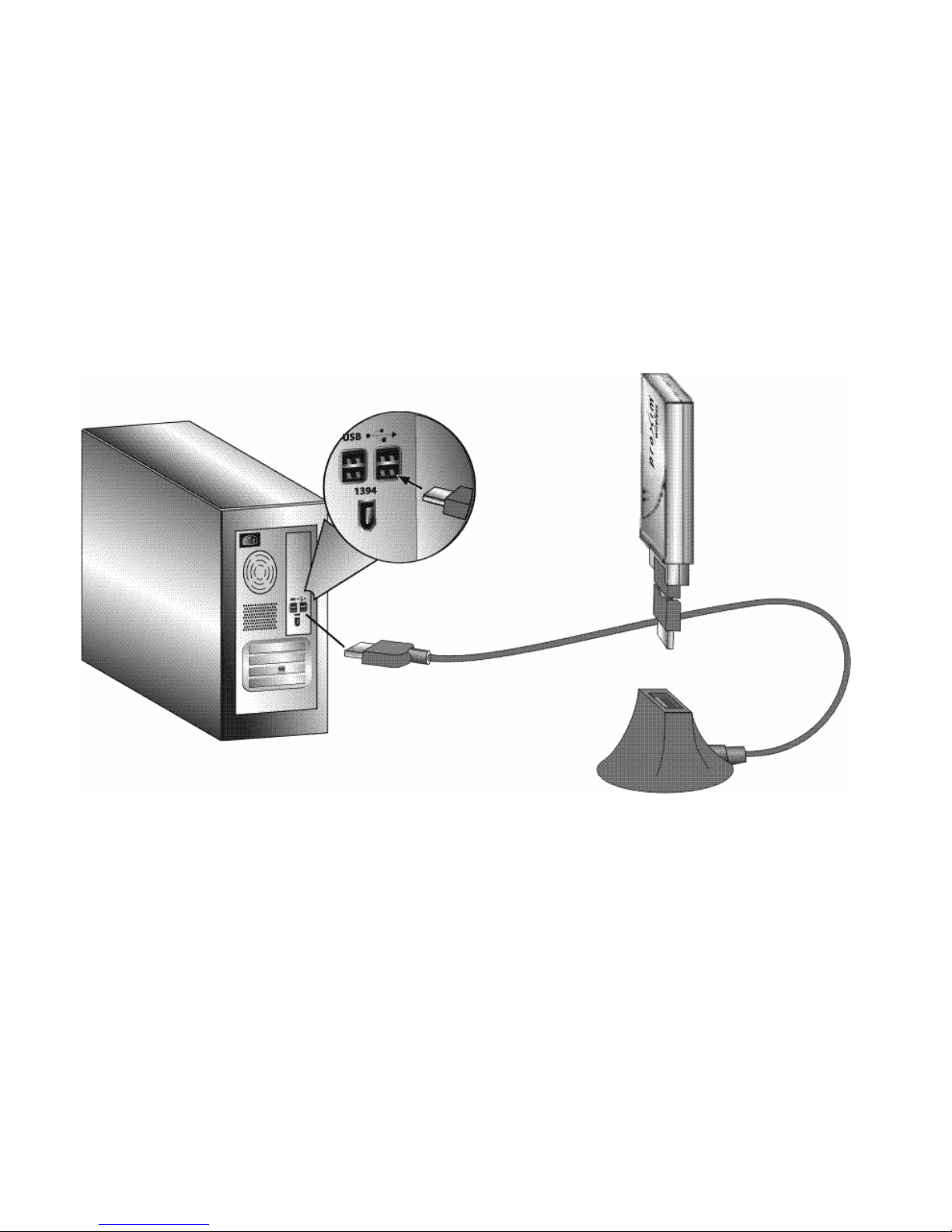

Before you start to do the hardware installation, please plug the USB
Adapter to the Stand socket and the other end of the Stand cable to
your computer.
10
3.1 For Windows XP users
For Windows XP users, the system will detect a new device when you
plug the cable into the USB socket.

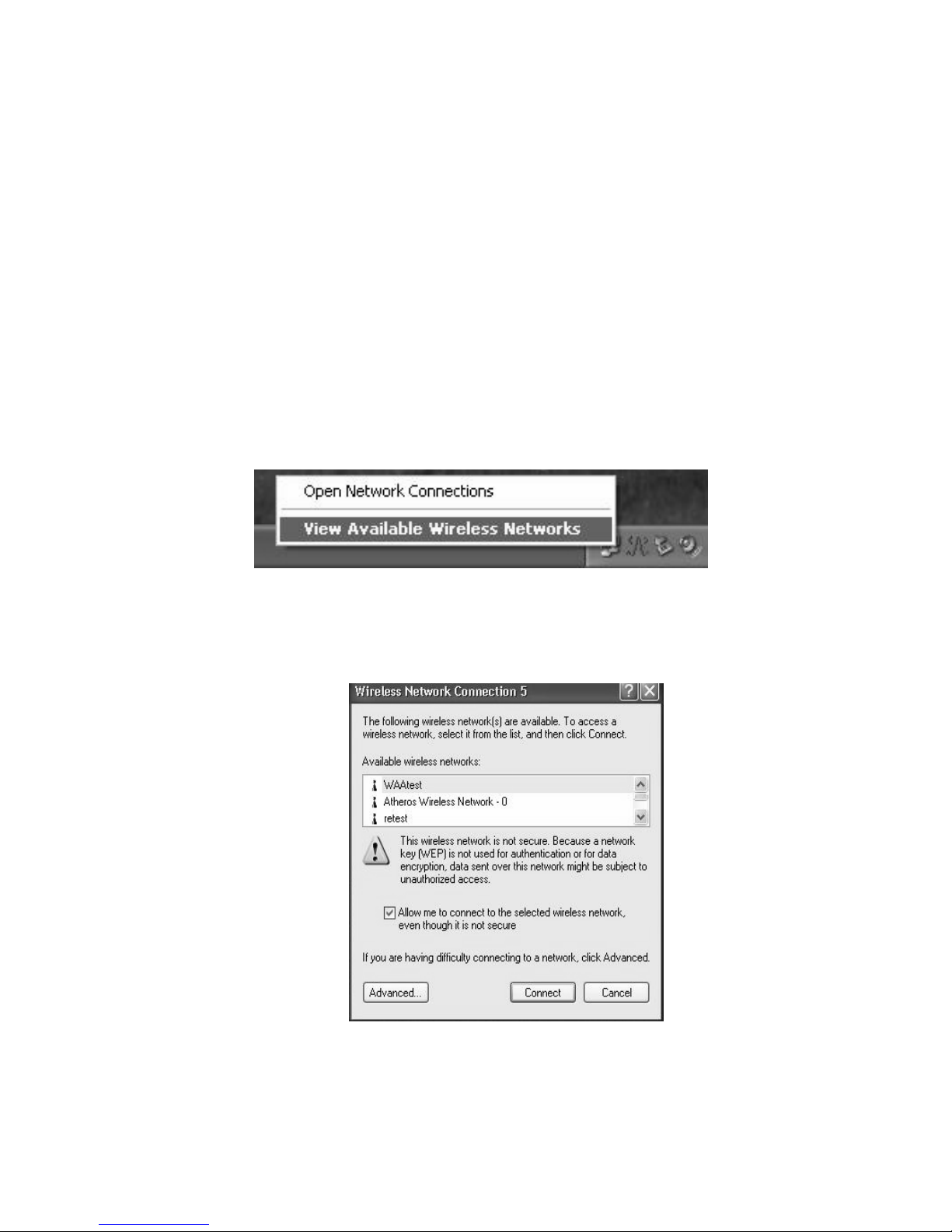

Step 1: Please select “View Available Wireless Networks” from
taskbar and click “enter”. You will need to wait while the USB Adapter
looks for available wireless networks.
Step 2: A list of available wireless networks will appear on the
“Wireless Network Connection” screen.
