PureLink DOF4 Bedienungsanleitung

DOF4 Owner’s Manual

Modular Fiber Optic DVI Extender

With Stereo Audio

PURELINK

535 E CRESCENT AVE

RAMSEY, NJ 07446

Tel: 201.488.3232

Fax: 201.621.6118

E-mail: [email protected]

www.purelinkav.com

For technical support, contact:

[email protected]

PureLink by Dtrovision

Package Contents

Please make sure all of the following items are included in the package:

1) DOF4 Transmitter Module

2) DOF4 Receiver Module

3) DC 12V Power Supply Unit with a power cord

Manual version

Release date

1.0

5/1/2017

PureLink by Dtrovision

General Specification

DOF4 is a DVI and analog stereo audio extension system over pure fiber optic cable for

long distance up to 5,000ft.

Compact & durable design and low power consumption makes it an ideal solution for

connection for high definition video/audio signal of digital displays such as LCD/Plasma

displays and projectors.

DOF4’s unique circuitry and optic conversion design eliminates the need of a copper

connection (Cat 5) between the transmitter and receiver. This pure fiber optic

connection enables electrical noise free and EMI free that is ideal for long distance

extension of high definition DVI signal, and stereo analog signal.

PureLink also offers same function extender in rack mountable friendly version. Check

DT1000 (transmitter) and DR1000 (receiver) if you plan to use them in rack mountable

environment.

Model

DOF4 Tx/Rx

Input Signal

Digital RGB(DVI), Analog Stereo Audio

Output Signal

Digital RGB(DVI), Analog Stereo Audio

Supporting Display

Resolutions

VGA ~WUXGA(up to 1920 x 1200 @ 60Hz) ,

480i ~ 1080p

Max. Distance

1920x1200 @ 60Hz or at 1080p: 1,000M(3,300ft)

1280x1024 @ 60Hz or at 1080i: 1,530M(5,000ft)

Optical Source

850 nm Vcsel

Optical Cable Spec

Multimode 50/125 or, 62.5/125

Connector Type

DC Power Jack

DVI 29 Pin Female

LC Receptacles with 4 cores

3.5mm Stereo Audio Jack

Conformations

DDWG DVI1.0

With HDCP

Power Rating

DC +12V , 10W Max

Dimension (WxDxH)

4.3” x 3.1” x 1.6” / 109 x 78.75 x 40.64 mm

Weight (per unit)

0.9 lbs / 0.4 kg

PureLink by Dtrovision

Operation and Reliability Specification

1. Operating Environment

Temperature : 50F ~ 104F (10℃~ 40℃)

Humidity : 10% ~ 80%

Altitude : 3,000m Max.

2. Transit Environment

Temperature : -13F ~ 140F (-25℃~ 60℃)

Humidity : 5% ~ 95%

Altitude : 15,000m Max.

3. Storage Environment

Temperature : -4F ~ -49F (-20℃~ 45℃)

Humidity : 5% ~ 95%

Altitude : 3,000m Max.

4. Reliability

MTBF: 90% at over 50,000 hours aging test

In compliance with LCD Monitor reliability test standard

PureLink by Dtrovision

Main Features

1. Zero loss & Zero noise delivery of digital high definition video and audio signal us

ing optical conversion technology, DOF4 delivers HD signals over fiber optic cable

s without loss or digital interference maintaining the clarity and colors. Noise can

cellation and error correction logic enhances DVI video and audio signals over lo

ng distance.

2. Built-in signal repeater to support longer distance between the source and the

DOF4 transmitter & DOF4 receiver and the display.

3. Compact and Robust Module Design

4. Long Distance (Up to 5000ft at 1080i or lower signal) over cost effective multi-m

ode fiber optic cables.

5. Auto EDID Management

The definition of Auto EDID management is a way of saving EDID of a monitor

into EEPROM in the transmitter module. DOF4 transmitter has 14 different pre-

programmed EDID data that can be conveniently selected by end-user. User can

also emulate/save display’s EDID information into the transmitter which

enhances reliability and compatibility with various displays

6. HDCP (High-bandwidth Digital Content Protection) Support.

7. DDWG DVI version 1.0 Support.

8. Rack mounting friendly versions also available (DT1000 & DR1000)

PureLink by Dtrovision

Installation and Connection Instructions

1. Turn off both the video source and the display before connecting any cables.

2. Connect DVI cable between the source and DOF4 transmitter AND between the

DOF4 receiver and the display.

3. Connect LC terminated fiber optic cables according to the picture below;

4. Connect the power supply unit to both DOF4 transmitter and receiver units.

5. Turn on Display

6. Turn on Video Source

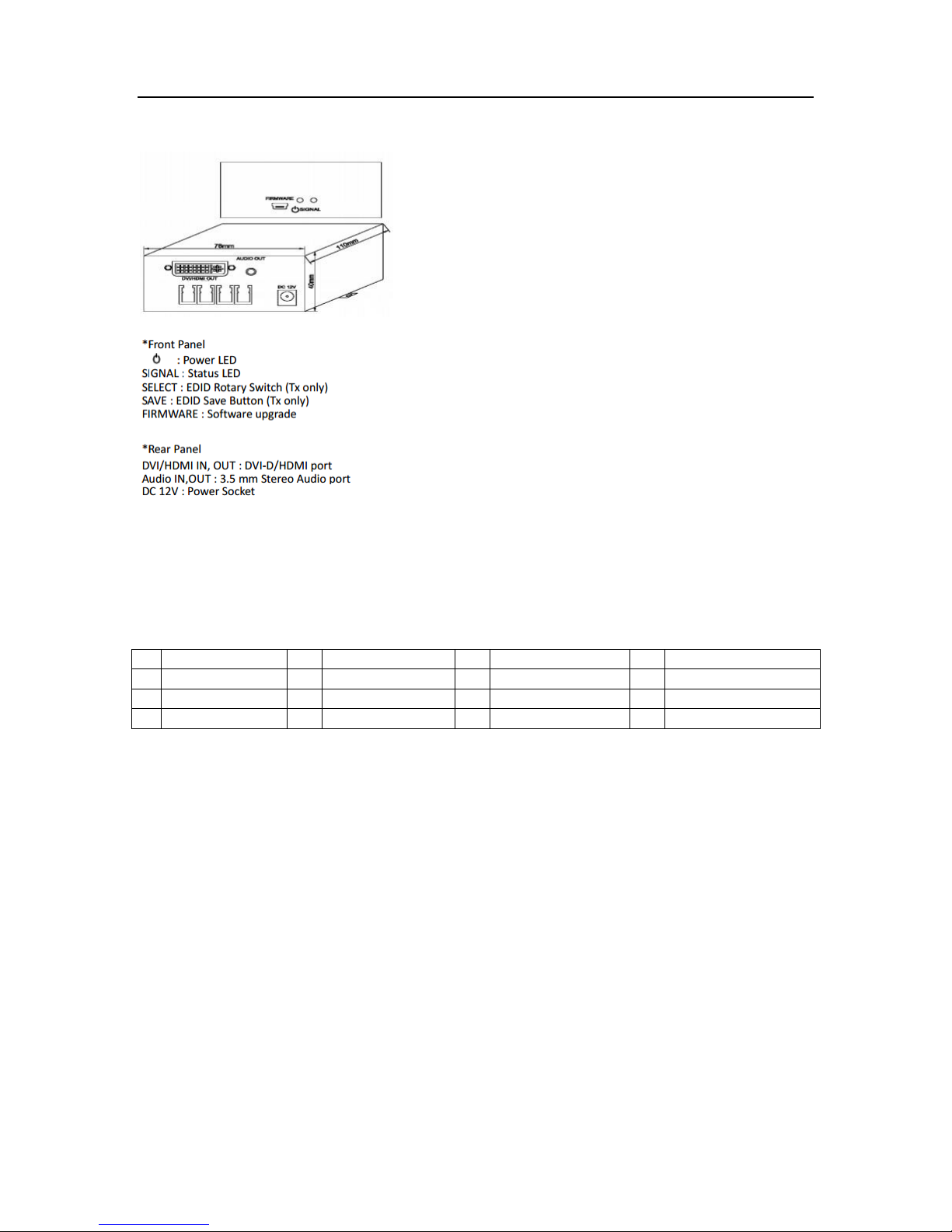

Product Exterior

Product Dimension (WxDxH) : 4.3” x 3.1” x 1.6” / 109 x 78.75 x 40.64 mm

Weight: 0.9 lbs / 0.4 kg

DOF4 Tx: Transmitter Module

PureLink by Dtrovision

DOF4 Rx: Receiver Module

EDID management on DOF4

Internal EDID DATA

- Select EDID data of your choice from the list below by adjusting MODE switch on the Transmitter

module.

* EDID list

External EDID

800x600 60Hz

1024x768 60Hz

1280x768 60Hz

1280x1024 60Hz

1360x768 60Hz

1366x768 60Hz

1400x1050 60Hz

1600x900 60Hz

1600x1200 60Hz

1680x1050 60Hz

1920x1200 60Hz

1080i 60Hz

1080p (2 CH)

1080p (Multi CH)

Saving external EDID DATA:

Connect display (monitor, TV, or projector) to the DOF transmitter. Set your rotary switch to “0”, then

press the EDID S/W button. Transmitter will read and save the EDID data on internal EEPROM.

PureLink by Dtrovision

Warranty

Manufacturer’s Warranty (3-Years)

PureLink warrants this DOF4 fiber optic extender to be free from defects in workmanship and

materials, under normal use and service, for a period of three (3) year from the date of

purchase from PureLink or its authorized resellers.

If the product does not operate as warranted during the applicable warranty period, PureLink

shall, at its option and expense, execute one of the following as necessary:

1. Repair the defective product or part

2. Deliver to customer and equivalent product or part to replace the defective item

3. Refund to customer the purchase price paid for the defective product

All products that are replaced become the property of PureLink. Replacement products may

be new or reconditioned. Repaired or replacement products or parts come with a 90-day

warranty or the remainder of the warranty period. Dtrovision shall not be responsible for any

software, firmware, information, or memory data loss of contained in, stored on, or integrated

with any products returned to Dtrovision for repair under warranty.

Customer Service

Any customer service inquiries can be submitted electronically through the Q&A form on our

website ( www.purelinkav.com ).

For immediate assistance please contact us at (201) 488-3232 to reach our customer care or

tech support team.
