Pyle View PLD3MU Bedienungsanleitung

www.pyleaudio.com

PLD3MU

3'' TFT Touch Screen DVD/ VCD/ CD/ MP3/ CD-R/ USB/ AM/ FM

PLAY/PAUSE

Eject

Source/Power

Mute

Volume

Select charter/Foward /Backward

Repeat

Release

Display position adjustment

Band

Band tuner

APS/ST/RDS

Safety Precautions......................................................2

Electric Connection ............................................... .....3

Installation.................................................................4

General Features........................................................5

System setting.....................................................9

Radio Operation..................................................10

Remote Control....................................................11

Accessories........................................................14

Specifications.....................................................15

Trouble Shooting.................................................16

Video

Audio

System

Contents

Reception collection

Speaker collection

Install the unit

Remove the unit

Loading and Replacing the battery

Basic operation

USB/SD operation......................................................8

USB/SD PLAYER

Safety precautions

CAUTION

Be sure the unit is connected to a 12V

DC power with a Negative Grou

Do not install the unit in places where

it is exposed to direct sunlight, high heat

or humidity, water splash or dust.

To change fuse, please use the same

one in specification and capacity.

When changing fuse, please do it

after pulling down power wires to avoid

short circuit.

If the unit does not seem to be working

properly, please press the reset button to

resume the function.

Do not watch videos when driving.

To prevent electric shock, etc. please do

not let

If you smell or see smoke, turn off the

power immediately and consult the place

of purchase.

Be careful not to drop or shock the unit

strongly.

Do not touch the liquid crystal to avoid

hurting yourself. If your clothes are stained

by it, please clean them with soap

immediately.

For your driving safety, please link your

brake detecting wire with low power

level, and keep it controlled by manual

brake switch. wire should be high power

level and the unit can not play DVD or

VCD disc.

the metal goods(silver,coin,tools..)

fall into the installation.

To prevent damage to the machine,

take the following precautions:

WARNING

To prevent injury or fire, please

take the precautions:following

PRECAUTIONS

When driving a car, reduce the

volume to be more aware of the

road traffic.

Avoid getting the speakers and

disc wet from water or dampness

while cleaning the car.

Do not park your car in the direct

sunlight and turn on the unit after it is

cooling down in the car.

Protect your mechanism, and do not

put it close to magnet, screwdriver or

other cohere stuff.

If you do not comply with the above

items, it may cause abnormal running

and system trouble.

Please Note:

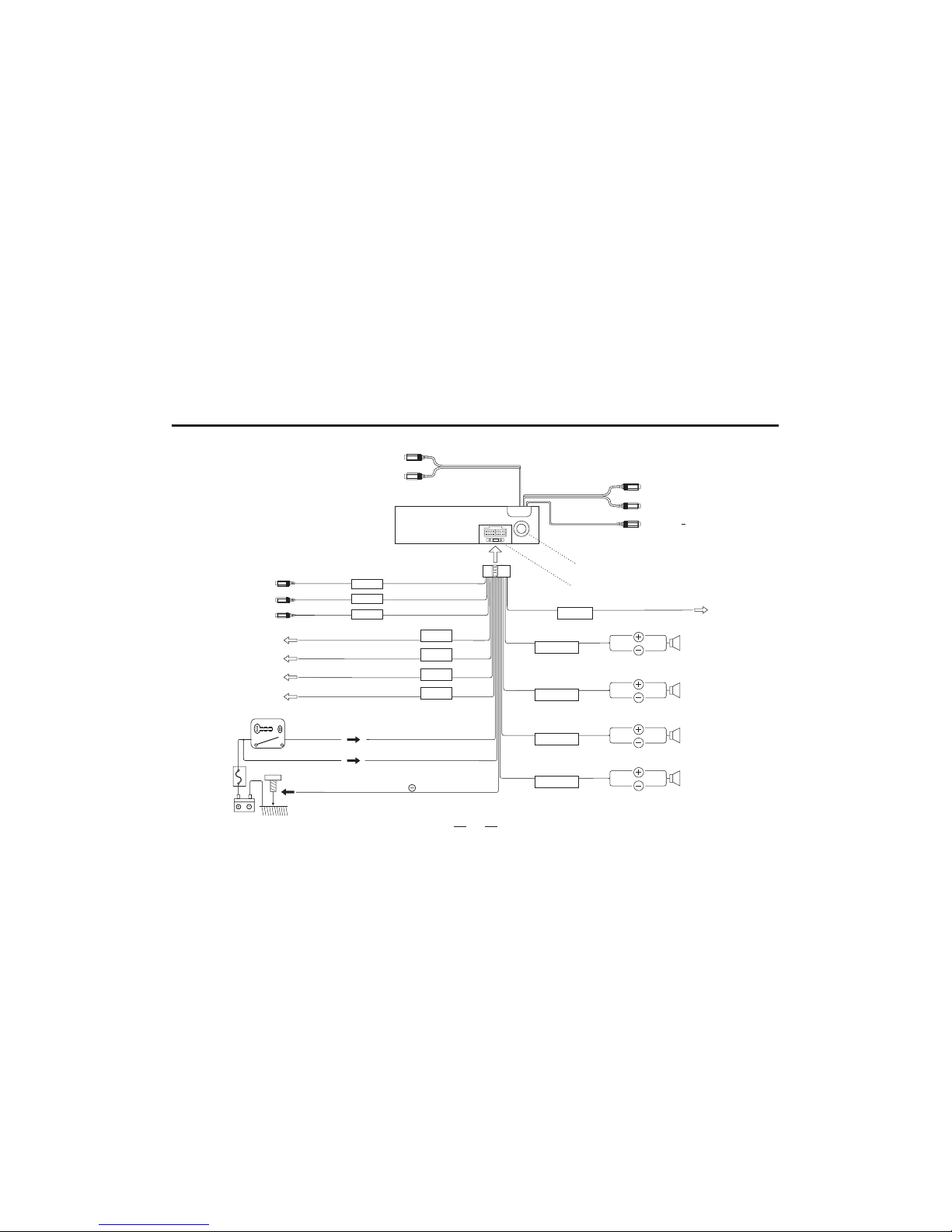

Electric Connection

White/Black

Gray

To front left speaker

To front right speaker

To rear left speaker

To rear right speaker

Green

Ignition wire(Red)

Battery wire(Yellow)

Ground wire(Black) (To car chassis)

Fuse(10A)

Battery

Car fuse box

(Main fuse)

Ignition key

sw tchi

White

Gray/Black

Green/Black

Purple

Purple/Black

(RED)

(WHITE)

Light wire

Gray

BROWN

SUBWOOFER

AUXLEFTIN

AUX RIGHT IN

VIDEO IN

(YELLOW)

BACK A CAR VIDEO IN ()YELLOW

Connect control for antenna

Detecting wire for back a car

Brake detecting wire

Remote control for amplifier.

FRONT RIGHT RCA OUT

FRONT LEFT RCA OUT

(WHITE)

(RED)

VIDEO OUT

(YELLOW) Gray

Gray

Brown

Pink

BLUE

Orange

Front.L

Front.R

Rear.L

Rear.R

FM/AM antenna input

Before installing the receiver, fit it in the suitable place of your car.

Then connect the corresponding speakers and electrical connections.

When your system is operated properly, follow the instructions installation

1) Adapter

(not supplied)

2)Bend over the slices

(supplied)

Slices

(supplied)

3) Two keys for releasing

the unit (supplied)

INSTALL THE UNIT

1)Install the bracket

2)Bend over some slices to secure the

installation of bracket inside of dash.

3)To avoid shake of the receiver, make

sure to install the fixation strap behind

the receiver.

Insert the keys into the small gaps in

the right and left sides of the unit at

the same time. Link the keys to the

slices and then pull out the unit lightly

to remove it from your car, and then

pull out the connection plugs.

REMOVE THE UNIT

Installation

VOL

SOURCE APS/

BAND CLK/

MUTE ST/RPT

General Features

VOL

SRC/PWR

/APS

MUTE

CLK/

ST/RPT

BAND

VOL

SOURCE APS/

BAND CLK/

MUTE ST/RPT

General Features

SRC/PWR

Press[ ] to eject the disc.

Eject

EJECT:

About 10 seconds after the disc ejected ,if not taken out,

the disc will be absorbed in again.

NOTE:

Press [SRC] button shortly will turn the unit on. Hold [SRC]

button down will turn the unit off.

Volume

Increasing Volume:

Decreasing Volume:

Rotate the VOL button in .counterclockwise direction

NOTE: When the power is on, press [SRC] button will show the

follow picture, touch the certain icon to select the exact function

needed.

Rotate the VOL button in anticlockwise direction.

VOL MENU

ST/RPT

/APS

Gray icon can not use.

NOTE:

Press [APS/ ] button to play or pause.

Play/pause:

Play/pause

NOTE:

Press [VOLUME] button can play too.

:In the play mode,press[ ]button once to pause,press it agaiin

to stop

CLK/

REP ONE REP DIR REP ALL REP OFF

Play operation

Hold [ ] button down;

Select chapter or section: In the DVD mode, press[ ]to

Choose last chapter; press [ ] to choose next chapter.

Forward:

Rewind: Hold [ ] button down.

In the play mode, press[ RPT ]button to

transit among the following status.

Repeat

Repeat:

TIT

Title:

In play mode, press this icon to return to

the title menu, and re-select the items.

R/L

R/L:

In play mode, press this icon to return and switch among

mono L mono R or stereo.

ESC

Esc:

In play mode, press this button to exit the playing.

Insert MP3 disc, and TFT will show menu as follows:

In this menu, the menu on the right side is the sub-menu.

You can press tu button to select the file and items

you like.

[][]

1-001_______MP3

2-002_______MP3

3-004_______MP3

XXXXX_______XXX

Insert DVD/VCD/CD disc,touchscreen will show menu

as follows:

VOL

SOURCE APS/

BAND CLK/

MUTE ST/RPT

SD/USB operation

UnderUSBorSDplaymode,press[ ]buttontoselect

tracks.

Touch or press [ST/RPT] button to repeat the playing.[TFT]

Play operation

Press [ ] button to play or pause.

REP ONE REP DIR REP ALL

Press button can play the disc randomly.[BAND]

RDM OFF RDMT

SD mode

PLAY/PAUSE:

Select:

REPEAT:

BAND:

REP OFF

USB/SD mode

USB mode

Insert SD card, the unit will switch to SD playing mode automatically

Insert USB, the unit will switch to USB playing mode automatically

USB

Press[ MENU ]button

V d o mode:ie Menu operation

Audio mode:

System mode:

Bright Color Contrast Tint

Vmode

STAN USER

BRIG SOFT

Audio setup Bass Treble Balance Fader

setup between 0~14.

EQ setting

NORM ROCK

CLAS POP

Loud ON and OFF

Beep ON and OFF

TOPIC: can set the receive toping as RED /YELLOW

BLUE /GREEN .

Time Display ON and OFF

Time Adjust press [ ] or[ ] button to select hour/minute

then press [ ]or [ ]button to setup.

System setting

ENTER MENU:

Menu operation

VIDEO AUDIO SYSTEM

BRIGHT

COLOR

CONTRAST

TINT

VMODE

STAN

ESC

Vd oie Audio System

NORM

ESC

Vd oie Audio System

ESC

Press[ ] to adjust.

Press to confirm and exit.[]

Clicks on the menu option

ESC

Press[ ] to adjust.

Press to confirm and exit.[]

Clicks on the menu option

ESC

Press[ ] to adjust.

Press to confirm and exit.[]

Clicks on the menu option

ESC

BASS

TREBLE

BALANCE

FADER

LOUD

BEEP

TOPIC

TIME DISP

TIME ADJ

OFF

GREEN

OFF

00:00
