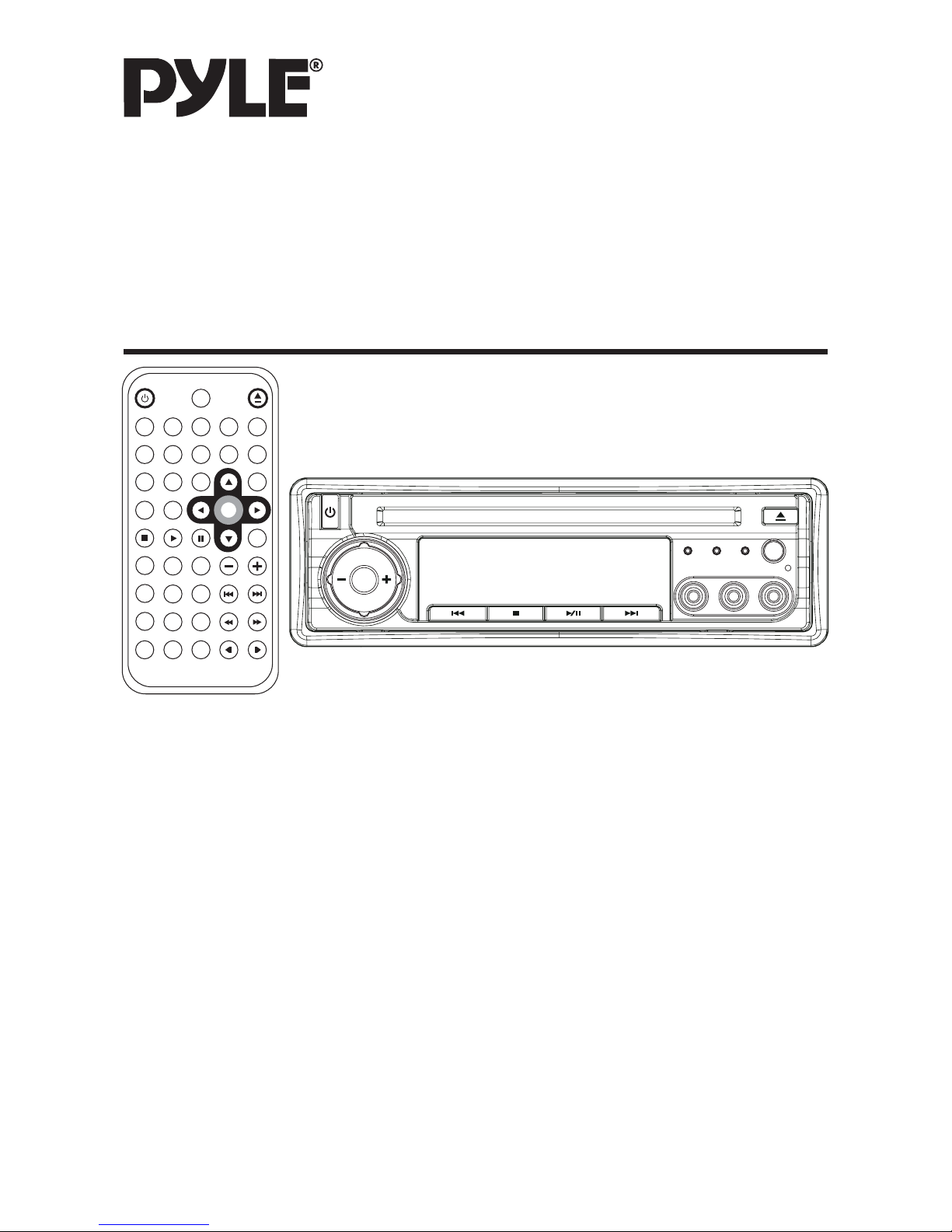

Pyle PLD142 Bedienungsanleitung

OWNER’S MANUAL

Audio/Video System

• Slot load DVD player

• ISO Din Mounting or portable

• Audio CD/CD-R/CD-RW/MP3 compatible

• DVD/CD resume function

• Default regional code

• On-screen user friendly setup menu

• Parental lock with security lock

• Full function remote control

• Included cigarette lighter plug

• Audio/Video out x 2

• Front AV In x 1

• Rear Audio/Video IN x 1

• Digital / S-Video Out

• DC In & DC out

• Remote repeater for monitor to control DVD unit

PLD142

www.pyleaudio.com

Compatible with PAL DVD (Video

CD) and NTSC DVD (Video CD)

This player can play discs recorded in

either PAL or NTSC format.

• A single LSI chip now integrates all

major DVD playback circuit functions

including MPEG2 decoder, video D/A

converter, and audio decoders.

• L/R stereo analog audio outputs for

connection to existing head unit aux

inputs. Video output is composite

video.

• Supplied remote handles

multi-function software (multi-language

audio-track/subtitle, multi-angle, multi-

story, etc.), plus all basic functions.

USE THIS PRODUCT SAFELY

Use the Proper Power Supply

This product is designed to operate with

a 12 volt DC, negative ground battery

system.

Protect the Disc Mechanism

Avoid inserting any foreign objects into

the disc driver of this player. Failure to

observe this may cause malfunction due

to the precise mechanism of this unit.

Use Authorized Service Centres

Do not attempt to disassemble or adjust

this precision product. Please refer to

the warranty card included with this

product for service assistance.

FEATURES

CONTENTS

Safety Information......................................................................................................4

Disc Notes...................................................................................................................5

The Player ...................................................................................................................6

Front View...............................................................................................................6

Back View ...............................................................................................................7

Remote Control ..........................................................................................................8

Location and Function of Keys...............................................................................8

Preparing the Remote Control..............................................................................10

General Operation ....................................................................................................11

Turn the unit On/Off ..............................................................................................11

Basic Play .............................................................................................................11

Mode Selection.....................................................................................................11

Last Play Memory.................................................................................................11

Menu function.......................................................................................................12

Advanced Operation ................................................................................................13

Repeat Play/Paragraph Repeat Play ....................................................................13

PBC Menu Playback of VCD/SVCD .....................................................................13

On-screen Display Function .................................................................................13

Goto Function.......................................................................................................14

Zoom Function .....................................................................................................14

Special Function for DVD .....................................................................................14

Special Function for VCD and CD ........................................................................16

Data Disc Play Operation .....................................................................................16

Setup..........................................................................................................................17

System Setup .......................................................................................................17

Language Setup ...................................................................................................17

Audio Setup ..........................................................................................................17

Trouble Shooting ......................................................................................................18

Specifications ...........................................................................................................19

CAUTION:

MOBILE DVD PLAYER IS A CLASS I

LASER PRODUCT. HOWEVER THIS

MOBILE DVD PLAYER USES A

VISIBLE/INVISIBLE LASER BEAM

WHICH COULD CAUSE HAZARDOUS

RADIATION EXPOSURE IF DIRECTED.

BE SURE TO OPERATE THE MOBILE

DVD PLAYER CORRECTLY AS

INSTRUCTED.

USE OF CONTROLS OR

ADJUSTMENTS OR PERFORMANCE OF

PROCEDURES OTHER THAN THOSE

SPECIFIED HEREIN MAY RESULT IN

HAZARDOUS RADIATION EXPOSURE.

DO NOT OPEN COVERS AND - DO NOT

REPAIR YOURSELF. REFER SERVICING

TO QUALIFIED PERSONNEL.

WARNING:

• TO REDUCE THE RISK OF FIRE OR

ELECTRIC SHOCK, DO NOT EXPOSE

THIS EQUIPMENT TO RAIN OR

MOISTURE.

• TO REDUCE THE RISK OF FIRE OR

ELECTRIC SHOCK, AND ANNOYING

INTERFERENCE, USE ONLY THE

RECOMMENDED ACCESSORIES.

• THIS DEVICE IS INTENDED FOR

CONTINUOUS OPERATION.

This product incorporates copyright

protection technology that is protected

by method claims of certain U.S. patents

and other intellectual property rights

owned by Macrovision Corporation and

other rights owners. Use of this

authorized by Macrovision Corporation,

and is intended for home and other

limited viewing uses only unless

otherwise authorized by Macrovision

Corporation. Reverse engineering or

disassembly is prohibited.

SAFETY INFORMATION

Region Management Information

Region Management Information:

This Mobile DVD Player is designed and

manufactured to respond to the Region

Management Information that is recorded

on a DVD disc. If the Region number

described on the DVD disc does not

correspond to the Region number of this

Mobile DVD Player, this Mobile DVD

Player cannot play this disc.

DISC NOTES

Disc formats supported by this player

DVD

12 cm disc

Video CD

12 cm disc

MP3

12 cm disc

Handling and Cleaning

• Dirt, dust, scratches and warping disc

will cause misoperation.

• Do not place stickers or make

scratches on discs.

• Do not warp discs.

• A disc should always be kept in its

case when not in use to prevent from

damage.

• Do not place discs in the following

places:

1. Direct sunlight

2. Dirty, dusty and damp areas

3. Near car heaters

4. On the seats or dashboard

Disc Cleaning

Use a dry soft cloth to wipe the surface.

If the disc is quite dirty, use a soft cloth

slightly moistured with isopropyl (rubbing)

alcohol. Never use solvents such as

benzine, thinner or conventional record

cleaners as they may mar the surface of

the disc.

Note:

A disc may become somewhat scratched

(although not enough to make it

unusable) depending on your handle it

and conditions in the usage environment.

Note these scratches are not an

indication of any problem with the player.

Preparing New Discs with Rough

Spots

A new disc may have rough edges on its

inside and outside edges. If a disc with

rough edges is used, the proper setting

will not be performed and the player will

not play the disc. Therefore, remove the

rough edges in advance by using a ball

point pen or pencil as shown on the right.

To remove the rough edges, press the

side of the pen or pencil against the

inside and outside edges of the disc.

Rough spots

on inside edge

Ball point pen

or pencil

Rough spots on

outside edge

Label side up

Do not touch

the underside

of the disc

Do not bend

Wipe the disc from center

toward the outside edge

THE PLAYER

FRONT VIEW

1. (POWER)

2. (Eject Button)

3. MODE

4. AUDIO

5. Reset Button

6. Disc Slot

7. /(PLAY/PAUSE)

8. (Stop)

9. PREVIOUS ( )

10. NEXT ( )

11. VOL-

12. VOL+

13. AUDIO IN R

14. IR

15. Indicator Light for DVD

16. Indicator Light for AV INPUT 1

17. Indicator Light for AV INPUT 2

18. VIDEO IN

19. AUDIO IN L

16 17 14

18 1310

215631

78912411 19

THE PLAYER

20. DC 12V INPUT Socket

21. DC 12V OUTPUT Socket

22. AV OUTPUT TYPE Switch

23. REMOTE Socket

24. AUDIO/VIDEO OUTPUT 1

25. AUDIO/VIDEO OUTPUT 2

26. AUDIO/VIDEO INPUT 2

BACK VIEW

AUDIO/VIDEO OUTPUT

20 22 23 24 2521

Location and Function of Keys

REMOTE CONTROL

1. POWER Press POWER to turn the unit ON or OFF.

2. MUTE Press to mute the sound.

3. SUB-T Changing of the SUBTITLE language on multi-subtitle language

DVD disc.

4. ANGLE Changing of the view angle on multi-angle DVD disc.

5. DISPLAY Display statistical disc information during playback.

6. MODE Changing between DVD mode and AV mode.

7. SETUP Display the SETUP menu.

8. P/N Switch between PAL mode and NTSC mode.

9. AUDIO Changing of the AUDIO soundtrack on multi-audio soundtrack

DVD disc. Changing of the sound mode of the VCD disc.

10. TITLE Display the TITLE menu that is stored in DVD disc.

11. MENU Display the root menu that is stored on the DVD disc.

12. / , / In case of menu mode, / , / buttons served as cursor

buttons to select item left/right, ahead/back.

13. OK Confirm the Track/Chapter selected with the numeric buttons or

selected with the cursor buttons on screen display.

14. / Changing for slow forward/reverse playback motion.

15. Press to play the disc.

16. / Press to search forward rapidly & to search reverse rapidly.

17. / Press to skip to the next track & press to skip back one

track.

18. Press it for the frist time to pre-stop the unit playback , press it

for the second time to stop the playback.

19. Press it to pause playback.

20. 0 - 9 Numeric buttons

21. 10+ Tens digit select button, cooperatively used with numeric buttons.

22. CLEAR When you input a number in error, press the button to clear it.

23. VOLUME+/- Press VOLUME+/- button to increase or decrease the volume

level.

24. ZOOM Allows the picture to be increased in size.

25. RESUME When in stop mode, press the button, the play can be resumed

from the stop point.

26. GOTO Disc search button, coorperatively used with numeric button.

27. PBC Changing between PBC ON and PBC OFF on the VCD disc.

28. SHUFFLE Allows the track played in random order.

29. PROGRAM Allows the track played in the order you programmed.

30. REPEAT Switch the Repeat mode of discs.

31. A-B A-B repeat allows a passage to be repeated continuously.

32. (EJECT) Press to eject the disc.

Preparing the Remote Control

Inserting the Batteries

1. Open the battery compartment cover.

2. Insert the new battery. Make sure

that the positive and negative

terminals of the battery are oriented

as indicated.

3. Close the cover.

• Battery: a button cell lithium battery

(CR2025 3V)

Note:

There’s also another type Remote control

without batteries, you can choose as you

like.

Using the Remote Control

Face the remote control towards the

player front face IR mark (remote control

signal receiver).

Operation angle: About 30 degree in

each the direction of the front of the IR

mark.

REMOTE CONTROL

Inhaltsverzeichnis

Andere Pyle Auto-Videosystem Handbücher

Pyle

Pyle PLDNAND465 Bedienungsanleitung

Pyle

Pyle PLRDVD86 Bedienungsanleitung

Pyle

Pyle PYLE View Series PLVSMN56 Bedienungsanleitung

Pyle

Pyle PLDVD115 Bedienungsanleitung

Pyle

Pyle View PLDVD10M Bedienungsanleitung

Pyle

Pyle PLRTD175 Bedienungsanleitung

Pyle

Pyle PLDN63BT Bedienungsanleitung

Pyle

Pyle Chopper PLBASS2.8 Bedienungsanleitung

Pyle

Pyle PL1SN104 Bedienungsanleitung

Pyle

Pyle PYLE View Series PLVRL6400 Bedienungsanleitung

Pyle

Pyle PLVW8M Bedienungsanleitung

Pyle

Pyle PLDN70U Bedienungsanleitung

Pyle

Pyle PLM4135BT Bedienungsanleitung

Pyle

Pyle PLVIN70 Bedienungsanleitung

Pyle

Pyle PLSD131BT Bedienungsanleitung

Pyle

Pyle PLTV7.5DIN Bedienungsanleitung

Pyle

Pyle PLDVD-150 Bedienungsanleitung

Pyle

Pyle PYLE View Series PL56PHRG Bedienungsanleitung

Pyle

Pyle PLDVD124 Montageanleitung

Pyle

Pyle PLVWR900 Bedienungsanleitung

Pyle

Pyle PLD7HB Bedienungsanleitung

Pyle

Pyle PLKITCAP4 Bedienungsanleitung

Pyle

Pyle PLVWR7200 Bedienungsanleitung

Pyle

Pyle PLD7MU Bedienungsanleitung

Beliebte Auto-Videosystem Handbücher anderer Marken

Stinger

Stinger HEIGH10 RB10RAM13B Bedienungsanleitung

Eonon

Eonon E1057 Bedienungsanleitung

Milion

Milion D2223 Bedienungsanleitung

Metra Electronics

Metra Electronics 99-8153 Bedienungsanleitung

Voxx Electronics

Voxx Electronics HR8MA1 Bedienungsanleitung

Axxera

Axxera AV604Bi Bedienungsanleitung

Clarion

Clarion NX706E Bedienungsanleitung

Pyle view

Pyle view PLDN74BTi Bedienungsanleitung

Clarion

Clarion NX602 Bedienungsanleitung

PowerAcoustik

PowerAcoustik PTID-5850N Bedienungsanleitung

RCA

RCA DRC6296 - Twin 9" Mobile DVD System Benutzerhandbuch

Lanzar

Lanzar SVDVD5 Bedienungsanleitung

Kia

Kia MTXM100YPPE Bedienungsanleitung

Eonon

Eonon E1060 Bedienungsanleitung

Macrom

Macrom M-AN900 Bedienungsanleitung

Hyundai

Hyundai BAPE-L3000N Bedienungsanleitung

r.LiNK

r.LiNK RL2-UCON8-SM Bedienungsanleitung

Blaupunkt

Blaupunkt DVP 01C Bedienungsanleitung
