Pyle PIPCAM5 Bedienungsanleitung

Indoor Wireless/Wired P2P IP Network

Camera

PIPCAM5

www.pyleaudio.com

Instruction Manual

CONTENTS

1. INTRODUCTION...........................................................................................................................................................3

1.1 FEATURES...............................................................................................................................................................................................3

1.2 PACKING LIST........................................................................................................................................................................................ 3

1.3 PRODUCT VIEWS.................................................................................................................................................................................... 4

1.4 PC SYSTEM REQUIREMENTS.................................................................................................................................................................. 6

1.5 HARDWARE INSTALLATION....................................................................................................................................................................6

1.6 SOFTWARE INSTALLATION..................................................................................................................................................................... 6

2. SOFTWARE OPERATION......................................................................................................................................... 9

2.1 IP CAMERA TOOL.................................................................................................................................................................................. 9

2.2 CAMERA LOGIN....................................................................................................................................................................................12

2.3 FOR IE BROWSER.................................................................................................................................................................................14

2.4 FOR SAFARI, FIREFOX, GOOGLE BROWSER......................................................................................................................................... 16

2.5 FOR MOBILE PHONE.............................................................................................................................................................................17

2.6 ACTIVEX MODE (FOR IE BROWSER)...................................................................................................................................................17

2.7 FOR VISITOR........................................................................................................................................................................................ 17

2.8 FOR OPERATOR....................................................................................................................................................................................... 21

2.9 FOR ADMINISTRATOR...........................................................................................................................................................................23

3. SETTINGS AS ADMINISTRATOR..........................................................................................................................24

3.1 MULTI-DEVICE SETTINGS.................................................................................................................................................................... 24

3.2 NETWORK SETTINGS............................................................................................................................................................................ 29

3.3 BASIC NETWORK SETTINGS................................................................................................................................................................. 29

3.4 WIRELESS LAN SETTINGS................................................................................................................................................................... 31

3.5 ADSL SETTINGS.................................................................................................................................................................................. 33

3.6 UPNP SETTINGS................................................................................................................................................................................... 33

3.7 DDNS SERVICE SETTINGS................................................................................................................................................................... 34

3.8 P2P SETTINGS..........................................................................................................................................................................................38

3.9 SYSTEM SETTINGS................................................................................................................................................................................39

3.10 ALIAS SETTINGS.................................................................................................................................................................................39

3.11 DATE &TIME SETTINGS..................................................................................................................................................................... 40

3.12 USERS SETTINGS................................................................................................................................................................................ 40

3.13 PAN, TILT, (PTZ) SETTINGS (NOTE,THERE IS NO ZOOM FEATURE ON THIS MODEL)........................................................................ 41

3.14 INDICATOR SETTINGS.........................................................................................................................................................................41

3.15 BACKUP & RESTORE..........................................................................................................................................................................42

3.16 OTHER SETTINGS............................................................................................................................................................................... 43

3.17 MAIL SERVICE SETTINGS................................................................................................................................................................... 44

3.18 FTP SERVICE SETTINGS..................................................................................................................................................................... 45

3.19 ALARM SERVICE SETTINGS................................................................................................................................................................47

3.20 SEND E-MAIL ON ALARM................................................................................................................................................................... 50

3.21 PATH SETTINGS..................................................................................................................................................................................52

3.22 SERVER PUSH MODE (FOR SAFARI, FIREFOX,AND GOOGLE BROWSER)..........................................................................................53

3.23 SIGN IN MOBILE PHONE...................................................................................................................................................................... 54

4. APPENDIX................................................................................................................................................................... 55

4.1 FREQUENTLY ASKED QUESTIONS........................................................................................................................................................ 55

4.2 DEFAULT PARAMETERS........................................................................................................................................................................57

5. SPECIFICATIONS......................................................................................................................................................58

6. OBTAINING TECHNICAL SUPPORT.................................................................................................................... 59

1. INTRODUCTION

This is an integrated wireless IP Camera solution. It combines a high quality digital Video Camera with network

connectivity and a powerful web server to bring clear pictures to your Desktop from anywhere on your local

network or over the Internet.

The main function of the camera is to transmit remote video over IP network. The high quality video image can

be transmitted with 30fps speed on the LAN/WAN by using MJPEG hardware compression technology.

It is based on the TCP/IP standard, build-in WEB server which supports Internet Explorer. Therefore the

management and maintenance of your camera becomes simple by using the network to achieve the remote

configuration, start-up and to upgrade firmware.

You can use your IP Camera to monitor your home or your office. Also, controlling and managing images are

simple by visiting the web site.

1.1 Features

☆Powerful high-speed video protocol processor

☆High-sensitivity 1/4’’ CMOS sensor

☆Picture total 300K pixels

☆Supports Pan and Tilt (PT) control, Pan 270°, Tilt 120°

☆Optimized MJPEG video compression for transmission

☆Multi-level user management and passwords definition

☆Embedded Web Server for users to visit by IE

☆Supports wireless network (WI-FI/802.11/b/g)

☆Supports Dynamic IP (DDNS) and UPNP LAN and Internet (ADSL, Cable Modem)

☆Gives an alarm in case of motion detection

☆Supports image snapshot

☆Supports multiple protocols：HTTP TCP/IP UDP SMTP DDNS SNTP DHCP FTP

☆Supports WEP/WPA/WPA2 encryption

☆Supports 3G phone, Smart phone control and surveillance

☆Supports IE, Firefox, Safari, and Google chrome browsers

1.2 Packing List

Please check that the following items are included:

● IP Camera

● Wi-Fi Antenna

● User Manual & Quick Setup Guide

● DC Power Supply

● CD

● Network Cable

● Mounting bracket

1.3 Product Views

1.3.1 Front View

Figure 1.1

1 Light Sensitive Hole: For light sensitive photocell

2 Infrared LED: 10 LEDs

3 LENS: CMOS sensor with fixed focus lens. (Default is 6mm, 3.6mm optional)

4 Network Indicator LED: If there is network activity, the LED will blink

5 Microphone: Built-in microphone

6 Speaker: Built-in speaker

7 Wireless Antenna: WI-FI Antenna

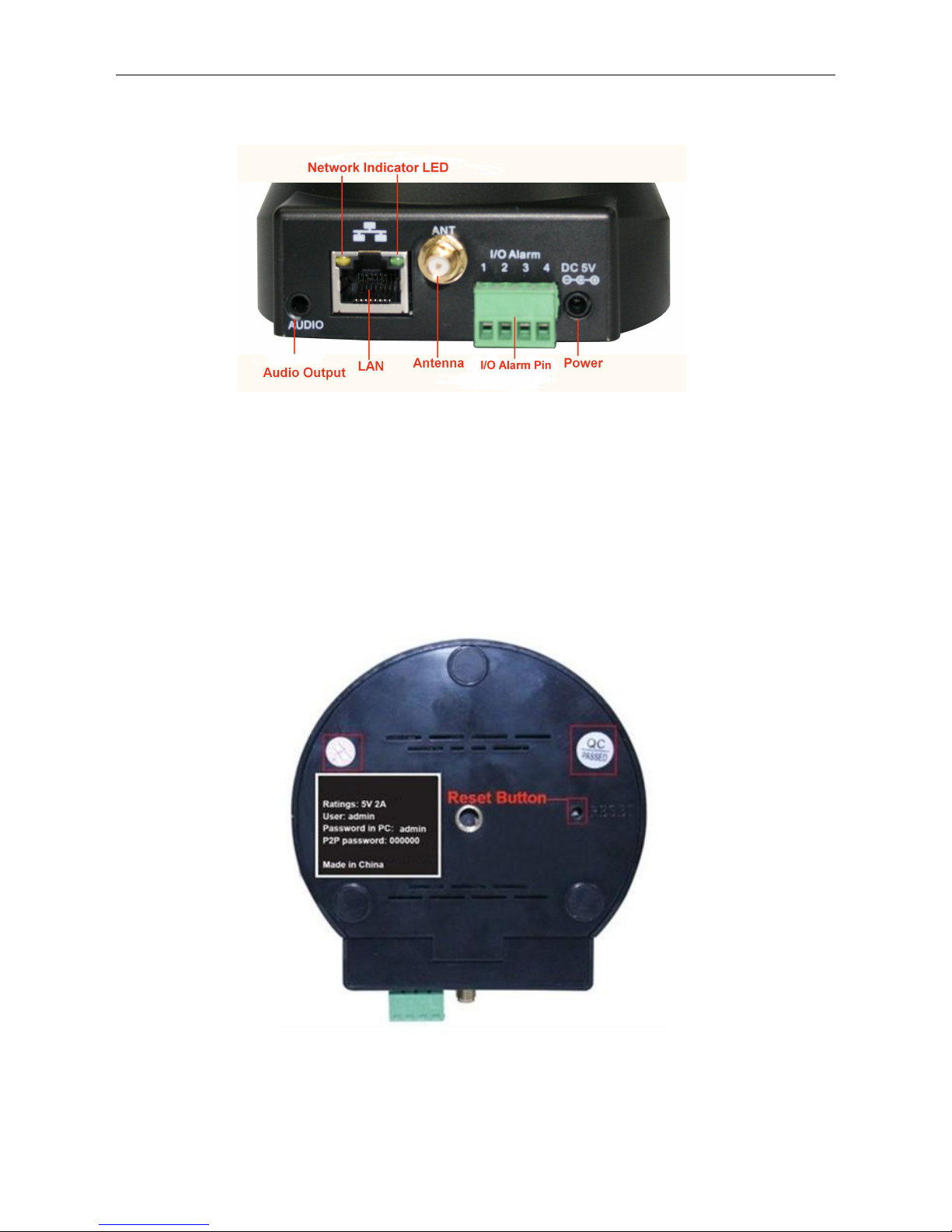

1.3.2 Rear Panel

Figure 1.2

LAN: RJ-45/10-100 base T

Power: DC 5V/2A power supply

Network Light: The green LED is on when connected to the network, the yellow LED blinks when data is

transferred.

Audio Output: The jack is used to connect an external speaker

I/O PINS: 1: Output A 2: Output B 3: Alarm input 4: Input (GND)

1.3.3 Bottom View

Figure 1.3

Please note the unique MAC and DDNS addresses on the bottom of the camera (different for every camera).

RESET BUTTON: Press and hold the RESET BUTTON for 30 Seconds to reset the camera back to the

factory default settings. (Please keep the power on when doing a RESET)

1.4 PC System Requirements

System configuration requirements:

CPU: 2.06 GHZ or above.

Memory: 256M or above.

Network Card: 10M or above.

Display Card: 64M or above memory.

Recommended Operating system: Windows XP, Windows Vista, Windows 7.

1.5 Hardware Installation

Follow the steps below to set up your camera hardware.

1. Install the Wi-Fi antenna.

2. Plug the power adaptor into the camera and into an AC outlet.

3. Plug the network cable into the camera and router/switch.

4. It takes approx 30 seconds to boot up the camera, then you will find the IP address from “IP Camera Tool”

(Figure 2.1).

5. When the power is on and the network cable is connected, the green LED on the rear panel will stay on.

The yellow LED will keep flashing, and the Indicator LED on the front of the camera will flash. (The indicator

LED can be controlled by software).

Figure 1.4

1.6 Software Installation

Attention: In order to make the installation correctly, we suggest that you turn off your Firewall and Antivirus

software before installing ActiveX. Correct software installation is essential to the successful use of this

product. Install the following software:

1. IP Camera Tool: Open the CD, double click “IPCamSetup.exe” then click next to complete the software

installation. (Figure 1.6, 1.7, 1.8).

2. ActiveX: Double click “Appinstall.exe”—“Next”—“Install”—“Finish”.

Figure 1.5

Figure 1.6

Figure 1.7

Figure 1.8

After this is done, the icon “IP Camera Tool”

will be displayed on your desktop.

CAUTION: Before installing and using the product, please read the following precautions carefully and make

sure they are fully understood.

Use only the power adaptor included with the product. Use of an unauthorized power adapter may cause

damage to your IP Camera.

The IP Camera should be installed indoors only.

Do not touch the lens of the IP Camera. The optimum focus range has been set for you. If you turn the lens, it

may cause incorrect focus and blurry images.

Do not turn the Pan/Tilt by force, it may cause damage to internal components of the Pan/Tilt mechanism.

For firmware upgrading or connection with an external device, refer to detailed instructions contained in the

CD.

2. SOFTWARE OPERATION

2.1 IP Camera Tool

When the Device has been mounted properly, you can double-click the Icon “IP Camera Tool”

and a dialog box shown in Figure 1.9 will pop up.

Figure 1.9

Note: The software searches IP Servers automatically over your LAN. There are 3 cases:

1. No IP Cameras found within LAN. After about 1 minute search, the Result Field will show “not found IP

Server” and the program shut down automatically.

2. IP Cameras have been installed within LAN. All the IP Cameras will be listed and the total number is

displayed in the result field as shown in Figure 1.9.

3. The IP Cameras installed within LAN do not share the same subnet with the monitoring PC. A prompt will

be shown in result field (prompt: Subnet doesn’t match, double click to change!). Click the left mouse

button to choose the prompt and click the right mouse button, choose Network Configuration to set the

static IP address of the Camera to the same subnet as your LAN. (Figure 2.3).

NOTE: If it shows” Subnet doesn’t match, double click to change!” you can also choose ”Obtain IP from

DHCP Server” to get a dynamic IP. (Figure 2.2).

2.1.1 Six Options

Choose the IP Camera list and Click the right mouse button, there are six options: (Figure 2.0).

Basic Properties,Network Configuration,Upgrade Firmware,

Refresh Camera List,Flush Arp Buffer,About IP Camera Tool.

Figure 2.0

2.1.1 .1 Basic Properties

There is some device information in the Basic Properties, such as Device ID, System Firmware Version, and

Web UI Version.（Figure 2.1).

The Device ID is the camera’s MAC ID, which should be the same as shown on the sticker on the bottom of

the camera. Every camera has a unique MAC ID. So if there are many IP addresses shown in the list, check

the MAC ID on the bottom of the camera, so you can ensure which camera it is.

Sometimes, if there is no IP address shown on the IP Camera tool, it could be blocked by a firewall, in this

case you need to add the MAC ID to the router, and give it a fixed IP or add the MAC ID as a trusted site.

There are two MAC Addresses, one is the Device MAC ID, the other is the WIFI MAC ID.

WIFI MAC ID, you can find it on the sticker on the bottom of the camera, you can also login to your WIFI router,

check the host status, which will show all the WIFI devices connected to your router, you can also find the

IPCAM’s WIFI MAC ID there.

Figure 2.1

2.1.1.2 Network Configuration

Below shows how you can configure the Network parameters.
