PLUTV43BTA Installation

1. To avoid potential shorts in the electrical system, be sure to disconnect the (-) battery cable

before installation. Use this unit with a 12-Volt battery and negative grounding only.

Failure to do so may result in a re or malfunction.

2. Speaker Mounting suggestion as below:

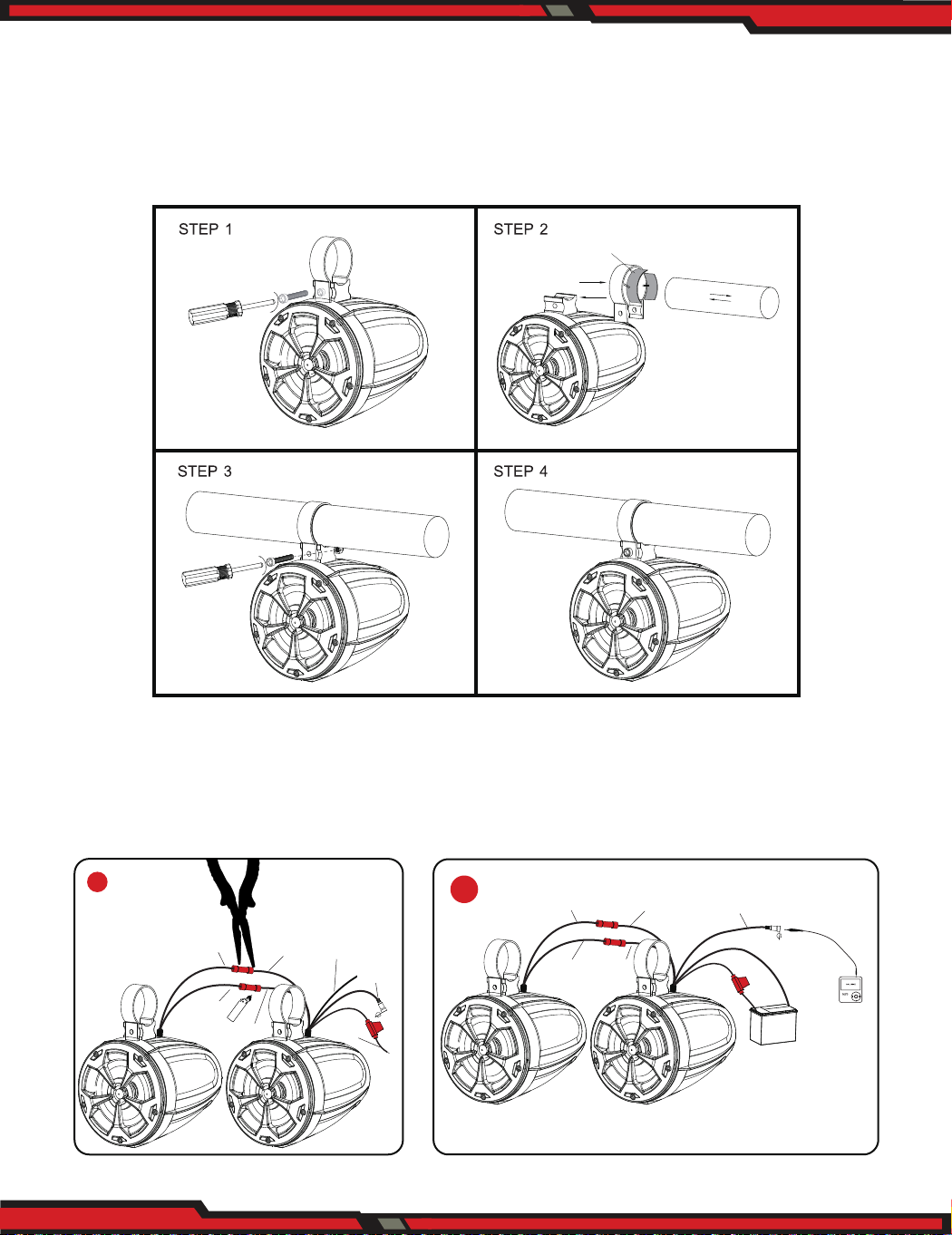

Step 1: Unbolting the mounting bracket

Step 2: Slide in the buckle with rubber pad attached to the bracket stand of the speaker

Attach the set to handle bar of vehicle / ship

Step 3/4: Attach screw to lock the buckle

Step 5: Using accessories of Butt Connector to Connect Speaker wires (See Illustration 1)

Step 6 : Using accessories of Butt Connector to Connect Power Cable (See Illustrations 2)

Rubber Pad

Blue

yellow

+ +

black

Red

AUX

Blue

yellow

- -

BlackRed

Blue

yellow

Power

AUX IN

www.PyleUSA.com

PLUTV43BTA

4’’Waterproof Rated O-Road Wireless BT Streaming Speakers

Amplied Vehicle Speaker System for ATV, UTV, 4x4, Jeep (800 Watt)

Features:

• Pro Audio PowerSport Speakers

• Amplied (Active + Passive) Speaker System

• Bluetooth Wireless Music Streaming Abiltiy

• Bridged Sound System: (2) x 4.0'' Woofers + (2) x 0.5'' Tweeters

• Marine Grade Waterproof Rated Construction

• Weatherproof & Water-Resistant Housing

• 2-Way Full Range Stereo Sound Reproduction

• Built-in Digital Sound Processing Amplier

• Integrated Speaker Power & Wiring Harness

• Compact Size & High-Powered Output

• Impressive Bass Response

• Aux (3.5mm) Input Jack

• Connect & Stream Audio from External Devices

• Sleek Design, Machine Molded Speaker Cabinet Housing

• Rugged, Universal Mount Bracket Design for Roll-Bar / Roll-Cage

• Used for O-Road Outdoor Vehicles: ATV, UTV, 4x4, Jeeps, Marine Watercraft

Bluetooth Connectivity:

• Simple & Hassle-Free Pairing

• Instant Wireless Audio Streaming Ability

• Works with All of Today’s Latest Devices

• Smartphones, Tablets, Laptops, etc.

Technical Specs:

• Speaker Power: 800 Watt MAX

• Amp Power: 2 x 250 Watt MAX @ 4 Ohms (2 x 125 Watt RMS)

• Amp Type: 2-Channel, Class D

• Marine Grade Waterproof Rating: IP-X5

• Speaker Type: Polypropylene Cone, Butyl Rubber Surround (x2)

• Tweeter Type: Neodymium Dome (x2)

• Frequency Response: 85Hz-20kHz

• Impedance: 4 Ohm

• Magnet Type: 20 oz. Circuit

• Mid-Woofer Voice Coil Type: 1.0'', Aluminum

• Sensitivity: 90 dB +/- 2 dB @ 1M/1W

• Anti-Thump Turn-On

• Soft Turn On/O

• T.H.D: <0.05%

• S/N Ratio: >95dB

• Channel Separation: >65dB

• Amp Freq. Response: 10Hz- 30kHz

• Fuse: 1 x 10A

• Universal Mounting Brackets Roll-Bar / Roll-Cage Diameter: 1.25’’ ~ 2.0’’ -inches

• Speaker Dimensions (L x W x H): 5.62’’ x 8.38’’ x 7.29’’ -inches, with Bracket (Each)

• Power Supply: DC 12V

• Sold as: Kit

What’s in the Box:

• (1) 4'' Amplied Main Speaker

• (1) 4'' Passive Support Speaker

• Speaker Connection Wires, 6.5' ft.

• Wire Butt Connectors, 16-22 AWG

• EVA Mounting Pads

• Bluetooth Version: V4.2

• Bluetooth Network Name: ‘PYLEUSA’

• Wireless Range: 30+ ft.

• * Bluetooth Receiver Module Built-Into Amplier

of Main / Active Speaker
