Pyle Street Blaster PBMSPG200V2 Bedienungsanleitung

StreetBlaster

X Portable BoomBox Speaker Radio

with Bluetooth & NFC Wireless Streaming

PBMSPG200V2

www.PyleUSA.com

Location of Controls

1. POWER SWITCH

2. DC IN JACK

3. USB PORT

4. AUX IN JACK

5. BATTERY INDICATOR

6. BLUETOOTH INDICATOR

7. GUITAR INPUT JACK

8. MICROPHONE INPUT JACK

9. MODE BUTTON

10. EQ/FD (EQUALIZER/ FOLDER)

LIGHT

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15 16 17

18 19

11. LIGHT ON/OFF BUTTON

12.

13.

14.

15. VOLUME LEVEL CONTROL

16. ECHO LEVEL CONTROL

17. MICROPHONE INPUT LEVEL CONTROL

18. BATTERY COMPARTMENT

19. NFC AREA

20. ANTENNA

www.PyleUSA.com

Getting Started

Charge the battery

Before using the speaker, you must fully charge the battery. When the

battery is charging, the BATTERY INDICATOR lights solidly. After the battery

has fully charged, the light switches o.

1. Connect the AC adapter to the DC IN JACK of the speaker rmly, and plug

it into a wall outlet.

2. When the battery is fully charged, rst disconnect the AC adapter from

the speaker, then from the wall outlet.

Power Source

1. Press the POWER SWITCH to turn ON the speaker.

2. Press the POWER SWITCH again to turn OFF the speaker, and pull the AC

adapter out of the wall outlet to switch o completely.

Bluetooth Function

Pair the bluetooth device

Before using your speaker with a Bluetooth device for the rst time, you

must pair and connect it to the Bluetooth device.

Press the POWER SWITCH to turn on the speaker. The display shows "HI".

Then press the MODE button to select the Bluetooth mode (F1).

The "BLUETOOTH INDICATOR" starts to ash, and the speaker is now in

pairing mode.

Pair the speaker using NFC

1. With Near Field Communication (NFC), you can easily pair and connect

the speaker to an Android device with NFC.

2. If the Android device supports NFC, activate its NFC feature, and touch

the NFC area of the speaker with the NFC area of your Android device

(F2).The speaker pairs and connects to the Android device automatically.

For details on NFC, see the user guide of the Android device.

3. For oth•er Bluetooth device, pair the speaker manually.

www.PyleUSA.com

Pair the speaker manually

1. Verify that the Bluetooth function device is enabled.

2. Choose the Bluetooth menu in your Bluetooth device, and from the found

devices, select the "P137J". If you are prompted to enter the PIN code,

please enter "0000" (four zeros).

3. For more information, see the user manual for Bluetooth device.

4. After successfully pairing, play the music from the Bluetooth device.

Note:

1. You can only connect one Bluetooth device to the speaker. If the speaker

is astill connected to another Bluetooth device, the speaker will not

appear in the Bluetooth menu of your Bluetooth device.

2. When you turn OFF/ON the speaker or the Bluetooth device, the speaker

will connect to the last Bluetooth connected device automatically within

10 seconds. Otherwise, you need to connect it manually on the Bluetooth

menu in your Bluetooth device.

3. Depending on the device manufacturer, some Bluetooth devices need to

perform the pairing again.

APP Control using hPlay light

1. Please scan the QR Codes or search “hplay light” on Google Play or App

Store to download the app to your Android or IOS device.

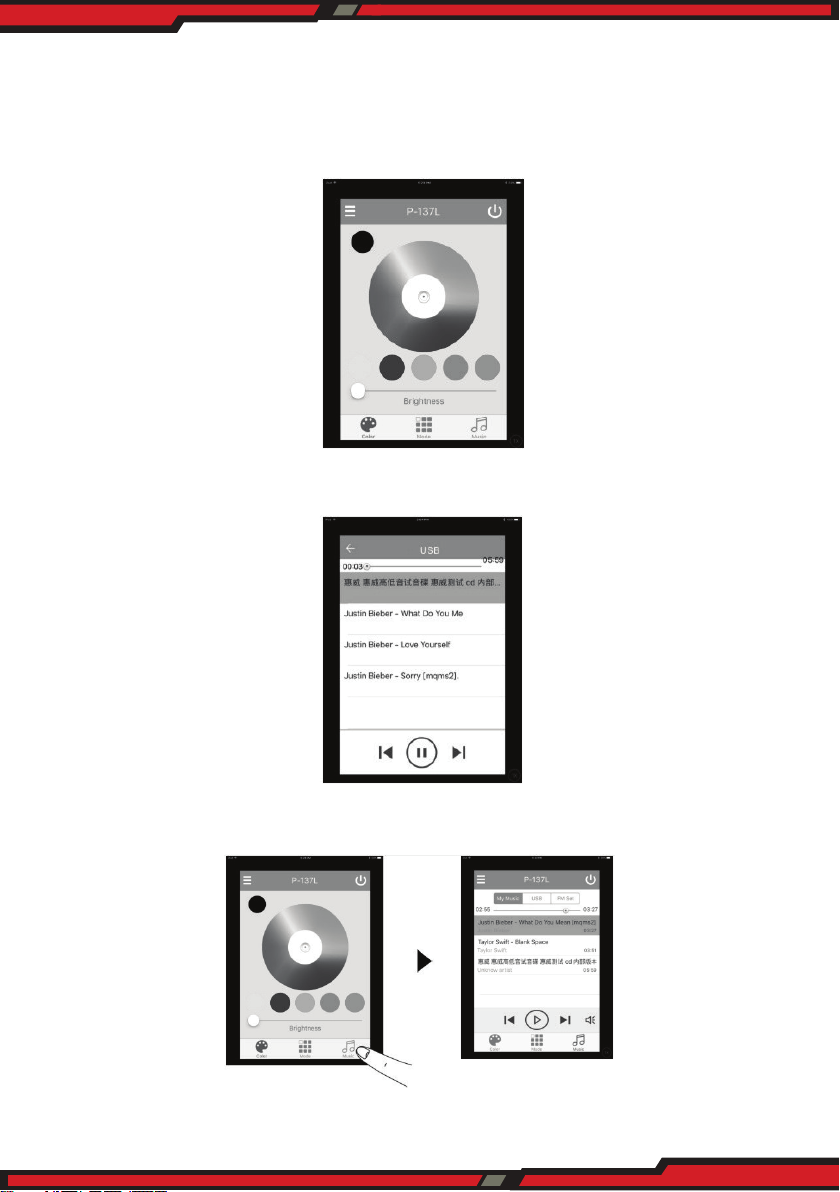

Using the app "hPlay light”

1.Tap the speaker to connect.

www.PyleUSA.com

2. After connection, slide your nger on the color wheel or tap the circular

icon to change the color. Also, you can swipe the screen from left to right

on the lower bar to adjust the brightness. Tap on the power button on the

top right corner to turn ON/OFF light.

3. Tap "Music" to play local music on your mobile device- iPhone, device.

4. Tap "USB" to play music on USB drive if the USB drive is pluged in.

www.PyleUSA.com

5. Tap "FM Set" to FM radio.

6. Tap "Mode" to light eect. Slide your nger upwards/downwards or tap

M+/M- to change the color mod. For each color mode, the light eect

pulses to music rhythm. Also, you can slide your nger left and right on

the lower bar to adjust the light eect speed.

Aux IN function

1. When the speaker is in Bluetooth mode, press the MODE button to select

the Aux IN mode (F3).

2. Connect an audio cable (not included) to the AUX IN JACK of the speaker

to the audio output socket on the external audio devices such as MP3

player, discman, etc.

3. Play from an external audio device.

www.PyleUSA.com

Listening to FM radio

1. When the speaker is in Aux IN mode, press the MODE button to select FM

radio (F4)

2. Press / FM SCAN button to search all the FM stations.

3. When it stops searching FM stations, all the FM stations have been found

and stored automatically.

4. Press /- or /+ button to explore the found stations (F5).

5. Press the MODE button to store FM stations.

Remark: You can also use hplay _light APP to control FM radio.

For best FM reception, fully extend the FM antenna.

Playing audio via USB port

1. When the speaker is in FM radio mode, press the MODE button to select

USB mode (F6)

2. Plug the USB device into USB Port, then it will play the music le

automatically.

3. To pause the music while playing, press the / FM SCAN button once.

To re-start playback, press the / FM SCAN button again and the music

will start from the exact position where it was paused.

4. When /- or /+ button is pressed once, it will return to the previous

track or advance to the next track.

5. During play mode, when /- or /+ button is pressed and held, it will

search the track with audible high-speed backward or forward playback.

www.PyleUSA.com

6. Press and hold EQ/FD button will advance to the next folder (F7).

Remark: You can also use hplay _light APP to control USB playback.

Connecting a microphone/guitar

Using a microphone or a guitar, you can mix its sound with a source sound.

CAUTION

DO NOT connect a bass guitar to the MICROPHONE / GUITAR INPUT JACK,

as it may damage the speaker.

1. Turn the MICROPHONE INPUT LEVEL CONTROL fully counterclockwise.

2. Connect a microphone or a guitar to the MICROPHONE / GUITAR INPUT

JACK of the speaker.

3. Select the Bluetooth, Aux in, FM radio or USB as the source.

4. Start playback of the sound source.

5. Turn the MICROPHONE INPUT LEVEL CONTROL to adjust the microphone

volume.

6. Turn the GUITAR OUTPUT LEVEL CONTROL of your guitar to adjust the

guitar volume.

Party Light

Press LIGHT button to turn ON/OFF the party light.

Adjust volume level and sound eect

To adjust the volume

Turn the VOLUME LEVEL CONTROL to adjust the volume of the speaker.

Control the echo

Turn the ECHO LEVEL CONTROL to adjust the echo eect.

Control the EQ

Press the EQ/FD button, the sound tone changes as below:

www.PyleUSA.com

PBMSPG200V2

Street Blaster-X Portable BoomBox Speaker Radio with Bluetooth &

NFC Wireless Streaming

Features:

• Made for the Streets: Rugged, Powerful & Portable!

• Digital Boombox Stereo Speaker System

• Bluetooth Wireless Audio Streaming

• NFC (Near Field Communication) Android Support

• Built-in LED Party Lights Pulse to the Music

• Control the Lights via the Free Downloadable ‘hPlay_Light’ App

• High-Powered Portability: Built-in Rechargeable Battery

• Full Range Stereo Sound Reproduction, Impressive Bass Output

• FM Radio with Digital LCD Display

• LCD Digital Display and Touch Button Controls

• Digital Sound Processing GX Amplier

• Connect & Stream Audio from External Devices

• Aux (3.5mm) Input

• (2) 1/4’’ Microphone/Guitar Inputs

• EQ Audio Conguration Control

• Treble, Bass, Echo, Volume, Input Audio Adjustment

• Battery Level Indicator Lights

Bluetooth & NFC Connectivity:

• Simple & Hassle-Free Device Pairing

• Instant Wireless Music Streaming Ability

• Works with All of Today’s Latest Smartphone, Tablets, Laptops, etc.

• Bluetooth Version: 4.0

• Bluetooth Network Password: ‘0000’

• Wireless Range: Up to 35’ ft.

What’s in the Box:

• BoomBox Speaker

• Power Adapter Cable

• Shoulder Carry Strap

Technical Specs:

• Power Output: 1000 Watt MAX

• Digital Audio File Support: MP3, WMA

• USB Flash Drive Support: Up to 32GB Max.

• Rechargeable Battery: Lithium-ion, 6,000mAh, 7.4V

• Power: 100V-220V AC, 50/60Hz

• Unit Dimensions (L x W x H): 24.5” x 10.0” x 10.0” -inches

• Sold as: 1
