PPH126WMU

USER MANUAL

Do not open or repair the machine if you are not a professional,

ask help from the after sell services or professional Engineers.

Do not let the machine be close to any heat sources. Please

leave it in a well ventilated area.

Charge the speaker within the voltage of AC 100V-240V

50/60Hz only.

Do not throw any metal materials into the machine.

To prevent re or get electric shock, please do not suddenly

drop the product or violently let out with the rain or put on a

wet surface.

Do not use any organic solvents in cleaning the set.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

Warning! Do not open the machine to avoid electric shock, please

ask assistance from the professional technicians.

NOTE

This unit may be submitted for changes in specications, characteristics and/

or operation without prior notice to the user, in order to continue improving the

development of its technology.

FRONT CONTROL PANEL FUNCTION & OPERATION:

MIC Volume: Increase / decrease the microphone.

Volume: Increase / decrease the main volume.

0-1-9+ Numeric keys: Press this to select a song.

Press this button to select the previous song played.

In MP3 Mode: Short press for previous song and long press

to rewind.

In FM Mode: Short press for previous station and press once

to search any available station.

In AUX Mode: No function on this button

Press this button to select the next song.

In MP3 Mode: Short press for next song and long press for

fast-forward.

In FM mode: Short press to choose next station

In AUX Mode: No function on this button

Play and Pause

In MP3 Mode: Play & Pause, Cycle playing.

In FM Mode: Play & Pause, long press to search radio sta-

tions.

In AUX Mode: Play & Pause.

M: Input mode change --- Short press to change between

Blue-conn /FM/USB/SD/MMC/AUX mode.

In Music Mode: Short press for single repeat, and long press

for a cycle repeat.

PS: SD/MMC card inset method as the picture shows.

SD/MMC/USB device can be supported the memory size

of maximum 8GB

REMOTE CONTROL OPERATION INSTRUCTION:

Standby: Used to turn on/off the machine.

Mode: Audio in put select key,input choose between

AUX/Blue-conn/FM/USB/SD/MMC.

Mute: press it to turn the colme off, re-press to have

the sound back.

Play & Pause: Same function as front control panel.

Previous: Same function as front control panel.

Next: Same function as front control panel.

EQ: Sound effect choose between normal,-

jazz,rock,pop,classic, country six different sound

effects.

-/+: USB/TF/MMC volume adjust.

USB/SD: Press it to select USB or SD input.

Short press for single repeat play, long press for

cycle repeat play.

0,1,...9,100+ NUMBER keys: press these number

keys to select Mp3 song.

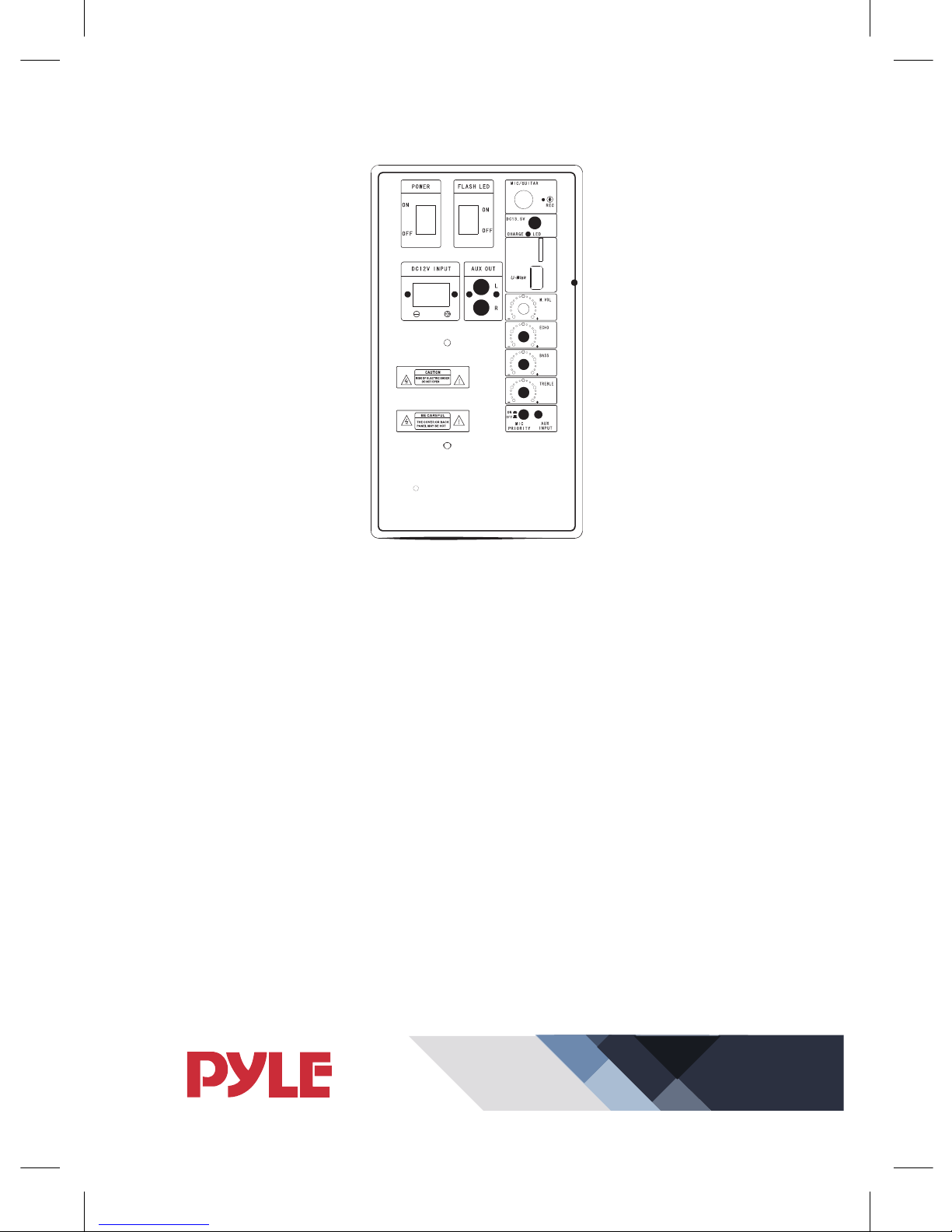

ADDITIONAL FUNCTION INSTRUCTION

ON/OFF: Power on and power off.

DC13.5V/1.5A IN: 13.5V/1.5A re-

charge jack.

LED: LED lighting under working status.

MIC IN: Microphone connect port.

AUX IN: Auxiliary in put.

ECHO: Echo adjust for microphone

TECHNICAL SPECS:

Frequency Response: 55Hz-20KHz

Snr: 60dB

Input Sensitivity (1KHz): 500mV- 800mV

Mic Input Sensitivity: 25mV(1KHz)

Battery: 2100mAH

Speaker: 12’/4Ω

www.PyleUSA.com
