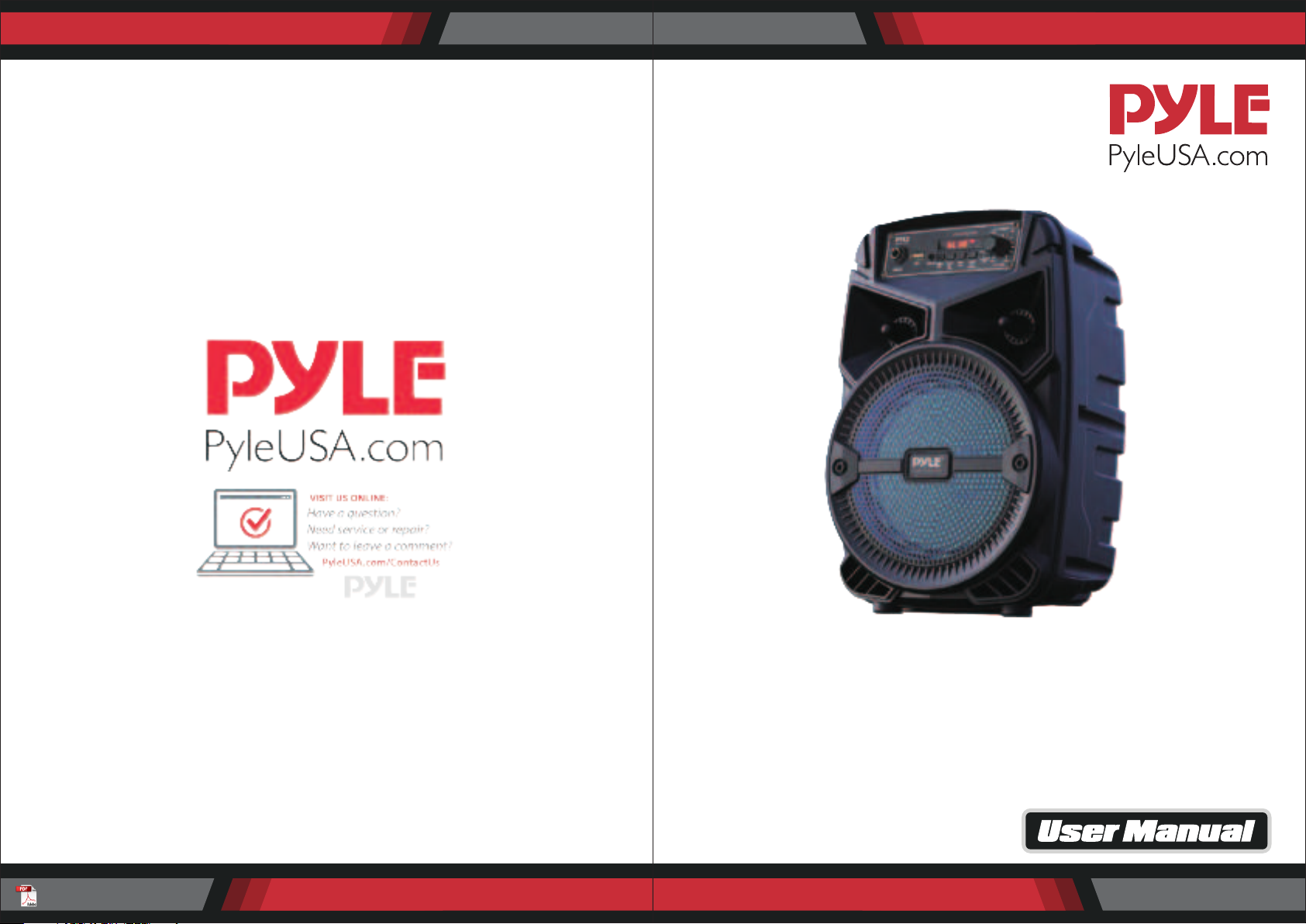

Pyle PPHP634B Bedienungsanleitung
6.5’’ Wireless BTPortable PASpeaker
PPHP634B
Portable PA & Karaoke Party Audio Speaker
with Built-in Rechargeable Battery, Flashing Party Lights,
MP3/USB/ /FM Radio (240 Watt MAX)
Questions? Issues?
We are here to help!
Phone: (1) 718-535-1800
Email: suppor[email protected]
WARNING
Illegal operation may cause personal injury, which could be fatal and may cause
damage to property.
1. DO NOT place objects on top of the device, as objects may
scratch the device.
2. DO NOT expose the device to dirty or dusty environments.
3. DO NOT insert any foreign objects into the device.
4. DO NOT expose the device to strong magnetic or electrical field.
5. DO NOT use the device in the rain
6. Please check with your Local Authority or retailer for proper
disposaI of electronic products.
7. DO NOT disassemble the device. Only a certified service
technician should perform repair.
8. The device has apertures to disperse heat. DO NOT block the
device ventilation, the device may become hot and malfunction
as a result.
CONTROL BOARD FUNCTIONS
1. Master volume control
2. Charge LED indicator
3. DC 5V input jack
4. Short press to choose input signal, press and hold to turn ON/OFF light
5. Next
6. Play/Pause/TWS function
7. Previous
8. AUX input jack
9. USB input jack
10. Microphone input jack
11. Display screen
www.PyleUSA.com2www.PyleUSA.com 3
12345678910
11
www.PyleUSA.com4www.PyleUSA.com 5
REMOTE CONTROL FUNCTIONS
1. Power: Used to turn on and off
the MP3 player power
2. MODE: Used to switch the AUX/
USB/Wireless BT/Radio
3. Mute button
4. Play/Stop button
5. Next song on USB
TWS FUNCTION
For increase sound effect, our unit provides TWS function as follows:
Step-1: Turn ON BT mode on your device and connect the machine.
Step-2: Press and hold each control board “TWS” button more than 3's, and you will
see "ON" on display, unit will start to connect the other unit automatically,
now you can enjoy stereo sound, and adjusting one unit volume will affect
the other unit.
Remark:
1. After connection, press and hold again one of control board "TWS" button more
than 3's, you will see "OFF" on display, unit's TWS dis-connection.
TROUBLESHOOTING
1
6
11
12
2
3
5
8
10
1
4
7
9
6. Previous song on USB
7. EQ solution
8. Increase volume
9. Choose song number directly
10. Choose USB signal directly
11. Decrease volume
12. Repeat song
1. The audio format in the U disc
is incorrect.
2. Improper operation has caused
a process disorder.
3. USB disc is disconnected.
1. Convert audio format into Mp3
format.
2. Reboot the machine.
3. Insert USB disc properly.
MP3
does not
play
Fault Possible Cause Solution
No sound
Distortion
of sound
Karaoke
does not
work
1. No input sound source.
2. Volume is too low.
1. Volume too high.
2. Speaker may be damaged
1. Microphone plug is not fully
inserted.
2. Microphone switch is not on.
3. Microphone volume knob is at
the lowest position.
1. Use a better music signal.
2. Adjust volume.
1. Turn down the volume.
2. If speaker is damaged, repair
or replace it.
1. Plug microphone properly into
the socket.
2. Turn on microphone switch.
3. Adjust microphone volume
properly.
www.PyleUSA.com6www.PyleUSA.com 7
Features:
• True Wireless Stereo System
• Portable Speaker System
• High-Powered PA Loud Speaker Style
• Wireless BT Music Streaming Ability
• Multi-Color Flashing LED Party Lights
• Built-in Rechargeable Battery
• FM Radio with Digital LED Display
• Connect & Stream Audio from External Devices
• Aux (3.5mm) Input Connector Jack
• USB Flash Memory Reader
• 6.5mm Microphone input
• Battery Level LED Indicator Lights
• Rugged & Durable Molded Cabinet Design
• Convenient Extendable Carry Handle
• For Indoor/Outdoor Use
Wireless BT Streaming:
• Built-in BT for Wireless Music Streaming
• Simple & Hassle-Free Pairing
• Works with All of Today’s Latest Devices
• Smartphones, Tablets, Laptops, Computers, etc.
• Wireless BT Version: 4.1
• Wireless BT Network Name: ‘PYLEUSA’
• Wireless Range: Up to 32’ ft.
What's in the Box:
• PA Speaker System
• Remote Control
• Power Adapter
Technical Specs:
• Material: Polypropylene (PP)
• Max Power Output: 240 Watt Max
• Sound System: 6.5’’ -inch Subwoofer + 1”Tweeter
• Impedance: 2.6 Ohm
• Frequency Response: 50Hz-12KHz
• USB Interface Type: 2.0
• Digital Audio File Support: MP3
• Maximum USB Flash Support: 32GB
• Remote Control Battery Operated, 1 Piece Button Cell Battery CR-2025
(Included)
• Battery Life: Up to 2 Hours (Charge Time: Approx. 4Hours)
• Rechargeable Battery: 3.7V, 1800mAh – 6.66 Wh
• Power Supply: 120/240V, Switchable (5V/2A Power Adapter)
• Dimensions (L x W x H): 8.3’’ x 7.5’’ x 13.0’’-inches
This product can expose you to a chemical or group of checmicals, which may include
“Lead and lead compounds” which is known in the state of California to cause cancer, birth
defects, or other reproductive harm. For more info, go to https://www.p65warnings.ca.gov/.
