Quick Installation Guide

19” LCD Screen Observation System with

16 Channel H.264 Compression DVR and

8 Color CCD Camera Kits

-8

Q-SEE QUICK INSTALLATION GUIDE

-8

1 | P a g e

Remote

Control

USB 2.0

Mouse

Ethernet

Cable

1 Dongle for

Video Audio

Software

4-BNC (M) – RCA (F)

Adapters

(

4 Included)

8- RG59 Cables

Power Supply &

8 -Way Splitter

For Cameras

Power Supply

For DVR

Pre

Installed

Hard Drive

8 Cameras with Stands

QSC1353W (3.6mm)

User’s

Manual

QC4019

19” LCD DVR

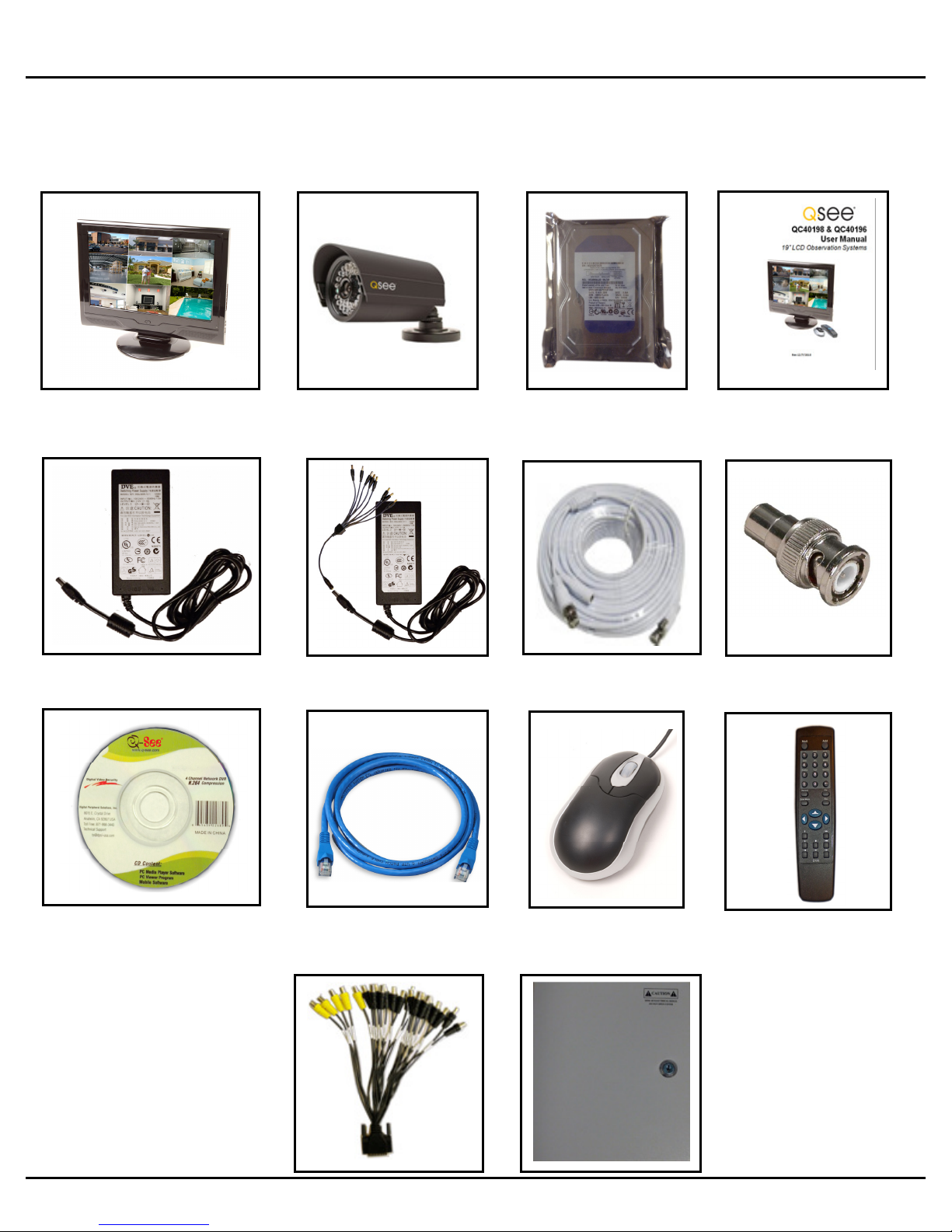

PART 1 - PACKAGE CONTENTS:

Power

Panel

Q-SEE QUICK INSTALLATION GUIDE

-8

1 | P a g e

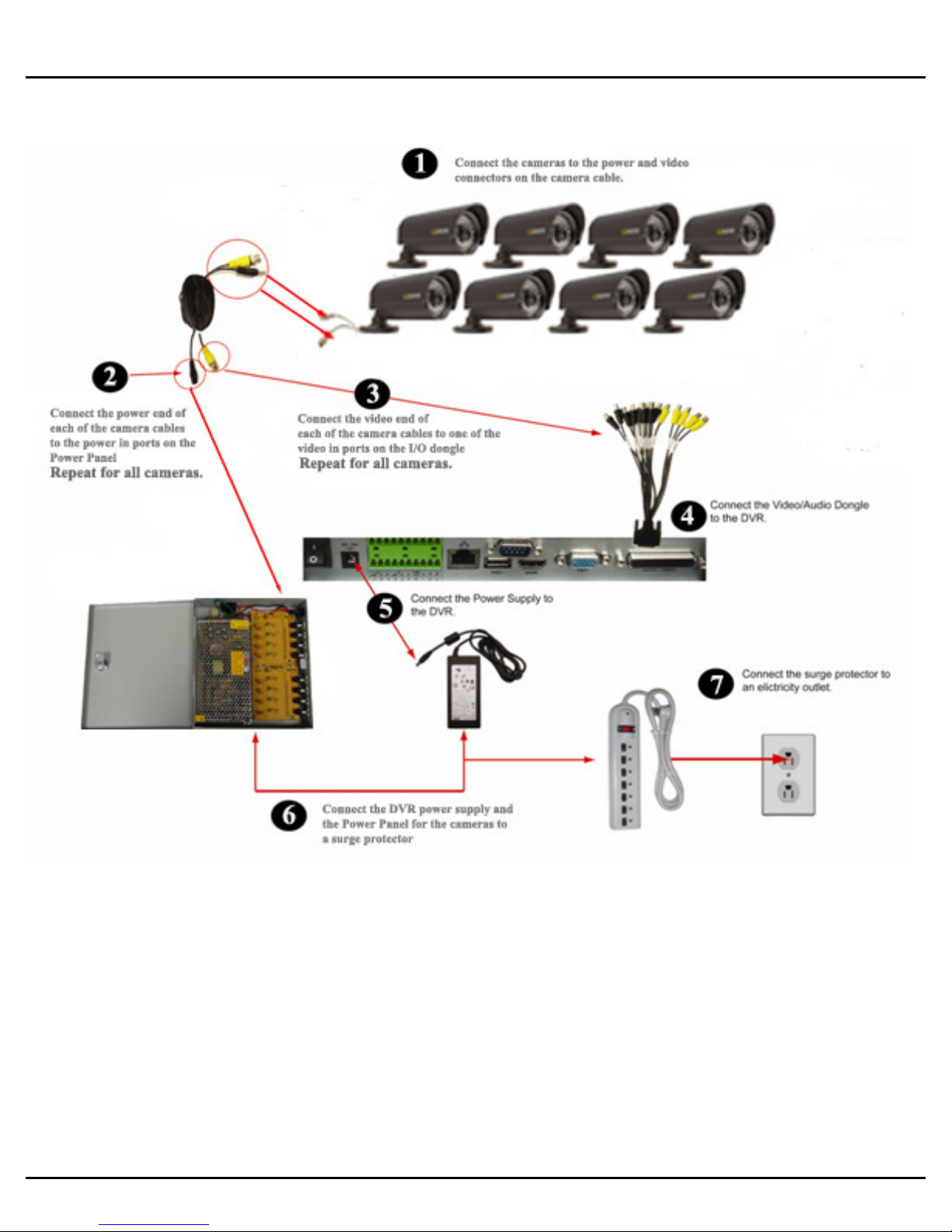

PART 2 - DVR CAMERA AND POWER CONNECTIONS

Please note that it is STRONGLY recommended to use a surge protector that is UL-1449 rated.

Look for a clamping voltage of 330 or lower, a Joule rating of at least 400 and a response time of

10 nanoseconds or less.

Q-SEE QUICK INSTALLATION GUIDE

-8

1 | P a g e

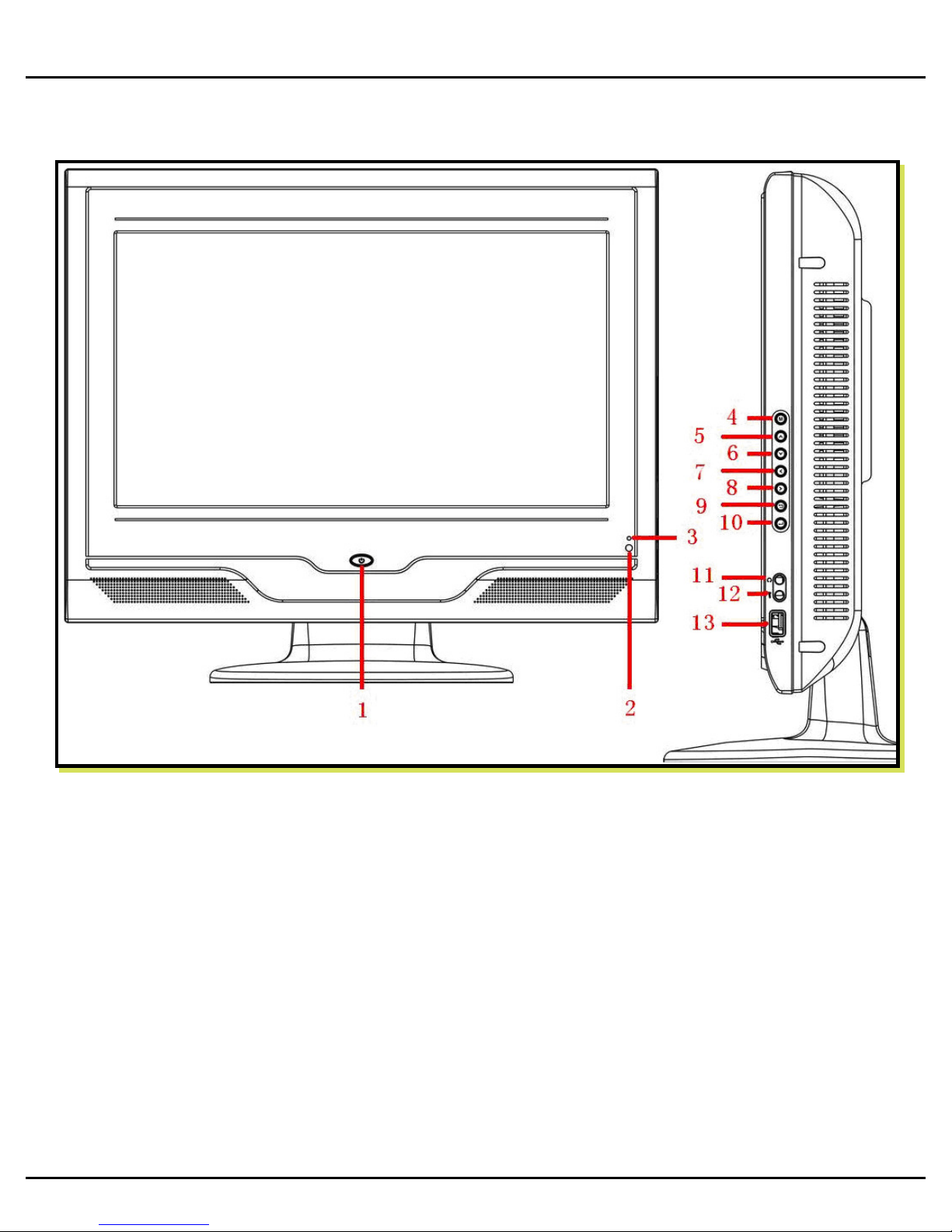

Part 3 – DVR Controls: Front Panel

1. Boot Up/Shut Down Button 6. Go Down, Decrease Number, 10. Confirm, Go to Default

2. Power Light PTZ Control Menu

3. IR Remote Receiver 7. Go Left, Playback Control 11. Bidirectional Talk Out

4. Mode Button PC/DVR Switch 8. Go Right, Playback Control 12. Bidirectional Talk In

5. Go Up, Increase Number, 9. Previous Menu or Cancel 13. USB Port

PTZ Control Switch from Playback to Live

Q-SEE QUICK INSTALLATION GUIDE

-8

4 | P a g e

Part 4 – Accessing the DVR menus

After the system boots up it will go into multiple window mode. Click Enter or left click with the mouse

anywhere on the screen and you will bring up the login interface (shown as Pic 4.1) and enter the admin

password which is admin by default under the admin login. This will bring up the Main Menu screen in Pic

4.2. There are 6 icons; Search, Info, Setting, Advanced, Backup and Shutdown. Use the Search option to

find and playback files from the hard drive. Go to the Info option for hard drive info, system log, version

information, and online users. The Setting option is used to access General settings where you set system

time, Language, hard drive overwrite, file size, and video display format, the Encode option where you set

compression, frame rate, bit rate, audio, and sub stream, Schedule setup, RS232 setup, Network setup,

Alarm setup, motion detection setup, PTZ setup, Display setup, and Load Default setup. The Advanced

option is used for hard drive management, alarm output, manual recording, account setup, auto

maintenance, and TV output adjustment. The Backup icon is used to backup files from the hard drive, and

the Shutdown option is used to safely shutdown the system.

Pic 4.1 Pic 4.2

Part 5 – Setting up DVR to record

There are 3 modes for recording

Manual Recording

Scheduled Recording

Motion Recording.

1. Manual Recording:

You can get to the Manual Record menu by right clicking on the screen with the mouse or by going to the

Main Menu and selecting Manual Record. This will take you to the screen in Pic 5.1. You can click the All

option on the manual line to start recording on all channels, or you can select the cameras that you want

to record in manual mode. To stop recording you can select the all option on the stop line, or select

individual cameras as shown in Pic 5.2.

Pic 5.1 PIC 5.2

Q-SEE QUICK INSTALLATION GUIDE

-8

5 | P a g e

2. Scheduled Recording:

To record on a schedule you would go to the Main Menu, Manual Record and select the cameras on the

Schedule line instead of the Manual line in the Manual Record screen shown in Pic 5.1, then go to the

Main Menu, click on Settings, and select Schedule. This will bring up the screen shown in Pic 5.3. You can

set up a schedule for all channels or different times for different cameras. You can also set up the same

schedule for all days, or set up different schedules for different days. You can also setup a mixed schedule

where you have some cameras recording all of time during certain times and on motion or alarm detection

during others. Pic 5.4 shows a mixed schedule were some the cameras are set to record all the time

between 8 and 10am, record on motion detection between 12am and 8am and 12pm to 8pm and then on

external alarm from 10am to 12pm and 8pm to 12am. The time line on the bottom of the screen shows

how the day is broken up by the recording methods.

Pic 5.3 Pic 5.4

3. Motion Detection Recording:

There are 3 steps to setting up the DVR to record on motion. The first is to go to the Main Menu, Advanced,

Manual Record option which will display the screen shown in Pic 5.5. You can select the All option on the

Schedule line to record on all cameras or you can select the cameras that you want to schedule motion

recording on. Next you would go to the Main Menu, Setting, Schedule option to setup the schedule for when you

want the cameras to record on motion. This is shown in Pic 5.6 where Channel one is scheduled to record 24

hours on Wednesday. Set the schedule for all cameras on all days that you want them to record on motion.

Pic 5.5 Pic 5.6

Q-SEE QUICK INSTALLATION GUIDE

-8

6 | P a g e

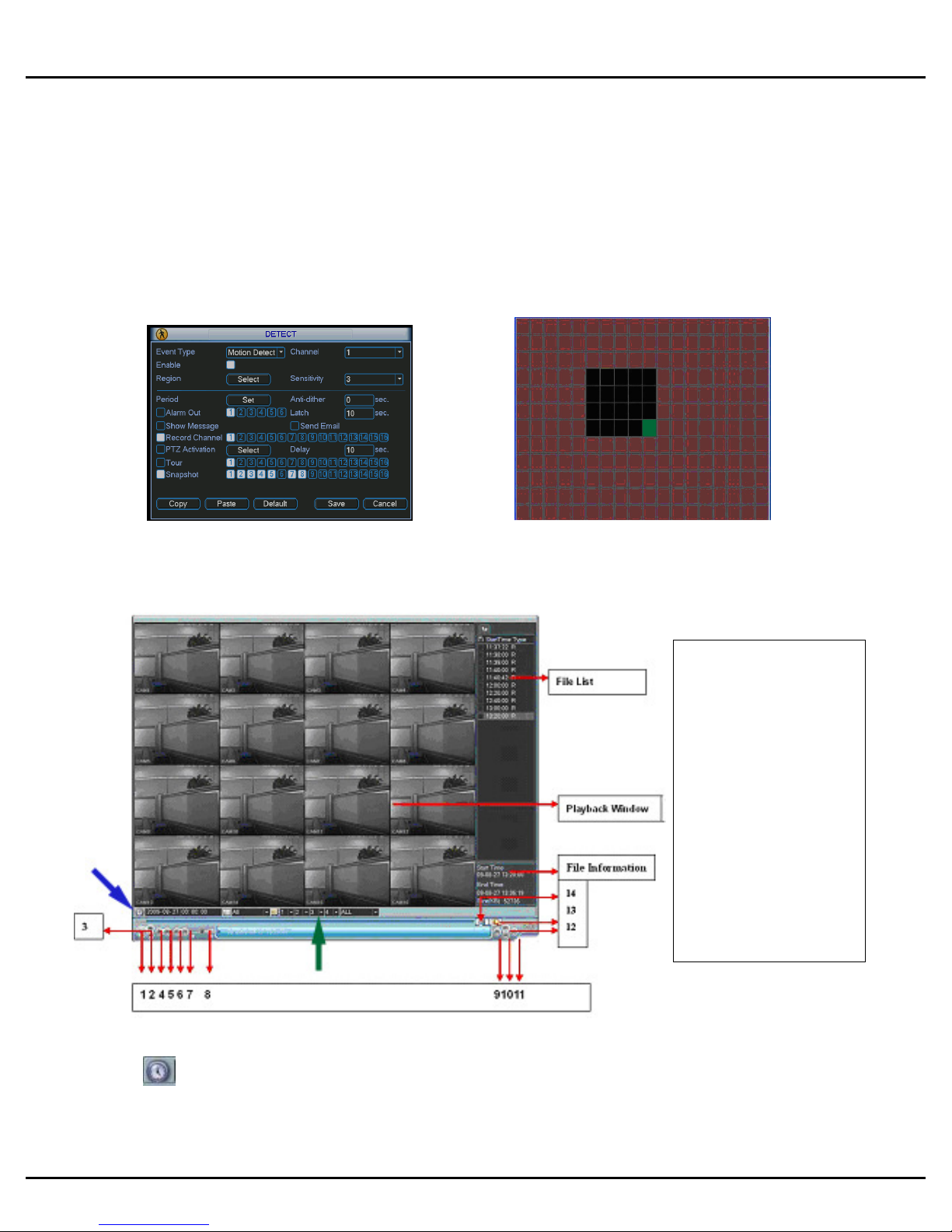

After setting up the schedule go to Main Menu, Setting, Detect and this will display the screen shown in Pic 5.7.

Under Event Type select Motion Detect, Select your Channel, or All, and select the enable option to enable the

camera for motion detection. Next under Region click the Select button to set up the area of the camera display that

you want to be sensitive to motion.

This will display the screen in Pic 5.8. The green box is the current location of the cursor. The red area is the

sensitive area and the black area is not sensitive to motion. Click the Fn button on the remote control to adjust the

sensitivity of your mouse as you move the cursor. After you have finished the setup click the Enter button on the

remote control to exit. Next set your sensitivity level from 1 to 6 (6 being the most sensitive), then click the Save

button on the Detect screen to save the setting.

Pic 5.7 Pic 5.8

Part 6 - Playing Back Files

Click the Search option in the Main Menu to display the screen shown in Pic 6.1. The table to the right shows the

functions of the buttons on the screen.

Pic 6.1

Clicking on the icon (blue arrow in Pic 6.1) will open a schedule window shown in Pic 6.2

1. Play

2. Reverse

3. Stop

4. Slow Play

5. Fast Forward

6. Previous Frame

7. Next Frame

8. Volume

9. Previous File

10. Next Channel

11. Next File

12. Previous Channel

13. Search

14. Backup

Q-SEE QUICK INSTALLATION GUIDE

-8

7 | P a g e

Pic 6.2

Part 7 - Setting up the DVR to Backup Files

The DVR supports backing up to USB flash drives, hard drives, burners, and SD cards. Plugging in the USB

device and go to the Main Menu and clicking on the Backup option will display the screen in Pic 7.1. Select your

device from the list and click on the backup button. This will open the Backup windows shown in Pic 7.2. Select

the channel you want to back up and enter the start and end times and click on the add button. This will display

the available files in the lower box. Check the files that you want to backup. The bottom of the window will show

the space required to back up the files and how much space is left on the backup media. Click on the Backup

button and the window will display a progress bar and the Backup button will become a Stop button as shown in

Pic 7.3 in the event you wish to terminate the backup process.

Once you have backed up the files you can play them using the file player program on the CD that comes with

the DVR. You can also use this program to convert them into AVI format so they can be played on standard

video players.

Pic 7.1 Pic 7.2

Pic 7.3

Highlighted dates on the calendar indicates that

there are video files available on that day. You

can double click on the day to view the file list.

You can play back the files in 4 screen or 8

screen mode. Select your screen option by

clicking on the screen option button (green

arrow in Pic 6.1)

Q-SEE QUICK INSTALLATION GUIDE

-8

8 | P a g e

Questions or Comments?

Mailing Address: Customer Service:

DPS, Inc. Phone: 877-998-3440 x 538

8015 E. Crystal Dr. Email: cs@dpsi-usa.com

Anaheim, CA 92807 Live Chat from our Website

Website: Tech Support:

http: www.q-see.com Phone: 877-998-3440 x 539

Fax: Email: ts@dpsi-usa.com

714-998-3509 Live Chat from our Website

REVISED 12 10 2010
