Q-See QS458-811-5 Bedienungsanleitung

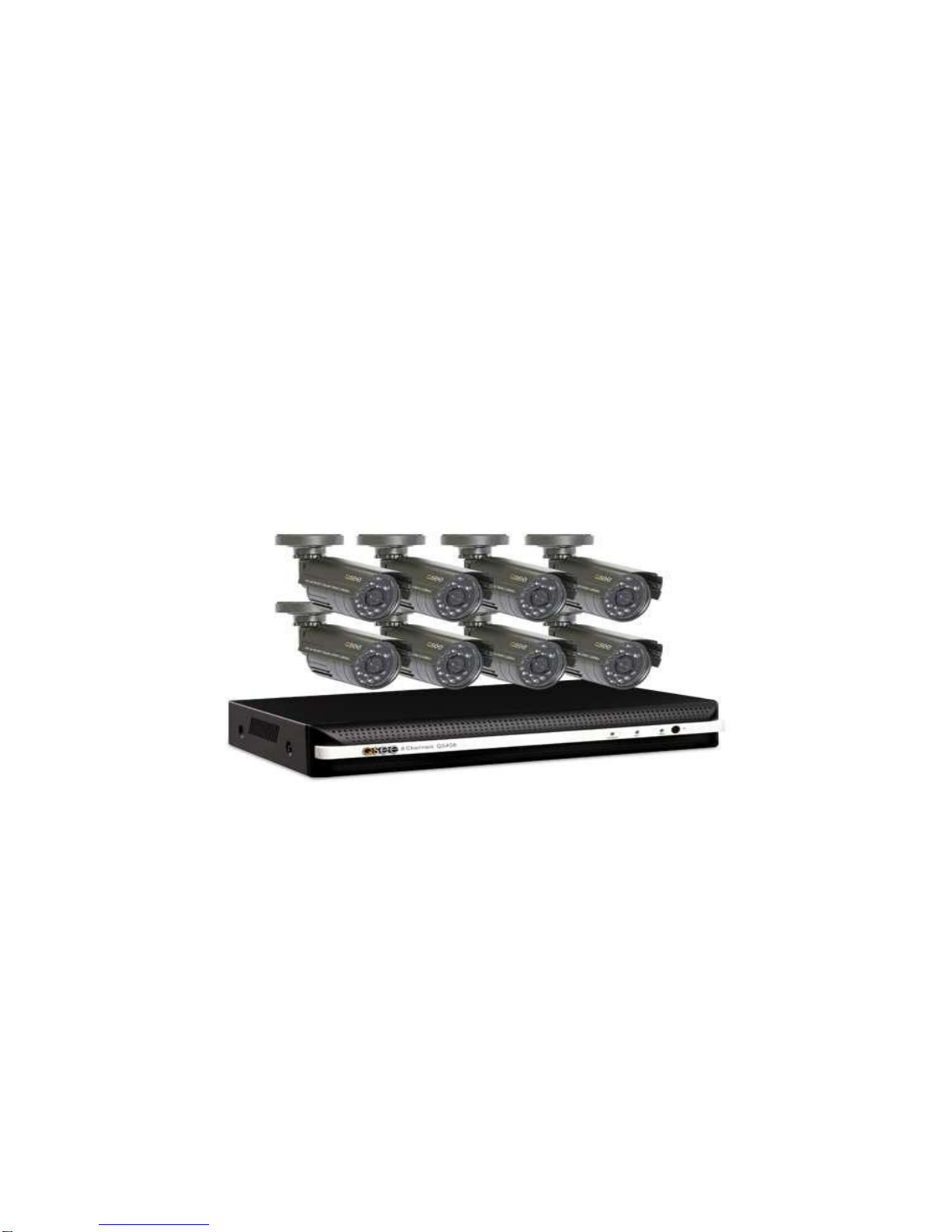

QS458-811-5

QSM1424W Cameras

QS458 DVR

w/ 500GB AV SATA Hard Drive

Main Features

•8 Channel H.264 CIF/D1 DVR

•Eight cameras with 400TVLresolution

•Weatherproof cameras for indooror outdooruse

•40 feet of night vision

•Remote internet monitoring (up to 10 users at thesame

time)

•Mobile Phone Surveillance

•Compatible with MAC and PC

•Free Q-SeeApps for iPhone, iPad, and Androidremote

viewing!

•Receive instant email alerts and snapshot images when

motion is detected

•Zoom in on live or playback footage with 2X digital zoom!

Product Set-up

•Designed for Do It Yourself setup.

•Comes with everything needed to setup

except router for remote access.

•Connect cameras to power supply with splitter

and DVR, connect DVR topower supply,

connect both power supplies to surge

protector and power outlet.

•Uses UPnP for easier IP address and port

forwarding setup

Product ease of use

•Easy DIY setup of cameras and DVR

•Easy to use menu interface

•Mouse and remote included for easy menu

navigation

•UPnP enabled for easier IP address and port

forwarding setup

Where product should be used

•Product can be used anywhere security is

needed, homes, offices, factories, banks, retail

stores, parks, playgrounds, etc.

What’s in the Box

1- QS458 DVR

1- Pre-installedAV Rated 500GBHard Drive

1- 12V Power Adapter for DVR

8- QSM1424WCameras

8- 60ft Video/PowerCables for Cameras

1- 8 Way Power Splitterfor Cameras

1- USB Mouse

1- RemoteControl

1- BNC/RCA Video Cable

1- EthernetCable for DVR

Product Set-up

•Connect BNC/RCA cable toDVR and TV

(can also connect to 19” inch or larger VGA monitor cable not included)

•Connect Mouse to USB port on back of DVR

(can also use remote control)

•Connect 12V adapter to DVR

•Connect cameras to Video/Power cable

•Connect Video/Power cable to 8 way splitter

•Connect 8 way splitter to camera powersupply

•Connect both power supplies to surge protector usingsupplied cables

•Connect surge protector to power outlet

•Turn on power switch on surge protector and back of DVR

•Run Wizard to setup DVR

•After verifying that cameras are working, mount cameras in desired

location

Product spec-DVR1.

Compression– H.264

Operating System - Linux

Video Inputs– 8 BNC

Video Outputs – 1 BNC, 1 VGA

Audio Inputs/Outputs – 1/1

VGA Resolution - 1024x768, 1280x1020

Playback Resolution –CIF 352x240, D1 702x480

CIF Playback Frame Rate – 30

D1 Playback Frame Rate – 6

Record Bit Rate – 128kbps– 2Mbps

Storage - 1 SATA AV Hard Drive up to 2TB

OS support–WinXP, Vista, Win7, Mac OS 10.6/10.7

Browser Support – Internet Explorer, Google Chrome, Firefox

SmartPhone - iPhone/iPad, Android

Simultaneous Remote User’s - 10

Product spec-DVR2.

Power Supply - 110-220 Volt input, 12 Volt 2A output

Power Consumption – 7 Watt (w/o hard drive)

Alarm – None

Alarm Mode – Motion Detection

USB ports – 1 USB 1.1, 1 for mouse, 1 USB 2.0for USB backup (Flash, Hard

Drive)

Network Interface – RJ45, 10/100 mbsp

PTZ Interface - RS485

Multi Function –view live or playback video, record, backup, and view and

backupvideo over the network or Internet at the same time

Product spec-QSM1424W Camera

Weather proof Indoor/Outdoor IP63 rating.

Mounting Bracket - 3 axis

Resolution – 400TVL

Sensor – 1/4 in CMOS color

Lens: 3.6mm (50° to 55° Field of View)

Night Vision - 24 LEDs up to 40 feet

AGC/BLC - Auto

S/N Ratio - >48dB

Power Consumption -<3 Watts (LEDs on)

Power Supply – 12v/500mA

Operating Temperature - 14 to 122°F 95% Humidity

Cable – 60feet Video/Power
