Wireless USB Audio/Video Adapter Set

User Guide

Wireless USB A/V Adapter Set User Guide

www.q-waves.com Page 2

know-how, trade secrets and other intellectual property relating to this publication and to Q-

Waves Ltd products are proprietary products of Q-Waves Ltd. The information presented in

this publication does not form part of any quotation or contract, is believed to be accurate

and reliable, and may change. No part of this publication may be reproduced in any form

whatsoever without prior written approval by Q-Waves Ltd

The Wireless USB A/V Adapter set is protected by patents and pending patent applications.

Any and all other trademarks, product names and other intellectual property rights are the

sole property of their respective owners.

Q-Waves Ltd Proprietary Information

Customer Support:

Tel: 00 44 8456 44 66 44

Fax: 00 44 8456 44 66 00

Email:support@Q-Waves.com

Doc. version UG10055 R1.0

Wireless USB A/V Adapter Set User Guide

www.q-waves.com Page 3

Table of Contents

1 What's in the Package ..................................................................................... 4

2 Positioning the A/V Adapter ........................................................................... 5

2.1 Positioning the PC Adapter...................................................................................... 6

3 Software Installation and First Connection ................................................... 7

3.1 Connect the PC Adapter to the PC ........................................................................ 11

3.2 Connect the A/V Adapter ....................................................................................... 11

3.2.1 Connecting Audio.............................................................................................................11

4 Wireless USB Manager User Interface......................................................... 13

4.1 Wireless USB Manager System Tray Icon ............................................................. 13

4.2 Accessing the Wireless USB Manager................................................................... 13

4.3 Blocking or Disassociating a Device ...................................................................... 16

4.4 Changing Device Names in the Wireless USB Manager ........................................ 17

4.5 Advanced Settings................................................................................................. 17

5 Using and Configuring the A/V Adapter ...................................................... 19

5.1 Using the A/V Adapter ........................................................................................... 19

5.1.1 Using Mirror Mode ...........................................................................................................19

5.1.2 Using Extend Mode..........................................................................................................20

5.1.3 Laptop Operation with the Lid Closed.............................................................................. 20

5.1.4 External Display Only.......................................................................................................20

5.2 Configuring the Display via the Display Icon Context Menu ................................... 21

5.2.1 Setting Mirror Mode .........................................................................................................22

5.2.2 Setting Extend Mode........................................................................................................23

5.3 Configuring the Display via Windows Display Properties ....................................... 24

5.3.1 Selecting the Correct Display Monitor .............................................................................24

5.3.2 Setting the Display to Extend or Mirror Mode ..................................................................24

5.3.3 Adjusting Screen Resolution............................................................................................ 25

5.3.4 Adjusting Color Level ....................................................................................................... 25

5.3.5 Setting the A/V Adapter as the Primary Display ..............................................................25

5.4 Optimizing Wireless Video Display......................................................................... 26

5.4.1 Optimizing Internet Video Viewing ................................................................................... 26

5.4.2 Setting Aero Desktop Theme in Vista..............................................................................27

5.4.3 Recommended Media Player Applications ...................................................................... 28

5.4.4 Recommended Minimum System Requirements ............................................................28

5.5 Setting Audio Output Device.................................................................................. 28

6 LED Indications.............................................................................................. 30

Appendix A: Troubleshooting Help ....................................................................... 31

Appendix B: Pairing Procedure ............................................................................. 35

Wireless USB A/V Adapter Set User Guide

www.q-waves.com Page 4

1 What's in the Package

Getting Started Guide

Software CD

A/V Adapter

PC Adapter

Device Adapter

A/V Base

HDMI VGA

3.5mm Audio

Power

Power Supply Unit

Wireless USB A/V Adapter Set User Guide

www.q-waves.com Page 5

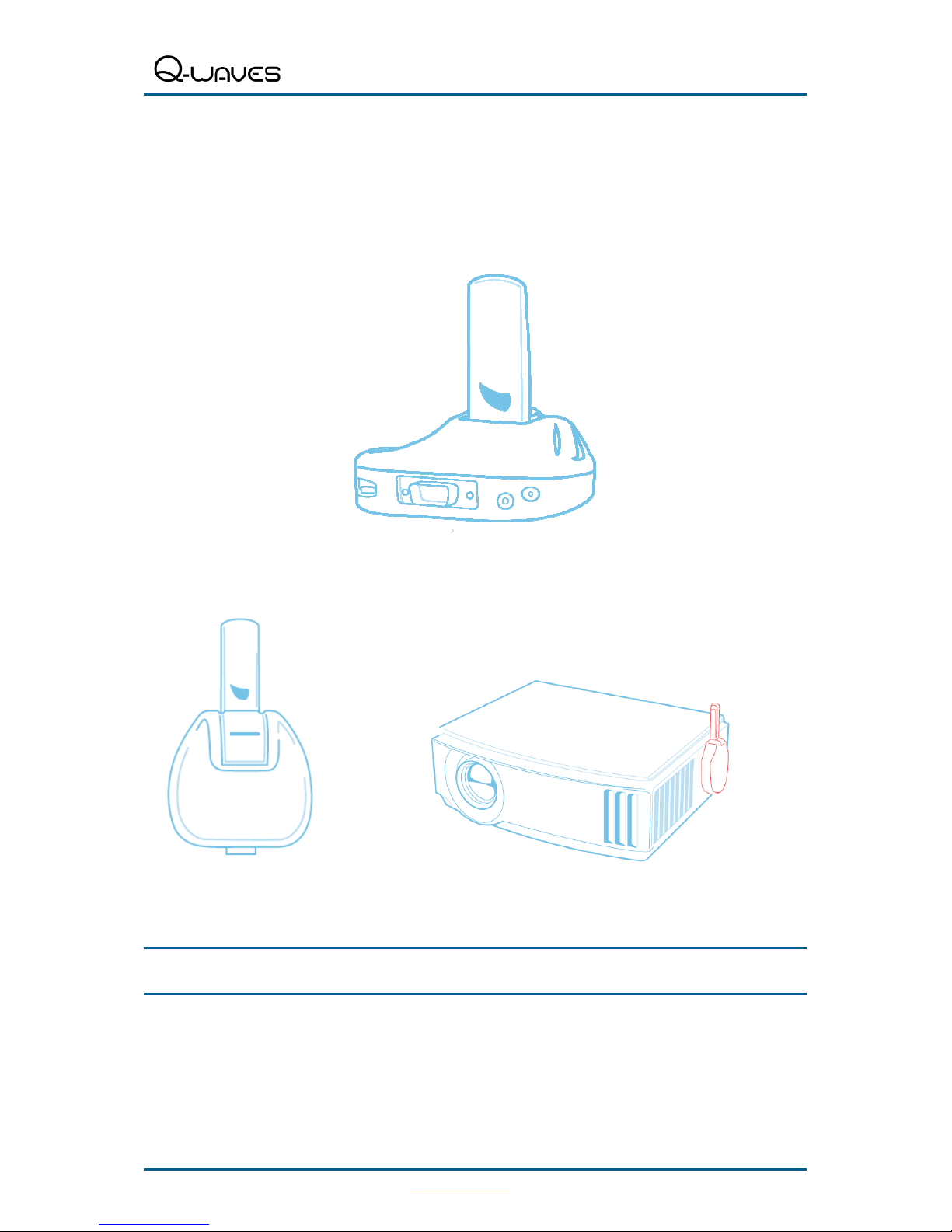

2 Positioning the A/V Adapter

The Wireless USB A/V Adapter is designed for two possible mounting options:

Simple table placement – the Audio/Video Base (A/V Base) is placed on a flat horizontal

surface, and the Device Adapter is connected at 90 degrees to the base so that it is

vertical.

Vertical mounting –the A/V Base is fastened to a wall, a projector, or behind a display

screen, and the Device Adapter is connected so that it is flat with the mounting surface,

with the Device Adapter pointing upwards.

Note: For best performance, it is recommended to always position the Device Adapter

vertically so that it is pointing upwards.

Wireless USB A/V Adapter Set User Guide

www.q-waves.com Page 6

2.1 Positioning the PC Adapter

To achieve best performance it is recommended to position the PC Adapter in the upright

position.

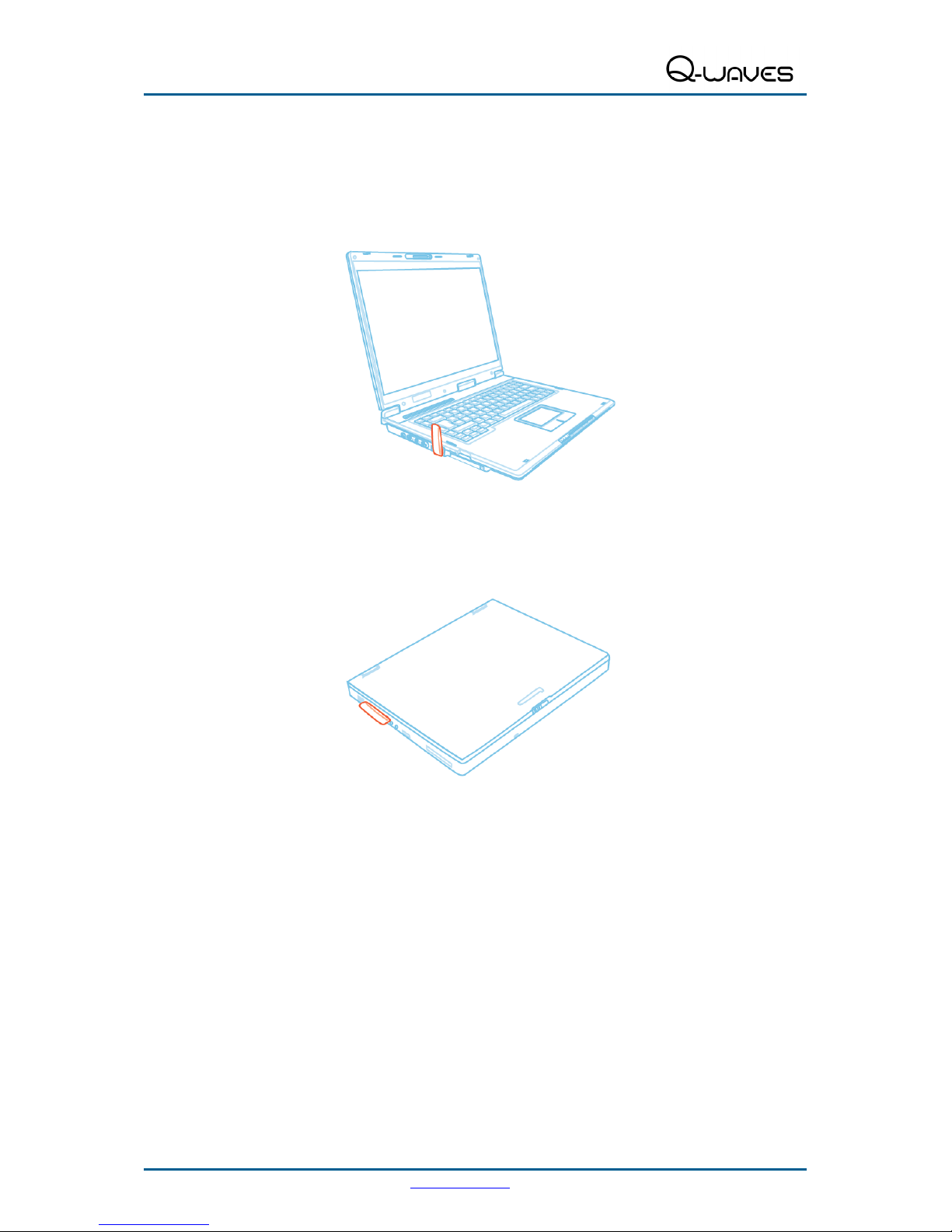

Figure 1: PC in working mode - PC Adapter in upright position

When the laptop is not in use, the PC Adapter can be rotated 90 degrees for storage, as seen

in the following illustration:

Figure 2: Laptop inactive - PC adapter in horizontal position for storage.

Wireless USB A/V Adapter Set User Guide

www.q-waves.com Page 7

3 Software Installation and First Connection

Note:If your PC contains a previous Wireless USB Suite driver installation, please perform

a proper uninstall procedure using the Windows Control Panel.

1. Ensure that the PC Adapter is unplugged from the PC.

2. Insert the installation CD in the PC CDROM drive.

3. The installation CD Autoplay menu is displayed.

4. Select .Install Wireless USB Software.

The installer offers two options:

Option 1: Install Directly from CD - initiates the installation process from the CD.

Wireless USB A/V Adapter Set User Guide

www.q-waves.com Page 8

Option 2: Download latest software from t e WEB - provides a link to a web address

where you can download software updates. If you choose this option, follow the

instructions provided on the software download page.

5. If you select Option 1: Install Directly from CD, the install wizard begins installing the

Wireless USB software. The installation process may include more than one stage to

accommodate different drivers that are installed. Following the Wireless USB drivers, the

Display drivers and application are installed.

6. Choose your geographic region to comply with your local radio regulations. This setting

can be changed if needed once the software is installed.

7. Follow the onscreen instructions, and proceed by clicking Next> when prompted, or by

approving authorization requests to continue the installation.

Wireless USB A/V Adapter Set User Guide

www.q-waves.com Page 9

8. When the Wireless USB Driver installation has completed, the Display driver installation

begins.

Click I Accept to approve the end-user license agreement and continue installation.

9. When the installation procedure has successfully finished, you are automatically returned

to the opening screen of the Autoplay menu. You may be requested to reboot.
