50326-05 A 1

*50326-05A*

Simplify

0

SANbox®5000/9000 Series Switch

Stacking Cable Instructions

These instructions describe the interconnection of SANbox 5000 Series switches

and SANbox 9000 Series switches using XPAK-XPAK and XPAK-X2 stacking

cables. SANbox 5000 10-Gbps ports require XPAK connectors. SANbox 9000

10-Gbps ports require X2 connectors. Connection combinations are as follows:

Remove 10-Gbps Port Covers

Both SANbox 5000 and SANbox 9000 series switches come with port covers in

the 10-Gbps ports. Before installing the XPAK cables, remove the port covers. To

remove the 10-Gbps port cover for either switch model, insert a small flathead

screwdriver in the cover slot and gently pry the cover from the port.

Switch to Switch Cable Type Cable Lengths

SANbox 5000 to SANbox 5000 XPAK-XPAK 3 inch, 9 inch, 2 meter

SANbox 5000 to SANbox 9000 XPAK-X2 18 inch, 2 meter

SANbox 9000 to SANbox 9000 X2-X2 18 inch

SANbox 5000 Series SANbox 9000 Series

LA

LA

14 15

16

L

A

17

L

A

18

L

A

19

L

A

SANbox®5000/9000 Series Switch Stacking Cable Instructions

250326-05 A

0

Copyright© 2006 QLogic Corporation

SANbox is a registered trademark of QLogic Corporation

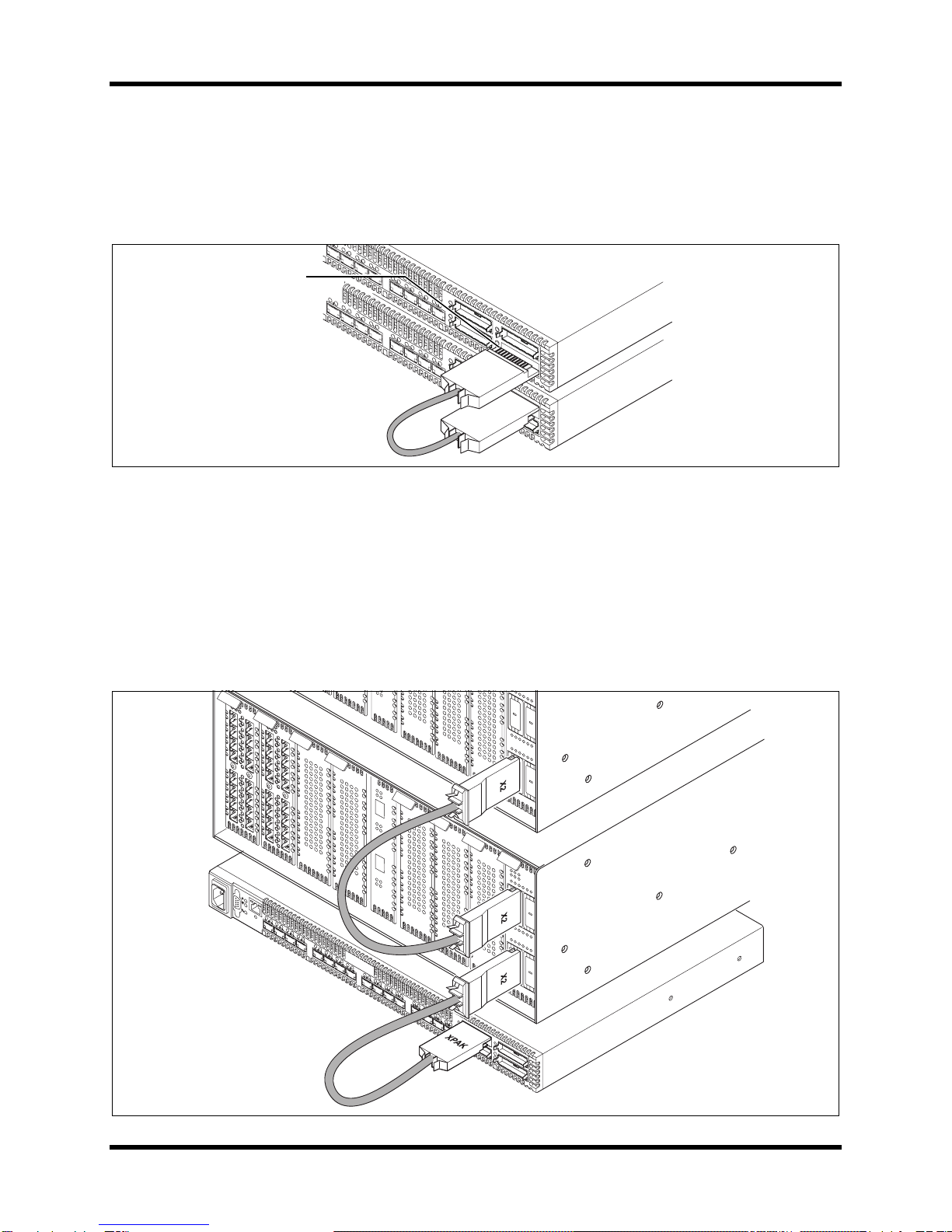

Connect SANbox 5000 Series Switches

Using an XPAK-XPAK connector, install the cable connectors with the circuit

board toward the mid lineof the respective switch faceplates. Thecable connector

will fit only one way. When installing the 3-inch XPAK cable, insert the cable

connectors into the10-Gbps ports at the same time as shown.

Connect SANbox 5000 and 9000 Series Switches

To connect a SANbox 5000 Series switch and a SANbox 9000 Series switch, use

an XPAK-X2 cable. Install the XPAK connector in the SANbox 5000 switch port

with the circuit board toward the mid line of the switch. Install the X2 connector in

the SANbox 9000 switch port with the circuit board on the left.

To connect two SANbox 9000 switches, using an X2-X2 cable. Install the cable

connectors in the respective switch ports with the circuit boards on the left. The

cable connector will fit only one way.

LAL A L AL ALA

LALALA

16

L

A

17

L

A

18

L

A

19

L

A

L

AL A L AL ALA

LALALA

16

L

A

17

L

A

18

L

A

19

L

A

Circuit Board
