QLogic 12000

Quick Start Guide

Installation Instructions

This guide describes the steps to install and activate a 12000-series InfiniBand switch. For detailed instructions, refer

to the QLogic 12000 Hardware Installation Guide.

NOTE: For the 12005-PT16, please consult your modular blade enclosure documentation for detailed installation

instructions.

Step 1. Check the Packing List

1. Verify all ordered equipment has been received. The 12000 switches ship with all components

pre-installed. The following table lists the maximum configuration of installed components for each

switch:

Table 1. 12000-Series Components

Component 12200 12300 12400-6/12 12800-040 12800-120 12800-180 12800-360

Fans N/A N/A N/A 4 Intake 5 Intake

3 Exhaust

5 Intake

3 Exhaust

10 Intake

10 Exhaust

Power

Supplies or

Blank Fillers

N/A 2

Power/

Fan units

Power/

Fan units

4 4 6 12

IB Leaf

Modules/

Blanks

N/A N/A N/A 4 12 18 36

Spine

Modules/

Blanks

N/A N/A N/A 1 3 5 9

Management

Modules/

Blanks

N/A N/A N/A 2 2 2 2

I/O Modules N/A N/A 1/2 N/A N/A N/A N/A

Hardware

Installation

kit(mounting

rails, etc.)

1 1 1 1 1 1 1

DB-9 to

RJ-11

adapter

N/A 1 1 2 2 2 2

Step 2. Mount the Switch

1. Install applicable rack mounting hardware and switch in a standard 19" rack as described in the QLogic

12000 Hardware Installation Guide.

Step 3. Apply Power to the Switch

NOTE: Refer to QLogic 12000 Hardware Installation Guide for applicable safety warnings.

1. Attach the AC power cord(s) to the switch and wall outlets or power strips.

2. When the switch is plugged into an AC power outlet:

a. The system powers up.

b. The fans start.

c. The switch, power supply, and fan LEDs light up.

NOTE: For the 12800 switches, make certain the DC On switch is illuminated. If it is not, press

the button to supply power.

Step 4. Connect Cables

1. Connect a Category 5 or 6 (Cat 5/6) Ethernet cable to the RJ-45 connector(s) on the switch. Connect

the other end of the Cat 5/6 to the OOB LAN workstation or Ethernet switch.

2. 12800 series: Connect a DB-9 to RJ-11 adapter to each RJ-11 cable. Connect the cable(s) to the

switch serial ports.

3. 12300/12400: Connect an RJ-11 cable to each serial port on the switch.

4. Connect the switch to IB-enabled hosts using QSFP IB copper or fiber-optic cables.

Step 5. Change the Default System IP Address and Gateway IP Address

1. Change the default system IP address (192.168.100.9) and gateway IP address (255.255.255.0) as

detailed in the QLogic 12000 Hardware Installation Guide. Obtain the new IP address and subnet mask

from a network administrator.

Step 6. Add equipment to the network

RJ-11 Serial

cable

N/A 1 1 2 2 2 2

Power Cords 2 2 2 4 4 6 12

Table 1. 12000-Series Components

Component 12200 12300 12400-6/12 12800-040 12800-120 12800-180 12800-360

QLogic Service Initiation

Included with the purchase of a QLogic switch is a one year service plan. To activate the service plan register at

http://servicereg.qlogic.com.

By registering, QLogic technical support can quickly provide assistance with product-related questions. QLogic or its

authorized service provider handles all aspects of technical support for the switch.

To initiate the service plan, please register at http://servicereg.qlogic.com where you will submit:

Company Name and Address

Contact Information

Serial Number of your switch

Company you purchased the service plan from

After registering, you will receive an email within 5 business days that confirms your service contract, and terms and

conditions.

To upgrade your service plan to include comprehensive break/fix support or to lock in prices with a 3 year contract,

contact your reseller, or call QLogic at 1-800-662-4471 or 1-949-389-6000.

Obtaining Software and Documentation

To obtain QLogic 12000 software and documentation, go the QLogic.com Downloads page at

http://driverdownloads.qlogic.com/QLogicDriverDownloads_UI/default.aspx.

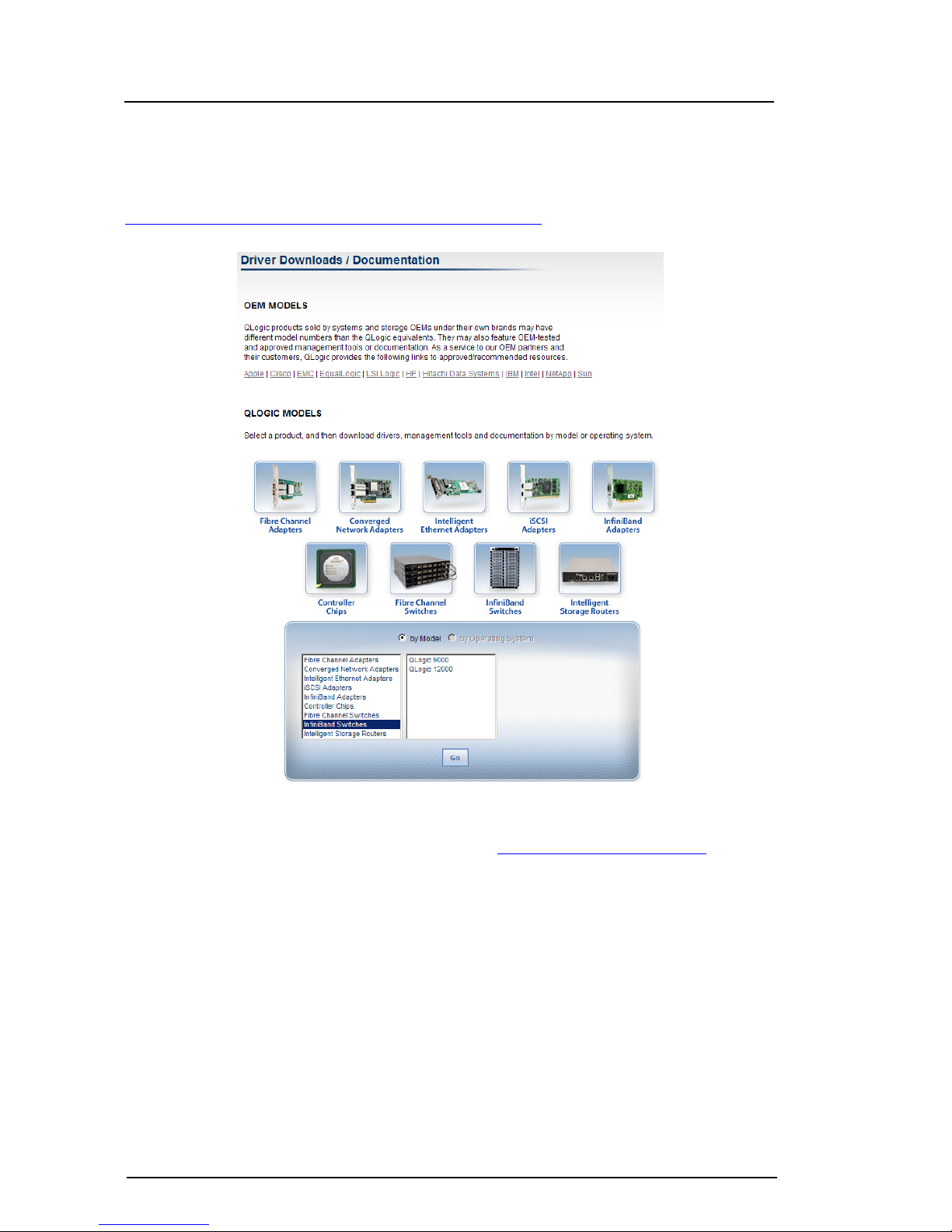

Figure 1. QLogic.com Downloads Page

NOTE: To update the 12005-PT16 module firmware, refer to the QLogic 12000 Drivers and Downloads page on

QLogic.com.

Switch-Based QLogic Fabric Manager License Key

Certain packages of the InfiniBand Fabric Suite entitle the user to the switch-based QLogic Fabric Manager. Refer to the

licensing documentation that comes with the InfiniBand Fabric Suite for instructions on generating the license key.

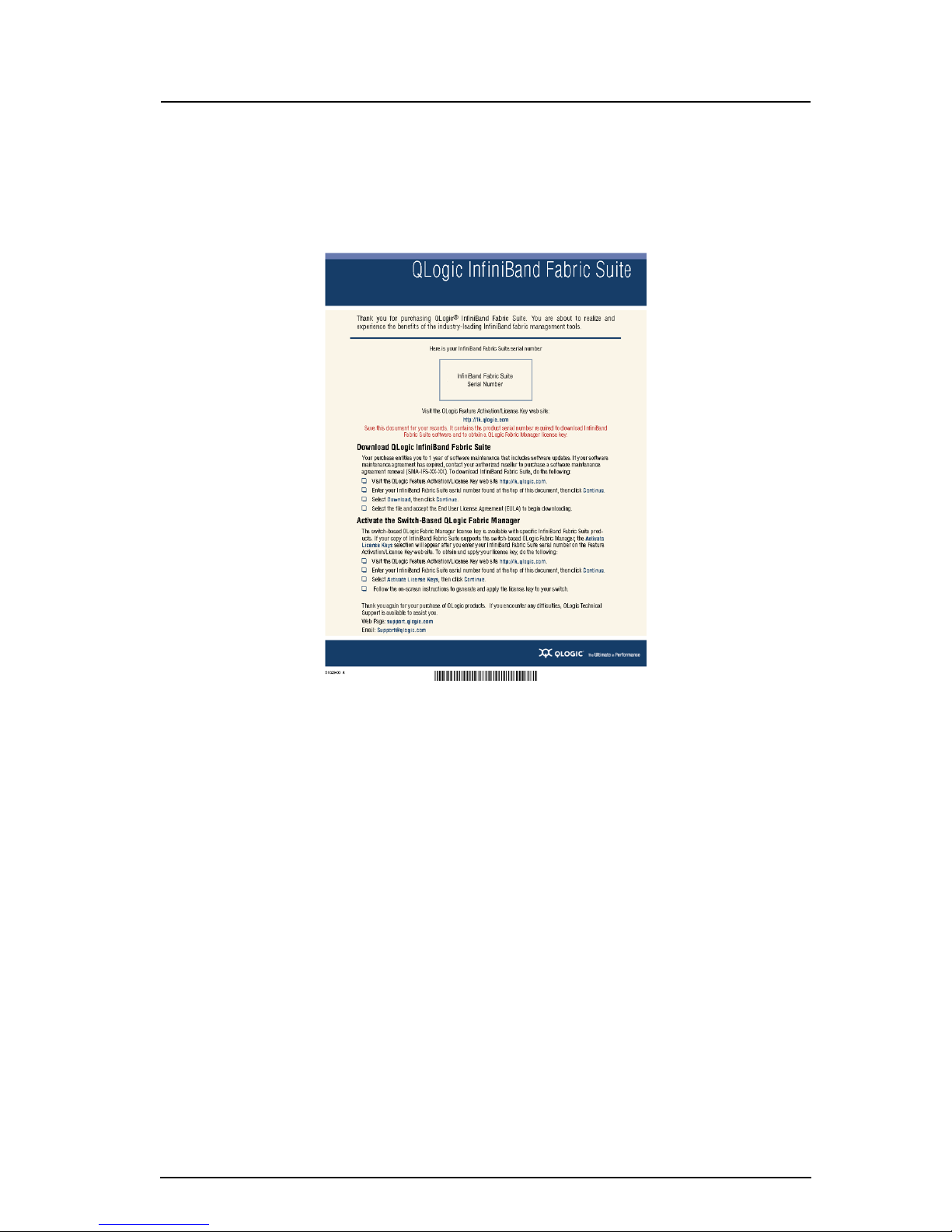

Figure 2. InfiniBand Fabric Suite Licensing Information

For detailed license key activation information, refer to the QLogic 12000 Hardware Installation Guide.
