Configuring Proxmox

White Paper

Table of Content

www.qsan.com

Official

Document

TABLE OF CONTENT

Preface....................................................................................................................... 1

Information, Tip and Caution................................................................................... 1

Table of Content......................................................................................................... 2

Audience .................................................................................................................... 3

Environment ........................................................................................................... 3

Topology................................................................................................................. 4

Configuration.............................................................................................................. 6

XEVO iSCSI Configuration ..................................................................................... 6

QSM NFS Configuration ....................................................................................... 16

QSM SMB Configuration ...................................................................................... 21

QSM iSCSI Configuration ..................................................................................... 24

Conclusion............................................................................................................ 25

Apply To ............................................................................................................... 25

References ....................................................................................................... 2525

Announcement ......................................................................................................... 26

Appendix .................................................................................................................. 27

Related Documents .............................................................................................. 27

Technical Support................................................................................................. 27

Configuring Proxmox

White Paper

Audience

www.qsan.com

Official

Document

AUDIENCE

This document is demonstrating how to create storage to deposit VMs in “Proxmox VE”

environment when uses XEVO and QSM. We will introduce to use NFS/SMB/iSCSI

protocol to create the storage in the below chapters.

Environment

STORAGE

XEVO & QSM

Firmware

QSM v3.4.1

XEVO v2.2.0

RAM

16GB

Data port

Proxmox server: 192.168.252.81

XEVO

Data Port IP1: 192.168.175.31

Data Port IP2: 192.168.175.32

QSM

Cluster IP: 192.168.138.109

Private IP1: 192.168.175.41

Private IP2: 192.168.175.42

Configuring Proxmox

White Paper

Audience

www.qsan.com

Official

Document

Topology

Configuring Proxmox

White Paper

Audience

www.qsan.com

Official

Document

Configuring Proxmox

White Paper

Configuration

www.qsan.com

Official

Document

CONFIGURATION

For XEVO iSCSI Configuration

1. Connect to the XEVO 192.168.175.31 and 192.168.175.32 and the installed

Proxmox to the same switch, and confirm that they can ping each other.

2. Create pool and volume and hostgroup, and connect the volume to the hostgroup.

Configuring Proxmox

White Paper

Configuration

www.qsan.com

Official

Document

3. Login to the Proxmox VE Web UI, and go to edit node “pve”network, configure IP

address 192.168.175.11/24 and 192.168.175.12/24.

4. “Apply configuration”enables the above setting.

Configuring Proxmox

White Paper

Configuration

www.qsan.com

Official

Document

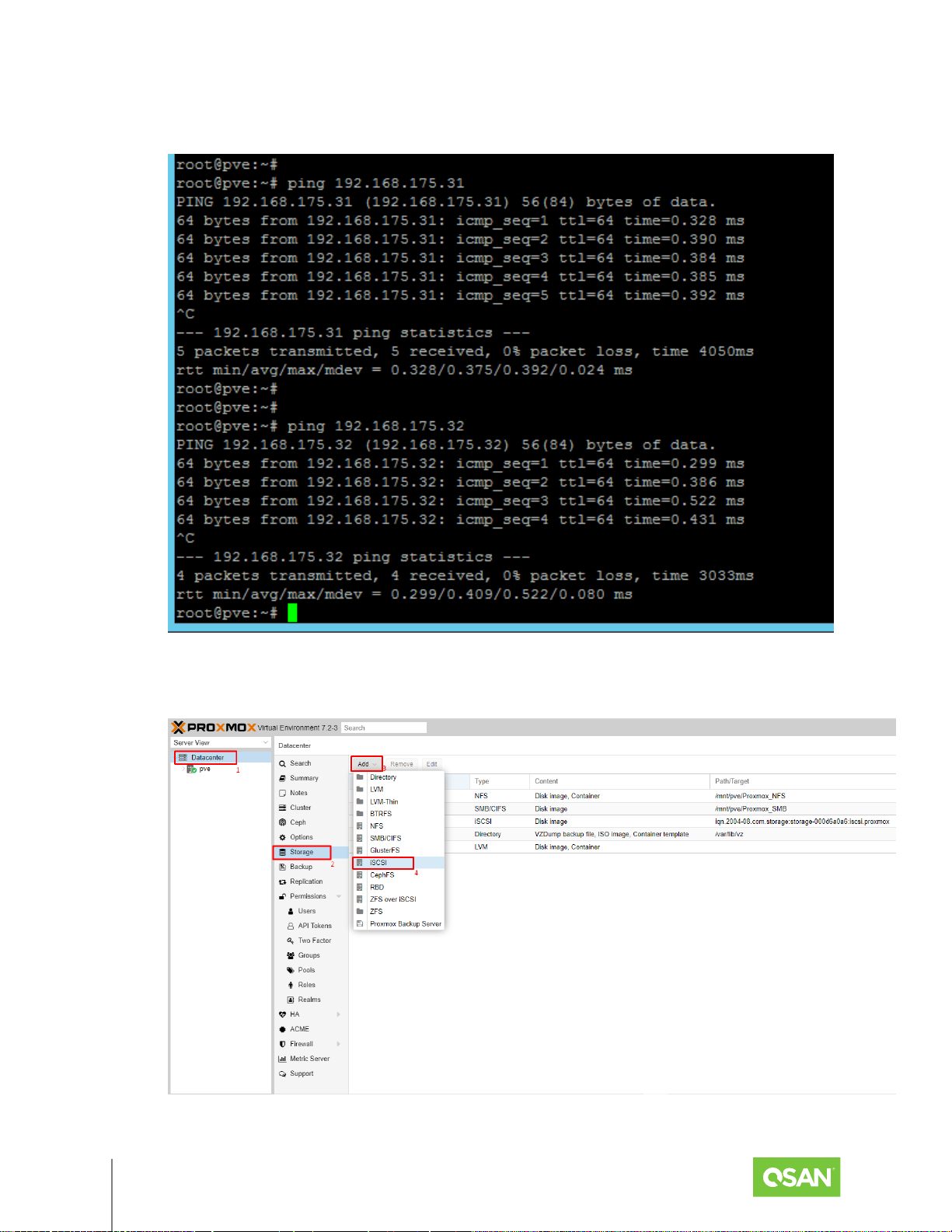

5. SSH to the Proxmox, and confirm that they can ping the XEVO IP set Previously

set XEVO IP.

6. Go to datacenter of storage, and then click “Add”and select iSCSI.

Configuring Proxmox

White Paper

Configuration

www.qsan.com

Official

Document

7. Enter ID and controller1/controller2 portal and select the target iqn you just

created from host group page. Please note that “Use LUNs”needs to be

unchecked.
