Quad 606 MK I and II DIY upgrade illustrated guidelines version 1.41

These are the illustrated step-by-step guidelines for upgrading your Quad 606

MK I or 606 MK II with the Dada Electronics upgrade-kit. This kit can also be

used for the 707and 909, the 707and 909 is basically a 606 MKII with the

extra Quad Bus input circuit. The 606 MKI has a square casing; the 606 MKII

has beveled edges like the 707 and 909.

This kit is based on the highly successful one we developed for the 306 range

of amplifiers.

We will replace all electrolytic capacitors on the amplifier modules, input

connectors, some resistors and capacitors in the input- and feedback circuit

like Quad did in the 909. Low quality capacitors are replaced by Silvered-mica

capacitors. All the cabling will be replaced by Hi Q cabling in the original

colors.

We will also adapt the input-sensitivity (as an option) by increasing the local

feedback in the input-circuit. This further increases the signal-to-noise ratio

and makes the amplifier better adapted to modern sources.

We strongly advise to replace the power supply capacitors, but these are

depending on the type of 606.

Replacing the output transistors and drivers is an extra option; it will increase

the output peak current at difficult loads.

In some 606 amplifiers there is a mechanical hum. This is generated by the

transformer. Although Quad tried to solve this with a special suspension kit,

there is only one solution, replacing the transformer with a toroidal, like Quad

did in the 606 MKII, 707 and 909. We can do this kind of work, but only in one

of our shops.

We will do the upgrade step-by-step. For every step these guidelines will tell

you what to do (in Underline) and give you some tips, tricks and advice (in

Italics). You should have some soldering-experience for bringing this project

to a good end but you don’t have to be an electronics-expert.

When there are any problems, send an e-mail to info@dadaelectronics.eu

with a good description of the problem. Some pictures may help us

understand the problem better. We will do our best to answer within 24 hours

7/7. When the project is a success you will be listening to one of the best

high-end, high-powered, current-dumping amplifiers ever made with a better-

than-original Quad-sound. For indentifying your 606 and additional

information, download the service manual.

Stefaan & Joost December 2010

Step 1 – The tools & the Components

The tools you need:

•A good quality soldering iron with a fine point (max 30) Watt or a

soldering-station.

•A desoldering-pump

•A micro cutting nipper, a wire-stripper and a miniature pliers

•A Philips n° 2 and n° 1 screwdriver and a small flat screwdriver

•Tin/lead solder wire (no unleaded solder!)

•A digital multimeter

If you don’t have these tools you can order them in the Dada Electronics

webshop.

You should also have the 606 schematic and the corresponding Pcb layout at

hand. You will find them in the appendix of this document. The versions are

related to the serial number of the unit, but double check this on the amplifier

modules themselves! On the Pcb the issue number is marked on the copper

side. If you wish, you can order the complete Service manual, just send an e-

mail to info@dadaelectronics.eu and we will reply with the document

attached. Or download the document from our website.

There is one version of the 606 upgrade-kit, and two options. We strongly

advise to use the basic kit and option 2 as a minimum set.

1. The Basic version includes the input connectors, internal cabling,

capacitors for the driver-boards, PCB-connectors and other small

components.

2. The PSU Capacitor option contains 4x BHC Aerovox 10.000µF 63 V

capacitors (or 4x BHC Aerovox 15.000µF 63V for the 606 MKII).

3. The Power transistor option contains 12x 2N3773 transistors,four

driver transistors MJE15031 and in total 16 silicon pads.

The components in the 606 basic upgrade-kit:

Cables, connectors & mechanical components:

•4x 1M flexible 0,75mm² flexible cable for internal wiring (Orange for

mass, Yellow for the LS-outputs, Black for – DC-current, Red for + DC

current).

•Shielded audio-cable, 50cm

•12x Silver plated Faston connectors, female

•Thermal insulation-tube, 30cm

Components to be mounted on the driver-boards:

•2x R 560R 1% for R1 (green-blue-black-black-brown)

•4x R 22K 1% for R2 & R6 (red-red-black-red-brown)

•2x R 62K 1% for R5 (blue-red-black-red-brown)

•2x R 12R 1% for R11 (brown-red-black-gold-brown) (*)

•2x R 2M2 1% for R25 (red-red-black-yellow-brown)

•6x C 330pF Silvered-mica for C1 / C4 / C6

•2x C 330nF MKT for C2

•2x C 1µF MKT for C3

•2x C 47nF MKS4 for C10

•6x C 100nF MKT (Additional decouple caps for the zener diodes D1,D2

and D12, not replacements!)

•2x C 100uF 63V for C7 (Nichicon)

•4x C 470µF 63V for C9 & C11 (Nichicon)

(*) Only needed if you want to change the input sensitivity!

Separate components and parts (you can order these from the Dada

Electronics webshop

•12x 2N3773 Power-transistor and 4x MJE15031 drivers

•Silicon pads TO3 (12x) and TO220 (4x)

•4x BHC Aerovox 10.000µF 63V capacitor for the 606-I power-supply

•4x BHC Aerovox 15.000µF 63V capacitor for the 606-II power-supply

•Velleman K4701 Loudspeaker DC-protection unit,(two needed)

•Dada Electronics DC-protection / delay, mono, the best! (two needed)

•all other 606-components are also available

See also the Quad Spot weblog.

Step 2 – Dismantling the 606

•Remove the bottom-cover (Philips n°2, 8 screws including 4 feet, also

two screws on the back Philips n° 1), see exploded view in the

appendix

•Remove the wires from the 2 driver-boards (6 connectors/wires per

board)

•Remove the driver-boards (2x 3 screws)

•Remove the 4 PSU-capacitors and mounting-rings.

Step 3 - Fitting in the Power Supply capacitors and the connectors

It is important to do these steps in the right order as it makes it more practical

to reach certain components. Use the exploded view as a reference; also

check the T board layout. In the case of a MKII unit, make notes or

photographs during the dismantling.

Step 4 - Upgrading the circuit boards.

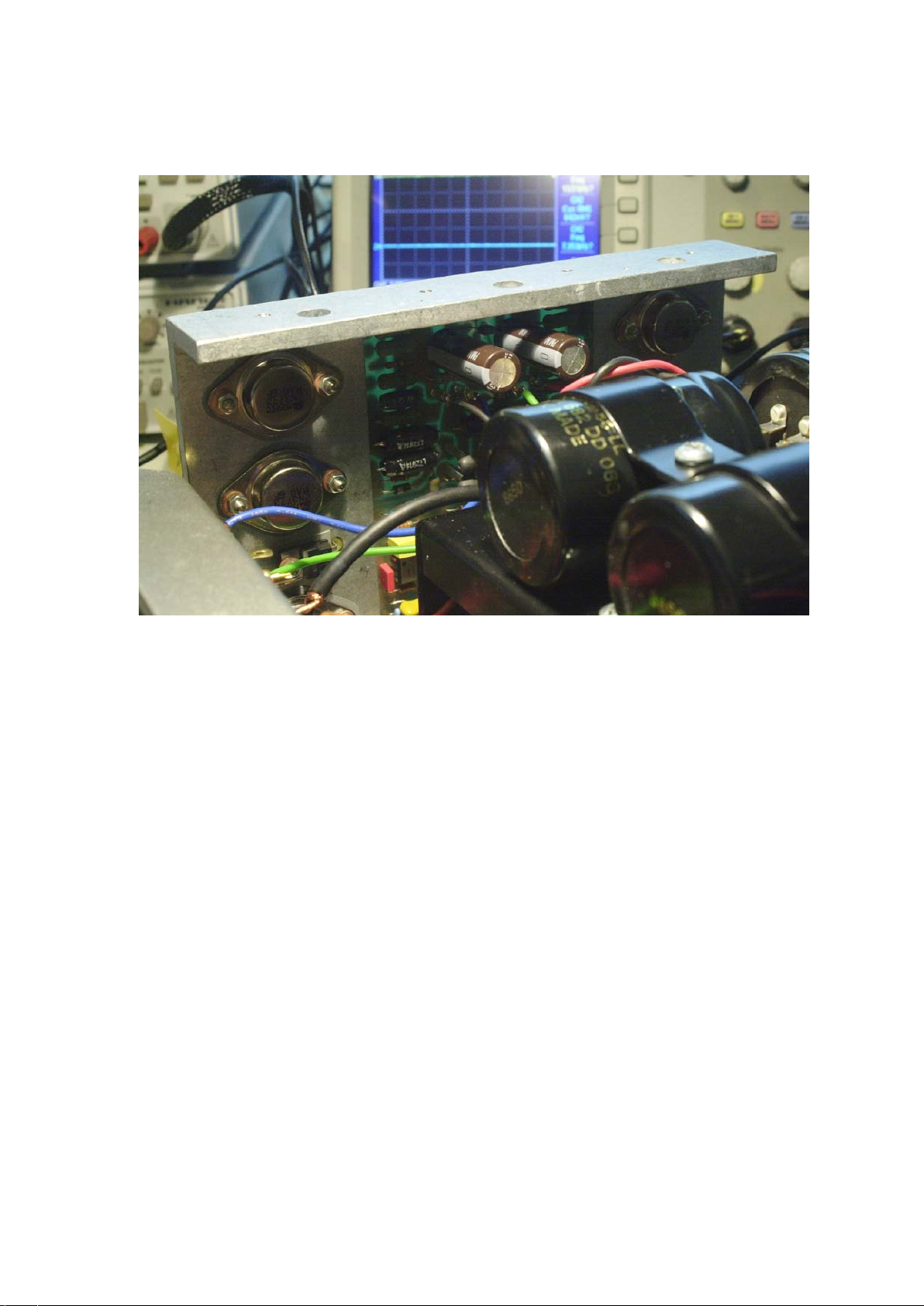

If you have a stabilized power-supply (+ 57 and – 54 Volt), a function-

generator and a scope you might test the boards before upgrading them. If

you don’t, no problem, you can upgrade the boards without them.

When you connect a dual power supply to the board (+ and – voltage to the

Pcb-connectors, mass to the aluminum heat-sink (don’t use the input mass for

this!), you should read about 110 mA in the – power-line and 120 mA in the +

power-line. This means the power- and driver-transistors are OK.

It is a good practice to upgrade the boards one by one. So we can compare

between the boards if we want to see the polarity of capacitors or diode’s or if

something goes wrong.

Replace all the components in the above component-list, except the 6

decouple caps, these are extra components! Solder the small decouple

capacitors on the copper side of the Pcb,do not remove/replace the zeners!

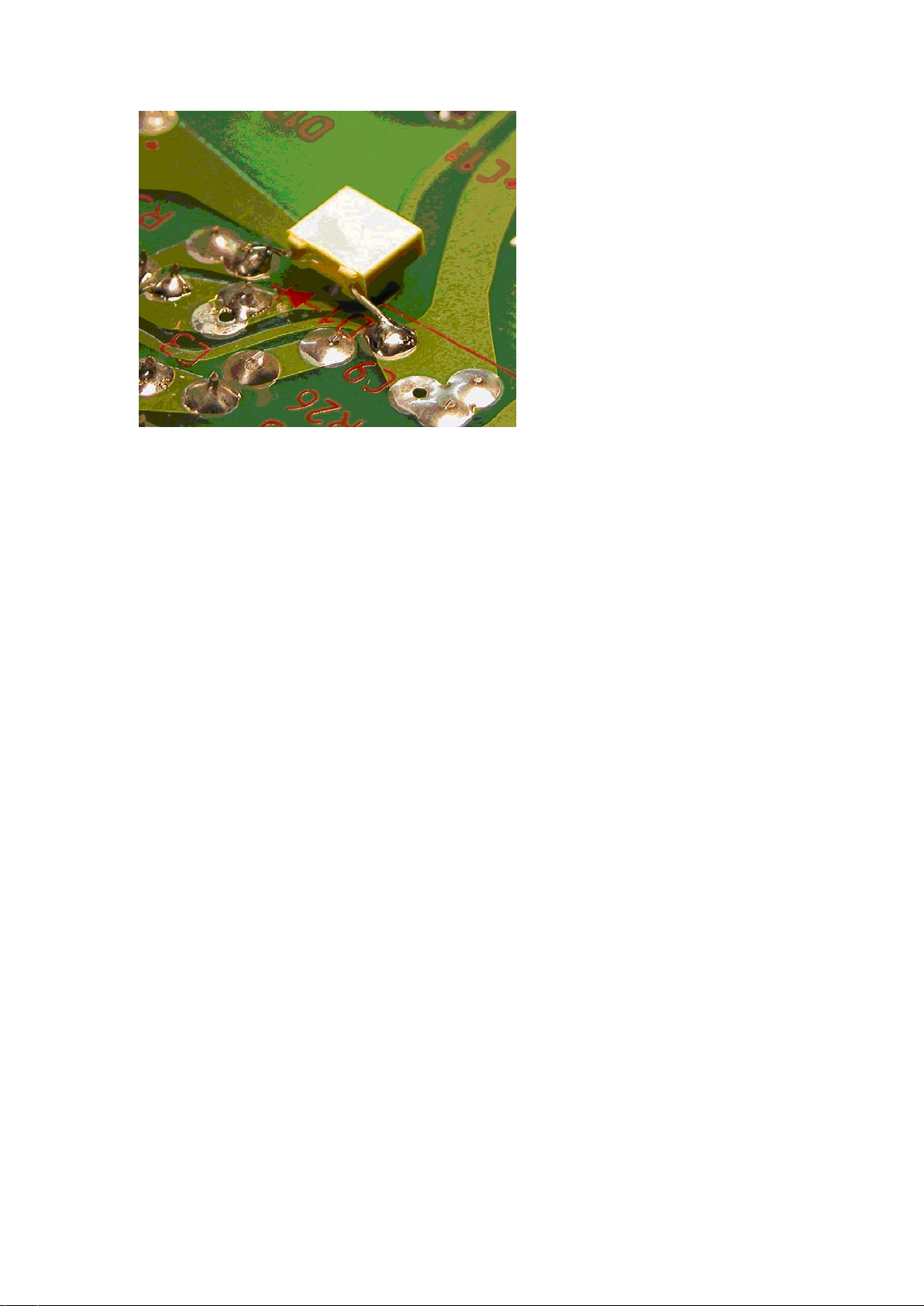

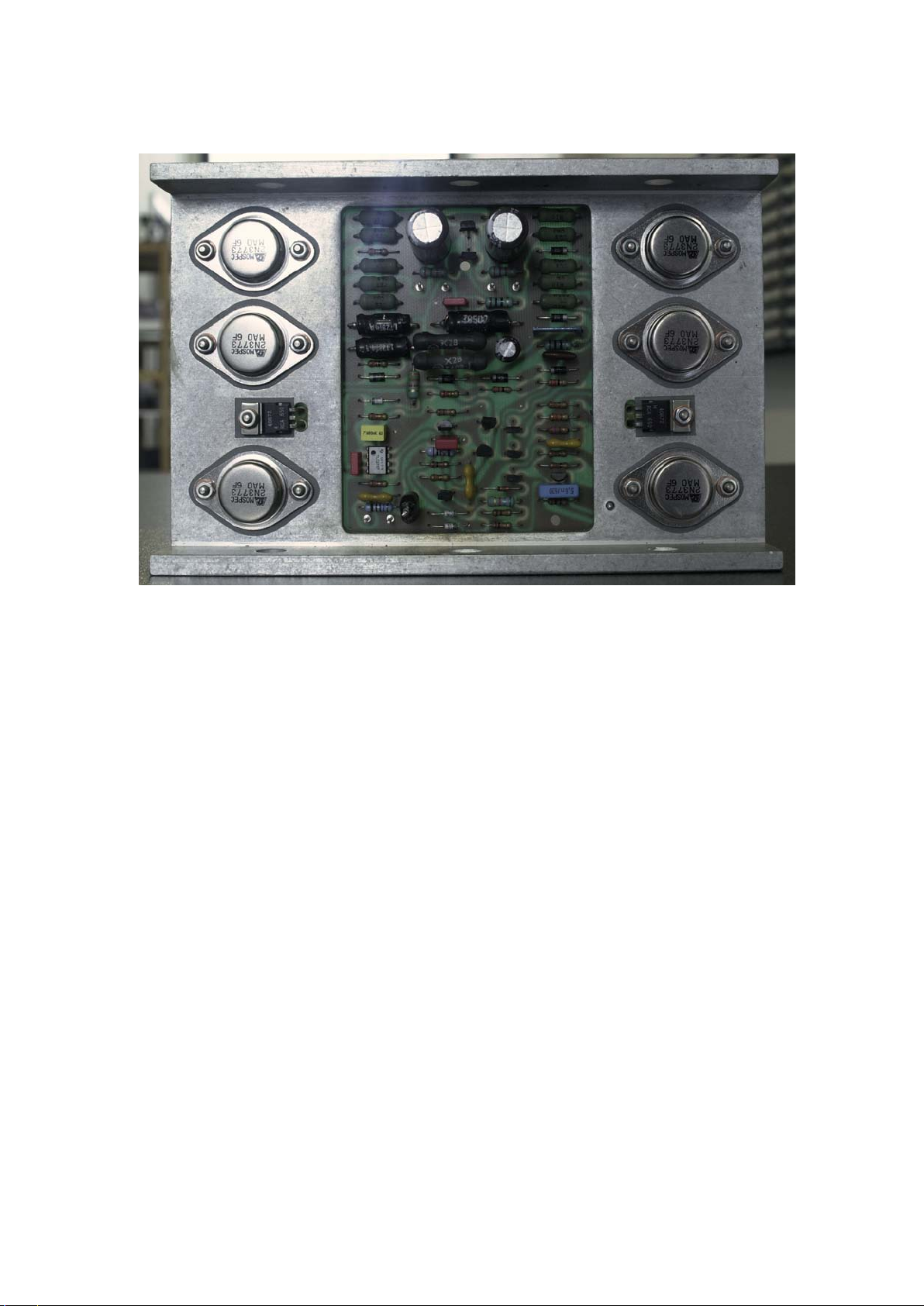

See the picture below for an example. Use the Pcb layout to check the

position of the components, the layouts are copper trackside, not component

side! The issue number of the Pcb is also on the copper side.

If you want an input-sensitivity of 0 dBm (0.775 mV), 1mWatt in 600 ohms,

which is standard, replace R11 with 12 Ohm. If you leave R11 in place the

input-sensitivity will be 0.5 Volt.

Step 5 – Replacing the output transistors (optional)

Remove the output transistors and the driver transistors.See the exploded

view as a reference. Make notes or pictures for reference information. Place

new silicon pads and reinstall all the components. Check with an ohm meter

there is no connection between the heat sink and the casings or metal parts of

the transistors. Check with an Ohm meter the contact between the case of the

transistor(s) and the corresponding tracks (marked by the transistor fastening

screws) on the copper side of the Pcb. The reading should be 0.1 ohm or

minimal reading depending on your Ohm meter (or DMM).

Step 6 - Testing the circuit boards

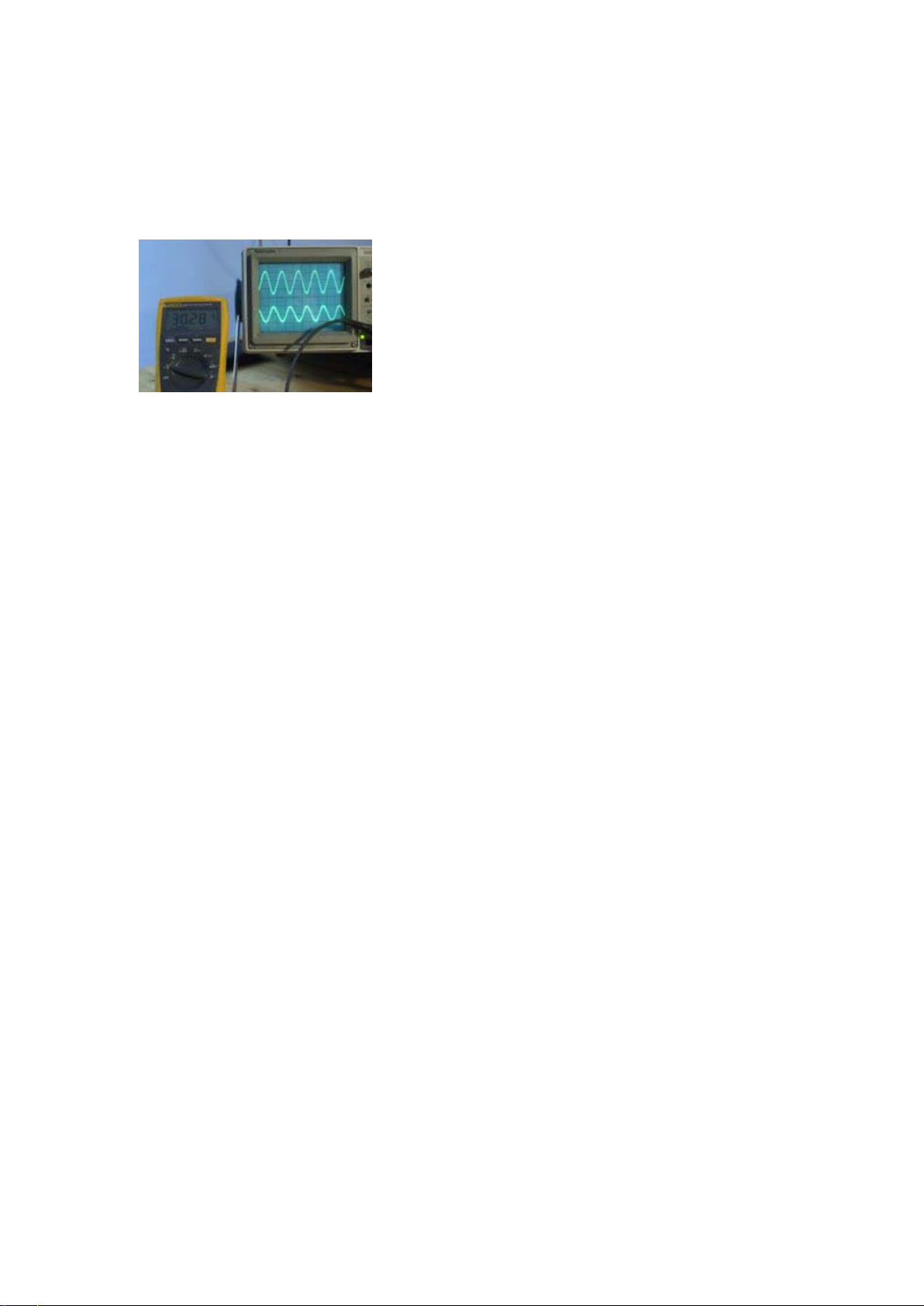

When both boards are upgraded we'll connect them to a sinus-generator and

to the scope. We'll connect + and - 50 Volt with our lab power-supply and

connect a true-RMS multimeter to check the input- and output voltages.

Following measurements are OK:

- 0.01 Volt (max) DC on the outputs

- 32 .. 36 Volt AC on the outputs before clipping. This corresponds with 130 ..

150 Watt into 8 Ohm.

- 0.775 (or 0.5) Volt AC on the input before clipping. This corresponds with

line-voltage for full power.

If you don't have all this lab-equipment, skip this step. We will make sure later

that there is 0 VDC on the output and that the power-consumption in the

power-lines is 120 .. 130 mA.

Re-check both sides of the boards to make sure that the polarity of the

electrolytic capacitors is correct and that there are no soldering short-circuits

between the Pcb tracks.

Step 7 – Cabling & Re-assembly

We start by cabling the power-supply. For internal cabling counts: the shorter

the better. We'll use high-quality flexible 0.75 mm² in 4 colors for everything

except the 230 Volt lines.

We’ll use the following colors:

•Red for the +50 Volt line

•Black for the -50 Volt line

•Orange for the output-mass

•Yellow for the LS-output lines

For the inputs we’ll use shielded cable between the RCA-connectors and the

driver-circuits.

Use the heat shrink tube to cover the soldering eyelet and give them a neat

appearance.

Before connecting the power, re-check the polarity of the power supply caps.

Compare with the schematics and the wiring diagram in the appendix.

Warning If the polarity of the caps is wrong they will explode!

It is better to twist all cables that have to be soldered to the same point

together before tinning them, it makes soldering a lot easier. Foresee cables

to the boards as well.

Once the power-supply is OK, we fix in both boards adding thermal paste to

ensure maximum heat-conduction with the chassis.

We can now connect the + and - power-lines to the boards (don't switch them

or you'll kill the output-transistors!) as well as the LS-output cables to the red

LS output-plugs.

It is no luxury to use some Raychem (or other) Heat Shrinkable Tubing for

insulating the +, - and output connections, as there are large voltages

between them.

•Connect the “+” and “-“ leads from the power-supply to the boards

•Connect the LS-outputs of the boards to the circuit-boards

•Connect the inputs to the RCA-plugs with shielded cable

•Install the boards using new Heat Sink compound

•Re-assemble the amplifier is reverse order

Before connecting mains-voltage we should check all cabling again with the

Ohm-meter. We should also re-check that each channel uses 120 .. 130 mA

in the + and the - power-line and that there is less than 0,01 Volt DC on the

outputs (typically 0.007 or less Volts).

If it passes these final tests we can rebuild the unit and finally connect the

speakers and the preamp and... Enjoy the music ;-)

The 606 MKII, also very useful information for the 707 and 909.

Remove the 8 screws on the bottom and the 4 screws from the rear panel. Remove the

bottom and the U shaped chassis part.

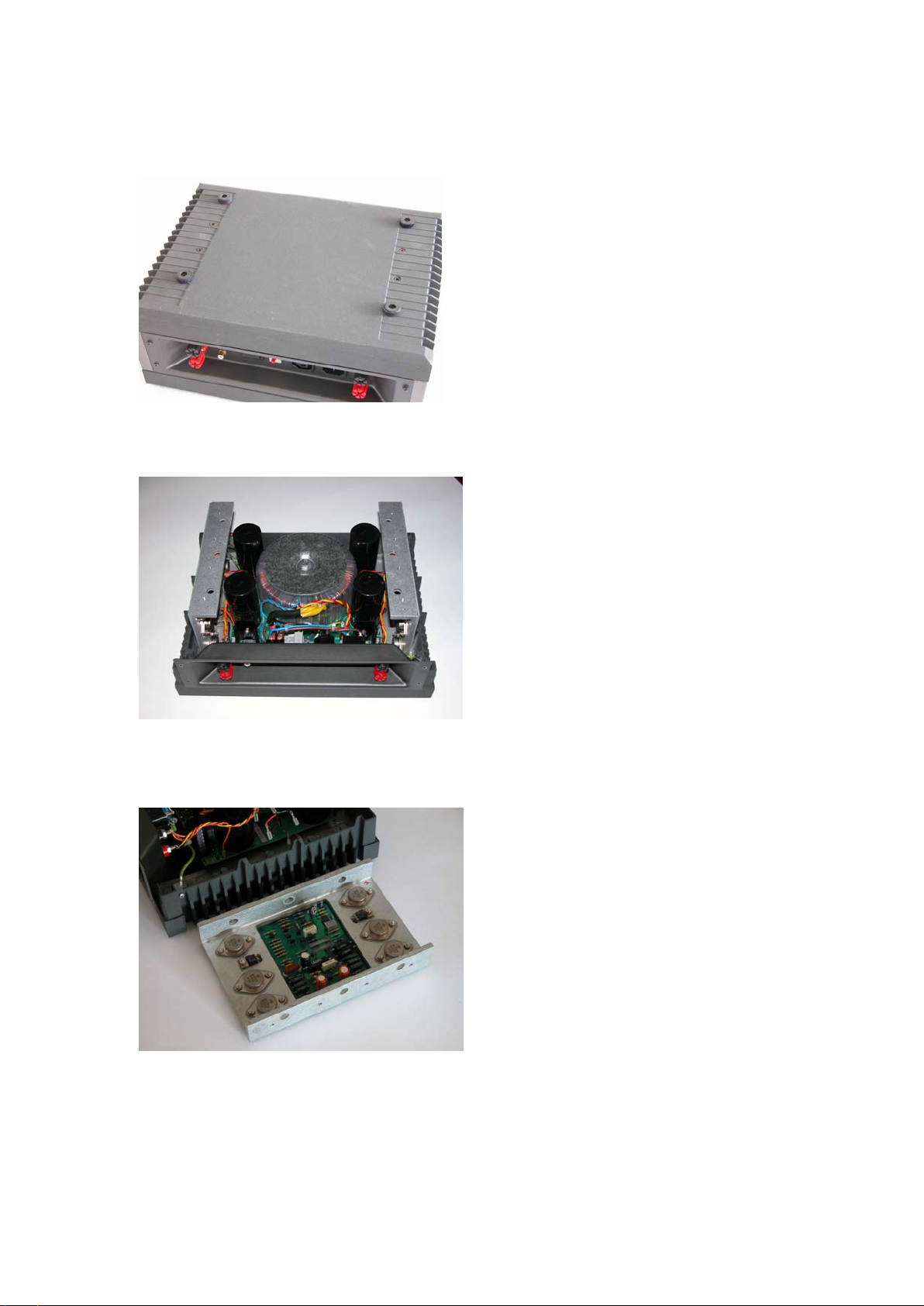

The unit will looks like this. Remove the amplifier boards with a long Philips (posidriv)

screwdriver; be careful not to make contact with the components on the boards. Remove

(loosen) the connectors on the boards with small pliers. Make notes, or pictures.

Dieses Handbuch passt für folgende Modelle

Andere QUAD Verstärker Handbücher

QUAD

QUAD 520f Bedienungsanleitung

QUAD

QUAD 50E Bedienungsanleitung

QUAD

QUAD Elite Mono Bedienungsanleitung

QUAD

QUAD 303 Bedienungsanleitung

QUAD

QUAD Vena Bedienungsanleitung

QUAD

QUAD II Classic Bedienungsanleitung

QUAD

QUAD VA-ONE+ Bedienungsanleitung

QUAD

QUAD 2 Bedienungsanleitung

QUAD

QUAD Vena II Bedienungsanleitung

QUAD

QUAD 405-2 Bedienungsanleitung

QUAD

QUAD Vena II Play Bedienungsanleitung

QUAD

QUAD VA-One Bedienungsanleitung

QUAD

QUAD 405 - annexe 1 Bedienungsanleitung

QUAD

QUAD 66 Bedienungsanleitung

QUAD

QUAD II Classic Bedienungsanleitung

QUAD

QUAD 99 Series Bedienungsanleitung

QUAD

QUAD 77 Bedienungsanleitung

QUAD

QUAD 66 Bedienungsanleitung

QUAD

QUAD Platinum Series Bedienungsanleitung

QUAD

QUAD 520 Bedienungsanleitung

QUAD

QUAD PA-One Bedienungsanleitung

QUAD

QUAD PA-ONE+ Bedienungsanleitung

QUAD

QUAD 99 CD Bedienungsanleitung

QUAD

QUAD Vaccume Tube Amplifier Systems Bedienungsanleitung

Beliebte Verstärker Handbücher anderer Marken

ASTRO

ASTRO HVO V40 P Bedienungsanleitung

Marantz

Marantz SUPERSCOPE BLA-545 Montageanleitung

NAD

NAD CI980 Bedienungsanleitung

Technics

Technics SE-CH770 Bedienungsanleitung

Harman Kardon

Harman Kardon HK6300 Bedienungsanleitung

NAD

NAD T975 Bedienungsanleitung

McIntosh

McIntosh MA6850 Bedienungsanleitung

Electro-Harmonix

Electro-Harmonix ENGLISH MUFF’N Bedienungsanleitung

Viatron

Viatron Autrix Bedienungsanleitung

GME

GME GA9800 Bedienungsanleitung

Atlas

Atlas CP700 Bedienungsanleitung

Roland

Roland KC-1000 Bedienungsanleitung

Pyle

Pyle PFMRA350BW Bedienungsanleitung

Advantage

Advantage S-250 Bedienungsanleitung

IRT Electronics

IRT Electronics DVA-3007 Bedienungsanleitung

Dimavery

Dimavery BA-100 Series Bedienungsanleitung

Sony

Sony XM-S400D Bedienungsanleitung

Schertler

Schertler ROY X Bedienungsanleitung
