Quadient IS-280 Bedienungsanleitung

Franking Machine

Meter Swap Guide

IS-280

How to fit a new meter

to your mailing system

1

1.1 Instructions On HowTo Fit A New MeterToYour Mailing

System ....................................................................................3

How to fit a new meter to your mailing system ................................................3

How to install a new Postage Meter .................................................................8

1

| Page 1 | How to fit a new meter to your mailing system | Jun-01-2015 05:11 |

Instructions On HowTo Fit A

New MeterToYour Mailing

System

1.1

Please read the following information carefully to complete the

installation of your new meter.

The new meter has to be activated with a registration PIN code found on the accompanying

paperwork.

How to fit a new meter to your mailing system

1. Remove the Meter (PSD) from the white box.

If the system has a weight platform fitted to the top of the unit either

disconnect the platform at the back of the unit or take care when

locating the meter cover. If the platform is not supported when the

unit is placed on its back, damage may be caused to the platform.

3

| Page 3 | | Jun-01-2015 05:11 |

1

2. Disconnect the power supply from the rear of the unit.

If the weight platform is still connected support the scale when the

unit is placed on its back or lift the platform off the base and remove

the connector

3. Carefully place the unit on its back.

Open the meter cover as shown and then remove the old meter by sliding it up and

out.

Place the meter to be returned in a safe place.

4

| Page 4 | Jun-01-2015 05:11 |

1

4. Fit the new meter. Slot the meter in and down as shown in the diagram.Then close

the meter cover door.

If the cover does not close properly the meter is fitted incorrectly.

1

5

| Page 5 | Jun-01-2015 05:11 |

5. Place the unit back to the upright position.

If the weighing platform was disconnected, Reconnect at this point.

Modem cable

LAN cable

PC Meter Link

6

| Page 6 | Jun-01-2015 05:11 |

1

6. Reconnect the power supply cable to the rear of the base and power on.

After a few seconds the system will power up.

Now follow the screens in this document and on the user panel to complete the

swap process.

7. The default connection is LAN however if you want to use another type,

please login to Supervisor , select Communication Settings and then Postal Server

Access.

1

7

| Page 7 | Jun-01-2015 05:11 |

How to install a new Postage Meter

1. On this screen, press "Next"

2. Check the cable connections.Then press :

8

| Page 8 | Jun-01-2015 05:11 |

1

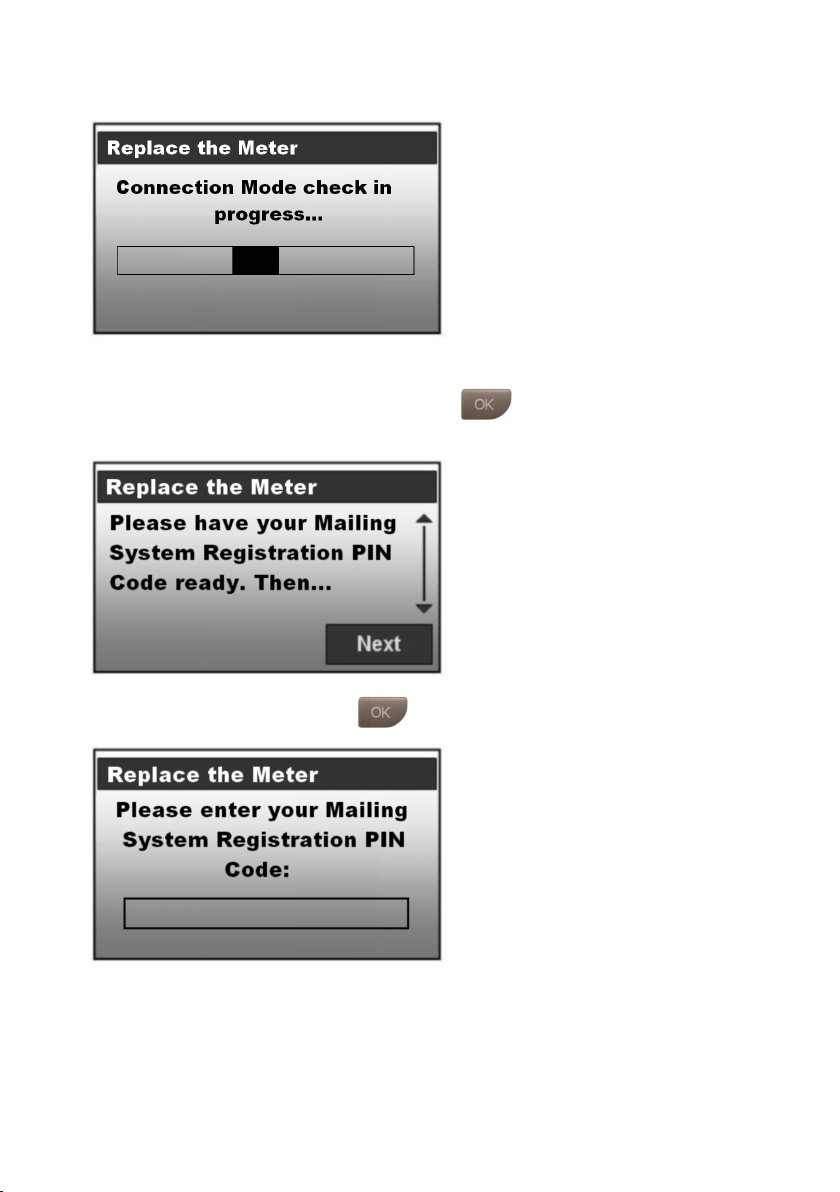

3. If the Modem connection is selected.The following screen displayed.

If the LAN or PC Meter Link is selected. Go to step 4

4. If you have your registration pin number, press: If you can't find your registration

pin number, please call 1-800-661-0200 for assistance.

5. Enter the pin number then press:

1

9

| Page 9 | Jun-01-2015 05:11 |
