Quantum DAT 160 Bedienungsanleitung

DAT 160 SCSI and USB

Tape Drives

Tabletop and

Internal Tape Drive

Quick Start Guide

Important Information About

Your New Tape Drive

• Before installing the tape drive run the driver installer from the

CD-ROM.

•USB: Always connect to a USB 2.0 port (on a computer running

Windows or Linux).

•USB: The tape drive should be the only device on the USB hub.

•SCSI: Connect to an Ultra 160 SCSI HBA or higher

•SCSI: Use a SCSI cable and terminator

• For optimum performance use DAT 160 media cartridges

(MR-D6MQN-xx)

NOTE: The DAT 160 cartridge is larger than previous generations of

DAT cartridges.

Contents

English..................................................... 1

French.............................................on CD

German...........................................on CD

Spanish...........................................on CD

Korean............................................on CD

Japanese .........................................on CD

Simplified Chinese .......................on CD

This quick start guide provides basic

installation instructions for your internal

or external Quantum DAT 160 Tape

Drive. For detailed instruction see the

Quantum DAT 160 Tape Drive User’s

Guide, p/n 81-81794-01 A01.

Tabletop and Internal Tape Drive Quick Start Guide

DAT 160 SCSI External Tape Drive Installation

SCSI Cable and

Terminator Power

Use the appropriate 68-pin, wide, VHD-to-HD SCSI cable and LVD terminator.

Figure 1 Recommended

External SCSI Connection

Tech Tip: For detailed, step-by-step installation instructions see the User Guide

found on the Quantum CD supplied with your tape drive. See

www.quantum.com/support for detailed compatibility information.

Server

SCSI terminator

SCSI cable

Power cord

Power switch

Recommended SCSI connection:

Connect to the SCSI HBA or SCSI

connector on your server. Quantum

recommends Ultra 160 or higher.

DAT 160 SCSI Internal Tape Drive Installation 3

DAT 160 SCSI and USB Tape Drives

DAT 160 SCSI Internal Tape Drive Installation

Mounting Hardware Have the appropriate mounting hardware available. Refer to your server documentation.

SCSI Cable Use a correctly rated and terminated cable.

Power Connection Attach a spare power cable from the server's internal power supply.

Figure 2 Recommended

Internal SCSI Connection

Caution: Disconnect your computer from the main power supply before installing

the tape drive and observe anti-static precautions.

Tech Tip: For detailed, step-by-step installation instructions see the User Guide

found on the Quantum CD supplied with your tape drive. See

www.quantum.com/support for detailed compatibility information.

SCSI cable

Power cable

Server

Recommended SCSI connection:

Connect to a SCSI HBA or SCSI

connector on your server.

Quantum recommends Ultra

160 or higher.

4Completing the SCSI Installation

Tabletop and Internal Tape Drive Quick Start Guide

Completing the SCSI Installation

Drivers Drivers are available at www.quantum.com/support.

Install or Update Backup

Software

Always upgrade your software application to ensure it works correctly with the tape

drive. The in-box software provides full support for all the features of your tape drive.

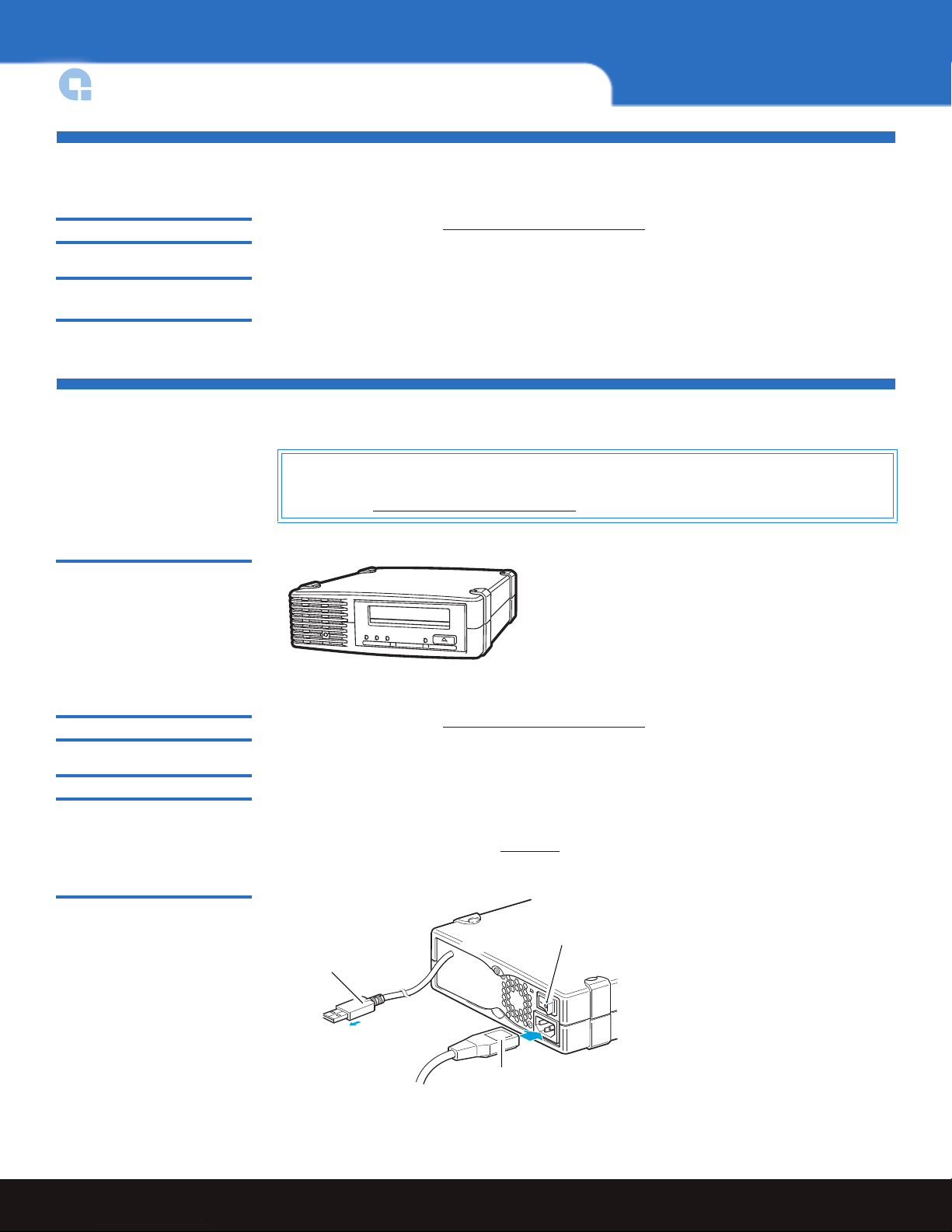

DAT 160 USB External Tape Drive Installation

Figure 3 Quantum DAT 160

USB External Tape Drive

Windows Systems Only Drivers are available at www.quantum.com/support.

Installing the Drive You must connect to a dedicated USB 2.0 port on your computer. USB 1.1 will severely

degrade performance.

Use an appropriate power cable to connect to the main power supply. The drive is not

powered from the USB bus (see figures 4).

Figure 4 Quantum DAT 160

USB External Tape Drive Back

View

Tech Tip: For detailed, step-by-step installation instructions see the User Guide

found on the Quantum CD supplied with your tape drive. See

www.quantum.com/support for detailed compatibility information.

USB cable to

computer

Power cable

Power switch

DAT 160 USB Internal Tape Drive Installation 5

DAT 160 SCSI and USB Tape Drives

DAT 160 USB Internal Tape Drive Installation

Use the appropriate power cable to connect to the computer's power supply. The drive is

not powered from the USB bus.

Windows Systems Only: Run the driver installer from the CD-ROM before connecting tape drive.

Check Server Schematic

for Internal USB 2.0 Port.

You must connect to a dedicated USB 2.0 port on your computer. USB 1.1 will severely

degrade performance. Use the schematic on the inside of the door or consult your

computer documentation to locate the availability and position of a USB 2.0 port; this may

be a 4-pin motherboard connector or standard USB socket.

• Internal port available? Use appropriate cables, as appropriate (A)

• No internal port available? Use the Cable Routing Kit (B) to connect to an external

USB port.

Attach USB Cable to

Internal USB 2.0 Port

There are two types of internal USB cables.

• 4-pin connector inside the computer:

You must provide the special 4-pin cable for connecting to a 4-pin USB connector

because there are two types of pin layout. Select the correct cable for your computer.

Sockets may be oriented horizontally or vertically (see figure 5).

• Standard 5-pin USB port inside the computer

Use the appropriate cable with the tape drive, not illustrated.

Attach USB Cable to

External USB 2.0 Port

Use the appropriate USB cable and Cable Routing Kit (bracket with attached cable). Make

sure you orientate the bracket correctly when you fit it, (cable on the outside, Type A USB

socket on the inside).

Caution: Disconnect your computer from the main power supply before installing

the tape drive and observe anti-static precautions.

Tech Tip: For detailed, step-by-step installation instructions refer to the User Guide

found on the Quantum CD supplied with your tape drive. See

www.quantum.com/support for detailed compatibility information.

6Completing the USB Installation

Tabletop and Internal Tape Drive Quick Start Guide

Figure 5 Attaching an USB

Cable to an Internal USB 2.0

Port

Completing the USB Installation

Complete Installation of

Drivers

If the Found New Hardware Wizard runs, follow the on-screen instructions to automatically

search for the installed drivers.

Install or Update Backup

Software

It is important to check www.quantum.com/support for software compatibility and

install any recommended upgrades. The in-box software provides full support for all the

features of your tape drive.

Understanding the Front Panel LEDs

Figure 6 Front Panel LEDs

USB cable

Power cable

4-pin internal USB cable

(older-style pin layout)

Internal USB

2.0 port

External USB

2.0 port

To ta p e d ri v e

Type B

connector)

To se r v er ’ s

external USB

port (Type A

connector)

Bracket not supplied

Understanding the Front Panel LEDs 7

DAT 160 SCSI and USB Tape Drives

Table 1 Front Panel LEDs Clean Amber Description

On Cleaning cartridge in use

Off Drive does not require cleaning

Flashing Drive Needs cleaning

Drive Green Description

Off No fault has been detected

Flashing Drive mechanism has detected a hardware error

Tape Green Description

Off No fault has been detected

Flashing Cartridge currently in the drive is faulty (damaged or unsupported).

Discard the cartridge

Ready Green Description

On Drive is ready for use

Off Drive power is off, there was a failure during self-test, or a cartridge

is not present

Flashing Drive is busy

About Quantum

Quantum Corp. (NYSE: QTM) is the leading global storage company

specializing in backup, recovery and archive. Combining focused

expertise, customer-driven innovation, and platform independence,

Quantum provides a comprehensive range of disk, tape, media, and

software solutions supported by a world-class sales and service

organization. As a long-standing and trusted partner, the company works

closely with a broad network of resellers, OEMs, and other suppliers to

meet customer’s evolving data protection needs.

For assistance contact Quantum Technical Assistance center:

North America +1-800-284-5101

UK, France, and Germany 00800 4 QUANTUM

EMEA +44 1256 848 766

For worldwide support: www.quantum.com/contactsupport

Backup. Recovery. Archive. It’s What We Do.

logos are registered trademarks of Quantum Corporation or their respective owners.

81-81795-01 A01

81-81795-01 A01 March 2007

Tabletop and Internal Tape Drive Quick Start Guide
