Quantum PX500 Series Bedienungsanleitung

81-81301-04 A01, August 2006 1

Quantum PX500

Series Tape Drive

Installation Instructions

Introduction 3

Tape Drive Numbering................................................................................ 3

Upgrade Kits.................................................................................................. 6

Required Tools .............................................................................................. 6

Unpacking the Tape Drive 7

Installing the Tape Drives 7

Cabling the Tape Drives 8

PX502 Libraries.............................................................................................. 9

PX506 Libraries............................................................................................ 11

PX510 Libraries............................................................................................ 13

Setting the Tape Drive SCSI ID 15

Setting the SCSI ID Using the OCP .......................................................... 15

Setting the SCSI ID from the Remote Management Pages ................... 16

Completing the Native Fibre Channel Installation 18

Determining the WWNs World Wide Names........................................ 18

Verifying Library Connectivity................................................................. 22

Fibre Channel Connectivity Troubleshooting 24

Fibre Channel Connectivity Troubleshooting ........................................ 24

SCSI ID Assignment with Native Fibre Channel Tape Drives............. 25

Quantum PX500 Series Tape Drive Installation Instructions

81-81301-04 A01

August 2006

Made in the USA.

Quantum Corporation provides this publication “as is” without warranty of any kind, either express or implied, including but not limited to

the implied warranties of merchantability or fitness for a particular purpose. Quantum Corporation may revise this publication from time to

time without notice.

Your right to copy this document is limited by copyright law. Making copies or adaptations without prior written authorization of Quantum

Corporation is prohibited by law and constitutes a punishable violation of the law.

TRADEMARK STATEMENT

Capacity on Demand (CoD), Crosslink Mechanism, DLT, DLTSage, DLTtape, Super DLTtape, Performance on Demand, (PoD), PRISM,

PRISM Storage Architecture logo, SiteCare, StackLink, StorageCare, SuperLoader, and ValueLoader are all trademarks of Quantum

Corporation. Quantum, the Quantum logo, and the DLTtape logo are all registered trademarks of Quantum Corporation.

Other trademarks may be mentioned herein which belong to other companies.

Quantum PX500 Series Tape Drive Installation Instructions

81-81301-04 A01

August 2006

Introduction 3

Introduction 0

This document provides instructions for adding a tape drive to an Quantum

PX500 Series tape library. The tape drive upgrade procedure consists of the

following steps:

•Unpacking the Tape Drive

•Installing the Tape Drives

•Cabling the Tape Drives

•Setting the Tape Drive SCSI ID

•Completing the Native Fibre Channel Installation

•Fibre Channel Connectivity Troubleshooting

Tape Drive Numbering 0The Quantum PX500 Series tape library may contain up to 10 tape drives

depending on the library model. Refer to the following figures:

•Figure 1 - PX502 Tape Drive Numbering (up to two tape drives)

•Figure 2 - PX506 Tape Drive Numbering (up to six tape drives)

•Figure 3 - PX510 Tape Drive Numbering (up to ten tape drives)

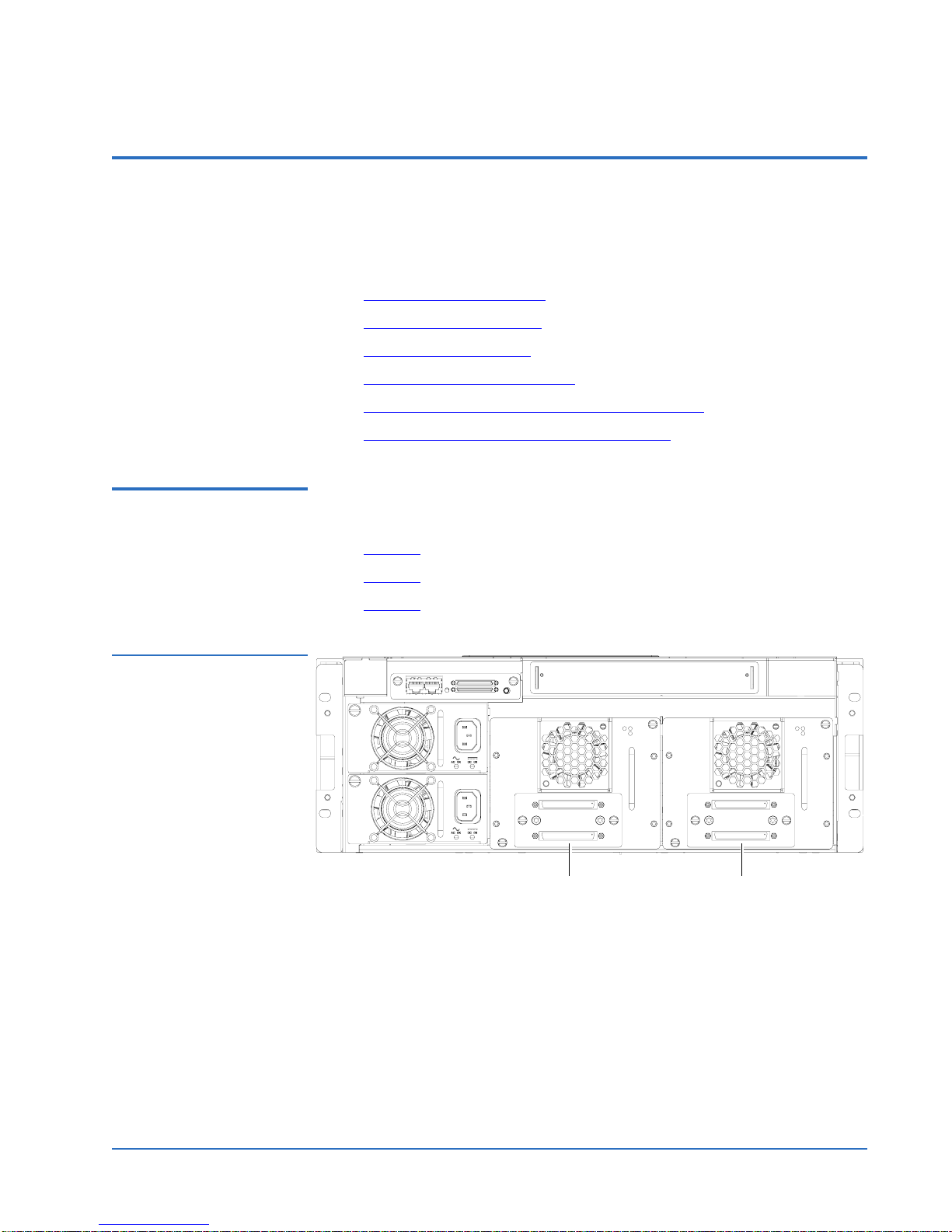

Figure 1 Quantum PX502

Tape Drive Numbering

Tape drive 2 Tape drive 1

Quantum PX500 Series Tape Drive Installation Instructions

81-81301-04 A01

August 2006

4 Introduction

Figure 2 Quantum PX506

Tape Drive Numbering

Tape

drive 2

Tape

drive 4

Tape

drive 6

Tape

drive 1

Tape

drive 3

Tape

drive 5

Quantum PX500 Series Tape Drive Installation Instructions

81-81301-04 A01

August 2006

Introduction 5

Figure 3 Quantum PX510

Tape Drive Numbering

Tape

drive 2

Tape

drive 4

Tape

drive 6

Tape

drive 1

Tape

drive 3

Tape

drive 5

Tape

drive 8

Tape

drive 10

Tape

drive 7

Tape

drive 9

Quantum PX500 Series Tape Drive Installation Instructions

81-81301-04 A01

August 2006

6 Introduction

Upgrade Kits 0The tape drive upgrade kit differs depending on the tape drive type needed

for the library (refer to table 1):

Table 1 Tape Drive

Upgrade Kits

Required Tools 0The following tools are required to perform the tape drive upgrade

procedure:

• Flat blade screwdriver

Part Number PC-UUBQA-YF (SDLT320, SCSI)

PR-UU1QA-YF (SDLT600, SCSI)

PR-UU4QC-YF (SDLT600, Native Fibre)

PC-UUAQA-YF (DLT-S4, SCSI)

PC-UU8QC-YF (DLT-S4, Native Fibre)

PR-UU2QA-YF (HP LTO2, SCSI)

PR-UU3QA-YF (HP LTO3, SCSI)

PR-UU5QC-YF (HP LTO3, Native Fibre)

SDLT320/600 and DLT-S4

Tape Drive Module

HP-LTO2/3 Tape Drive

Module

Caution: Use appropriate electrostatic discharge (ESD) precautions

when installing the tape drive.

Quantum PX500 Series Tape Drive Installation Instructions

81-81301-04 A01

August 2006

Unpacking the Tape Drive 7

Unpacking the Tape Drive 0

To unpack the tape drive:

1Open the shipping carton.

2Remove the tape drive from the carton.

The tape drive is protected by two pieces of foam and an antistatic bag.

3Remove the foam from the wrapped tape drive. Remove the tape drive

from the antistatic bag.

Installing the Tape Drives 0

To install tape drives in a PX500 Series library:

1At the back of the library, use a flat blade screwdriver to loosen the

captive screws that secure the cover plate to the empty drive bay.

2Set the cover plate aside.

3Insert the tape drive into the drive bay slowly until the connectors are

seated (see figure 4).

4Tighten the tape drive captive screws using a flat blade screwdriver.

5Repeat steps 1through 4to install another tape drive in a different

location, if desired.

Note: If this is an initial library installation, it is recommended to turn

the library off prior to installing tape drives. If this is an existing

library that is receiving a tape drive upgrade, the library can

remain powered on.

Note: Each tape drive ships from Quantum with a version of library

firmware as well as drive firmware on the tape drive interface

PWA. When you install the tape drive, the library will check the

version of library firmware on the tape drive and verify if the

firmware is newer than the version currently running. If the

library firmware on the tape drive is newer than the version

currently running on the library, the OCP will prompt you with

the option to upgrade the library firmware.

Quantum PX500 Series Tape Drive Installation Instructions

81-81301-04 A01

August 2006

8 Cabling the Tape Drives

Figure 4 Installing a Tape

Drive

Proceed to Cabling the Tape Drives.

Cabling the Tape Drives 0

After the tape drive(s) have been installed, you must connect SCSI or Fibre

Channel cables to each drive.

Refer to the following figures to cable the tape drives:

•PX502 Libraries on page 9

• SCSI tape drives (see figure 5)

• SCSI tape drives in surrogate mode (see figure 6)

• Native Fibre Channel tape drives (see figure 7)

•PX506 Libraries on page 11

• SCSI tape drives (see figure 8)

• Native Fibre Channel tape drives (see figure 9)

•PX510 Libraries on page 13

• SCSI tape drives (see figure 10)

• Native Fibre Channel tape drives (see figure 11)

Tape drive 1

Captive screw

Tape drive 2 Captive screw

PX502 shown

Quantum PX500 Series Tape Drive Installation Instructions

81-81301-04 A01

August 2006

Cabling the Tape Drives 9

PX502 Libraries 0The following figures illustrate tape drive cabling for the PX502 libraries

Figure 5 Cabling the Tape

Drives in a PX502 Library

(SCSI)

Figure 6 Cabling the Tape

Drives in a PX502 Library

(SCSI Surrogate)

SCSI jumper cables

SCSI terminator

Host computer

Tape

drive 1

Tape

drive 2

SCSI jumper cables

SCSI terminator

Host computer

Tape

drive 1

Tape

drive 2

Quantum PX500 Series Tape Drive Installation Instructions

81-81301-04 A01

August 2006

10 Cabling the Tape Drives

Figure 7 Cabling the Tape

Drives in a PX502 Library

(Native Fibre Channel)

Fibre Channel host/SAN

Tape

drive 1

Tape

drive 2

LTO-2, -3 native Fibre Channel drives

shown. SDLT 600 and DLT-S4 native

Fibre Channel drives have only one

FC port

Fibre Channel host/SAN Fibre Channel host/SAN
