Quantum QN-I-200 Bedienungsanleitung

Command Line Interface Guide

Models: QN-I-200, QN-I-220, QN-O-230, QN-H-220

Copyright Information

Copyright & trademark specifications are subject to change without prior notice. Copyright © 2018

Quantum Networks (SG) Pte. Ltd. All Rights Reserved. Quantum NetworksTM& the logo are

trademarks of Quantum Networks (SG) Pte. Ltd. Other brands or products mentioned may be

trademarks or registered trademarks of their respective owners. Mentioned contents of this

document can’t be used, translated or transmitted in any form or by any means without taking prior

written permission from Quantum Networks (SG) Pte. Ltd..

Document Abstract

This document describes the use of Command Line Interface, here in after referred as CLI through

SSH to access the Access Point parameters, configuration and offers several troubleshooting tools.

Currently, the guide applies to QN-I-200, QN-I-220, QN-O-230 and QN-H-220 models only.

Prerequisites

In order to access device using CLI, SSH supported utility is required. CLI access is operating system

independent. You may use Windows® or MAC® or Linux®. The command terminal should support

SSH. In Windows®, you may use third party application like Putty whereas the MAC® and Linux®

command terminals already support SSH. Default port used by SSH is 22. Please use the same

device username and password as defined during Site creation in cloud controller

(https://cc.qntmnet.com) and for standalone use preconfigured device login username and

password. We used admin as the Device username and 192.168.25.6 is the Access Point IP address.

Example of a SSH command (IP Address 192.168.25.6 has been used in test scenario only):

command_prompt>[email protected]8.25.6 {press Enter Key}

How to access CLI?

Using Windows® platform?

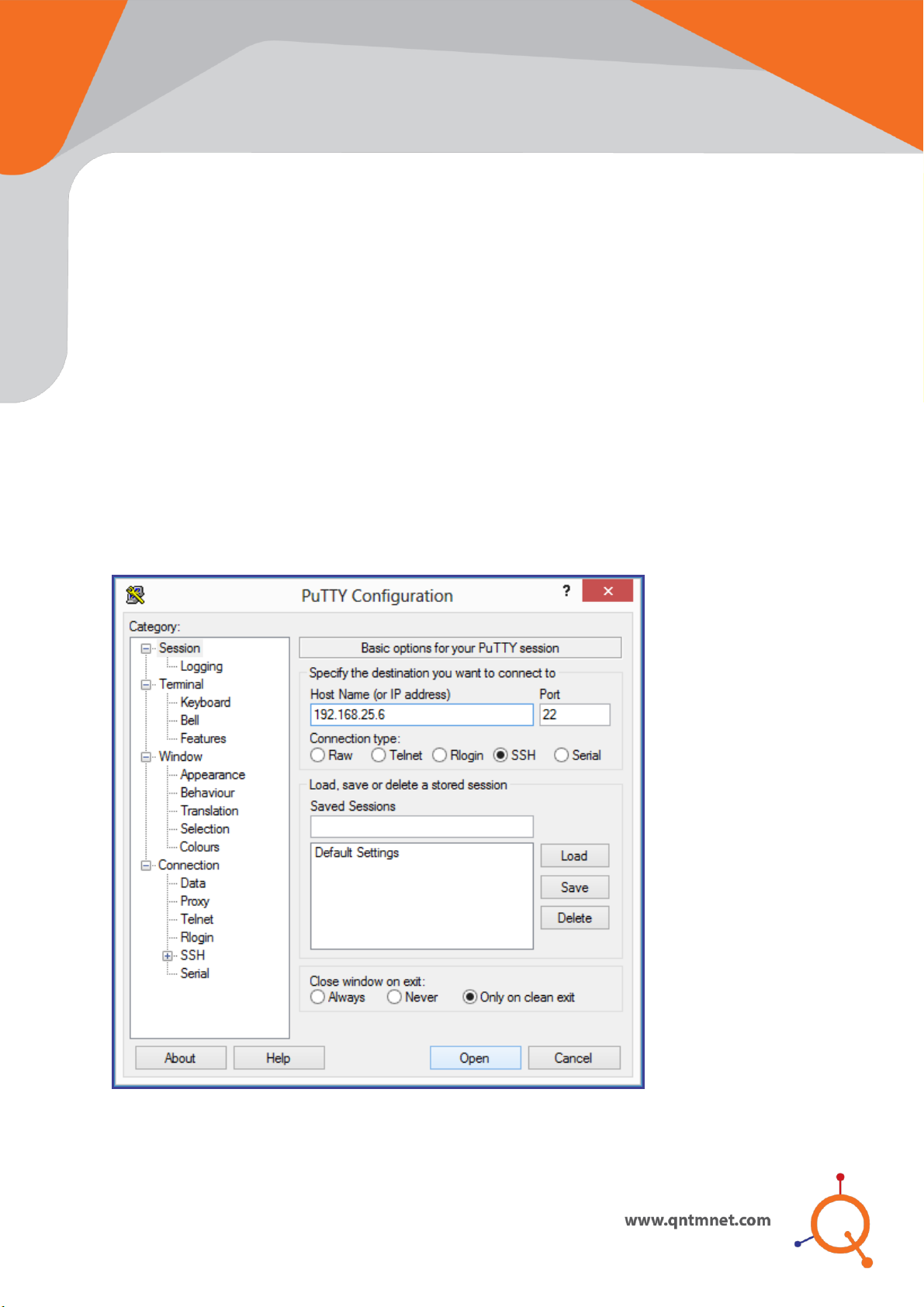

Step 1: Download Putty for windows and follow as below (For test scenario we used 192.168.25.6 as

the assigned IP address to Access Point).

Step 2: On first connection from Windows® using Putty, click “Yes” to accept host key.

Step 3: Enter the username and password defined during Site creation in Cloud Controller and press

Enter.

Step 4: You are successfully logged into Access Point with command prompt as “QNTM”. You may

execute CLI commands now.

For Linux® and Apple®devices, SSH is, by default, supported. In usual cases any third party

application is not required.

Using Apple® Platform?

We used an Apple® Macbook with macOS High Sierra Version 10.13.4 to brief commands ahead.

Feel free to consult for updated versions issued ahead.

Step 1: Start Terminal and execute below SSH command followed by Enter key (For test scenario

we used 192.168.25.6 as the assigned IP address to Access Point).

Step 2: For first connection to the Access Point using SSH, you may be prompted to accept the host

key. Do so by clicking “Yes” and press Enter.

Step 3: Please enter the password as defined to access the Access Point during Site creation in

Cloud Controller and press Enter.

Step 4: You are successfully logged into Access Point with command prompt as “QNTM”(Device

Name). You may execute CLI commands now.

Understanding Commands:

General Commands:

Command Prompt>help

Description: help command would display basic commands available through terminal.

Command Prompt>?

Description: ?command would display all (except basic) commands available through terminal.

Command Prompt>clear

Description: clear command would clear the terminal screen.

Command Prompt>date

Description: date command would display current date and time in Access Point. Date are Time

can’t be modified from Terminal as they are automatically updated as per selected Country in Cloud

Controller or in standalone configuration.
