Queclink GL300M Series Bedienungsanleitung

GL300M Series Quick Start V1.00

Page 1: Basic Operaon

Find “Queclink GL300M Series_Manage_Tool_

V1.0.exe” in developer suite and run it to congure

the running parameters of GL300M Series.

Beer place the GL300M Series under the open

sky and let the surface with LED indicators face the

sky.

Turn On GL300M Series Connect GL300M Series to your computer with USB

Data_Cable_M.

Check The Appearance

Check Parts List

To mini USB To computer

GPS Antenna

The USB Data_Cable_M is

not in the delivery list. Please

contact your vendor for it.

Find“Queclink_WCDMA_USBDriver_V1.

00.rar”, and choose the suitable driver

for your computer system. If you have

already installed it, please go to Step 6.

Before using GL300M Series for the rst

me, please fully charge the baery.

Please refer to

Page 2 for details.

Power Key

Check The Appearance

Please refer to Page 2 for details.

Queclink

Confidential

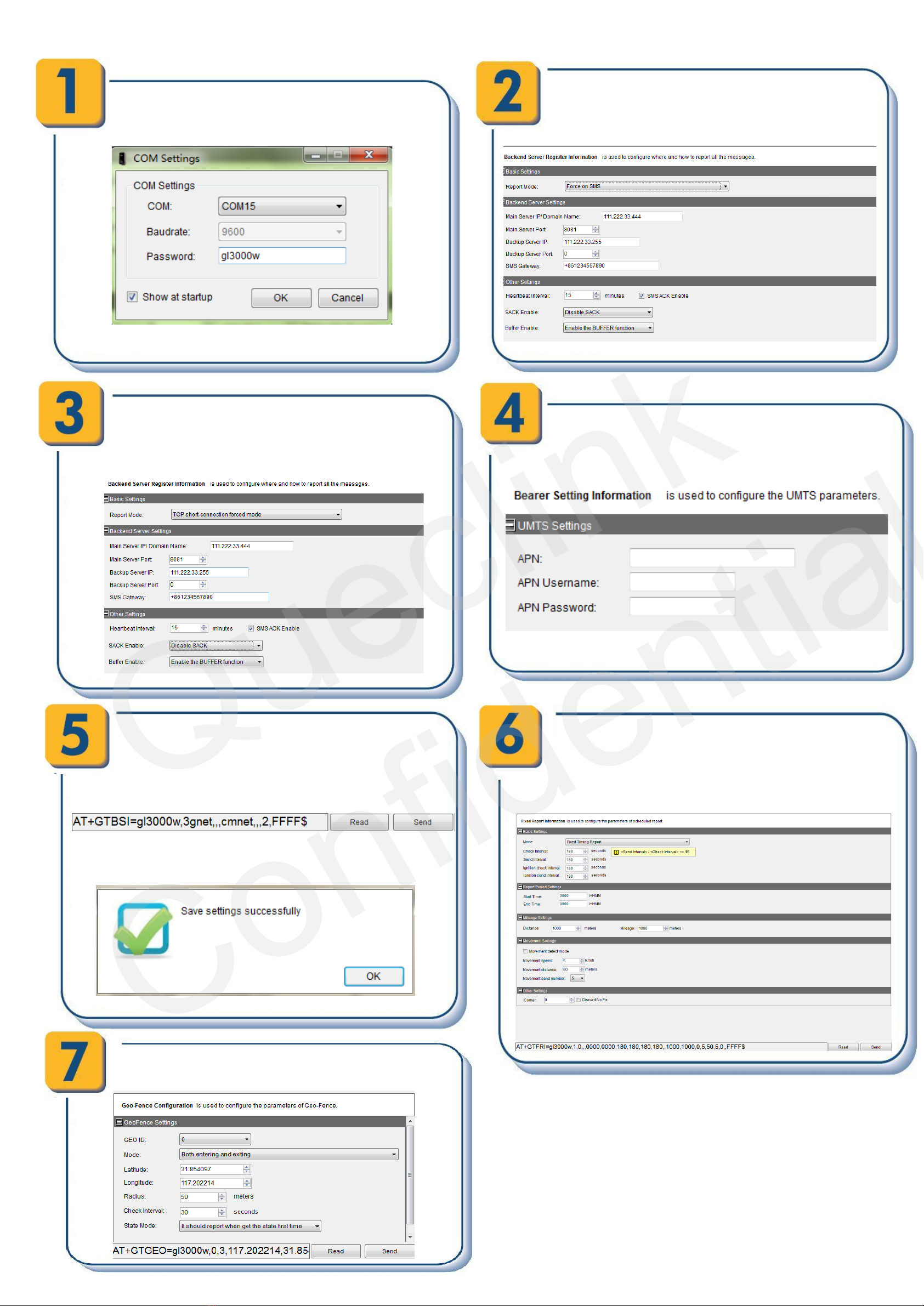

Page 2: PC Manager Tool Quick Start

Aer these steps, GL300M Series will have some

basic tracking funcons such as xed me report

and Geo-Fence. For other advanced funcons of

GL300M, please refer to “GL300M Series @Track

Air Interface Protocol” or visit our website.

hp://www.queclink.com

[email protected]

Run the Manager Tool. Select correct COM port and

input default password “gl300m”. Then press OK.

If you want to test the GL300M Series via SMS, set “Report

Mode” to “Force on SMS” and input the phone number to

receive the SMS from GL300M Series. Aer that, go to Step

6. Otherwise, please go to Step 3.

Set “Report Mode” to “TCP Short Connecon”. Input the IP

address and port number of the backend server. Please make

sure the IP address can be accessed over the internet and the

data sent to this address can be received.

Please contact your SIM card provider to get the user

informaon for UMTS. Input it in GTBSI seng.

Press “Send” buon and update the parameters of

GL300M Series. Then the GL300M Series can report

informaon to your backend server or SMS receiver.

Note: These commands can also be sent to GL300M

Series via SMS.

Command has been accepted when you see the window

shown below.

Set the parameters of xed me report so that the GL300M

Series will report its posion to backend server periodically.

Press “Send” buon to update the parameters.

Following screenshot shows how to congure the GL300M Series

to report its posion every 3 minutes.

The following screenshot shows how to create a Geo-

Fence. Press “Send” buon to update the parameters.

Queclink

Confidential
