RadiSys ATCA-5400 RTM Service-Handbuch

www.radisys.com

PROMENTUM®

REAR TRANSITION MODULE

REFERENCE

ATCA-5400

007-03301-0000 • August 2009

Release Date Description

-0000 August 2009 First release.

RadiSys and Promentum are registered trademarks of RadiSys Corporation. AdvancedTCA, ATCA, and PIGMG are registered

trademarks of PCI Industrial Computer Manufacturers Group. LSI Logic is a registered trademark of LSI Logic Corporation.

All other trademarks, registered trademarks, service marks, and trade names are the property of their respective owners.

TABLE OF CONTENTS

Preface ................................................................................................................................................................ 5

About this manual....................................................................................................................................................................... 5

Notational conventions.............................................................................................................................................................. 5

Where to get more product information ............................................................................................................................... 6

Related Promentum manuals ..............................................................................................................................................................6

Standards information...........................................................................................................................................................................6

Other related documents......................................................................................................................................................................6

Electrostatic discharge ................................................................................................................................................................ 7

Chapter 1: Product Overview........................................................................................................................... 9

Block diagram............................................................................................................................................................................... 9

RTM overview..............................................................................................................................................................................10

Chapter 2: Installing FRUs.............................................................................................................................. 11

Installing SFPs..............................................................................................................................................................................11

Configuration recommendations..................................................................................................................................................... 11

Transceiver installation ....................................................................................................................................................................... 11

Filler plug installation.......................................................................................................................................................................... 12

Installing a hard disk drive....................................................................................................................................................... 12

Updating the drive information record........................................................................................................................................... 12

Attaching the drive sled to the HDD ............................................................................................................................................... 13

Mounting the hard disk drive and sled onto the RTM ................................................................................................................ 14

Inserting the RTM into the chassis................................................................................................................................................... 14

Chapter 3: Configuring a Redundant Disk Array ........................................................................................ 15

Supported RAID configurations ............................................................................................................................................. 15

Preparing hard disk drives to participate in an array..........................................................................................................16

Configuring a hard disk drive array in the SAS BIOS .........................................................................................................17

Table of Contents

Chapter 4: LEDs and External Interfaces...................................................................................................... 19

Face plate interfaces ..................................................................................................................................................................19

LEDs........................................................................................................................................................................................................ 20

Face plate connectors......................................................................................................................................................................... 21

Reset button.......................................................................................................................................................................................... 21

Zone 3 interface.........................................................................................................................................................................22

Alignment keys..................................................................................................................................................................................... 23

Chapter 5: Components and Subsystems....................................................................................................25

SAS/SATA controller ..................................................................................................................................................................25

Hard disk drive...........................................................................................................................................................................25

Hardware management...........................................................................................................................................................26

Hot swap................................................................................................................................................................................................ 26

Reset ....................................................................................................................................................................................................... 27

Connectivity records for interface compatibility ........................................................................................................................... 27

Upgradeable components.......................................................................................................................................................27

Appendix A: Specifications ............................................................................................................................. 29

Environmental specifications ..................................................................................................................................................29

Safety specifications..................................................................................................................................................................30

Mechanical dimensions ........................................................................................................................................................... 30

Electromagnetic compatibility (EMC) ................................................................................................................................... 31

Power consumption..................................................................................................................................................................32

Mean time between failures (MTBF)....................................................................................................................................33

Environmental assumptions.............................................................................................................................................................. 33

General assumptions .......................................................................................................................................................................... 33

General notes ....................................................................................................................................................................................... 33

Appendix B: IPMI Commands and Managed Sensors ...............................................................................35

Supported IPMI commands....................................................................................................................................................35

Managed sensors ......................................................................................................................................................................36

Types of sensors .................................................................................................................................................................................. 36

Supported sensors............................................................................................................................................................................... 37

PREFACE

About this manual

This manual describes the Promentum®ATCA-5400, a rear transition module (RTM) that is fully

compliant with AdvancedTCA®(PICMG 3.0 Advanced Telecommunications Computing

Architecture R3.0). The RTM is designed to mate with a compatible front module, such as the

ATCA-4500 Compute Processing Module, in high availability (HA) systems like the Promentum

SYS-6010 platform.

Use this manual as a reference for the operation and maintenance of the RTM. The material

presented here is not introductory; it is assumed that you are already familiar with the intended

use of the RTM in your organization’s ATCA platform.

For instructions on installing optional components into the RTM, see Chapter 2, Installing FRUs,

on page 11. For instructions on installing the RTM into the shelf, see the ATCA-4500 Compute

Processing Module Installation Guide.

The simplified name of “RTM” will be used in place of “ATCA-5400” for the rest of the manual.

The simplified name of “CPM” will be used in place of “Compute Processing Module” or

“ATCA-4500” for the rest of the manual.

Notational conventions

This manual uses the following conventions

All numbers are decimal unless otherwise stated.

ItalicText File, function, and utility names.

MonoText Screen text and syntax strings.

BoldMonoText A command to enter.

ItalicMonoText Variable parameters.

Brackets [ ] Command options.

Curly braces { } A grouped list of parameters.

Vertical line | An “OR” in the syntax. Indicates a choice of parameters.

Where to get more product information

Please visit the RadiSys Web site at www.radisys.com for product information and other

resources. Downloads (manuals, release notes, and software) are available at

www.radisys.com/downloads.

Related Promentum manuals

The following manuals are available to help you use the RTM and the CPM:

Installation and initial setup instructions. The ATCA-4500 Compute Processing Module

Installation Guide provides the steps for installing the CPM and RTM into a shelf and

completing the initial configuration.

Hardware reference information. The ATCA-4500 Compute Processing Module Reference

describes the module’s hardware features and operation. It also contains information on the

main BIOS configuration, Intelligent Platform Management Interface (IPMI) commands, and

troubleshooting.

Standards information

For information about the PCI Industrial Computer Manufacturers Group (PICMG) and the

AdvancedTCA standard, consult the PICMG Web site at this URL:

http://www.picmg.org

Other related documents

CAN/CSA C22.2 No. 60950-1-03 Safety for Information Technology Equipment, Version 2,

Canadian Standards Association (www.csa.ca), April 1, 2003

EN 60950-1:2002 Information Technology Equipment. Safety. General Requirements,

European Committee for Electrotechnical Standardization (CENELEC) (www.cenelec.eu),

February 22, 2002

IEC 60950-1 Information Technology Equipment - Safety - Part 1: General Requirements, 1st

Edition, International Electrotechnical Commission (www.iec.ch), October 25, 2001

Information Technology - Serial Attached SCSI - 1.1 (SAS-1.1), ANSI/INCITS 417-2006

Integrated RAID for SAS User’s Guide, LSI Logic®Corporation

LSISAS1064E PCI Express to 4-Port Serial Attached SCSI, LSI SAS1064E Revision 2.3, LSI Logic

Corporation, November 2007

Intelligent Platform Management Interface Specification v1.5, Revision 2.0, Intel Corporation;

Hewlett Packard Company, NEC Corporation, and Dell Computer Corporation

PICMG 3.0 Advanced Telecommunications Computing Architecture R3.0, PCI Industrial

Computer Manufacturers Group, March 24, 2008

PICMG 3.1 R1.0 Specification, Ethernet/Fibre Channel for AdvancedTCA Systems, PICMG,

January 22, 2003

Electrostatic discharge

PICMG AMC.0 R2.0 Advanced Mezzanine Card Base Specification, PCI Industrial Computer

Manufacturers Group, November 15, 2006

PM8380 QuadSMX 3G Quad SATA/SAS Mux/Demux for 3G, PMC-2031101, Issue 8, PMC-

Sierra, April 2005

Serial ATA Revision 2.5, Serial ATA International Organization, October 27, 2005

Small Form-factor Pluggable (SFP) Transceiver Multisource Agreement (MSA), Cooperation

Agreement for Small Form-Factor Pluggable Transceivers, Agilent Technologies, Blaze Network

Products, E2O Communications, Inc., ExceLight Communications, Finisar Corporation, Fujikura

Technology America Corp., Hitachi Cable, Infineon Technologies Corp., IBM Corp., Lucent

Technologies, Molex, Inc., Optical Communication Products, Inc., Picolight, Inc., Stratos

Lightwave, and Tyco Electronics, September 14, 2000

UL 60950-1 Safety for Information Technology Equipment – Part 1: General Requirements,

Edition 1, Underwriter Laboratories (www.ul.com), April 1, 2003

Electrostatic discharge

WARNING!This product contains static-sensitive components and should be handled with care.

Failure to employ adequate anti-static measures can cause irreparable damage to components.

Electrostatic discharge (ESD) damage can result in partial or complete device failure,

performance degradation, or reduced operating life. To avoid ESD damage, the following

precautions are strongly recommended:

Keep each RTM in its ESD shielding bag until you are ready to install it.

Before touching the RTM, attach an ESD wrist strap to your wrist and connect its other end

to a known ground.

Handle the RTM only in an area that has its working surfaces, floor coverings, and chairs

connected to a known ground.

Hold the RTM only by its edge and mounting hardware. Avoid touching PCB components

and connector pins.

For further information on ESD, visit www.esda.org.

PRODUCT OVERVIEW

This chapter briefly describes the ATCA-5400 RTM.

Block diagram

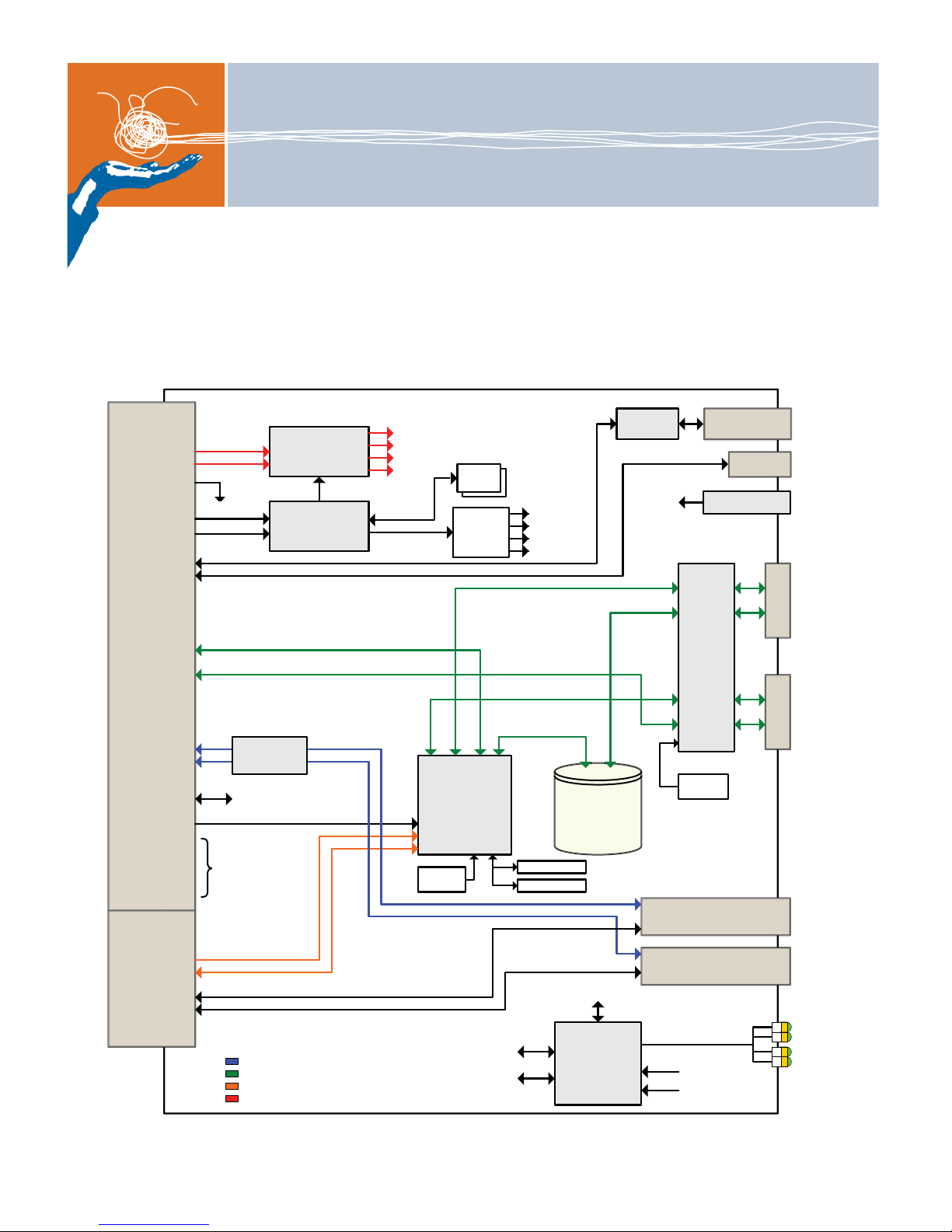

Figure 1. ATCA-5400 RTM block diagram

ATCA-5400 RTM

Zone 3

P30

Zone 3

P31

+12_RTM

+3_3_MP

RTM_PRESENT

Note: Zone 3 pins

that are not shown

are not connected.

RTM_EN *

IPMB-L

USB

JTAG _TCK

JTAG _TDI

JTAG _TDO

JTAG _TM S

JTAG _TRST

SAS 0 [R X,TX] +/-

(f ro m AM C Po rt 2 )

SAS 1 [R X,TX] +/-

(f ro m AM C Po rt 3 )

GE1 [RX,TX]+/-

GE2 [RX,TX]+/-

SFP 1

LSI SAS 1064 E

Controller

2. 5" SFF

Drive

3210 01

Alarm

CPLD

SFP port lin k /

status LEDs

USB

Power

Conver sion

& Monitori ng

+3.3V

+1.8V

+5V

+1.2V

MMC

Circuitry

PWR EN (x4 )

CPU0_RTM_RST *

To Alarm CPLD JTAG

PCI e_RST*

x4 PCI e

REF_CLK

PCI E_REFCL K

PCI E_[RX,TX]+/-

RS-232

Buffer

SER0

SFP 2

RTM-L

(from Zone3)

RESET _0

RTM-L To Alarm CPLD

E-Key/

GPIO

Latch

Temp

Sen.

75.00

MHz Clk

37.50

MHz Clk

NVSRAM

FLASH ROM

CLK

Prim a ry

Secondary

Prim a ry

Secondary

CPLD JTAG

SERDES

Buffers w / PE

& EQ contr ol

SFP status: present,

LOS, disable, tx fault

SFP 1 I 2C

SFP 2 I 2C

To MMC

Controller

Disk

Controller

Disk

Color Key:

Gigabit Ethernet

SAS /SATA

PCI Expre ss

Powe r

FRU Cold Rst

Board IDs

ATCA LEDs

SFP control

USB OC *

SER Cable det*

PM8380

SAS

Driver

SERIAL_0

Product Overview

RTM overview

The ATCA-5400 RTM is an optional compatible rear transition module for the ATCA-4500 CPM

front module that supplies the CPM with additional data storage and connectivity options.

The RTM has an on-board SAS/SATA controller and can host an optional SAS hard disk drive

(HDD). The controller can access an HDD AMC if one is installed on the CPM. The RTM also

includes two rear panel SAS ports to allow cable connections to additional hard disk drives, such

as hard disk drives accessible from another RTM. The SAS/SATA controller supports RAID

(redundant array of inexpensive disks), including RAID 0 (striping) and RAID 1 (mirroring)

configurations.

For instructions on installing a hard disk drive, see Installing a hard disk drive on page 12. For

instructions on configuring a RAID, see Chapter 3, Configuring a Redundant Disk Array, on

page 15.

The RTM has two 1-gigabit Ethernet SFP sockets on its face plate that can facilitate external

connections through the RTM to the CPM. These rear Ethernet ports are usable when the

Ethernet controller on the CPM is configured to route the connections to the RTM. On the

ATCA-4500 CPM, a BIOS menu setting determines whether these connections are routed to the

CPM front panel or to the RTM. For instructions on installing SFP transceivers in the SFP sockets,

see Installing SFPs on page 11.

The RS-232 serial port on the RTM provides a management interface to the CPM. The RTM also

includes a USB 2.0 port that connects to the CPM.

A module management controller (MMC) provides intelligent management of the RTM

hardware, including its managed sensors. The MMC responds to reset signals from the CPM as

well as IPMI commands.

Andere Handbücher für ATCA-5400 RTM

Inhaltsverzeichnis

Andere RadiSys Netzwerk-Hardware Handbücher

RadiSys

RadiSys R220 Bedienungsanleitung

Beliebte Netzwerk-Hardware Handbücher anderer Marken

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL Bedienungsanleitung

B&B Electronics

B&B Electronics ZXT9-IO-222R2 Bedienungsanleitung

Yudor

Yudor YDS-16 Bedienungsanleitung

D-Link

D-Link ShareCenter DNS-320L Bedienungsanleitung

Samsung

Samsung ES1642dc Gebrauchsanweisung

Honeywell Home

Honeywell Home LTEM-PV Montageanleitung

evertz

evertz 7700 Series Bedienungsanleitung

D-Link

D-Link ShareCenter DNS-343 Bedienungsanleitung

Asante

Asante AsanteBridge 1012 Bedienungsanleitung

FireBrick

FireBrick FB2700 Bedienungsanleitung

Audiovox Electronics

Audiovox Electronics ARWH2T Bedienungsanleitung

ADC

ADC DSX-1 Handbuch

NetComm

NetComm NF2 Bedienungsanleitung

Alcatel-Lucent

Alcatel-Lucent 5620 Bedienungsanleitung

Dell EMC

Dell EMC XC6420 Series Bedienungsanleitung

Lanner

Lanner NCA-1020A Bedienungsanleitung

Allied Telesis

Allied Telesis AT-TN121-A Bedienungsanleitung

Arista

Arista CCA-ETM-Q12 Bedienungsanleitung
