Rancilio EGRO 5513 Bedienungsanleitung

Egro Operating Man. 5513 V1.3

OPERATING MANUAL

EGRO MODEL 5513

INTRODUCTION

HOW TO OPERATE EGRO 5513

DAILY CLEANING INSTRUCTIONS

WEEKLY CLEANING INSTRUCTIONS

~2 ~Egro Operating Man. 5513 V1.3

OPERATING MANUAL

EGRO MODEL 5513

TABLE OF CONTENTS

A. INTRODUCTION..................................................................................... 3 - 4

- Parts of the machine are identiﬁed

B. HOW TO OPERATE................................................................................. 5 - 7

- Explanation of how to operate the machine

- How to steam milk

- How to empty the grounds drawer

C. DAILY CLEANING................................................................................... 8 - 11

- How to run the daily automatic coffee cleaning program

- How to run the daily automatic milk cleaning program

- How to wipe off the machine

D. WEEKLY CLEANING................................................................................ 12 - 15

- How to clean the frother heads

- How to clean the AFV valve

- How to clean the hoppers

E. QUICK TROUBLESHOOTING TIPS............................................................. 16

- What to do if no milk is coming out of frother heads

- What to do if no coffee/espresso is coming out of outlet

~3 ~Egro Operating Man. 5513 V1.3

INTRODUCTION TO EGRO 5513

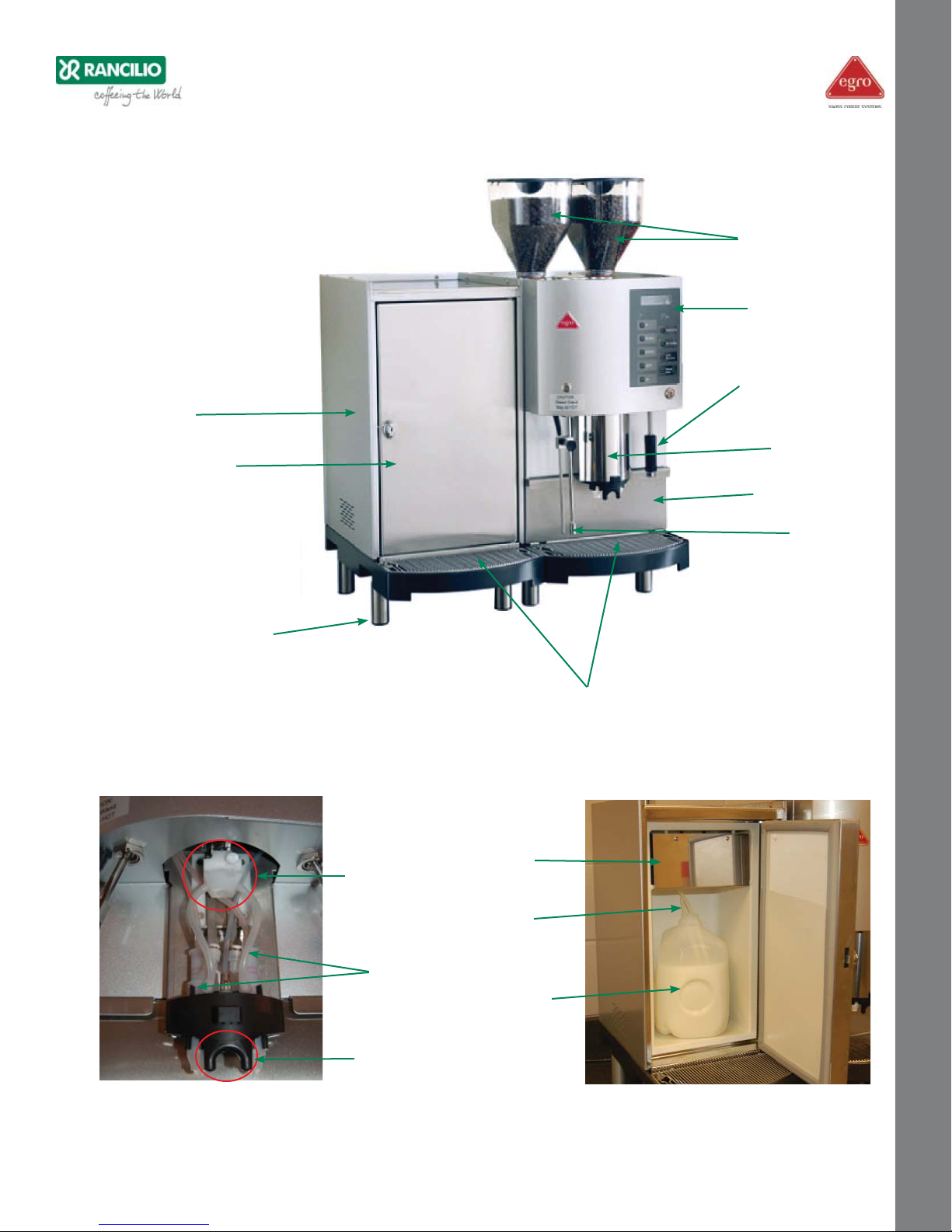

PARTS OF THE MACHINE

FRIDGE

DOOR TO FRIDGE

LEGS

DRIP TRAYS

STEAM WAND

DOOR TO GROUNDS

DRAWER

HOT WATER

WAND

DISPLAY &

KEY PAD

HOPPERS

CLOSE-UP OF MACHINE PARTS

AFV

VALVE

STAINLESS STEEL

OUTLET COVER

COFFEE

OUTLET

FROTHER

HEADS

MILK PUMP

HOUSING

HOSES TO

MILK

STANDARD

MILK

GALLON

~4 ~Egro Operating Man. 5513 V1.3

AFV (Air Foam Valve)

The AFV is a mechanical valve that controls the air ﬂow into the

frother heads.

Typically on one-step superautomatic espresso machines,

the air is controlled by expensive air solenoids that become

clogged with milk due to a natural vacuum that can occur.

These solenoids then require a certiﬁed technician to clean them.

With the Egro AFV if this natural vacuum occurs and milk is

sucked back up to the AFV it is an easy 3 step process to clean

the valve and you’re back up and running in no time.

We recommend that you clean this valve weekly to ensure that

the machine runs smoothly.

INTRODUCTION TO EGRO 5513

DEFINITION OF PARTS

Frother Heads

The frother heads are where the “magic” of milk

foaming and milk heating takes place. Steam is

used to heat fresh milk, transported from the

fridge through hoses to the frother heads (clear hoses).

Milk is delivered into the side of the top section

of the frother heads via the clear hose.

Steam is delivered into the top of the frother

heads via the pink hose.

Air is delivered to the side of the lower section

of the frother heads via the frosted clear hoses .

Exploded view of

frother head

Top section:

Steam and Milk

hoses connect to

this section

Mid-Section

Lower section:

Air hose

connects to this

section

Bean Slides

Bean slides are used to hold the beans in the hopper

while you remove the hoppers for cleaning. Two are provided with each machine.

Cleaning Tablets and Milk Cleaning Solution

There are several different brands of coffee cleaning tablets and milk cleaning solutions

available. We recommend that you use either Urnex Rinza milk cleaning solution or Puro Caff

milk cleaning solution. When it comes to coffee cleaning tablets we recommend that you

use the cleaning tablets provided with your Egro equipment or the Urnex Caﬁza Espresso

Cleaning Tablets.

~5 ~Egro Operating Man. 5513 V1.3

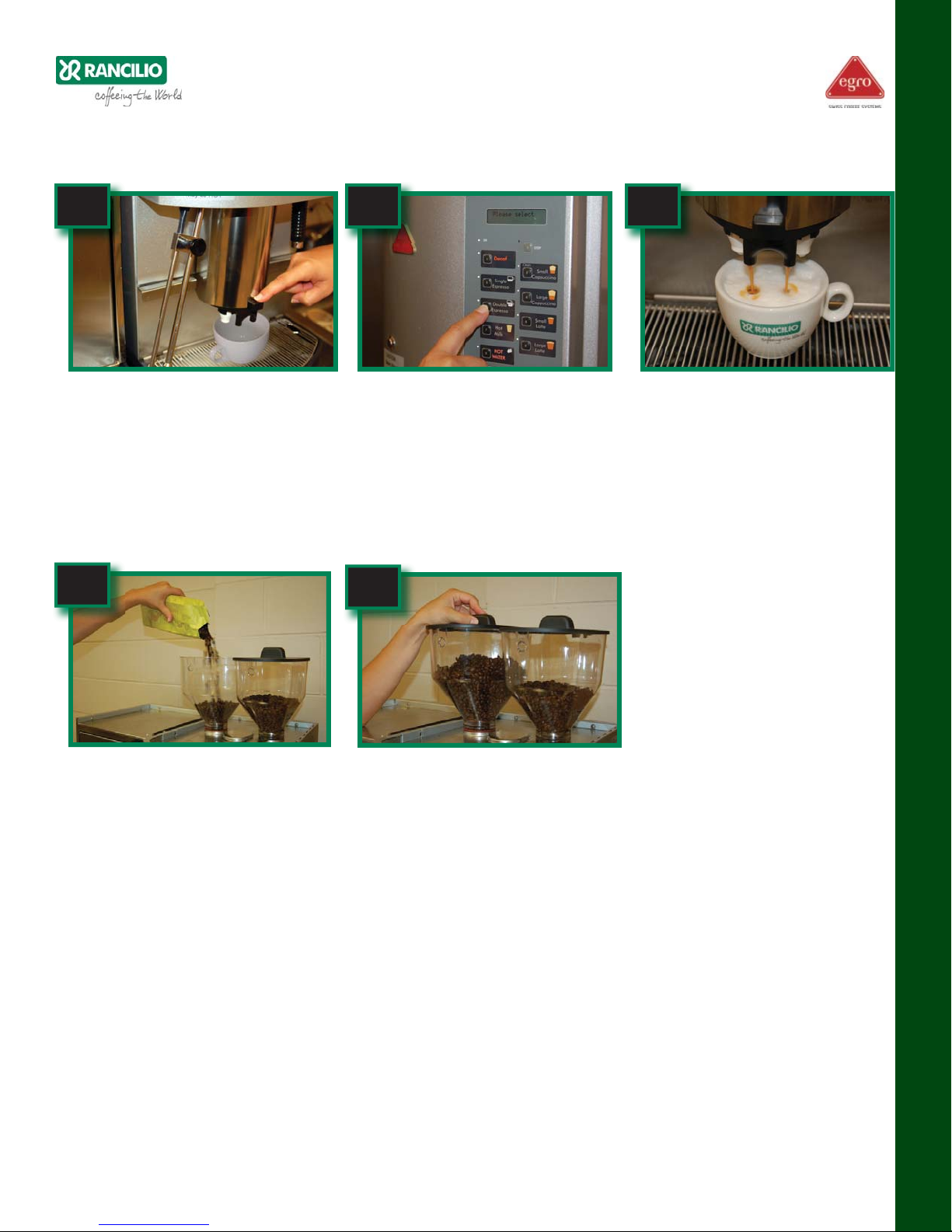

HOW TO OPERATE

MAKING A DRINK

Adjust the outlet to your cup

size by sliding it up or down

Choose the type of drink and

press the button

Wait for the machine to make

the drink. Enjoy!

FILLING BEAN HOPPERS

Remove hopper lid and pour

in beans

Replace hopper lid. Be sure

that is secured tightly into the

hopper

~6 ~Egro Operating Man. 5513 V1.3

STEAMING MILK

HOW TO OPERATE

3 54

Press the steam button once. A short burst of

water will come out of the steam wand. Press

the steam button again to shut it off.

Fill a steaming pitcher half full with

fresh milk. Slide steaming pitcher

under steam wand and temp.

probe until both tips are under the

surface of milk.

Press Steam button to start

steaming.

Keep steam wand and

temp. probe in milk.

Steaming stops automatically

once milk has reached pre-

programmed temperature.

Press the steam button once. Let

steam escape from wand for

about 2 seconds. Press button

again to shut off.

Wipe steam wand clean

with a damp towel.

CAUTION:

WAND IS HOT

NEVER LET MILK DRY

ON STEAM WAND!

~7 ~Egro Operating Man. 5513 V1.3

EMPTYING GROUNDS DRAWER

1 2 3

Display will read “Drawer

full” when it is time to

empty the grounds drawer.

HOW TO OPERATE

Slide the coffee/milk

outlet upward, above the

grounds drawer door.

Pull the steam wand out

and to the side away from

the grounds drawer door.

Push the tea wand upward

above the grounds drawer

door.

Using two hands pull

forward on the grounds

drawer door.

Remove the black plastic

grounds drawer and

dispose of the grounds.

Replace the empty grounds

drawer back into the

machine.

Close grounds drawer door.

Be sure to line tabs of door

into slots on machine before

closing.

EMPTY THE GROUNDS

DRAWER EVERY TIME YOU

OPEN THE GROUNDS

DRAWER DOOR.

The “Drawer full” alarm will

not work properly if you don’t.

~8 ~Egro Operating Man. 5513 V1.3

DAILY CLEANING GUIDE: EGRO 5513

STEP 1: RUN THE AUTOMATIC

COFFEE

CLEANING PROGRAM

Press and hold STOP button

until display reads:

1. CAP

2. COFFEE

3. AUTO RINSE

Select number 2. COFFEE by

pressing the number 2 (Clean)

button on the key pad.

Display will read:

INSERT TAB.

Insert one coffee cleaning

tablet into chute on top of

machine.

Press STOP button and the

automatic cleaning will

begin. The cleaning

process takes about ﬁve

minutes.

Continued on next

page...

Display will read, PLEASE

SELECT when coffee

cleaning is ﬁnished.

1.1 1.2 1.3

1.4 1.5 1.6

~9 ~Egro Operating Man. 5513 V1.3

STEP 2: RUN THE AUTOMATIC

MILK

CLEANING PROGRAM

Press and hold STOP button

until display reads:

1. CAP

2. COFFEE

3. AUTO RINSE

Select number 1. CAP by

pressing the number 1

(Decaf) button on the key

pad.

Display will read:

CLEANING PRODUCT.

Open fridge door and

remove hoses from gallon

of milk, and remove it from

fridge.

Place hoses into container

containing milk cleaning

solution.

Press STOP button and

display will read:

CLEANING 99...98...97...

Continued on next

page...

2.1 2.2 2.3

To mix the milk cleaning

solution, use a clean container

or large steaming pitcher. Mix

1oz (one shot) of Espresso

Dairy Cleaner with about

32oz of water.

NOTE: Water should NOT be hot!

DAILY CLEANING GUIDE: EGRO 5513

2.4 2.5 2.6

~10 ~Egro Operating Man. 5513 V1.3

Press the STOP button and the

display will read:

RINSE 99...98...97...

Automatic milk cleaning

program is completed when

the machine is ﬁnished rinsing

and the display reads:

PLEASE SELECT

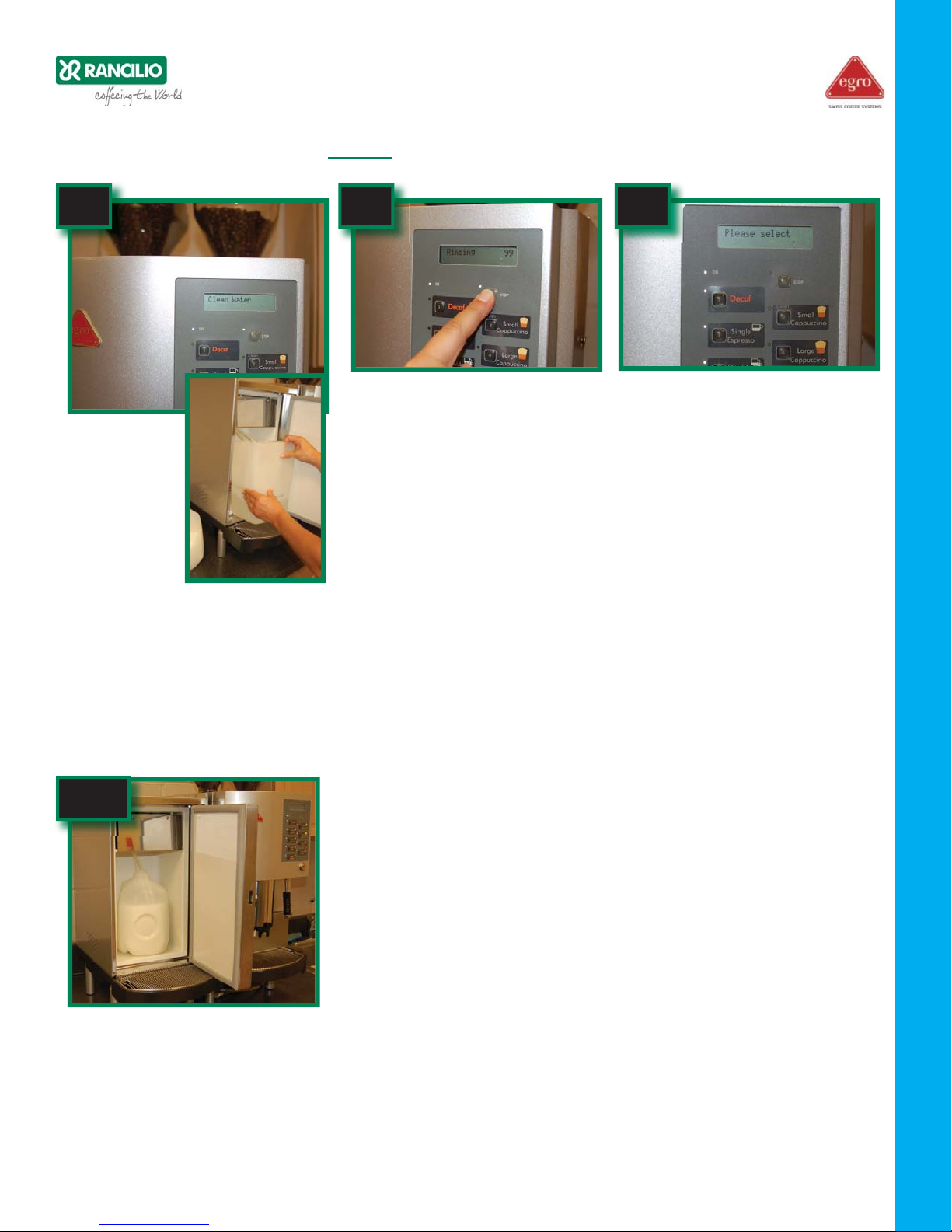

STEP 2: AUTOMATIC

MILK

CLEANING PROGRAM -- Continued

When display reads: CLEAN

WATER remove milk solution

container from fridge and

replace it with a container

containing fresh clean water.

Remove the water container

from the fridge and return

the gallon of milk.

2.7 2.8 2.9

2.10

Continued on next

page...

DAILY CLEANING GUIDE: EGRO 5513
