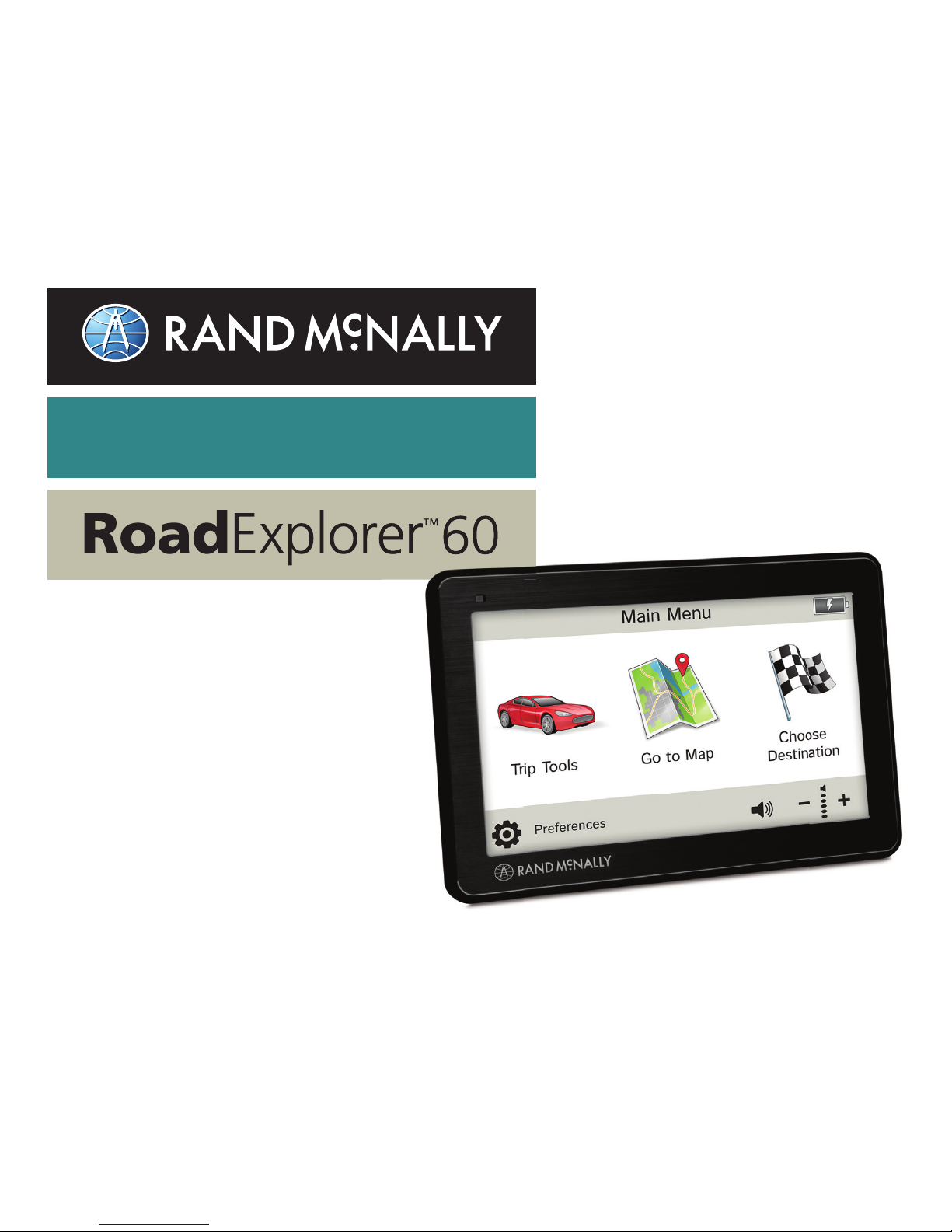

Rand McNally Road Explorer 60 Bedienungsanleitung

ADVANCED GPS

Important Information About Your Road Explorer™60

RAND MCNALLY DOCK: Keep your device up to date by downloading the Rand McNally Dock for your home computer

at www.randmcnally.com/dock and connecting your device with the USB cable provided.

POWER BUTTON: Press and hold the orange power button to turn the device on or off. The power button can also be

used for quick access to certain features while the device is running. See Preferences > General > Quick Power Press

for options. A red light indicates the battery is charging; a green light indicates the battery is fully charged.

RESET: Use the reset button on the back of the device to restart. This will cancel the current route, but preferences, address

book, and other personal data will be saved.

LEARN MORE: Access Tutorial & Tips under Preferences > General on your device for more information, or visit

www.randmcnally.com/support to download the user manual.

Some screens include help tips. Tap this button to access.

WARNING: This product contains chemicals known to the State of California to cause cancer and/or other harm.

Install the Mount

NOTE: Follow all local regulations governing the placement of the mount. Select an area with a line of sight to the sky and

GPS satellites to ensure reliable GPS information.

1. Clean and dry the mounting area.

2. Remove the suction cup protective ﬁlm.

3. Adjust the angle of the mount.

4. Pull the suction cup lever up to release

suction.

5. Plug the power cord into the device and

the vehicle’s 12-volt power source.

6. Slide the device onto the mount.

7. Place and hold the mount suction cup against the

mounting surface.

8. Press the suction cup lever down until it snaps into place.

9. Adjust the device so that it can be easily seen and does not block the driver’s line of sight.

456

Main Menu

1Enter trip information and access tools.

2Show location on the map and view

navigation instructions.

3Choose a destination.

4Select device, route and map preferences.

Access the tutorial.

5Mute/unmute the speaker.

6Adjust speaker volume.

7Indicates charge when running on battery.

Note: You can select different color schemes in Preferences > General > Skin Style. The following screen images

appear in the “Ice” style. Some screens may appear different, based on model number.

Note: From other screens, tap the Main Menu icon in the bottom right corner to return to the Main Menu.

Set Routing and Device Options

1. Tap Preferences.

2. Tap the General, Route or Map tab.

3. Tap and to view options.

4. Tap the option button to be changed.

5. Enter new settings.

6. Tap to save changes.

On the left,

tap on an

option

On the

right,

enter

settings

for the

option

Destination

1Route to a new location. (See page 6.)

2Return to a previously entered address.

3Access the Address Book.

4Plan a multi-stop trip.

5Route to a point of interest. (See page 10.)

6View trip content from Rand McNally.

1 2 3

45 6

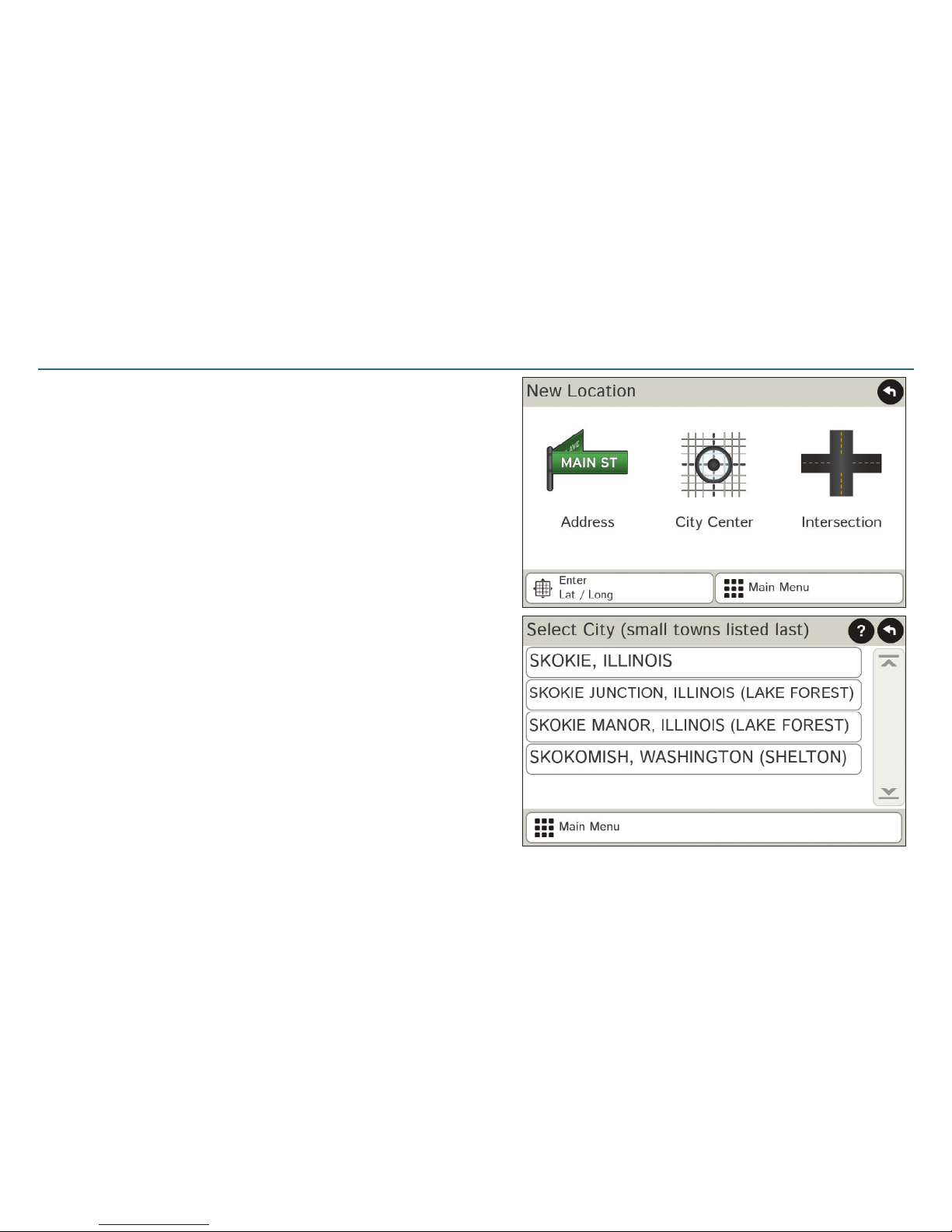

Route to a New Location

1. Tap Choose Destination > New Location.

2. Tap Address.

3. Enter the name of the city. (NOTE: As you type, the

keyboard displays only the next possible letter.)

4. Prompts appear in the top bar. Tap the city to select. Or, tap

List to view cities beginning with the letter(s) you entered.

5. Enter the street name. (NOTE: If the letters you need do not

appear, tap Expand Search.)

6. Enter the house number. (NOTE: To enter the house number

before the street, tap the house number button in the

previous step.)

See Conﬁrm Destination Window (page 7.)

Tips

• You can also route to a new location by City Center,

Intersection, or Latitude/Longitude, or choose

Address > Zip Code Search.

• View recent destinations by tapping Choose

Destination > History. View recent cities by tapping Choose

Destination > New Location > Address > History.

• View saved locations by tapping Choose Destination > Address Book.

Conﬁrm Destination Window

1Destination address.

2Begin route to destination.

3Compare a primary and alternate route and

choose one.

4Add the location as a via point on the way to

a previously entered destination.*

5Save the location to the Address Book.

6Cross reference to printed Rand McNally

Road Atlas.

7View the map.

8Change the starting location for a route to the

location displayed here.

9Return to Main Menu.

10 Return to previous window.

*To manage via points, Tap Choose Destination > Multi-Stop

Trips. You can add up to 50 destinations in a multi-stop trip, and

optimize routing for trips of up to 10 stops.

NOTE: This window may include

additional buttons based on the

type of destination selected.

6 7

Route Map Window

1Repeat spoken next-maneuver instructions.

2Name of street you will turn onto next.

3Show arrival time, remaining time, or other

options.

4Slide out to show upcoming exit information.

5Directions list slideout. Tap Route Display

Options to select detail view, highway view,

trip summary, or summary map view.

6Zoom in/zoom out.

7Return to Main Menu.

8Current direction. Tap to select a map display option (Heading Up, North Up, or 3D View).

9View current road name, upcoming cross road name, or city, county and state. Also displays current mile marker and

advanced lane guidance. Tap to change.

10 View and save current location, detour, or cancel a route.

11 Tap on the current speed to display the Virtual Dashboard. (NOTE: Turns red for speed warnings; set in Trip Tools >

Warnings.)

12 Current speed limit. Tap to open a “Tell Rand” about speed limits.

11 14 15
