Rolling Air Evacuation Oil Drain

Installation and Operation Manual

Manual P/N 5900327 — Manual Revision A — February 2022

Models:

•RD-20SE

Designed and engineered by BendPak Inc. in Southern California, USA. Made in China.

⚠

DANGER

Read the entire contents of this manual before using this product.

Failure to follow the instructions and safety precautions in this

manual can result in serious injury or death. Make sure all other

operators also read this manual. Keep the manual near the product

for future reference. By proceeding with setup and operation, you

agree that you fully understand the contents of this manual.

Manual. RD-20SE Rolling Air Evacuation Oil Drain, Installation and Operation Manual, Manual P/N 5900327,

Manual Revision A, Released February 2022.

agree that: you will give full attribution to BendPak Inc., you will not make changes to the content, you do not gain

any rights to this content, and you will not use the copies for commercial purposes.

Trademarks. BendPak, the BendPak logo, Ranger, and the Ranger logo are registered trademarks of BendPak

Inc. All other company, product, and service names are used for identification only. All trademarks and registered

trademarks mentioned in this manual are the property of their respective owners.

Limitations. Every effort has been made to have complete and accurate instructions in this manual. However,

product updates, revisions, and/or changes may have occurred since this manual was published. BendPak

Ranger reserves the right to change any information in this manual without incurring any obligation for equipment

previously or subsequently sold. BendPak Ranger is not responsible for typographical errors in this manual. Feel

free to contact us at any time to get the latest information about any product: rangerproducts.com.

Warranty. The BendPak Ranger warranty is more than a commitment to you: it is also a commitment to the

value of your new product. For full warranty details, contact your nearest BendPak Ranger dealer or visit

bendpak.com/support/warranty. Go to bendpak.com/support/register-your-product/ and fill out

the online form to register your product (be sure to click Submit).

Safety.Your new product was designed and manufactured with safety in mind. Your safety also depends on

proper training and thoughtful operation. Do not set up, operate, maintain, or repair the unit without reading and

understanding this manual and the labels on it;

do not use this product unless you can do so safely!

Owner Responsibility. In order to maintain your product properly and to ensure operator safety, it is the

responsibility of the product owner

to read and follow these instructions

• Follow all setup, operation, and maintenance instructions.

• Make sure product setup conforms to all applicable local, state, and federal codes, rules, and regulations,

such as state and federal OSHA regulations and electrical codes.

• Read and follow all safety instructions. Keep them readily available for operators.

• Make sure all operators are properly trained, know how to safely operate the unit, and are properly supervised.

• Do not operate the product until you are certain that all parts are in place and operating correctly.

• Carefully inspect the product on a regular basis and perform all maintenance as required.

• Service and maintain the unit only with approved replacement parts.

• Keep the manual with the product and make sure all labels are clean and visible.

Only use this product if it can be used safely!

Unit Information. Enter the Model Number, Serial Number, and the Date of Manufacture from the label on your

unit. This information is required for part or warranty issues.

Model:

Serial:

Date of Manufacture: __________________________

RD-20SE Rolling Air Evacuated Oil Drain 3P/N 5900327 — Rev. A — February 2022

Table of Contents

Introduction 3 Assembly 7

Shipping Information 3 Operation 8

Safety Considerations 4 Maintenance 10

Specifications 6 Maintenance Log 11

Components 6

Introduction

This manual describes the RD-20SE Rolling Air Evacuation Oil Drain.

More information about the full line of Ranger Products is available at rangerproducts.com.

This manual is mandatory reading for all users

of the RD-20SE, including anyone who

assembles, operates, maintains, or repairs it.

⚠DANGER Be very careful when setting up, operating, maintaining, or repairing this equipment;

failure to do so could result in property damage, product damage, injury, or (in very

rare cases) death. Make sure only authorized personnel operate this equipment. All

repairs must be performed by an authorized technician. Do not make modifications

to the unit; this voids the warranty and increases the chances of injury or property

damage. Make sure to read and follow the instructions on the labels on the unit.

Keep this manual on or near the equipment so that anyone who uses or services it can read it.

Technical support for your Balancer is available from your distributor or directly from BendPak Ranger:

using a web browser, visit the BendPak Support website, click on +New support ticket, and

then fill in and submit a Support Ticket (make sure to click the Submit button at the bottom).

Shipping Information

Your equipment was carefully checked before shipping. Nevertheless, you should thoroughly inspect

the shipment

before

you sign to acknowledge that you received it.

When you sign the bill of lading, it tells the carrier that the items on the invoice were received in good

condition.

Do not sign the bill of lading until

after

you have inspected the shipment.

If any of the

items listed on the bill of lading are missing or damaged, do not accept the shipment until the carrier

makes a notation on the bill of lading that lists the missing or damaged goods.

If you discover missing or damaged goods

after

you receive the shipment and have signed the bill of

lading, notify the carrier at once and request the carrier to make an inspection. If the carrier will not

make an inspection, prepare a signed statement to the effect that you have notified the carrier (on a

specific date) and that the carrier has failed to comply with your request.

RD-20SE Rolling Air Evacuated Oil Drain 4P/N 5900327 — Rev. A — February 2022

It is difficult to collect for loss or damage after you have given the carrier a signed bill of lading. If this

happens to you, file a claim with the carrier promptly. Support your claim with copies of the bill of

lading, freight bill, invoice, and photographs, if available. Our willingness to assist in helping you

process your claim does not make us responsible for collection of claims or replacement of lost or

damaged materials.

Safety Considerations

Read this entire manual carefully before using your new product.

Do not install or

operate the product until you are familiar with all operating instructions and warnings. Do not allow

anyone else to operate the product until they are familiar with all operating instructions and warnings.

⚠WARNING California Proposition 65. This product can expose you to chemicals including

styrene and vinyl chloride which are on the list of over 900 chemicals identified by

the State of California to cause cancer, birth defects or reproductive harm. Always

use this product in accordance with BendPak’s instructions. For more information,

visit www.p65warnings.ca.gov.

Safety Information

Please note the following:

•The product is a Rolling Air Evacuation Oil Drain.

Use it only for its intended purpose.

•This safety information and the warnings throughout this manual cannot cover all possible

conditions and situations that may occur. It must be understood by the operator that common

sense and caution are required at all times when using this equipment.

•Read and understand all warnings, safety precautions and instructions prior to use.

•

Do not drain caustic or volatile fluids or fuels into the RD-20SE!

These Fluids could

cause damage to the equipment and personal injury.

•Do not weld to the RD-20SE tank or its supporting structures.

•The product should only be operated by authorized personnel. Keep children and untrained

personnel away from the product.

•When using the product, wear appropriate personal safety equipment, work clothes and ANSI-

approved safety goggles. Do not wear loose clothing or jewelry. Keep hair and clothing away from

moving parts. Always comply with the personal protective equipment required by the fluid

manufacturer.

•Automotive Fluids may be hot and cause severe burns or injury to skin and eyes! Temperatures

can exceed 220°F / 104°C. Allow engine and oil to cool before opening the system and removing

oil.

•Some oil systems may be under pressure; opening these systems while hot can cause oil to be

sprayed forcefully and injury may result.

•Compressed air can be dangerous.

Never

point compressed air nozzles or fittings at yourself or

anyone near you.

•

Never

exceed the rated input air pressure of 120 psi / 8 bar

•

Never

pressurize the Rolling Drain Tank with the 2"Ball Valve open!

•Used oils are flammable, keep away from open flames or other ignition sources.

•Always comply with local, state and national regulations for the disposal of Waste Fluids.

RD-20SE Rolling Air Evacuated Oil Drain 5P/N 5900327 — Rev. A — February 2022

•Repair leaks and clean fluid spills immediately.

•Do not use the product while tired or under the influence of drugs, alcohol, or medication.

•Do not use the product in the presence of cigarette smoke, dust, or flammable liquids or gases.

•Always disconnect from Compressed Air after emptying the RD-20SE.

•

Never

alter or make any modifications to the product.

•Use the unit on a dry, clean, flat concrete surface.

•Make sure all operators read and understand the Installation and Operation Manual. Keep the

manual near the device at all times.

•Make a visual inspection of the product before using it each time. Do not use the product if you

find any missing or damaged parts. Instead, take the unit out of service, then contact an authorized

repair facility, your distributor, or Ranger Products at (805) 933-9970.

•BendPak Ranger recommends making a

thorough

inspection of the product at least once a year.

Replace any damaged, cracked or severely worn parts, decals, or warning labels.

Contact BendPak for parts replacement information (please have the model and serial number of

your unit available) at (800) 253-2363, extension 191.

Important Safety Information

When using this equipment, basic safety precautions should always be followed, including:

•Read all instructions. Use only as described in this manual.

•Make sure all operators read and understand this Installation and Operation Manual.

Keep the

manual near the Oil Drain at all times

. The Oil Drain should only be operated by authorized

personnel. Keep children and untrained personnel away.

Symbols

Following are the symbols used in this manual:

⚠DANGER Calls attention to a hazard that will result in death or injury.

⚠WARNING Calls attention to a hazard or unsafe practice that could result in death or injury.

⚠CAUTION Calls attention to a hazard or unsafe practice that could result in personal injury,

product damage, or property damage.

NOTICE Calls attention to information that can help you use your equipment better.

Liability Information

BendPak Ranger assumes no liability for damages resulting from:

• Use of the equipment for purposes other than those described in this manual.

• Modifications to the equipment without prior, written permission from BendPak Ranger.

• Damage to the equipment from external influences.

• Incorrect operation of the equipment.

RD-20SE Rolling Air Evacuated Oil Drain 6P/N 5900327 — Rev. A — February 2022

Specifications

Funnel Diameter 16" / 406 mm

Adjustable Height 52" - 83" / 1,321 - 2108 mm

Fluid Capacity 20 Gallons / 75.7 Liters

Discharge Hose 10 feet / 3 meters

Weight Empty 82 lbs. / 37 kg

Shipping Dimensions 18" x 18" x 45" / 457 mm x 457 mm x 1,143 mm

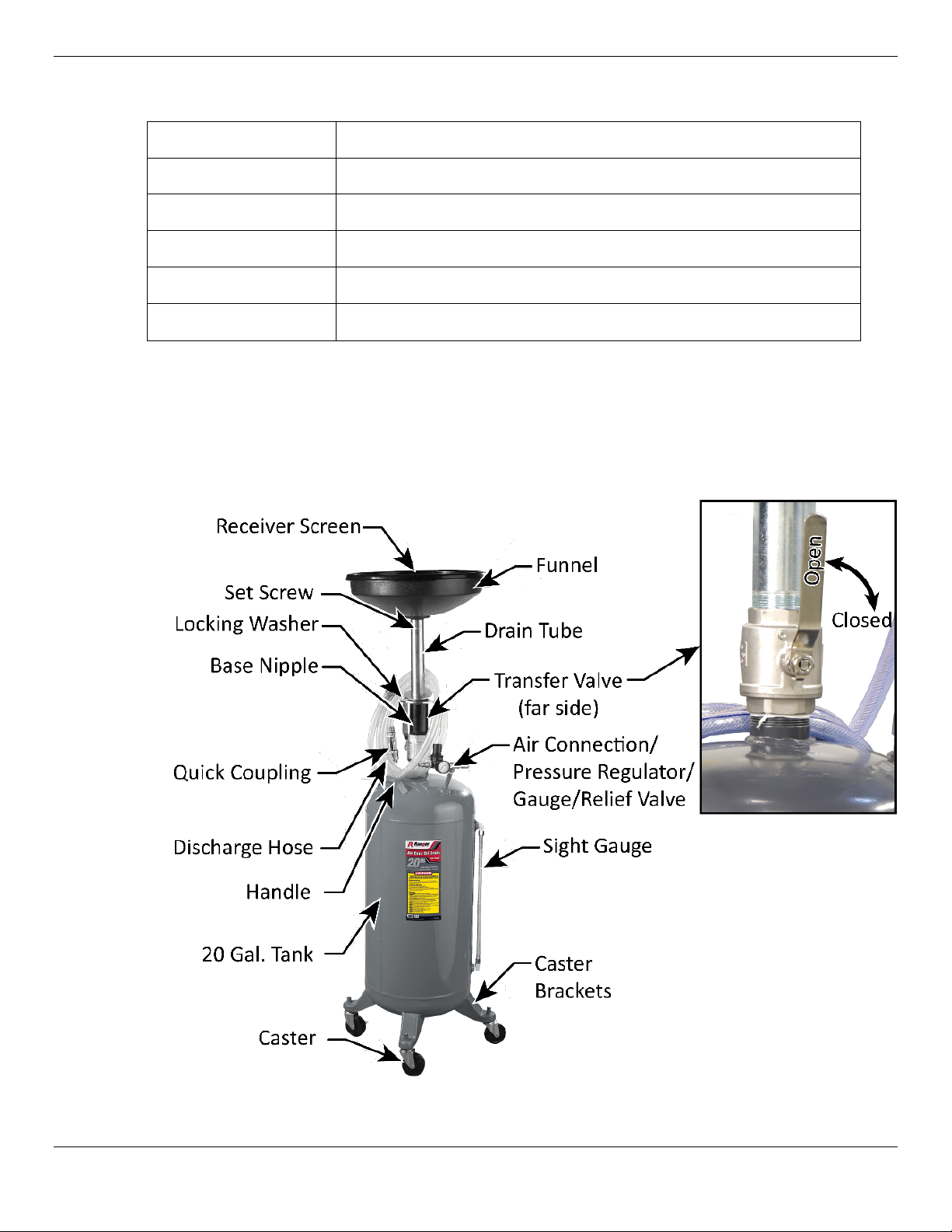

Components

The figure below details the major components of the RD-20SE.

RD-20SE Rolling Air Evacuated Oil Drain 7P/N 5900327 — Rev. A — February 2022

Assembly

Complete the assembly of your Rolling Air Evacuated Oil Drain by following the instructions below.

1. Insert the four Casters in the Caster Brackets at the bottom of the Tank and secure with the

Retaining Rings.

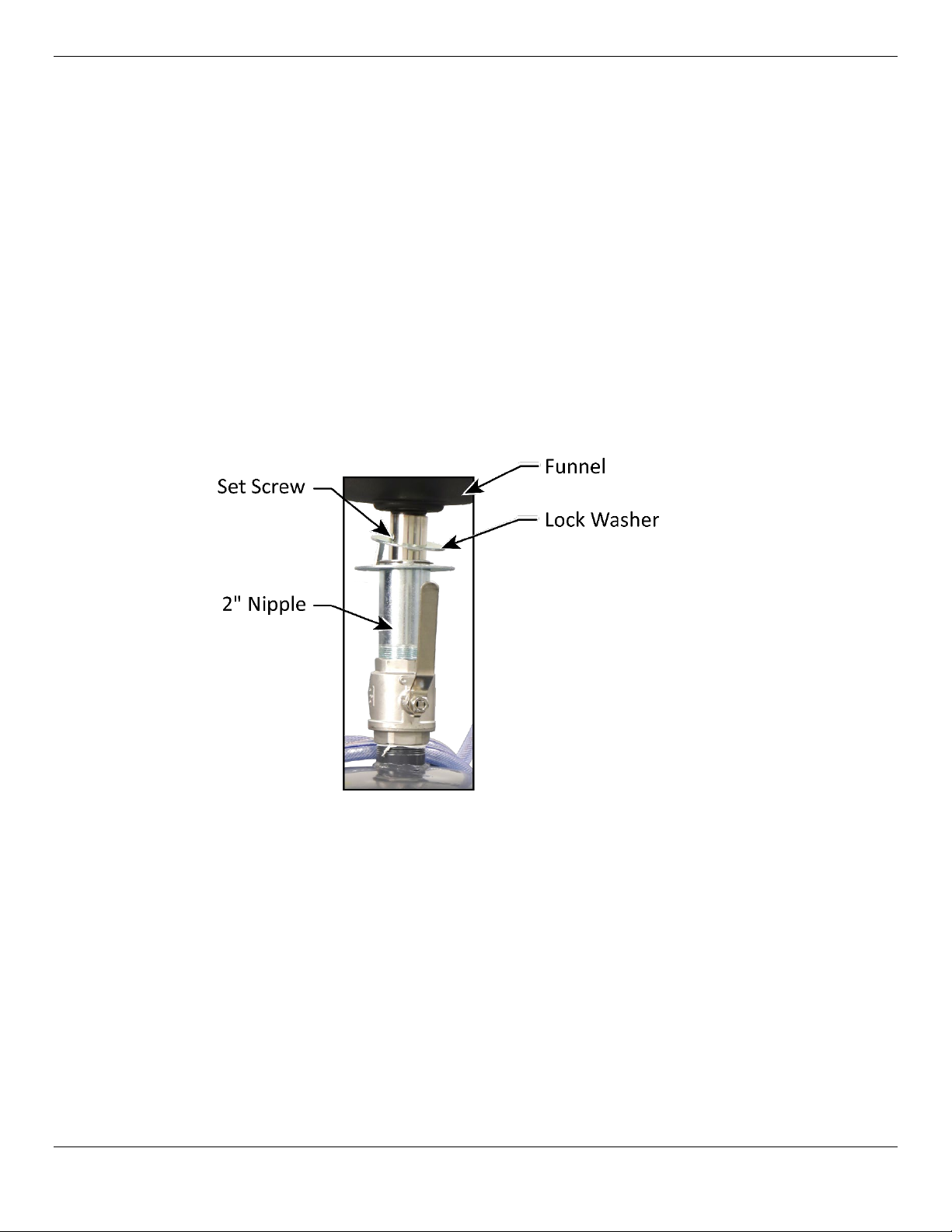

2. Thread the 2" Base Nipple into the Oil Transfer Valve on top of the Tank.

This Nipple should be

hand tight, do not use a wrench to tighten

3. Verify the Oil Transfer Valve is fully open, (Valve handle is vertical) then Insert the Drain Tube into

the 2" Nipple.

4. Slide the Drain Tube Lock washer onto the Drain Tube (tab end down) as pictured below.

5. Insert the Funnel into the Drain Tube and secure using the Setscrew on the side of the Drain Tube.

6. Place the Receiver Screen in the recessed area inside of the Funnel.

7. Attach the female Quick Coupler onto the end of the Oil Discharge Hose.

RD-20SE Rolling Air Evacuated Oil Drain 8P/N 5900327 — Rev. A — February 2022

Operation

To Drain Oil from a Vehicle:

1. Verify there is room in the Tank for the waste Oil. Inspect the Sight Gauge on the side of the Tank.

The Tank should be considered full, and should be emptied, when the waste oil is near the top of

the Sight Gauge.

2. Verify the Receiver Screen is in place in the Funnel. This screen will prevent Drain Plugs, tools or

other components accidentally dropped into the Funnel from being swept into the Tank

3. Use the Handles at the top of the Tank to move the Oil Drain under the Vehicle until the Funnel is

directly under the Oil Pan Drain Plug.

4. Verify the Rolling Oil Drain is stable on a level surface capable of supporting its weight.

⚠WARNING Use the Rolling Oil Drain on smooth level surfaces only. Sloped surfaces may cause

the Rolling Drain to move or tip.

⚠WARNING Provide fresh air ventilation to avoid the accumulation of flammable fumes.

Extinguish all open flames, do not smoke in the area.

5. Open the Oil Transfer 2" Ball Valve on the Oil Drain Tube. The Oil Transfer Valve Handle is Vertical

when the Valve is open.

6. Move the Funnel up by grasping the upper portion of the Drain Tube and pulling up to the desired

height.

7. Open the Vehicle’s Oil Pan Drain Plug and allow gravity to drain the Oil into the Funnel.

8. Replace the Vehicle’s Oil Drain Plug when the Oil has completely drained from the Vehicle.

9. Lower the Oil Drain Funnel by grasping the upper portion of the Drain Tube with one hand while

lifting up on the Lock Washer at the Base of the Drain Tube with the other hand, then sliding the

Drain Tube downward.

RD-20SE Rolling Air Evacuated Oil Drain 9P/N 5900327 — Rev. A — February 2022

To Empty the Air Evacuation Oil Drain:

⚠WARNING: An RD-20SE fully loaded with oil can weigh in excess of 200 lbs. / 90 kg. Handle

with care and use assistance when moving. Empty the Rolling Oil Drain often.

1. Move the RD-20SE close to the Waste Oil Container.

2. Close the Oil Transfer 2" Ball Valve. The Valve Handle is horizontal when the Valve is closed. You

may have to raise the Funnel to close the Valve.

3. Connect one end of the Discharge Hose to the Quick Disconnect on top of the Tank.

4. Connect the other end of the Oil Discharge Hose to the used oil storage container.

⚠CAUTION Secure the end of the Discharge Hose to the Oil Storage Container! The

Compressed Air and Oil may exert enough force to move the discharge hose in an

unpredictable manner spraying oil over the area.

5. Verify the Compressed Air Regulator is closed. Maximum compressed air supply pressure is 120

psi / 8 Bar. Do not overpressure.

6. Attach the Compressed Air Supply to the Oil Drain Tank at the Quick Disconnect plumbed to the

Regulator and Pressure Gauge.

7. Slowly open and adjust the Air Regulator to apply pressure to the Oil Drain Tank. Use only enough

pressure to evacuate the Tank.

8. When the Tank is empty, close the Compressed Air Supply Valve and disconnect the compressed

air supply from the tank.

9. Disconnect the Discharge Hose from the Tank at the Quick Disconnect.

10. Keeping the Quick Disconnect above the level of the Waste Fluid Container, slowly gather the

Discharge Hose and drain the remaining Oil in the Hose into the Waste Fluid container.

11. Clean any spilled Oil immediately and dispose of oily rags or oil absorbent material in accordance

with all national, state and local regulations.

RD-20SE Rolling Air Evacuated Oil Drain 10 P/N 5900327 — Rev. A — February 2022

Maintenance

If any worn or broken components are found, take the unit out of service and arrange for repair. Do not

use this unit until it is safe

⚠WARNING: Always wear appropriate personal protective equipment

while performing any

maintenance!

To maintain your Rolling Air Evacuation Oil Drain:

•Keep the Rolling Oil Drain clean and free of debris and dirt.

•All exposed surfaces of the Oil Drain may be brushed clean and wiped with a weak solution of

soap and water to remove grease and oil.

•Regularly wipe clean the Pressure Relief Valve, Pressure Gauge and Quick Connectors.

•Verify the 2" Oil Transfer Ball Valve is opening and closing completely. If the valve sticks or will not

completely open/close then disassemble and clean debris from the valve.

•Inspect for leaks and dispose of waste oil in accordance with all local, state, and federal

regulations.

•Check Casters and Brackets for damage and wear. Replace as required.

⚠WARNING Do not operate your Air Evacuation Oil Drain if you find issues; instead, take the unit

out of service, then contact your dealer, visit rangerproducts.com/support/, or call (805) 933-

9970.

Inhaltsverzeichnis

Andere Ranger Wasserpumpe Handbücher

Ranger

Ranger RD-18G Bedienungsanleitung

Beliebte Wasserpumpe Handbücher anderer Marken

Neptun

Neptun NPHW 5500 Bedienungsanleitung

Sensidyne

Sensidyne Gilian BDX-II Montage- und Bedienungsanleitung

Draper

Draper 47808 Bedienungsanleitung

Trolla

Trolla 12820 Bedienungsanleitung

Sunfab

Sunfab SVH Series Bedienungsanleitung

WilTec

WilTec 50740 Bedienungsanleitung

Fieldmann

Fieldmann FVC 5015 EK Bedienungsanleitung

Everbilt

Everbilt EFSUB5-122HD Bedienungsanleitung

Graco

Graco Husky 3300e Bedienungsanleitung

esotec

esotec 101018 Bedienungsanleitung

moyno

moyno 2000 CC Bedienungsanleitung

Becker

Becker BASIC VASF 2.80/1-0.AC230 Bedienungsanleitung

Sykes AmeriPumps

Sykes AmeriPumps GP100M Fehlerbehebungshandbuch

DUROMAX

DUROMAX XP WX Series Bedienungsanleitung

BRINKMANN PUMPS

BRINKMANN PUMPS SBF550 Bedienungsanleitung

Franklin Electric

Franklin Electric IPS Bedienungsanleitung

Xylem

Xylem e-1532 Series Bedienungsanleitung

Milton Roy

Milton Roy PRIMEROYAL Bedienungsanleitung
